N52 Engine Serpentine Belt Diagram for Accurate Routing and Maintenance

Inspect the serpentine belt routing carefully before attempting any adjustments on an N52 engine. The belt drives multiple accessories including the alternator, water pump, power steering pump, and air conditioning compressor. Misalignment can lead to premature wear or accessory failure.

Use the factory belt diagram to verify proper routing. The N52 typically features a single serpentine belt looping around the crankshaft pulley, tensioner, idler pulleys, and accessory pulleys. Identify each pulley clearly and note the direction of rotation for accurate installation.

Check the tensioner pulley for smooth operation and correct tension. A worn tensioner can cause squealing noises or slipping, reducing accessory performance. Replace the tensioner if it shows signs of wear or fails to maintain proper belt tension.

Inspect the belt for cracks, fraying, or glazing along the ribs. Replace the serpentine belt every 60,000–80,000 miles or sooner if any damage is observed. Align the belt properly to prevent misalignment and uneven wear on pulleys.

Maintain clean pulleys and remove any debris that could interfere with belt operation. Lubricate pivot points on the tensioner if necessary, but avoid applying any lubricants directly to the belt surface, as this can degrade the rubber and reduce grip.

N52 Serpentine Belt Diagram Detailed Guide for Accurate Installation

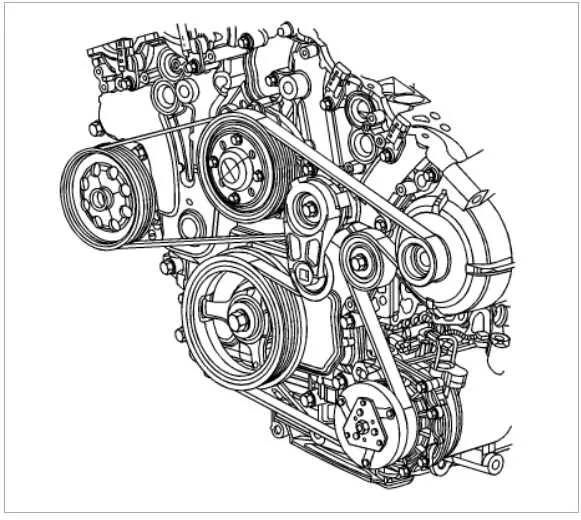

Begin by locating the serpentine belt routing diagram for your specific N52 engine model. Place the diagram where it remains visible during installation. This ensures every pulley aligns correctly and prevents incorrect belt tension.

Identify all key components: the crankshaft pulley, alternator, power steering pump, water pump, and A/C compressor. Confirm the orientation of the belt on each pulley, noting any ribbed or smooth surfaces. Always follow the directional path indicated in the diagram.

Release the belt tensioner using the correct tool and carefully remove the old belt. Compare its length and rib configuration with the new belt to avoid mismatched installation. When routing the new belt, ensure each rib properly seats into its corresponding pulley groove.

Gradually apply tension with the tensioner, checking that the belt sits evenly across all pulleys. Rotate the engine manually for two full revolutions to confirm proper alignment and tension. Adjust the belt if it appears misaligned or slips from any pulley.

Double-check every connection point, especially around the alternator and power steering pump, as misalignment here can cause premature wear. After installation, run the engine at idle and observe the belt for smooth operation, listening for unusual noises or vibrations.

Maintain a record of the belt type, length, and installation date for future reference. Follow manufacturer torque specifications for tensioners and accessory mounts to prevent damage and ensure long-term reliability.

Locating and Identifying All Components in the N52 Serpentine Belt System

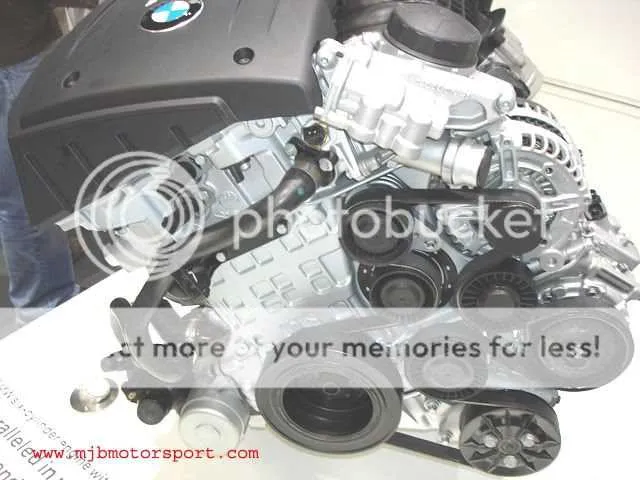

Start by positioning yourself at the front of the engine and locating the serpentine belt routing diagram, usually found on the radiator shroud or under the hood. This visual guide helps you trace each component accurately.

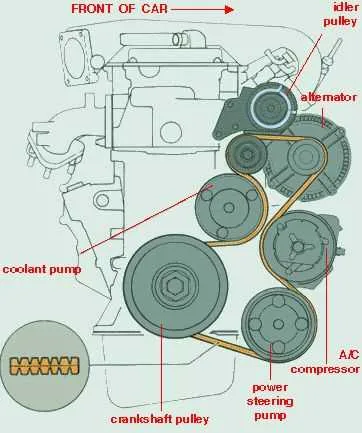

Identify the following key components along the belt path:

• Crankshaft Pulley: The primary drive pulley at the bottom center of the engine. It powers the belt system and sets tension for other pulleys.
• Alternator: Positioned near the top of the engine, typically on the passenger side. It generates electricity and maintains battery charge.
• Power Steering Pump: Located on the driver’s side, usually mid-engine height. Check for smooth rotation and secure mounting.
• Water Pump: Often mounted behind the crankshaft pulley, directing coolant through the engine. Confirm belt wraps around it correctly.
• Air Conditioning Compressor: Mounted low on the engine’s passenger side. Ensure the belt contacts the pulley fully for proper AC operation.
• Idler Pulleys: Smaller pulleys along the belt path that guide tension. Identify each by its smooth rotation and placement between major components.
• Tensioner Pulley: Spring-loaded and usually positioned near the front center. Use a wrench to relieve tension and check for free movement.

Follow the belt path clockwise or counterclockwise as indicated by the diagram, confirming each pulley’s position and rotation direction. Ensure the belt sits fully within each pulley groove and verify that tensioner alignment keeps the belt tight without slippage.

After identifying all components, perform a final visual inspection to confirm that no pulley or belt shows misalignment or damage. Accurate component recognition reduces installation errors and prevents premature belt wear.

Step-by-Step Routing Instructions for Correct Belt Placement

Begin by positioning the N52 serpentine belt around the crankshaft pulley, ensuring it sits in the pulley groove securely. Next, loop the belt around the alternator pulley, keeping tension on the top side to prevent slippage. Guide the belt over the water pump pulley, making sure it aligns with all grooves for smooth rotation.

Continue by routing the belt around the power steering pump pulley. Pay close attention to the belt orientation; the ribbed side must contact the pulley faces. Move the belt across the idler pulley to maintain proper alignment and tension. Then, pass the belt under the tensioner pulley, using a wrench to rotate the tensioner and allow enough slack for installation.

Ensure the belt wraps correctly around the A/C compressor pulley, following the precise path indicated in the N52 diagram. Release the tensioner gradually to engage the belt fully. Verify that the belt sits evenly in all pulley grooves without twisting or overlapping. Rotate the crankshaft manually two full turns to confirm smooth operation and correct routing.

Double-check the belt path against the diagram, focusing on alignment across all pulleys. Adjust the belt position on any pulley that shows misalignment. Confirm the tensioner maintains proper tension and that the belt rides flat on each pulley. Completing these steps secures correct belt placement, reducing risk of premature wear or operational issues.

Troubleshooting Common Belt Issues and Maintaining Proper Tension

Check the serpentine belt for visible cracks, fraying, or glazing on the ribs. A worn belt can cause squealing or slipping under load. Replace any belt showing surface damage immediately to prevent component failure.

Inspect the belt alignment across all pulleys. Misalignment leads to uneven wear and can damage tensioners. Use a straightedge or visual inspection to ensure the belt sits correctly on each pulley groove.

Test the belt tension by pressing on the longest span between pulleys. For the N52 engine, the deflection should be approximately 10–12 mm under moderate thumb pressure. Adjust tension using the automatic tensioner or replace the tensioner if it no longer maintains proper force.

Listen for unusual noises while the engine runs. High-pitched squeals indicate slippage, while grinding or chirping may signal a worn pulley or tensioner. Rotate pulleys by hand to detect rough movement or binding, replacing faulty components as needed.

Clean the pulleys and belt path of oil, dirt, and debris. Contamination reduces grip and accelerates wear. Wipe each pulley and ensure the belt grooves are free of residue before reinstalling the belt.

Schedule regular inspections every 20,000–25,000 km or at each service interval. Early detection of belt wear or tensioner issues prevents engine overheating, alternator failure, and power steering loss.
