Mini Cooper Serpentine Belt Diagram and Routing Guide for Maintenance
Understanding the serpentine belt layout in your Mini Cooper can prevent costly repairs and ensure optimal engine performance. The serpentine belt, often referred to as the accessory drive belt, powers critical components such as the alternator, power steering pump, and air conditioning compressor. Having a clear diagram will guide you in identifying any potential issues like wear or misalignment, saving you time and money in maintenance.
For most Mini Cooper models, the serpentine belt follows a specific path around various pulleys and tensioners. Refer to the belt routing diagram under the hood or consult the owner’s manual for exact specifications. This diagram is crucial during replacements, as improper installation can cause excessive wear or even belt failure, affecting engine function.
When replacing or inspecting the serpentine belt, focus on the tensioner’s condition as well. A worn-out tensioner can cause the belt to slack, resulting in poor performance. If the belt shows any signs of cracking, fraying, or glazing, replace it immediately to avoid further damage to the engine components.
Mini Cooper Serpentine Belt Diagram
The serpentine belt in a Mini Cooper drives several essential components like the alternator, power steering pump, and air conditioning compressor. To avoid issues during replacement or maintenance, follow the specific routing shown in the diagram.

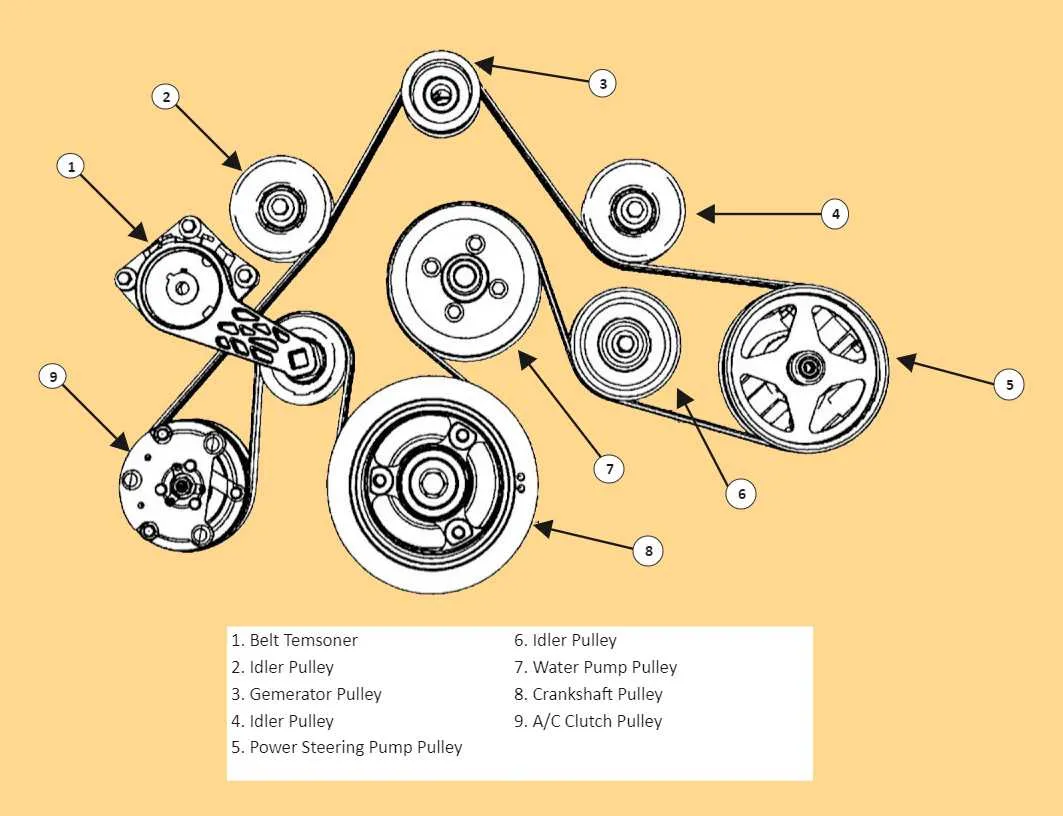

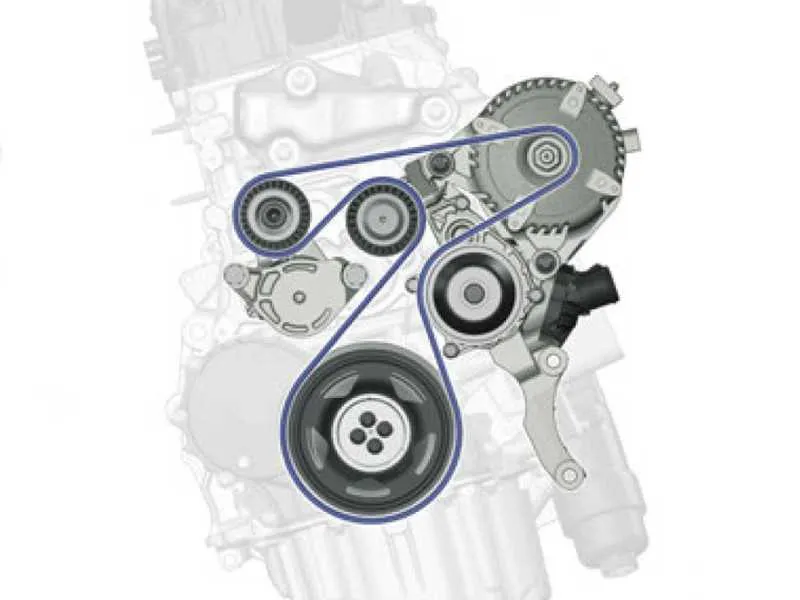

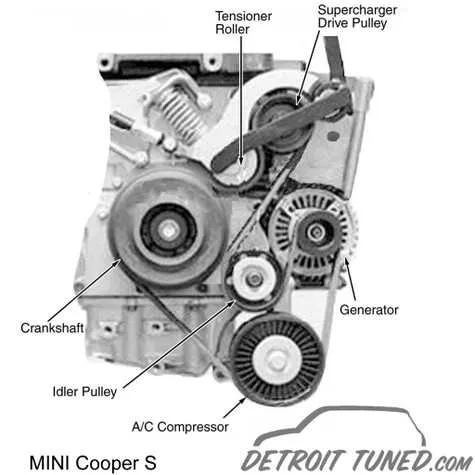

The diagram typically shows a belt running through pulleys, with a tensioner at one end to maintain the proper tension. The routing is designed to ensure the belt operates smoothly, minimizing wear and maximizing efficiency.
For easier installation or troubleshooting, identify key points in the diagram:
1. Tensioner pulley – this is the adjustable pulley that keeps the belt tight.
2. Alternator pulley – located on the side of the engine, responsible for charging the battery.
3. AC compressor pulley – located near the front, driving the air conditioning system.
Be sure to follow the exact sequence shown in the diagram to avoid over-tensioning or misalignment. Misplaced belts can cause excessive wear or damage to engine components, leading to costly repairs.
If you’re unsure about the belt routing, consult your vehicle’s manual or get an updated diagram based on your Mini Cooper’s model year for precise details.
How to Identify the Correct Serpentine Belt Diagram for Your Mini Cooper
Check your Mini Cooper’s vehicle manual for the most accurate serpentine belt diagram. The diagram is typically located in the maintenance section or on a sticker near the engine bay. If you don’t have the manual, you can find the correct diagram on the Mini Cooper’s official website or other reputable automotive sources.
Next, ensure you know your Mini Cooper’s model year and engine type. Different years and models may have slight variations in their serpentine belt systems. For instance, a 2007 Mini Cooper S may have a different configuration compared to a 2014 Mini Cooper base model.
Use a service manual or online database, such as Alldata or Haynes, which often provide specific diagrams based on vehicle details. These sources typically offer clear illustrations of the belt routing and all associated components like pulleys and tensioners.
If you can’t find a diagram through these channels, check under the hood. Some Minis have a sticker or label directly in the engine compartment that shows the correct belt routing. It’s usually placed on the radiator support, inside the hood, or near the front of the engine.
Lastly, verify the belt part number and size. The correct belt size should match the specifications for your specific Mini Cooper model. If in doubt, consult an auto parts store or a Mini dealer for advice, as they can confirm the right belt diagram for your car.
Step-by-Step Guide to Replacing the Serpentine Belt in Mini Cooper Models
Replacing the serpentine belt in your Mini Cooper is straightforward if you follow these steps.
- Gather the necessary tools: A 3/8″ ratchet wrench, serpentine belt tool, and a new serpentine belt that matches your Mini Cooper model.
- Locate the serpentine belt: It’s usually found at the front of the engine. In most Mini Cooper models, it runs around various pulleys connected to accessories like the alternator, power steering pump, and air conditioning compressor.
- Release tension on the belt: Using the serpentine belt tool or a ratchet wrench, rotate the tensioner pulley counterclockwise to relieve tension from the belt. This will make it easier to remove the old belt.
- Remove the old belt: Once the tension is released, slide the belt off the pulleys. Pay attention to how it’s routed so you can install the new one correctly.
- Install the new serpentine belt: Route the new belt around the pulleys according to the diagram on the engine bay. Make sure it fits snugly in all grooves and around each pulley without twisting.
- Apply tension: Use the serpentine belt tool or ratchet wrench to rotate the tensioner pulley again and allow the new belt to fit tightly in place.
- Double-check the installation: Ensure the belt is aligned with all pulleys and there’s no slack or misalignment.
- Test the belt: Start the engine and observe the new belt in action. Listen for any unusual noises and confirm the belt runs smoothly.
With these steps, you should be able to replace the serpentine belt in your Mini Cooper quickly and effectively. Keep the old belt as a reference for routing, and always ensure the new belt is properly installed to avoid further issues.
Troubleshooting Common Serpentine Belt Issues in Mini Cooper
If your Mini Cooper’s serpentine belt is squeaking, slipping, or causing unusual engine noises, inspect the belt for wear or damage. A worn-out belt may be the culprit if the surface is cracked, frayed, or has noticeable glazing. If the belt is loose, check the tensioner to ensure it’s functioning correctly. A faulty tensioner can lead to slack, making it harder for the belt to drive essential components like the alternator and air conditioning compressor.
To identify a slipping belt, listen for a high-pitched squeal, especially when starting the car. This can indicate that the belt is not gripping properly. Check for oil or coolant leaks near the serpentine system, as these fluids can cause the belt to slip. If fluid contamination is present, clean the area and replace the affected seals.
Another common issue is the misalignment of the pulleys. If you notice uneven wear or a deviation in the belt’s path, inspect the pulleys for damage. A misaligned pulley can cause the belt to wear prematurely, affecting its performance. In some cases, replacing the pulley may resolve the issue.
Sometimes, a stretched belt can be the issue. If the belt appears elongated or loose despite proper tension, it may need replacement. A stretched serpentine belt doesn’t maintain the proper tension, causing power loss in the car’s accessories.
Finally, ensure that the belt’s routing is correct. An incorrect installation can lead to excessive strain, causing it to fail prematurely. Always double-check the belt diagram to confirm the correct path before installation.
