G37 Serpentine Belt Routing Diagram and Installation Guide

If you’re looking to replace or inspect the serpentine belt in your Infiniti G37, understanding the correct routing is key. A well-maintained serpentine belt ensures the smooth operation of vital components like the alternator, power steering pump, and air conditioning compressor. Below is a detailed diagram that shows the proper alignment and routing for your vehicle’s serpentine belt system.

To make the process easier, use this diagram to identify each component that the belt drives. Start by locating the tensioner pulley, which allows you to relieve the tension and remove the belt. Pay close attention to the direction of the belt and the exact placement on each pulley. A misaligned belt can cause noise or premature wear on your car’s components.

Regular inspection of the serpentine belt is recommended to avoid sudden failures that could leave you stranded. Ensure there are no visible cracks or fraying along the belt’s surface. Follow the diagram carefully for the correct installation to ensure all accessories work efficiently, and your engine runs smoothly.

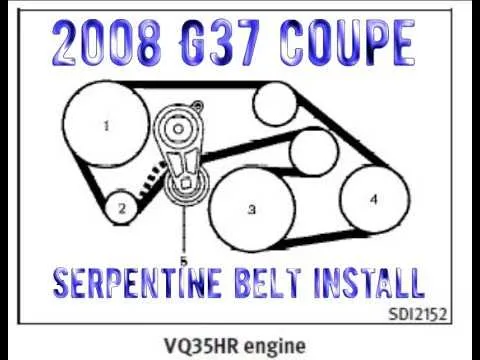

G37 Serpentine Belt Diagram

The serpentine belt in a G37 is responsible for powering multiple engine components, including the alternator, power steering pump, air conditioning compressor, and more. Understanding its layout helps when replacing the belt or diagnosing issues.

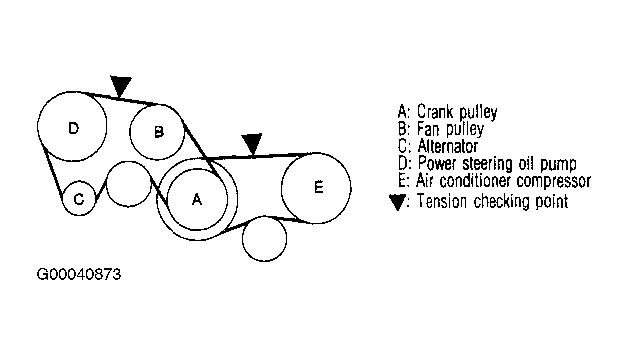

The G37 serpentine belt follows a specific route around pulleys and tensioners. The diagram shows a single continuous belt that wraps around the crankshaft pulley, alternator, water pump, power steering pump, and AC compressor. It’s essential to ensure the belt is installed with the correct orientation, as an improper fit can cause slipping or excessive wear.

Before replacing the belt, check the tensioner’s condition. A faulty tensioner can result in a loose belt, leading to poor performance or damage to the components it drives. If you’re replacing the serpentine belt, make sure to follow the manufacturer’s recommendations for belt routing to avoid future issues.

For easier maintenance, always keep a diagram of the serpentine belt handy or take a photo of the current configuration before disassembling. Having this reference helps avoid confusion during reassembly.

If you’re experiencing squealing or unusual noises from the belt, inspect it for signs of wear, cracks, or glazing. It’s a good idea to replace the serpentine belt every 60,000 to 100,000 miles, depending on usage and environmental factors.

Understanding the Serpentine Belt Layout for Nissan G37

The serpentine belt on the Nissan G37 plays a key role in driving various engine components, including the alternator, power steering pump, water pump, and air conditioning compressor. To ensure the belt works efficiently, understanding its layout and tension is crucial.

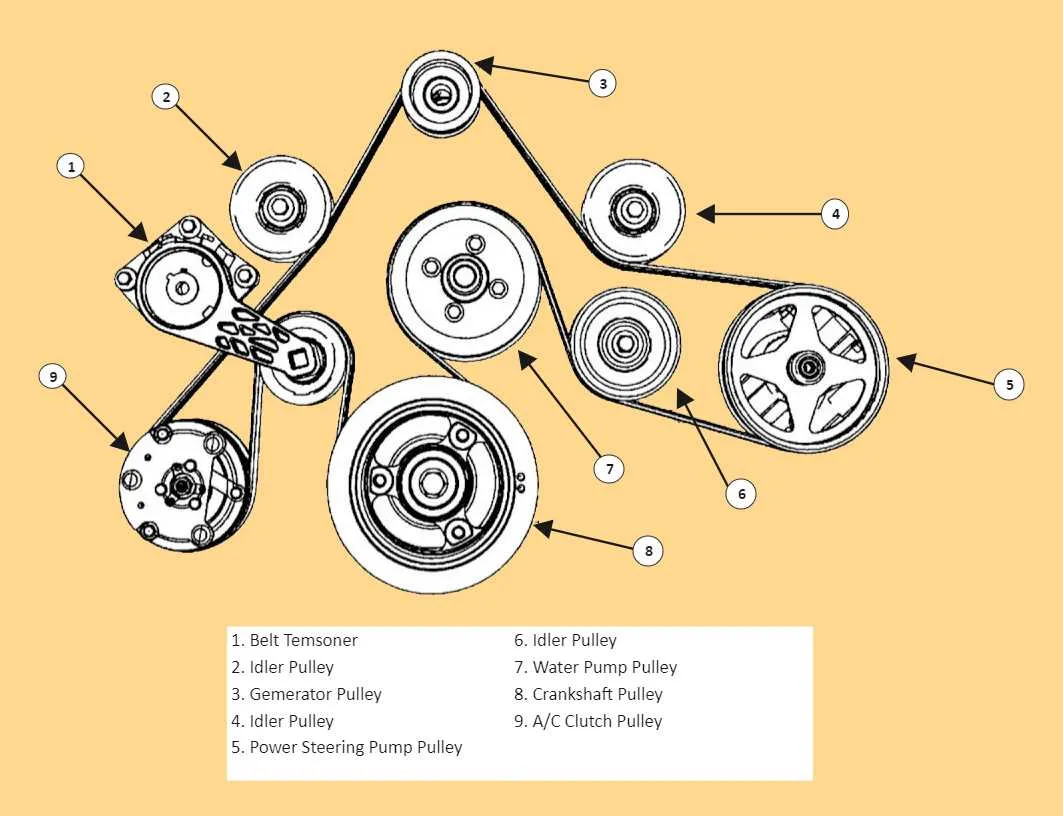

Start by identifying the main components that the serpentine belt drives. These include the alternator, which generates electrical power, the power steering pump, which assists with steering, the air conditioning compressor, and the water pump, which circulates coolant through the engine. The belt layout ensures each component operates smoothly, allowing the engine to function optimally.

For the G37, the serpentine belt typically follows a specific routing. The belt winds around a series of pulleys and tensioners that guide it to the necessary components. Make sure the belt is properly tensioned to prevent slippage or excessive wear. A malfunctioning tensioner can cause the belt to lose tension, which might lead to noise or failure of the components driven by the belt.

If you need to replace the serpentine belt, follow the factory diagram to ensure the belt is routed correctly. Failure to install the belt properly can lead to damage to the components or premature wear on the belt itself. Keep an eye out for signs of wear, such as cracks, fraying, or glazing on the belt’s surface.

Checking the belt for proper alignment is a simple yet effective maintenance step. Misalignment can occur due to pulley wear or incorrect belt installation, both of which can cause the belt to slip or fail. Ensure all pulleys are in good condition and properly aligned before installing a new belt.

By regularly inspecting the serpentine belt and ensuring its proper installation, you can avoid potential issues and extend the life of both the belt and the engine components it drives.

Step-by-Step Guide to Replacing the Serpentine Belt in G37

Before you begin, make sure the engine is cool and the car is parked on a level surface. Disconnect the negative terminal of the battery to prevent any electrical accidents.

Locate the serpentine belt routing diagram, typically found on the radiator support or near the engine bay. This will guide you when installing the new belt.

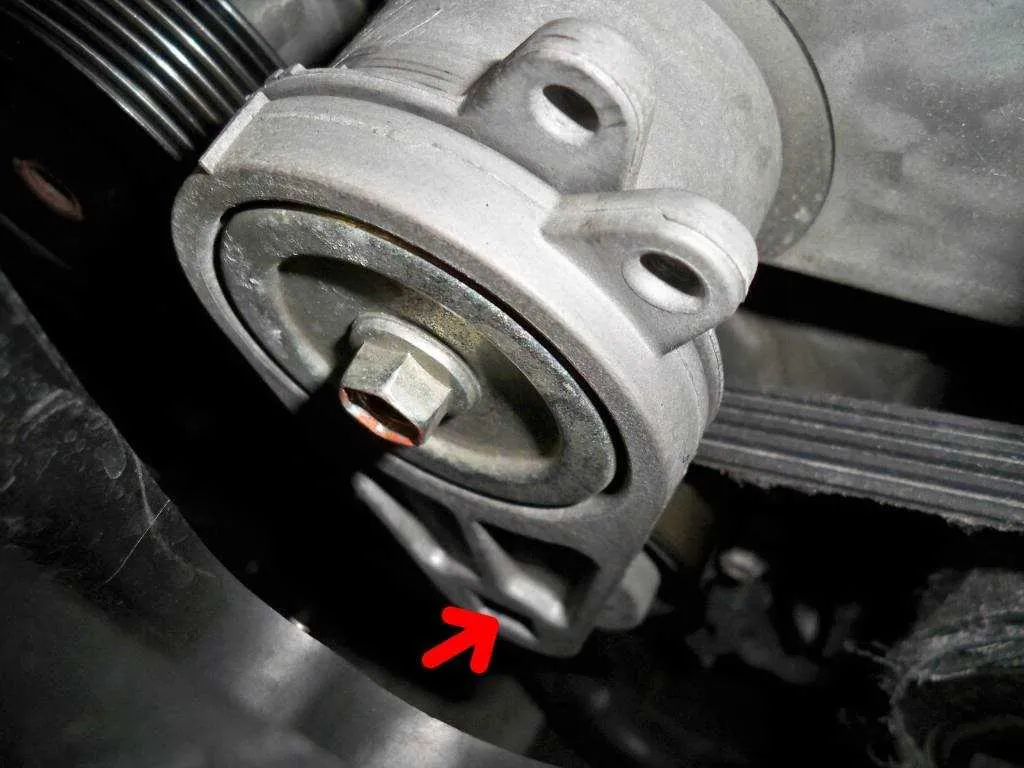

Use a socket wrench to release tension from the belt tensioner. The tensioner is usually spring-loaded, so it may take some force to move it. Once released, remove the old belt from the pulleys.

Inspect the pulleys and other components, such as the alternator, power steering pump, and A/C compressor, for any signs of wear. Rotate each pulley to ensure smooth movement.

Place the new serpentine belt on the pulleys according to the diagram. Start by wrapping it around the largest pulley and work your way through the smaller ones. Ensure it sits properly on each pulley groove.

Once the belt is in place, use the wrench to move the tensioner back into position, allowing it to apply tension to the new belt. Double-check the belt’s alignment to make sure it is seated properly on all pulleys.

Reconnect the negative terminal of the battery. Start the engine and observe the belt’s operation. Listen for any unusual noises and check for proper tension. If everything looks good, you’re done!

Common Issues with G37 Serpentine Belt and How to Troubleshoot

If your G37’s serpentine belt is slipping, squealing, or showing signs of wear, it may be time for an inspection. The serpentine belt plays a crucial role in powering components like the alternator, air conditioning, and power steering. Here’s how to address some common issues:

• Squealing or Chirping Noise: This is often caused by a worn or loose belt. Check the belt tensioner for proper pressure. If the belt appears frayed or cracked, it should be replaced. Ensure the belt is aligned correctly and the pulleys are clean.
• Belt Slippage: Slippage happens when the belt doesn’t maintain sufficient grip on the pulleys. This could be due to worn-out tensioners, or a dirty or damaged belt. Check for proper tension and look for cracks or glazing on the belt surface. Cleaning the pulleys and replacing the tensioner could resolve this issue.
• Belt Wear and Cracking: Inspect the belt for any visible signs of damage such as cracks or splits. This could indicate normal wear or damage from misalignment. Replace the belt if the damage is significant.
• Battery Warning Light: If the serpentine belt is slipping or broken, the alternator might not charge the battery properly, leading to a warning light on the dashboard. Check the belt’s condition and replace if necessary.
• Overheating: The serpentine belt powers the water pump, so a malfunction can cause the engine to overheat. If this occurs, inspect the belt and replace it if damaged. Also, ensure the water pump is functioning correctly.

When troubleshooting, always start with the belt condition and tension. If the belt looks fine but the issue persists, examine the tensioner and pulleys. If necessary, replace damaged components to restore smooth operation.
