How to Replace and Adjust the Serpentine Belt Tensioner on Mazda 3
The serpentine belt tensioner on your Mazda 3 plays a critical role in maintaining proper tension on the serpentine belt, ensuring smooth operation of the engine’s components. If the tensioner malfunctions, it can cause the belt to slip or wear out prematurely, leading to engine performance issues. A visual diagram of the Mazda 3 serpentine belt tensioner can be a useful reference for diagnosing and replacing this part with confidence.
The diagram clearly illustrates the placement of the serpentine belt tensioner in relation to the other engine components. It shows how the belt routes around the pulleys and how the tensioner keeps the belt tight enough to avoid slippage. The tensioner also compensates for any stretching or wear in the serpentine belt over time. Understanding this setup is crucial before you begin any repair or replacement work.
Inspecting and replacing the tensioner can be a straightforward task with the right tools and knowledge. Begin by ensuring the engine is off and cooled down. Use the diagram to locate the tensioner pulley, then release the tension by rotating the tensioner arm with a wrench. Once the belt is loose, remove it and check the tensioner’s condition. If it’s worn or damaged, replacing it with a new part will restore proper belt tension and prevent further issues.
For an accurate replacement, refer to the diagram for the correct routing of the serpentine belt. This will ensure that the belt is aligned properly across all pulleys. A quick reference to the Mazda 3 tensioner diagram will make the process smoother and more efficient, helping you avoid mistakes during installation.

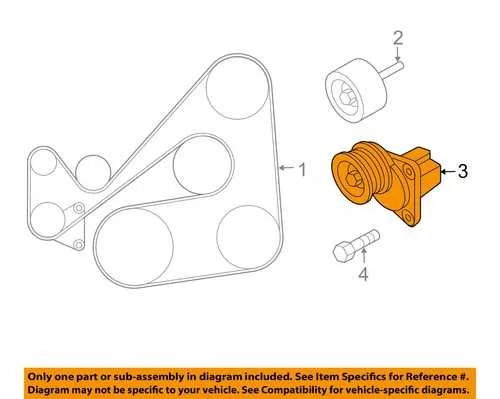

Diagram Mazda 3 Serpentine Belt Tensioner
The serpentine belt tensioner on a Mazda 3 is crucial for maintaining proper tension on the serpentine belt, ensuring all components powered by the belt, like the alternator and air conditioning compressor, run smoothly. If the tensioner is damaged or malfunctioning, it can lead to belt slippage or complete failure, causing engine performance issues. Follow this diagram to better understand the tensioner placement and function.

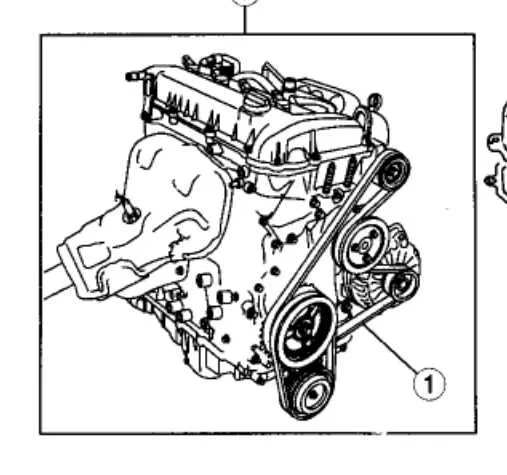

The tensioner is typically located on the front of the engine block, near the serpentine belt pulley system. It consists of a spring-loaded arm that applies pressure to keep the belt taut. The belt wraps around various pulleys, including the crankshaft pulley, the alternator pulley, and others. Understanding the layout helps during maintenance or replacement.
- Tensioner Arm: A spring-loaded arm that presses on the belt to maintain the correct tension.
- Pulley: The tensioner has a pulley attached to the arm, which guides the belt and provides friction to keep it in place.
- Adjuster Bolt: This bolt allows you to adjust the tension of the belt manually if the automatic mechanism fails.
- Spring Mechanism: The spring keeps the tensioner arm in place, ensuring constant pressure on the belt.
If you’re replacing the tensioner or the serpentine belt, follow these steps:
- Locate the tensioner and release the tension by rotating it with a wrench or socket.
- Remove the old serpentine belt carefully, ensuring not to damage any surrounding components.
- Install the new belt according to the belt routing diagram found on the engine bay or owner’s manual.
- Reinstall the tensioner and adjust the tension as needed.
A proper working serpentine belt tensioner will help extend the lifespan of the belt and prevent unnecessary wear and tear on engine components. If you notice squealing or slipping noises, it may indicate a worn tensioner. Regular inspection is key to avoiding more expensive repairs later on.
How to Identify a Faulty Serpentine Belt Tensioner in Mazda 3
Check the tensioner’s pulley for wobbling or irregular movement. If the pulley moves side to side or seems loose, the tensioner may be failing. This can cause the serpentine belt to slip or become misaligned.
Listen for unusual noises such as squealing, whining, or rattling sounds. A faulty tensioner can result in inconsistent tension, leading to belt noise. These sounds often become more pronounced at startup or under load.
Inspect for visible damage to the tensioner. Cracks, rust, or excessive wear on the tensioner spring or pulley indicate that it is no longer functioning properly. Any signs of oil leakage around the area should also be addressed.
Test the belt’s tension manually. With the engine off, press down on the serpentine belt. If there is excessive slack or the belt can be moved easily, the tensioner might not be applying enough force to keep the belt tight.
Check for belt wear. Uneven or frayed edges on the serpentine belt can result from a faulty tensioner failing to maintain even tension. If the belt appears worn in certain areas more than others, the tensioner is likely the cause.
Step-by-Step Guide to Replacing the Serpentine Belt Tensioner on Mazda 3

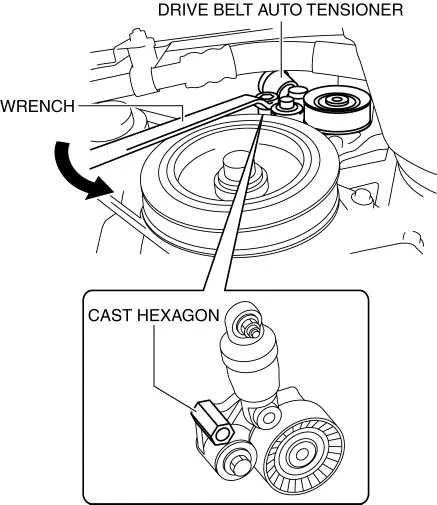

Begin by loosening the serpentine belt using a ratchet and socket. Attach the socket to the belt tensioner pulley bolt and rotate it counterclockwise to relieve tension from the belt. Slip the belt off the pulleys and set it aside for inspection or replacement.
Locate the tensioner assembly. On most Mazda 3 models, it is found on the front of the engine, near the alternator and power steering pump. Identify the tensioner pulley and its mounting bolts.
Use a wrench or socket to remove the mounting bolts that secure the tensioner to the engine block. Gently pull the tensioner off its mounting location. It may require some wiggling, as it can get stuck after years of use.
Before installing the new tensioner, inspect the area for any debris or wear. Clean the mounting surface to ensure proper installation of the new part.
Install the new tensioner by aligning it with the mounting holes. Secure it by tightening the bolts. Ensure the pulley spins freely without obstruction. Make sure it is aligned correctly before proceeding.
Reinstall the serpentine belt. Slide it back over the pulleys, starting from the crankshaft pulley. Use the tensioner to provide the necessary slack as you place the belt over the last pulley. Rotate the tensioner counterclockwise again to fit the belt properly.
Once the belt is in place, double-check its alignment on all pulleys. Ensure it sits correctly in all grooves and that there is no slack or excessive tightness.
Finally, start the engine and observe the belt in action. Listen for any unusual noises that might indicate improper installation. If everything looks and sounds good, you’ve successfully replaced the tensioner.
Understanding the Role of the Serpentine Belt Tensioner in Mazda 3 Engine Performance
The serpentine belt tensioner is a key component for maintaining the proper tension on the serpentine belt in the Mazda 3 engine. This belt powers multiple accessories like the alternator, air conditioning, power steering, and water pump, all of which are vital for vehicle operation.
If the tensioner malfunctions, the belt can either become too loose, leading to slipping, or too tight, causing unnecessary wear. This results in poor engine performance, reduced fuel efficiency, and potential damage to other engine components.
Over time, the tensioner may wear out due to the constant pressure and heat it’s exposed to. Common signs of a failing tensioner include squealing noises, visible belt wear, or poor performance of accessories. Replacing a worn-out tensioner before it fails completely can prevent costly repairs down the line.
To ensure smooth operation, always check the tensioner’s condition during routine maintenance. If there are any signs of wear, replace it promptly to keep the serpentine belt operating at optimal tension, avoiding strain on the engine and its accessories.
