Acura TL Serpentine Belt Diagram and Routing Guide

If you’re dealing with an Acura TL serpentine belt replacement, understanding the exact routing of the belt is key to ensuring proper installation. The serpentine belt in the Acura TL powers essential components such as the alternator, power steering pump, and air conditioning compressor. Incorrect installation can cause engine performance issues or even damage to components. Below is a clear guide to help you visualize and replace the serpentine belt on your vehicle.

The diagram provided here illustrates the precise path that the serpentine belt follows in an Acura TL. Start by locating the tensioner pulley; it is crucial for adjusting the belt’s tightness. Follow the path around the pulleys, keeping in mind the specific direction the belt needs to move. It’s important to check the alignment as you install the belt, ensuring it rests correctly in each groove.

Take note that the belt needs to be properly tensioned. If it’s too tight or too loose, it can lead to premature wear or slipping, affecting vehicle performance. Use the appropriate tools to loosen the tensioner pulley when replacing the belt. Make sure the new belt matches the recommended specifications for your Acura TL model, as a wrong-sized belt can result in poor functionality.

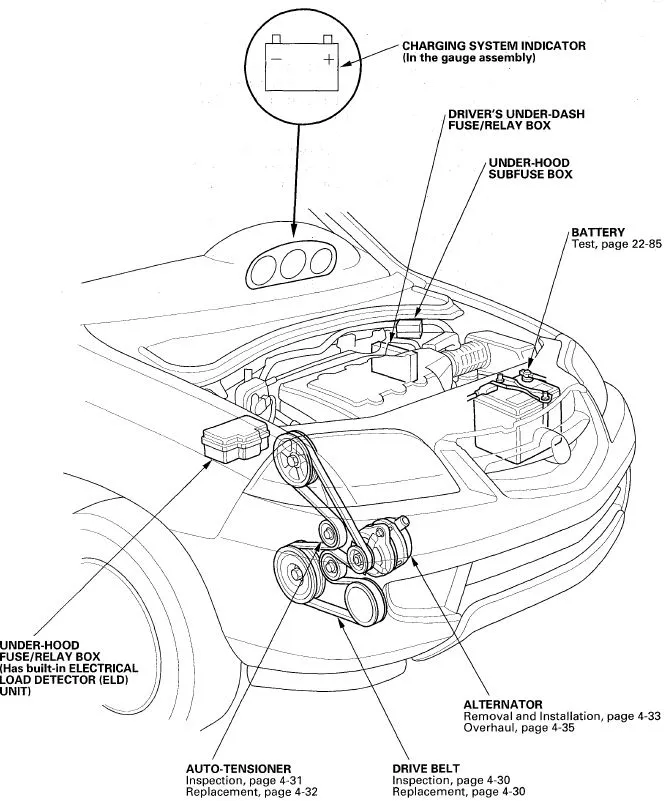

Acura TL Serpentine Belt Diagram

For the Acura TL, a serpentine belt diagram is crucial to properly install and replace the belt. It shows the exact routing of the belt around various components such as the alternator, power steering pump, and air conditioning compressor. Ensure the belt is routed correctly to avoid unnecessary wear or damage to the components.

First, locate the serpentine belt tensioner. Use a wrench or socket to relieve tension on the belt. Once tension is released, remove the belt from the pulleys and compare the new belt with the old one to ensure it matches in size and shape. Refer to the diagram for accurate belt routing before installing the new one.

The diagram for the Acura TL typically shows the path running from the crankshaft pulley, over the alternator, down to the power steering pump, and through other pulleys like the air conditioning compressor and water pump. The diagram also indicates the direction the belt should be positioned on each pulley to ensure smooth operation.

Once the new belt is installed, check the tension to confirm it’s appropriately tight. A loose belt can cause slippage, leading to poor performance or failure of the components it drives. After ensuring the proper tension, start the engine and observe if the belt runs smoothly across the pulleys without any unusual noise or movement.

How to Identify the Serpentine Belt Layout on Acura TL

Check the serpentine belt diagram located on the engine bay. Look for a sticker or label that outlines the correct belt routing. This diagram will show the belt’s path around each pulley, indicating which components it drives, such as the alternator, power steering pump, air conditioning compressor, and water pump.

If the diagram is missing or unreadable, search for the part number of the belt. Once you have it, you can find the correct layout in the owner’s manual or online. Make sure to compare the belt routing with the pulleys to ensure proper alignment.

Examine the pulleys carefully. On most Acura TL models, the serpentine belt system includes an automatic tensioner, which can sometimes shift slightly over time. Confirm that the belt is routed over the tensioner correctly and is seated in all grooves without any twists.

If you are unable to locate the diagram or need more visual aid, a quick internet search will yield various sources with clear serpentine belt layout diagrams for your Acura TL model year.

Common Issues with the Serpentine Belt and Their Symptoms

Worn-out or Cracked Belt – A serpentine belt can wear down over time, leading to cracks or fraying. This typically causes squealing noises from the engine, especially when accelerating. If the belt is severely damaged, it may even snap, leading to loss of power for critical components like the alternator or power steering.

Misalignment – If the pulleys are not properly aligned, the serpentine belt may slip or wear unevenly. Misalignment can result in irregular belt movement, causing jerky engine performance or squeaking sounds. In some cases, it might also lead to the belt coming off its track.

Worn Pulley or Tensioner – A malfunctioning tensioner or pulley can prevent the serpentine belt from functioning smoothly. This often causes the belt to lose tension, resulting in slipping and squeaking. In some cases, the belt might even fall off if the tensioner fails completely.

Damaged or Loose Belt – If the belt becomes loose, it will struggle to maintain proper function, leading to erratic performance of the accessories. This may cause the engine to overheat, as the water pump may not run efficiently, or cause the alternator to fail, resulting in battery drain.

Oil or Fluid Contamination – Leaks from engine components, such as the power steering pump or air conditioning system, can contaminate the serpentine belt. This weakens the belt’s grip, making it more likely to slip. A greasy belt will cause slipping noises and poor accessory performance.

Burning Smell – A burning rubber odor often signals that the serpentine belt is slipping excessively or overheating. This can happen if the belt is too tight or if there’s excessive friction due to a faulty component, such as a bearing or pulley.

Step-by-Step Guide to Replacing the Serpentine Belt on Acura TL

Before you start, ensure your Acura TL is parked on a flat surface, and the engine is cool. Gather the necessary tools: a socket wrench set, a serpentine belt tool, and the replacement belt for your specific model year.

1. Locate the Serpentine Belt

• Open the hood and find the serpentine belt on the front of the engine. It will loop around multiple pulleys, including the alternator, power steering pump, and air conditioning compressor.
• Check the belt diagram, usually found on the radiator support or under the hood, to understand the belt routing.

2. Release Tension from the Belt

• Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley and relieve tension from the belt.
• While holding the tensioner in place, slide the belt off the pulleys carefully. Make sure not to let the tensioner snap back.

3. Remove the Old Belt

• After relieving tension, remove the belt from all pulleys. Take note of the belt’s routing to ensure the new belt is installed correctly.
• If the belt is broken, you can remove the pieces and discard them carefully.

4. Install the New Serpentine Belt

• Begin by placing the new belt over the pulleys according to the diagram you referenced earlier.
• Ensure the belt fits snugly into each pulley groove. Check for proper alignment as you go.
• Use the serpentine belt tool or wrench to move the tensioner again and slip the belt over the last pulley.

5. Verify Belt Tension

• Once the belt is in place, ensure the tensioner is holding it firmly. The belt should have slight tension but not be too tight.
• Manually rotate the belt to check for smooth operation. The belt should not slip or wobble on any pulleys.

6. Test the Engine

• Start the engine and observe the belt in motion. Listen for any unusual noises or squealing, which could indicate improper installation.
• If the belt operates smoothly, turn off the engine and double-check that everything is securely in place.

7. Clean Up

• Dispose of the old belt and store any tools you used. Ensure everything is safely packed away before closing the hood.
