2019 Ram 1500 Serpentine Belt Diagram and Routing Instructions

If you need to replace or inspect the serpentine belt on a 2019 Ram 1500, following the correct belt routing is key. The serpentine belt is responsible for driving multiple engine components such as the alternator, water pump, and power steering pump. A proper diagram ensures you can easily replace or troubleshoot issues with this vital component.

The diagram for the 2019 Ram 1500 typically shows the serpentine belt running through a series of pulleys, starting from the crankshaft pulley, looping through the tensioner, alternator, AC compressor, and other components. Be sure to locate the tensioner, as it plays a significant role in keeping the belt taut. Use a serpentine belt tool or a standard wrench to relieve the tension before removing the old belt.

Understanding the routing of the serpentine belt will save you time and reduce the chance of misalignment. If you’re unsure about your installation, consider consulting the owner’s manual or a repair manual for a visual reference. Keep the diagram handy to avoid confusion during the process.

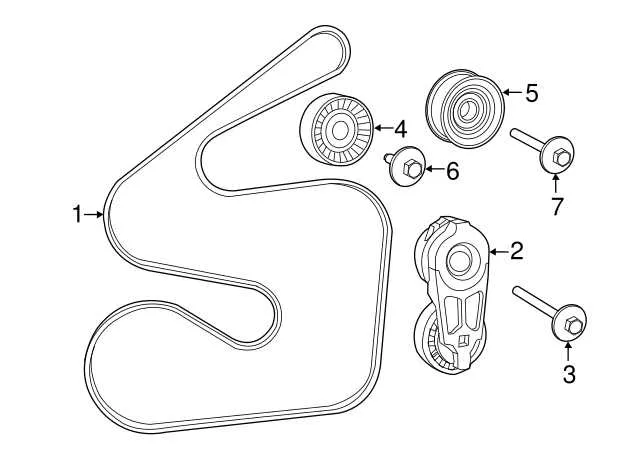

2019 Ram 1500 Serpentine Belt Diagram

The serpentine belt routing for the 2019 Ram 1500 is designed to keep the engine running smoothly by driving various components like the alternator, power steering pump, and air conditioning compressor. It’s crucial to ensure the belt is routed correctly to avoid potential engine damage.

For the 2019 Ram 1500, the serpentine belt typically follows this path: The belt starts at the crankshaft pulley, moving towards the alternator, then to the air conditioning compressor, power steering pump, and the water pump. Make sure the tensioner pulley is aligned correctly for proper tension.

Use the diagram provided in the owner’s manual to ensure the routing matches the factory specifications. Inaccurate routing can lead to belt slippage or premature wear, so double-check the belt’s placement before reinstalling. If you’re replacing the belt, choose a high-quality replacement for optimal performance.

It’s a good idea to inspect the belt for signs of wear or damage regularly, especially around the tensioner and pulleys, which are common points of stress. If you notice any fraying or cracks, it’s time for a replacement. Ensure the tensioner is functioning properly to maintain the correct belt tension.

Step-by-Step Guide to Locating the Serpentine Belt Components on a 2019 Ram 1500

To locate the serpentine belt components on a 2019 Ram 1500, begin by opening the hood and securing it. You’ll find the belt system along the front of the engine, visible on the driver’s side. Look for a series of pulleys, the tensioner, and the alternator. The tensioner pulley is typically positioned near the center of the engine bay, often lower than other pulleys, with a bolt that allows for manual adjustment.

Next, identify the idler pulley, which helps guide the belt along the path. It is often located to the right or left of the tensioner pulley. The alternator pulley is easy to spot, as it is attached to the alternator and is usually located toward the top or side of the engine, closer to the front. If your vehicle is equipped with an air conditioning compressor, its pulley will be located next to the alternator, and it will be driven by the serpentine belt as well.

Check for the power steering pump pulley, which will be located near the lower part of the engine. Depending on the configuration, there may be additional components like the water pump or the crankshaft pulley in the vicinity. Verify each part to ensure the belt runs correctly and without obstructions.

For a more accurate diagnosis or replacement, use a serpentine belt diagram specific to your model year, typically available on the under-hood decal or in the vehicle’s service manual. This will help you trace the path of the serpentine belt and ensure the components are correctly identified.

How to Properly Tension and Replace the Serpentine Belt in Your 2019 Ram 1500

Ensure the engine is off and cool before starting. Disconnect the negative battery terminal to avoid electrical mishaps.

Locate the serpentine belt tensioner on your 2019 Ram 1500. It’s usually positioned near the center of the engine. Use a 3/8-inch ratchet or breaker bar to relieve tension from the belt. Turn the tensioner counterclockwise to loosen the belt.

Once the belt is loose, remove it from the pulleys, noting the routing. Refer to the diagram in your vehicle’s manual or under the hood for the correct configuration.

Inspect the serpentine belt for wear, cracks, or fraying. If any signs of damage appear, replace the belt with a new one. Ensure the replacement is the correct size for your vehicle.

To install the new belt, follow the same routing pattern as the old one. Begin by threading the belt around the pulleys and make sure it fits snugly. Make sure it’s aligned correctly on all pulleys and doesn’t slip off.

Once the belt is in place, use the ratchet to pull the tensioner back and slip the belt over the tensioner pulley. Release the tensioner slowly to apply the proper tension to the belt. Verify the belt’s tension by pressing down on it; it should have a slight give, but not too much.

Double-check the belt’s alignment and tension. If everything looks good, reconnect the battery and start the engine. Listen for any unusual sounds or squeaks, which could indicate improper installation or tension.

Replacing and properly tensioning the serpentine belt in your Ram 1500 helps ensure the efficient functioning of various engine accessories, such as the alternator, power steering pump, and AC compressor.

Common Issues with the Serpentine Belt System in the 2019 Ram 1500 and How to Troubleshoot Them

If you notice squealing or whining noises from the engine compartment, the serpentine belt might be the cause. Check for visible wear like cracks or fraying along the belt’s length. A worn-out or loose belt can slip, reducing the efficiency of components such as the alternator, power steering, and air conditioning.

One common issue is misalignment. The pulleys should be properly aligned for the serpentine belt to run smoothly. Misaligned pulleys can cause the belt to wear unevenly and slip. Inspect the alignment of the pulleys and tensioner for any noticeable damage or corrosion. If pulleys are damaged or out of place, they should be replaced or adjusted immediately.

A tensioner that fails to apply enough pressure on the belt can lead to slippage. You can troubleshoot this by checking the tension with a belt tension gauge. If the tensioner is weak or broken, replace it. A weak tensioner might not keep the belt tight enough, leading to premature wear and ineffective operation of connected components.

Another issue is excessive belt tension. Over-tightening the belt can cause additional stress on the bearings in the alternator and power steering pump. If the belt appears too tight, you should adjust the tensioner to reduce the strain. A visual inspection of the belt’s condition can help identify whether tension is too high.

If the belt seems to be in good condition but the engine still exhibits issues, inspect other components such as the alternator, water pump, or AC compressor. These parts rely on the serpentine belt for operation, and failure in any of these can affect the performance of the system. A simple check of each component for wear or failure will help pinpoint the issue.
