2016 Mazda 6 Serpentine Belt Layout and Diagram Guide

To replace the serpentine belt on your 2016 Mazda 6, it’s crucial to first understand its layout. The serpentine belt powers essential components like the alternator, power steering, and air conditioning compressor. Having a clear diagram will guide you in accurately routing the new belt and avoiding unnecessary complications.

The 2016 Mazda 6 uses a specific serpentine belt routing system. The belt runs over several pulleys, including the crankshaft, alternator, and air conditioning compressor, ensuring proper functioning of the engine’s auxiliary systems. Familiarize yourself with the diagram before beginning any work to avoid misalignment and potential damage.

Start by locating the tensioner pulley. This component allows you to release the tension on the belt for easy removal. Always ensure the tensioner is in good condition before reassembling the belt system. Once the new belt is installed, double-check the routing against the diagram to confirm everything is properly aligned.

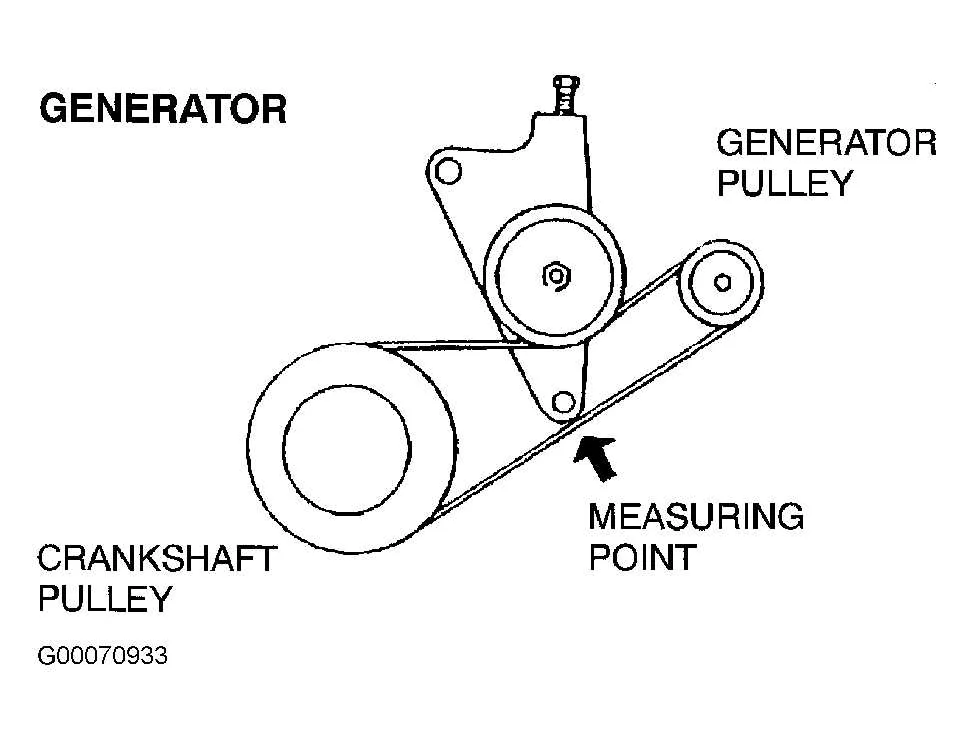

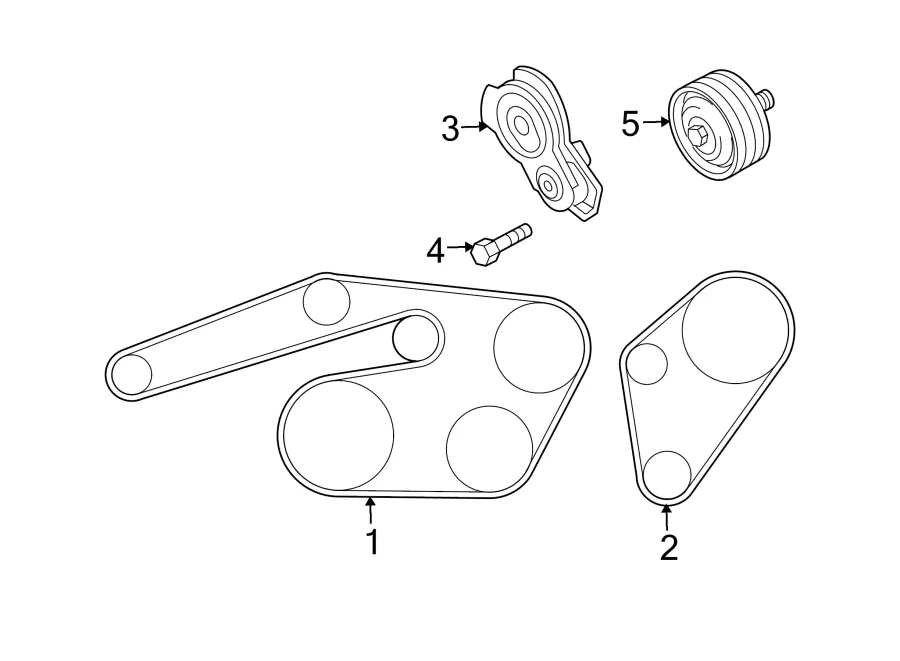

2016 Mazda 6 Serpentine Belt Diagram

The serpentine belt on the 2016 Mazda 6 is crucial for driving multiple components such as the alternator, power steering pump, and air conditioning compressor. Refer to the diagram to ensure proper installation and routing of the belt. Incorrect installation can cause significant engine damage and reduce the efficiency of the vehicle.

Start by locating the belt tensioner. Use a wrench or ratchet to relieve tension and remove the old belt. Carefully follow the diagram to route the new serpentine belt around the pulleys. Pay close attention to the direction the belt must be placed on each pulley to avoid damage to the components.

Double-check the alignment before tightening the tensioner. A misaligned belt can lead to squeaks, premature wear, and possible failure. Ensure that the belt is tight but not over-tensioned to prevent unnecessary strain on the components it drives.

How to Read the Serpentine Belt Diagram for 2016 Mazda 6

To read the serpentine belt diagram for a 2016 Mazda 6, focus on identifying the key components that the belt loops around. These include the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. The diagram shows the exact path the belt follows, providing a clear visual of the routing and the direction the belt should travel.

First, identify the starting point on the diagram. Typically, this is the crankshaft pulley. From there, follow the belt as it wraps around the other pulleys, ensuring the belt’s direction is consistent with the diagram. Pay close attention to the tensioner pulley, as it helps maintain proper tension on the belt. If the diagram includes an arrow, it indicates the correct direction for belt installation.

Make sure to observe any specific instructions on the diagram, such as whether the belt needs to pass over or under certain pulleys. This detail is critical for correct installation and to avoid damaging the belt or pulleys. The diagram also serves as a reference to check if the belt is routed correctly after replacement or during maintenance checks.

If you have a manual or digital version of the diagram, double-check the pulley numbers to ensure they align with the components in your engine bay. This will guarantee you are working with the correct diagram for your specific Mazda 6 model.

Common Issues with the Serpentine Belt on 2016 Mazda 6 and How to Fix Them

If the serpentine belt on your 2016 Mazda 6 starts to squeak, crack, or show signs of wear, it’s time to address the issue. A damaged serpentine belt can affect various engine components, including the alternator, power steering pump, and air conditioning system.

One common problem is belt slippage. This happens when the belt loses tension or becomes worn, causing it to slip over the pulleys. To fix this, check the belt tensioner for proper adjustment. If the tensioner is worn, replace it along with the belt.

Another issue is belt cracking. Cracks on the surface are a sign that the belt is aging and may fail soon. Inspect the belt for cracks or fraying, and replace it immediately if you spot any significant damage. A worn serpentine belt can snap, causing the engine to overheat or lose power steering.

Misalignment of the belt is also a common issue. If the belt runs off-center or the pulleys are misaligned, it can cause premature wear. Check the pulleys for damage or misalignment and replace or realign them as needed. Ensuring proper alignment helps extend the lifespan of both the belt and the pulleys.

Lastly, contamination can occur from oil or coolant leaks. Fluids can degrade the rubber, leading to a loss of grip and causing the belt to fail. Inspect the area around the belt for any leaks and fix them before replacing the belt. Cleaning the affected areas can prevent further damage.

Step-by-Step Guide to Replacing the Serpentine Belt on 2016 Mazda 6

Before starting, gather the necessary tools: a socket wrench, a serpentine belt tool, a new serpentine belt, and safety gloves. Make sure your vehicle is parked on a flat surface and the engine is cool.

1. Locate the serpentine belt tensioner. The tensioner is typically positioned near the center of the engine bay. Use a serpentine belt tool or a socket wrench to rotate the tensioner clockwise, which will relieve tension from the belt.

2. Remove the old serpentine belt. Once the tension is relieved, slide the belt off the pulleys. Pay attention to the routing of the belt, as you will need to install the new belt in the same configuration.

3. Inspect components. Before installing the new belt, check the condition of the pulleys, tensioner, and other components that the belt interacts with. Look for any signs of wear, cracks, or damage. If any parts are damaged, replace them before continuing.

4. Install the new serpentine belt. Position the new belt around the pulleys, following the same routing as the original. Ensure the belt is properly aligned on each pulley, and the tensioner is in its relaxed position.

5. Apply tension to the new belt. Use the serpentine belt tool or socket wrench to rotate the tensioner back into position, applying tension to the new belt. Check the belt for proper alignment and tension once the tensioner is locked into place.

6. Test the system. Start the engine and observe the belt in motion. Ensure that the belt is running smoothly and not slipping off any pulleys. Listen for any unusual noises, which could indicate incorrect installation.

7. Double-check the belt’s tension. After the engine has run for a few minutes, check the tension on the belt again. If necessary, adjust the tensioner to ensure the belt is tight enough for proper operation.

With these steps completed, your serpentine belt replacement is done. Make sure to dispose of the old belt properly and store your tools.
