2014 Subaru Crosstrek Serpentine Belt Diagram and Installation Guide

Replacing the serpentine belt on your 2014 Subaru Crosstrek is a straightforward task, but understanding the correct routing is key. The serpentine belt drives essential components like the alternator, power steering pump, and air conditioning compressor. Refer to the diagram below to ensure proper installation.

Step 1: Ensure you have the correct serpentine belt for your model. The belt size and routing must match the specifications for the 2014 Subaru Crosstrek to avoid damage to the components it drives.

Step 2: Locate the tensioner pulley, which is responsible for keeping the serpentine belt tight. Use a wrench to release tension and remove the old belt carefully. Replace the belt following the diagram to ensure it is routed correctly through all pulleys.

Step 3: Once the new belt is in place, check its alignment across the pulleys to ensure it sits properly. Start the engine and observe the belt in motion to confirm there are no issues with the installation.

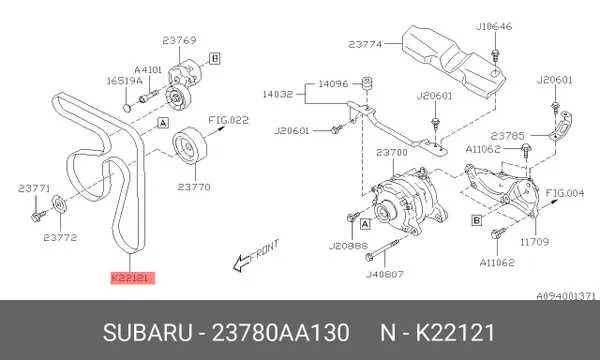

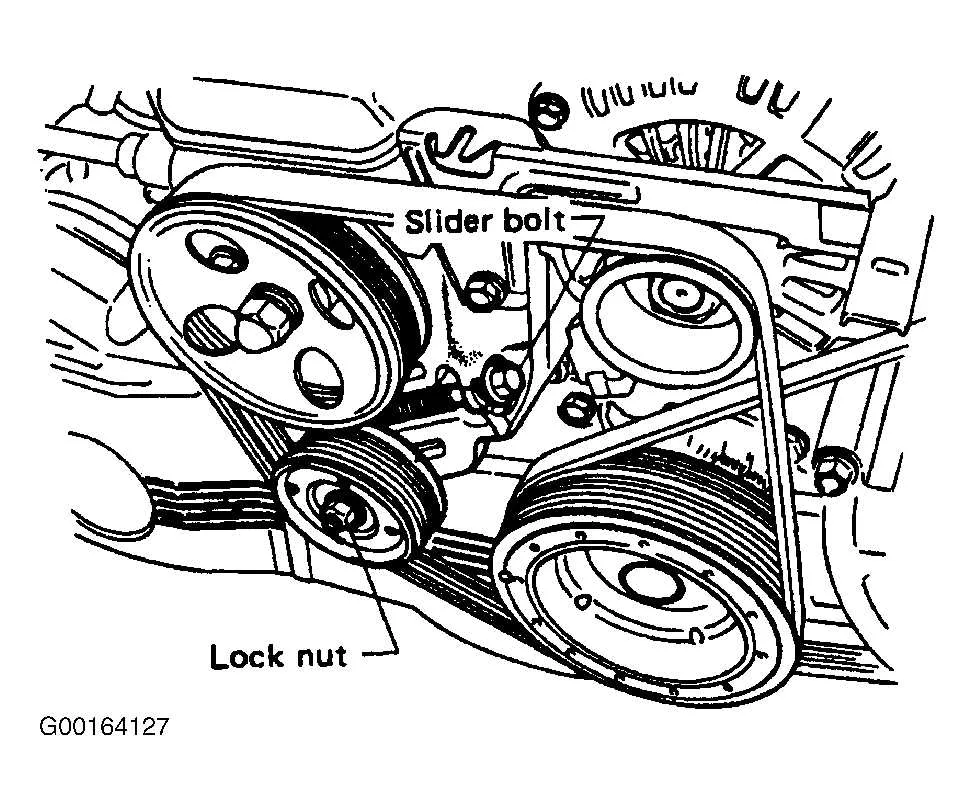

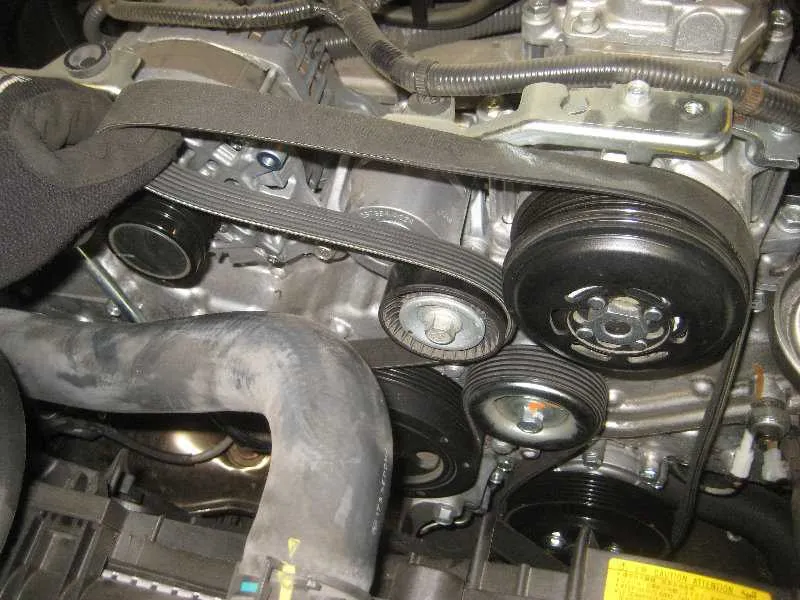

2014 Subaru Crosstrek Serpentine Belt Diagram

The 2014 Subaru Crosstrek serpentine belt is a critical component in driving various engine accessories, including the alternator, power steering, and air conditioning compressor. Refer to the serpentine belt diagram for an accurate routing path to ensure proper installation. The diagram displays the correct belt path, pulley locations, and tensioner alignment.

For accurate installation, begin by locating the tensioner pulley. Using a wrench or serpentine belt tool, relieve tension on the belt. Carefully remove the old belt and compare it with the new one to verify size and configuration before installation.

Once the new belt is in place, use the diagram to ensure the belt follows the correct path across all pulleys. Make sure the belt is properly seated and aligned with each pulley to avoid slipping or premature wear.

After installation, check for proper tension. The belt should not be too tight or too loose. If there are issues with the belt slipping or squealing, recheck the belt’s alignment and tension, and replace the belt if necessary.

How to Identify the Correct Serpentine Belt for 2014 Subaru Crosstrek

To find the right serpentine belt for your 2014 Subaru Crosstrek, start by checking the vehicle’s engine size. The Crosstrek offers multiple engine variants, and the correct belt depends on whether your model has a 2.0L or 2.5L engine.

Next, examine the routing diagram on the engine bay. This diagram shows the correct path for the serpentine belt. Ensure that the new belt matches the layout and size specified for your engine type.

To determine the belt size, check the part number on the existing belt if it is still in place. You can also reference the owner’s manual for belt specifications. Typically, the length and width of the belt will be listed there.

When purchasing a replacement belt, verify the brand and part number with trusted suppliers or auto parts stores. They often provide a cross-reference tool based on your vehicle’s make, model, and year.

• For 2.0L engines, the belt length is usually around 80 inches.
• For 2.5L engines, expect a slightly longer belt, typically around 84 inches.
• Check for any wear signs on the belt, such as cracks or fraying, to ensure a proper fit for replacement.

Lastly, double-check the routing diagram after installation to ensure that the belt is properly aligned and tensioned. Incorrect routing can cause premature wear or failure.

Step-by-Step Guide to Replacing the Serpentine Belt in a 2014 Subaru Crosstrek

1. Prepare the Tools and Replacement Belt

Before starting, ensure you have a replacement serpentine belt that matches your vehicle’s specifications. You’ll need a socket wrench, a serpentine belt tool or a long-handled ratchet, and a flashlight for better visibility.

2. Locate the Serpentine Belt

Open the hood of your Crosstrek and locate the serpentine belt. It runs across various pulleys and components like the alternator, power steering pump, and air conditioning compressor. The diagram is usually printed on a sticker near the radiator or the front of the engine bay.

3. Loosen the Tensioner Pulley

Use your serpentine belt tool or ratchet to release the tension on the belt by rotating the tensioner pulley clockwise. The tensioner will move, making the belt slack. Keep the tool in place while removing the belt from the pulleys.

4. Remove the Old Belt

Once the tension is released, carefully slide the belt off the pulleys. Pay attention to the belt’s routing path so you can easily install the new one. Take a picture or note the belt’s positioning if needed.

5. Install the New Belt

Place the new serpentine belt around the pulleys, following the correct routing path. Make sure it’s properly seated on each pulley groove, paying close attention to the tensioner pulley placement.

6. Reapply Tension

Once the belt is in position, slowly release the tensioner pulley to apply proper tension to the new belt. Ensure the belt sits snugly on all pulleys and that there’s no slack.

7. Double-Check the Installation

Rotate the engine by hand a couple of times using a wrench on the crankshaft pulley. Check that the belt remains properly aligned and there’s no unusual slack or misalignment.

8. Test the Vehicle

Start the engine and listen for any strange noises. If the belt is installed correctly, you should hear smooth operation with no squeaking or slipping. Check the belt visually to ensure it’s running correctly across the pulleys.

Troubleshooting Common Issues with the Serpentine Belt on a 2014 Subaru Crosstrek

If the serpentine belt on your 2014 Subaru Crosstrek is causing problems, start by checking for visible signs of wear or damage. A worn-out belt may show cracks, fraying, or glazing. If you notice any of these, replacing the belt is necessary to prevent further issues.

Another common problem is belt slippage. This can occur if the belt is too loose or the tensioner is worn. You can check the tension by pressing down on the belt in the middle of its longest span. If it moves more than half an inch, the belt may be too loose. Replacing the tensioner or adjusting the belt tension can resolve this issue.

Sometimes, a misaligned pulley causes the serpentine belt to wear unevenly or even come off. Inspect all pulleys for damage or misalignment. Ensure they are clean and free of debris, and verify that the pulleys spin smoothly without wobbling.

Excessive noise, such as squeaking or chirping, often points to problems with the belt or pulleys. The sound may indicate that the belt is slipping, or it could be due to a misaligned or worn-out pulley. Replacing the belt and addressing pulley alignment will help eliminate the noise.

In rare cases, the serpentine belt may be stretched. This can cause it to lose its grip on the pulleys and result in poor performance of accessories like the alternator or power steering. If you notice a decrease in accessory function, replacing the belt can restore normal operation.

Lastly, keep an eye out for belt wear from oil or coolant leaks. If either fluid comes into contact with the belt, it can cause it to deteriorate rapidly. In such cases, fixing the leak is just as important as replacing the belt.
