2013 Infiniti G37 Serpentine Belt Diagram and Routing Guide
The serpentine belt on your 2013 Infiniti G37 is a key component in powering various engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Knowing how to read the serpentine belt diagram will make it easier to diagnose issues and carry out maintenance tasks.
Begin by ensuring the engine is off and cool before inspecting the belt. The diagram provides a visual guide for routing, which is critical to avoid belt misalignment. Misrouting can cause the belt to wear out prematurely, leading to engine damage or a breakdown.
If you’re replacing the serpentine belt, refer directly to the diagram for the correct belt length and routing. Double-check each pulley’s position and alignment before securing the new belt in place. Any small error in routing could cause issues, including poor performance or belt slippage.
Finally, always check the belt for wear signs such as cracking, fraying, or glazing. Regularly inspecting your serpentine belt ensures optimal performance and extends the lifespan of your engine’s accessories.

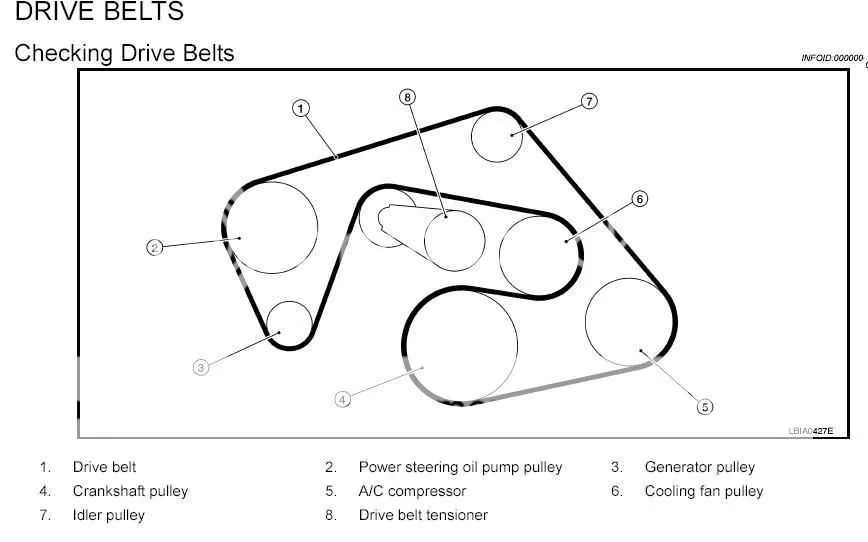

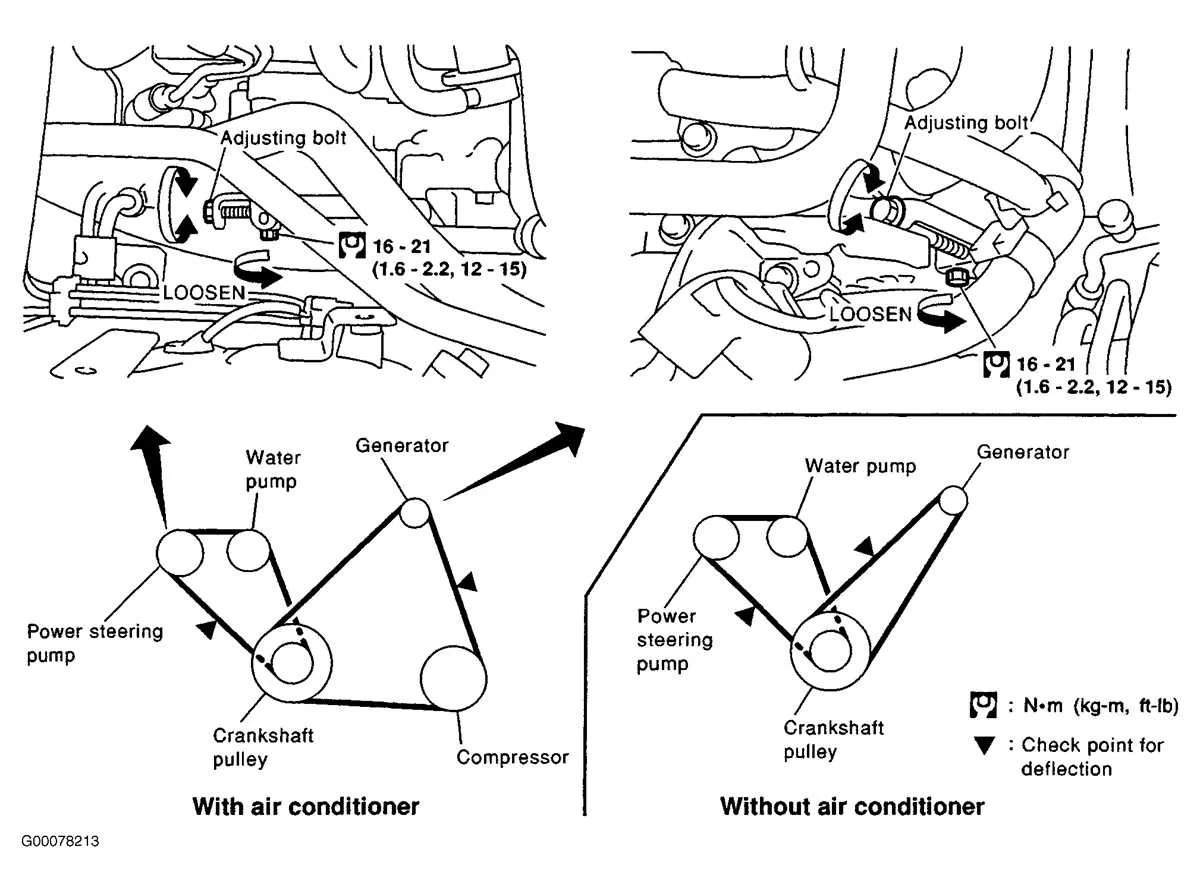

2013 Infiniti G37 Serpentine Belt Diagram
The serpentine belt on the 2013 Infiniti G37 is a critical component that drives multiple accessories such as the alternator, air conditioning compressor, and power steering pump. It is essential to understand its routing for proper installation or replacement. The belt wraps around various pulleys, and the correct alignment is necessary to ensure that the engine’s systems function smoothly.
When replacing or inspecting the serpentine belt, start by identifying the tensioner pulley. This pulley is used to maintain the proper tension on the belt and should be adjusted accordingly. The belt routing diagram, typically found near the radiator or on the engine bay, illustrates the exact path the belt should follow around each pulley. Be sure to check the diagram for the specific routing that applies to your engine type.
To replace the serpentine belt, first relieve the tension on the belt using a wrench or socket to rotate the tensioner pulley. Once the tension is released, remove the belt from the pulleys. Compare the old belt with the new one to ensure the correct size and fit. Install the new belt, ensuring that it follows the exact routing as shown in the diagram. Double-check that the belt is seated properly on all pulleys before tightening the tensioner and starting the engine to verify the belt’s operation.
Regular inspection of the serpentine belt is advised, especially for signs of wear, cracking, or fraying. A worn-out belt can lead to engine component failure, so replacing it in a timely manner is crucial for maintaining your vehicle’s reliability.

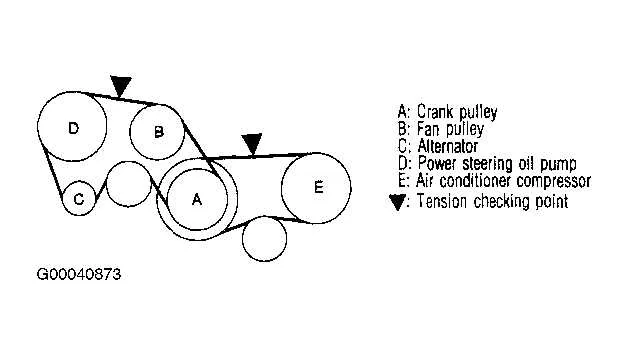

Understanding the Serpentine Belt Routing for 2013 Infiniti G37
To properly install or replace the serpentine belt on a 2013 Infiniti G37, it’s crucial to follow the correct routing path. The serpentine belt is responsible for driving multiple components, including the alternator, air conditioning compressor, power steering pump, and water pump. Ensuring the belt follows the exact path is critical for smooth engine operation and avoiding premature wear.
Start by identifying the belt tensioner on the engine, as it’s used to keep the belt tight. This can be done by locating the tensioner pulley, which will typically be a larger, spring-loaded pulley that adjusts the belt’s tension automatically. Using a ratchet wrench, release the tension on the belt by rotating the tensioner in the direction indicated in your service manual.
The belt should pass over the crankshaft pulley, which is the primary drive pulley at the bottom of the engine. From there, the belt moves upward and loops around the water pump and alternator pulleys. Be sure to carefully guide the belt around the air conditioning compressor pulley and the power steering pump, as these are essential components for vehicle functionality.
Make sure the serpentine belt’s teeth are properly aligned with the pulleys to avoid slippage or wear. Once the belt is routed, check the tensioner to ensure the belt is taut but not over-tightened. Releasing the tensioner will lock the belt in place, and you can inspect for proper alignment by rotating the engine manually.
Confirm the belt’s routing using the diagram provided in the vehicle’s service manual, as slight variations in routing could affect the operation of critical systems. Double-check all components, making sure the belt fits snugly and runs smoothly across all pulleys.
How to Identify and Fix Common Serpentine Belt Issues in 2013 Infiniti G37
Inspect the serpentine belt for signs of wear such as cracks, fraying, or glazing. If the belt appears damaged, it needs to be replaced immediately. A worn belt can affect the performance of the engine components it drives, such as the alternator, power steering pump, and air conditioning compressor.
Listen for squealing or chirping noises when the engine is running. These sounds usually indicate that the belt is slipping or not properly tensioned. It could also be a sign of a misaligned pulley or a faulty tensioner. In either case, the issue must be addressed to prevent further damage.
- Visual Inspection: Check the serpentine belt for visible damage like cracks or missing sections. Pay attention to the edges and surface of the belt.
- Noisy Operation: If you hear a high-pitched squeal, the belt may be too loose or worn. A chirping sound can also suggest that the belt is slipping on a pulley.
- Belts With Glaze: If the belt has a shiny, smooth appearance, it could indicate overheating or excessive wear. This can reduce the grip of the belt on the pulleys.
If the tensioner is faulty, it may not keep the belt properly taut. This can cause the belt to slip or jump off the pulleys. A worn-out tensioner should be replaced to restore proper tension and prevent slipping.
In some cases, the alignment of the pulleys may be off, which can lead to belt misalignment and premature wear. Check the pulleys for proper alignment and replace any damaged ones to ensure smooth operation of the serpentine belt.
For fixing the issues, you can replace the serpentine belt by following these steps:
- Loosen the tensioner using the appropriate tool and release the belt from the pulleys.
- Remove the damaged serpentine belt and replace it with a new one. Make sure to install it according to the correct routing diagram for the 2013 Infiniti G37.
- Reapply tension to the belt using the tensioner, ensuring it is taut but not overly tight.
- Inspect the alignment of the pulleys and the condition of the tensioner. Replace any worn or misaligned components.
Addressing serpentine belt issues early can prevent more significant engine damage, ensuring the longevity and reliability of your 2013 Infiniti G37.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Infiniti G37
Start by gathering the necessary tools: a new serpentine belt, a socket wrench, a ratchet, a belt tensioner tool, and gloves for safety.
1. Locate the serpentine belt. It runs over several pulleys and is attached to the engine. You’ll need to access it by removing the engine cover if it’s present.
2. Release the tension from the serpentine belt. Use a belt tensioner tool to move the tensioner pulley and relieve the pressure on the belt. Be sure to rotate the tool clockwise.
3. Remove the old belt. With the tension released, carefully remove the serpentine belt from the pulleys. Take note of the routing to ensure the new belt will fit correctly.
4. Install the new serpentine belt. Place the new belt around the pulleys according to the diagram. Ensure the belt sits properly on each pulley without twisting.
5. Apply tension to the new belt. Use the belt tensioner tool to move the tensioner pulley back into place and apply tension to the new belt. Double-check that the belt is properly aligned on all pulleys.
6. Test the belt. Start the engine and observe the belt’s movement. Ensure it runs smoothly without any slipping or misalignment.
7. Reinstall any removed components. If you had to remove the engine cover or other parts, reinstall them now.
8. Inspect the installation. Look for any signs of improper tension or misalignment. Make sure the belt is running smoothly before driving the vehicle.
By following these steps, you’ll successfully replace the serpentine belt on your 2013 Infiniti G37.
