2013 GMC Terrain Serpentine Belt Routing Diagram and Installation Guide
For the 2013 GMC Terrain, the serpentine belt is crucial in powering various engine components such as the alternator, air conditioning, and power steering. When replacing or inspecting the serpentine belt, it’s important to have a clear understanding of its routing. The diagram for this vehicle shows the exact path the belt takes over pulleys and tensioners, ensuring all components operate smoothly.
The diagram will highlight the placement of the belt on the engine. Pay close attention to the positioning around the idler pulleys and the tensioner, as improper routing can lead to misalignment and premature wear. In some cases, a faulty belt can also cause the engine to overheat due to insufficient power to the cooling system.
To simplify the replacement process, ensure the new belt matches the size and specifications outlined in the owner’s manual. After installation, use a tensioner tool to adjust the belt’s tightness according to manufacturer recommendations. A correctly routed and tensioned belt improves engine performance and reduces the risk of malfunction.

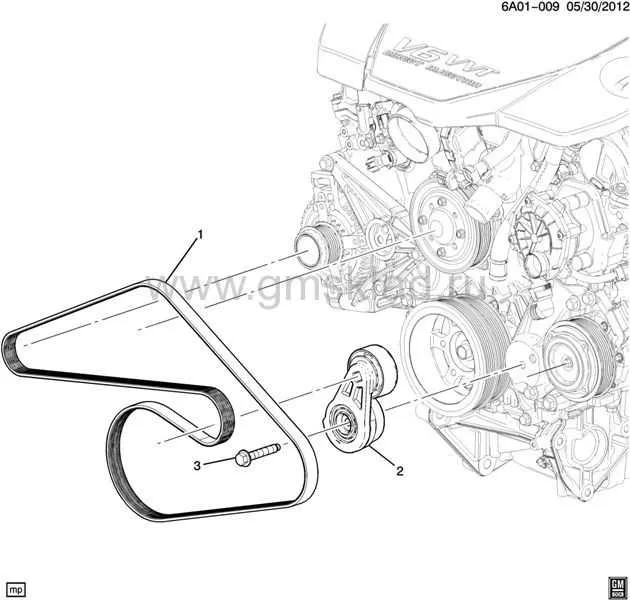

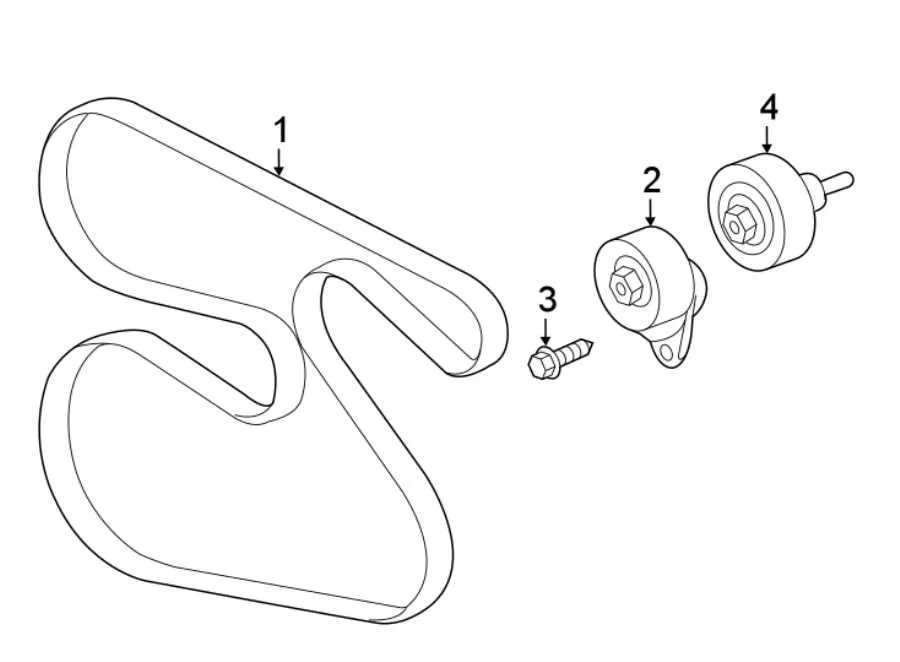

2013 GMC Terrain Serpentine Belt Diagram
For quick reference, the serpentine belt diagram for the 2013 GMC Terrain is available in the engine compartment. This diagram shows the exact routing of the serpentine belt, ensuring proper tension and alignment across all components it drives, including the alternator, power steering pump, air conditioning compressor, and more.
To replace or inspect the serpentine belt, follow these steps:
- Locate the tensioner pulley and release tension on the belt using the appropriate tool (ratchet or belt tool).
- Remove the belt carefully while ensuring that no components are damaged.
- Check the routing diagram to install the new belt correctly, following the exact path shown.
- Ensure the belt sits properly on all pulleys and adjust tension as needed.
If the belt shows any wear, cracks, or damage, it is recommended to replace it immediately to avoid engine or accessory failures.
Regularly check the condition of your serpentine belt, and be mindful of unusual noises or performance issues that may indicate a problem. Refer to the diagram to ensure proper maintenance and smooth operation of your vehicle’s engine system.
How to Identify the Serpentine Belt Routing on 2013 GMC Terrain
Check the diagram located on the radiator support or near the engine bay. This diagram provides a clear illustration of how the serpentine belt should be routed. It includes the path the belt takes around each pulley and tensioner. If the diagram is missing or unreadable, you can use the following steps:
1. Locate the serpentine belt tensioner. It’s usually positioned near the front of the engine, and it’s responsible for maintaining proper belt tension.
2. Find the alternator, power steering pump, air conditioning compressor, and the water pump. These are key components that the serpentine belt interacts with. The belt routes around these parts in a specific pattern to ensure proper operation of each.
3. Pay attention to the direction of the pulleys. The belt typically follows a clockwise or counterclockwise route depending on the engine design.
4. If you’re replacing the belt, compare the new belt’s length and shape with the old one to ensure it’s the correct size for the 2013 GMC Terrain.
Using this method, you can easily identify the correct serpentine belt routing without much trouble. If you have trouble, it’s best to consult the vehicle’s manual or seek help from a mechanic.
Step-by-Step Guide to Replacing the Serpentine Belt in a 2013 GMC Terrain
Begin by disconnecting the vehicle’s battery to avoid any electrical hazards while working. Locate the serpentine belt and its tensioner on the front of the engine. Use a wrench to relieve the tension from the belt by rotating the tensioner pulley clockwise. Once the tension is released, remove the belt from the pulleys.
Next, inspect the condition of the pulleys, idler pulley, and the belt tensioner for any signs of wear or damage. If any components appear worn out, replace them to avoid future issues. Take note of the routing diagram of the serpentine belt, typically found on a label under the hood or in the owner’s manual.
After verifying that all pulleys are in good condition, install the new serpentine belt following the routing diagram. Carefully thread the belt through all pulleys, ensuring it is properly aligned on each one. Once the belt is in place, rotate the tensioner again to relieve tension, then slide the belt over the tensioner pulley.
Finally, inspect the belt to ensure it is properly seated in all grooves. Reconnect the battery, start the engine, and check for any abnormal noises or misalignment. If everything looks good, the replacement is complete.
Troubleshooting Common Issues with the Serpentine Belt System in 2013 GMC Terrain
If your 2013 GMC Terrain’s serpentine belt is making noise, slipping, or has visible damage, it’s time for a closer inspection. Start by checking for cracks, fraying, or wear. These issues often point to an aging belt in need of replacement.
Listen for squealing noises. This sound typically indicates a loose or worn-out belt. If tension is insufficient, the belt might not make proper contact with pulleys. Tighten the tensioner or replace the tensioner if it’s failing. Pay attention to the pulleys, too. Misaligned pulleys or bearings in poor condition can cause excessive belt wear or noise. Examine them carefully for any signs of damage or uneven wear.
Next, inspect the belt for glazing–shiny, smooth areas that develop from heat and friction. A glazed belt will slip, reducing efficiency. Replace a glazed belt as soon as possible to avoid further damage.
Check the belt’s routing. If it’s incorrectly installed, it may not function as intended, causing system failure. Use the belt diagram for the 2013 GMC Terrain to verify proper routing. Be sure to reinstall the belt correctly if it’s been removed.
If you notice the belt slipping off, inspect the pulleys for any obstructions, rust, or misalignment. Any of these factors could prevent the belt from staying in place. Cleaning or realigning the pulleys should resolve the issue.
Finally, when the belt system is acting up, consider the condition of the belt tensioner. A malfunctioning tensioner will fail to maintain proper tension, leading to belt slippage or wear. Replace it if it shows signs of wear or doesn’t function smoothly.
