2013 BMW 535i Serpentine Belt Diagram and Routing Information

For accurate installation and replacement of the serpentine belt on your 2013 BMW 535i, the belt diagram is a key reference. Understanding the routing of the belt ensures smooth engine operation and prevents unnecessary wear on components. Start by checking the tensioner and pulleys for any damage or misalignment. The diagram for this model lays out the path clearly, so you can easily follow each step during the installation process.

The serpentine belt on the 2013 BMW 535i powers essential engine accessories like the alternator, power steering pump, and air conditioning compressor. The routing diagram shows exactly how the belt loops around these components, ensuring the right tension and alignment. Make sure to replace the belt if it shows signs of cracking or wear. Pay attention to the recommended service intervals for the 535i to avoid potential breakdowns.

Double-check the part number of the serpentine belt before purchase to guarantee a perfect fit for your vehicle. The 2013 BMW 535i uses a specific length and width, and using an incorrect belt can cause severe damage to the system. Once the new belt is installed, use a belt tensioner tool to properly tension the belt, ensuring it is not too loose or too tight. For a hassle-free replacement, always keep the belt diagram handy to avoid confusion during the process.

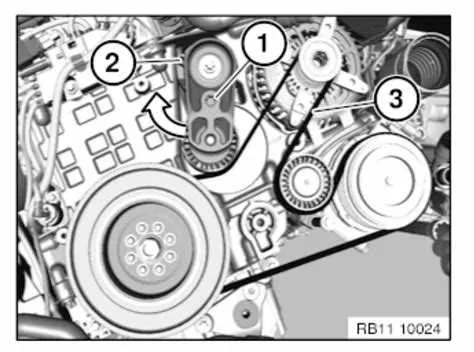

2013 BMW 535i Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2013 BMW 535i, follow the correct routing shown in the diagram. The serpentine belt runs through key components: the alternator, power steering pump, air conditioning compressor, and water pump. Ensure the belt is routed properly to avoid misalignment or premature wear.

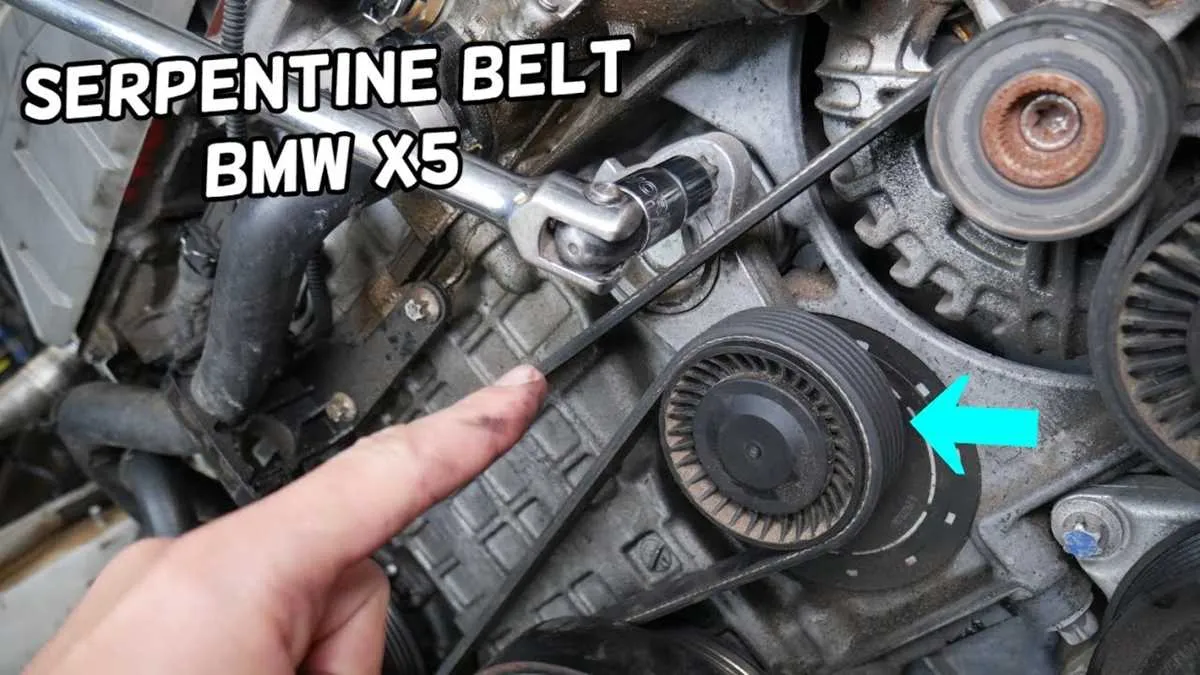

The belt tensioner is located near the center of the engine, and it’s responsible for maintaining the correct tension on the serpentine belt. Use a 16mm socket or wrench to rotate the tensioner and release tension on the belt before removal. Once the belt is removed, visually inspect it for wear, cracks, or fraying, which may indicate it’s time for a replacement.

Here’s the basic belt routing for the 2013 BMW 535i:

– Start from the top, where the belt goes over the crankshaft pulley.

– Then, move it towards the alternator.

– From the alternator, it moves down to the power steering pump.

– The belt loops around the air conditioning compressor.

– Finally, it goes back to the water pump, completing the loop.

Check the diagram specific to your vehicle model, as the engine variants may have slight differences. For easier access and better visibility, removing the engine cover can help during belt inspection or installation. Always verify the belt’s tension after installation to ensure it’s properly secured and free of any slack.

How to Read the Serpentine Belt Diagram for the 2013 BMW 535i

Check the diagram to locate the path of the serpentine belt across various pulleys. The diagram shows the exact order and direction the belt must follow. Focus on the key components: the crankshaft pulley, the alternator, the power steering pump, and the air conditioning compressor. Each of these parts will be marked, along with the correct routing for the belt. This ensures the belt operates smoothly and without slipping or excessive wear.

Pay attention to the tensioner location. The tensioner pulley keeps the belt tight and must be aligned correctly. The diagram will show if you need to adjust the tensioner manually or use a tool to loosen it while installing the new belt. Verify that all pulleys are moving in the proper direction by following the arrows on the diagram.

Before replacing the serpentine belt, confirm that the diagram is for the correct engine configuration. The 2013 BMW 535i may have different configurations based on its engine type, and using the wrong diagram could lead to improper belt placement and damage. Once the diagram is understood, it will guide you to properly align the belt without confusion.

After installation, double-check the belt’s alignment and tension. Rotate the engine by hand and ensure the belt sits snugly on all pulleys without slipping or misalignment. If the belt rides off a pulley or makes a strange noise, review the diagram and adjust accordingly. Proper tension and alignment are key for smooth engine performance.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 BMW 535i

Start by locating the serpentine belt tensioner on the front of the engine. Use a 16mm socket wrench to rotate the tensioner clockwise and relieve tension from the belt. Remove the belt from the pulleys, noting its routing for later installation.

Next, inspect the new serpentine belt to ensure it matches the old one in size and shape. Carefully route the new belt around the pulleys, following the same path as the old one. Pay close attention to the grooves and markings to ensure the belt fits properly on each pulley.

Once the new belt is in place, rotate the tensioner clockwise again with the wrench to apply tension. Double-check the belt’s alignment on all pulleys to make sure it is seated correctly and evenly.

Finally, test the belt by starting the engine and listening for any unusual noises. If everything runs smoothly, the installation is complete. Always replace the serpentine belt at regular intervals to prevent wear and tear from causing engine issues.

Common Issues and Troubleshooting with the Serpentine Belt on the 2013 BMW 535i

If your serpentine belt is making noise or showing signs of wear, address the issue immediately to prevent further damage to the engine. The most common problems include belt slippage, squeaking, and snapping. Here’s how to tackle them:

• Belt Slippage: Slippage usually occurs when the belt becomes loose or the tensioner isn’t functioning properly. Check the belt tensioner and replace it if it shows signs of wear or malfunction. A worn-out tensioner can cause the belt to slip, leading to poor performance in the alternator, power steering, or air conditioning system.
• Squeaking or Squealing Noises: These noises often indicate a misaligned or worn-out belt. Inspect the serpentine belt for cracks, glazing, or fraying. A quick visual check can identify the issue. If the belt looks worn, replace it with a new one. Also, check for worn pulleys or improper alignment, as these can cause additional friction and noise.
• Belt Wear or Cracking: A belt showing visible cracks or excessive wear can fail prematurely. Replace any belts with signs of wear. Make sure to replace the serpentine belt before it snaps completely, as this can lead to further engine damage and increased repair costs.
• Frequent Belt Breakage: If the serpentine belt breaks often, inspect the alignment of the pulleys and the condition of the tensioner. A malfunctioning pulley or tensioner can cause the belt to wear out more quickly than usual. Ensure all pulleys spin freely without resistance, as excessive friction can shorten the lifespan of the belt.
• Fluid Leaks: Leaks from power steering or coolant systems can deteriorate the belt, causing it to wear out faster. Always check for fluid leaks near the serpentine belt and address them promptly. Leaks can compromise the belt’s material and lead to premature failure.

Regular inspection and maintenance of the serpentine belt and its components will keep your 2013 BMW 535i running smoothly. Be proactive and replace any worn or damaged parts to avoid unexpected breakdowns.
