2012 Impala Serpentine Belt Diagram and Installation Guide
The serpentine belt in a 2012 Chevrolet Impala is a critical component that powers several engine accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. To maintain the vehicle’s performance and avoid costly repairs, understanding its routing and tensioning is key.
Start by inspecting the belt regularly for signs of wear such as cracks, fraying, or glazing. A damaged belt can cause the engine accessories to fail, leading to loss of power steering, overheating, or battery drain. Replace the belt immediately if you notice any of these issues.
Use the 2012 Impala serpentine belt diagram for proper routing. The diagram will guide you on how the belt wraps around the pulleys and which direction it should go. Following the correct routing is crucial to avoid damage to both the belt and the engine components.
When replacing the serpentine belt, ensure the tensioner is working properly. If the tensioner is faulty, the belt will not remain tight, which can cause slippage and premature wear. Replacing both the belt and the tensioner at the same time is recommended for optimal performance.

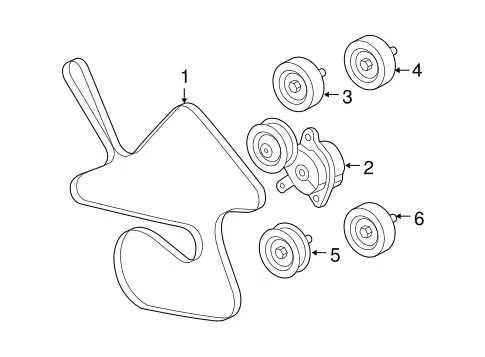

2012 Impala Serpentine Belt Diagram
To understand the serpentine belt routing on a 2012 Chevrolet Impala, refer to the diagram to ensure proper installation. This belt powers various components such as the alternator, power steering pump, air conditioning compressor, and the water pump.
Before replacing the serpentine belt, double-check the routing order. The correct placement ensures all components work smoothly and prevent potential damage. Pay attention to the belt tensioner, which maintains the necessary tension for optimal performance. If the belt is too loose or tight, it can cause system failure.
For the most accurate diagram, refer to the vehicle’s manual or the engine bay label. The diagram clearly shows how the belt should route around each pulley, including the idler pulley, tensioner, and all the accessories it drives. Inaccurate installation can result in squealing noises, premature wear, or component malfunction.

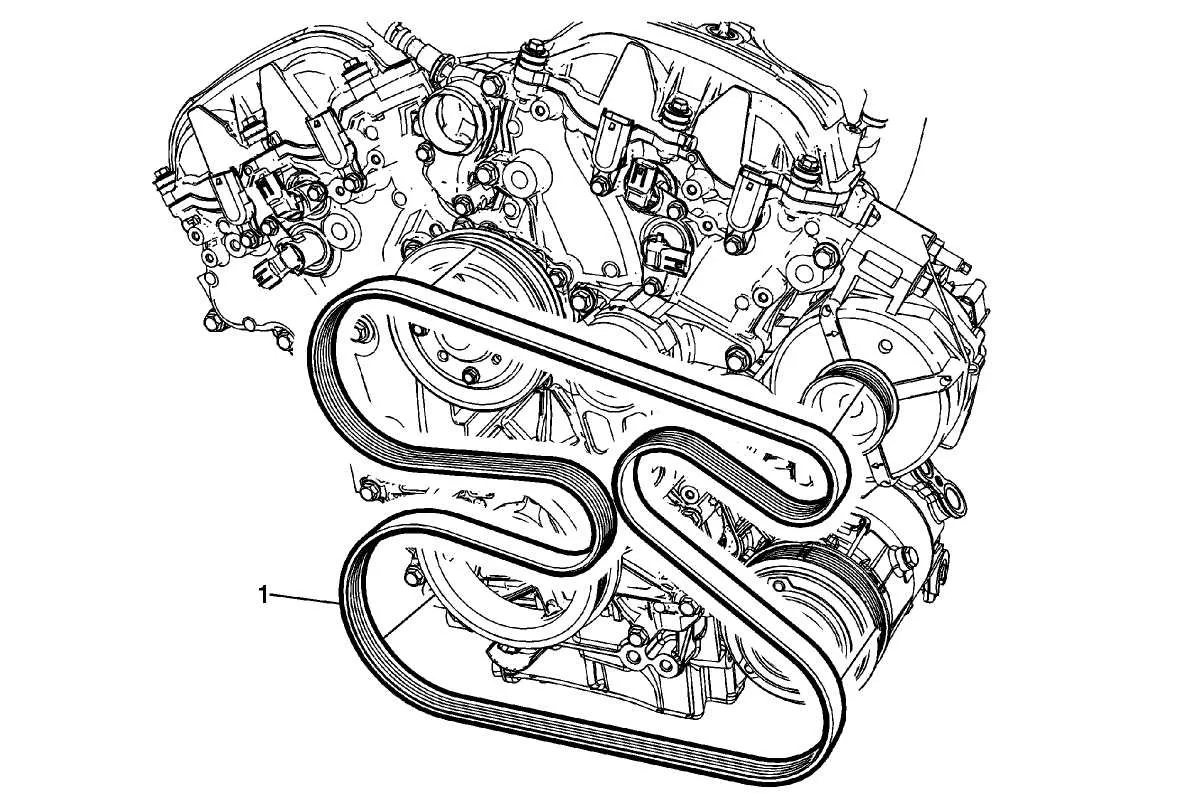

Understanding the Routing of the Serpentine Belt on a 2012 Impala
The serpentine belt on a 2012 Impala drives various engine components, such as the alternator, power steering pump, water pump, and air conditioning compressor. The belt is routed through pulleys and tensioners that maintain its correct alignment and tension for optimal performance.
To correctly route the serpentine belt, start by identifying the path from the crankshaft pulley. From there, the belt moves to the alternator pulley, followed by the power steering pump and water pump. The air conditioning compressor is next in line, and finally, the belt loops around the tensioner pulley to maintain appropriate tension across all components.
Pay attention to the diagram on the radiator support or under the hood, which provides a clear reference for the routing path. Incorrect routing can cause slippage or even belt damage, so always ensure the belt follows the correct path as per the diagram.
If you’re replacing the serpentine belt, check for any signs of wear on the pulleys or tensioner before installing the new belt. This can prevent further damage and ensure the longevity of the replacement belt.
How to Identify and Troubleshoot Common Serpentine Belt Issues
Inspect the serpentine belt for signs of wear, such as cracks, fraying, or glazing. Any visible damage indicates the need for replacement. A smooth, shiny belt surface suggests overheating, while a cracked or worn belt may slip, reducing efficiency.
Listen for unusual squealing noises when the engine starts or during operation. This often points to a misaligned or worn belt tensioner. If the noise persists, check the tensioner for proper function and replace it if necessary.
Examine the belt’s tension. A loose belt can cause slippage, leading to poor performance of the engine accessories like the alternator and air conditioning. Check the tension by pressing on the belt with moderate force. If it moves more than half an inch, adjust the tension or replace the belt tensioner.
Another common issue is the belt slipping off the pulleys. This can be due to misalignment or a worn-out pulley. Inspect all pulleys for damage, rust, or misalignment. If the belt isn’t properly seated in the grooves, reposition it and check the alignment of the pulleys.
If the serpentine belt is unusually worn on one side, it could indicate a problem with the alignment of the pulleys or the tensioner. Replace damaged pulleys or adjust the tensioner to restore proper alignment.
Regularly check the belt’s routing diagram to ensure it is properly installed. Misrouting can lead to severe damage or malfunction. Follow the vehicle’s service manual to confirm correct installation.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Impala
Before starting the replacement, gather the necessary tools: a socket wrench, serpentine belt tool, and a new belt. Make sure the engine is off and cool.
- Locate the Serpentine Belt: The belt is on the front of the engine, looping around several pulleys. It connects the alternator, power steering pump, water pump, and air conditioning compressor.
- Release Tension on the Belt: Use a serpentine belt tool or socket wrench to rotate the tensioner pulley. This will loosen the belt so you can remove it easily. Make sure to slowly release tension to avoid injury or damage.
- Remove the Old Belt: Once the tension is released, carefully slide the belt off the pulleys. Note the belt’s routing to make it easier to install the new one.
- Check the Condition of Pulleys: Inspect the pulleys and tensioner for damage or wear. Replace any parts that show signs of failure.
- Install the New Belt: Position the new serpentine belt around the pulleys following the same routing as the old one. Make sure it’s properly aligned with each pulley groove.
- Apply Tension: Use the serpentine belt tool or socket wrench to move the tensioner pulley into position. Once the belt is tight, release the tensioner and double-check that the belt sits correctly on all pulleys.
- Test the Installation: Start the engine and let it run for a few minutes. Check the belt’s movement and listen for any unusual noises. If the belt is installed correctly, it should run smoothly without slipping or squealing.
By following these steps, you can replace the serpentine belt on your 2012 Impala without complications. If any issues arise, consult the vehicle manual or consider seeking professional help.
