2012 Cadillac SRX serpentine belt diagram with pulley routing and installation guide

Check the belt routing before loosening any components, as the correct path must match the factory layout. The 2012 Cadillac SRX uses a serpentine belt to power the alternator, water pump, power steering pump, and air conditioning compressor. A misaligned or incorrectly routed belt can cause noise, rapid wear, or complete accessory failure.

Use a breaker bar or a serpentine belt tool on the tensioner pulley to relieve pressure. Rotate the tensioner clockwise, then slip the old belt off carefully. Take note of how the belt moves around the crankshaft pulley, idler pulleys, and tensioner, since this diagram acts as a guide during reinstallation. Keep a printed copy nearby to avoid mistakes during routing.

When installing the new belt, confirm each rib sits correctly inside the pulley grooves. A single misalignment can lead to squealing or belt shredding. Once routed, slowly release the tensioner to apply proper pressure. After installation, run the engine briefly and observe the belt path to confirm smooth operation without vibration or slippage.

Routine inspection of the serpentine belt on the SRX should include checking for cracks, glazing, or fraying. Replacement intervals vary, but many owners report the need for a new belt around 60,000 to 80,000 miles. Keeping the belt in proper condition ensures stable operation of all front-end accessories.

2012 Cadillac SRX Serpentine Belt Diagram

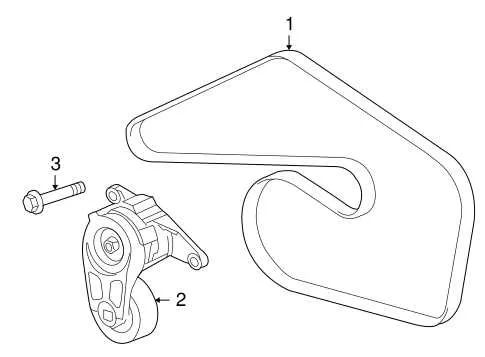

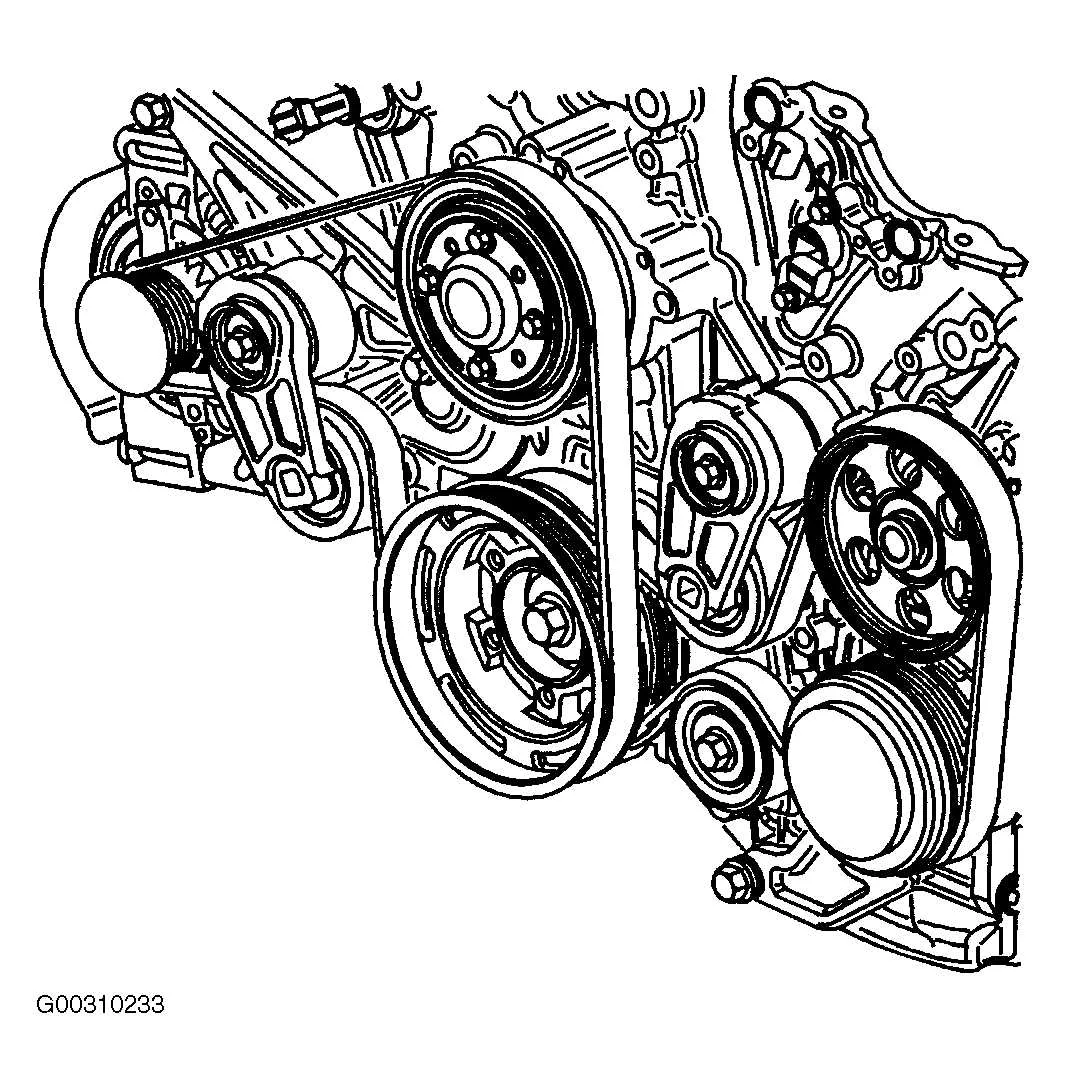

Follow the diagram to route the serpentine belt correctly across the pulleys: crankshaft, alternator, power steering pump, A/C compressor, idler pulley, and tensioner. The belt must sit fully inside each groove, without twisting or overlap.

Place the belt first around the crankshaft pulley, then wrap it around the alternator and power steering pump. Continue routing it over the A/C compressor and idler pulley. Leave the tensioner for last, using a breaker bar or ratchet to rotate it and create slack. Slide the belt into position on the tensioner and release it carefully.

Inspect alignment after installation by checking that every pulley groove matches the ribs of the belt. If the belt sits off-center on any pulley, adjust immediately before starting the engine. Proper alignment prevents squealing, slipping, and premature wear.

Correct Routing of the Serpentine Belt on 2012 Cadillac SRX

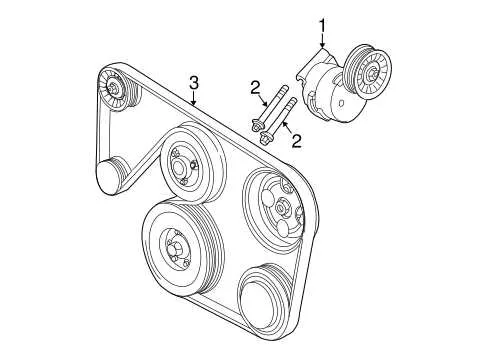

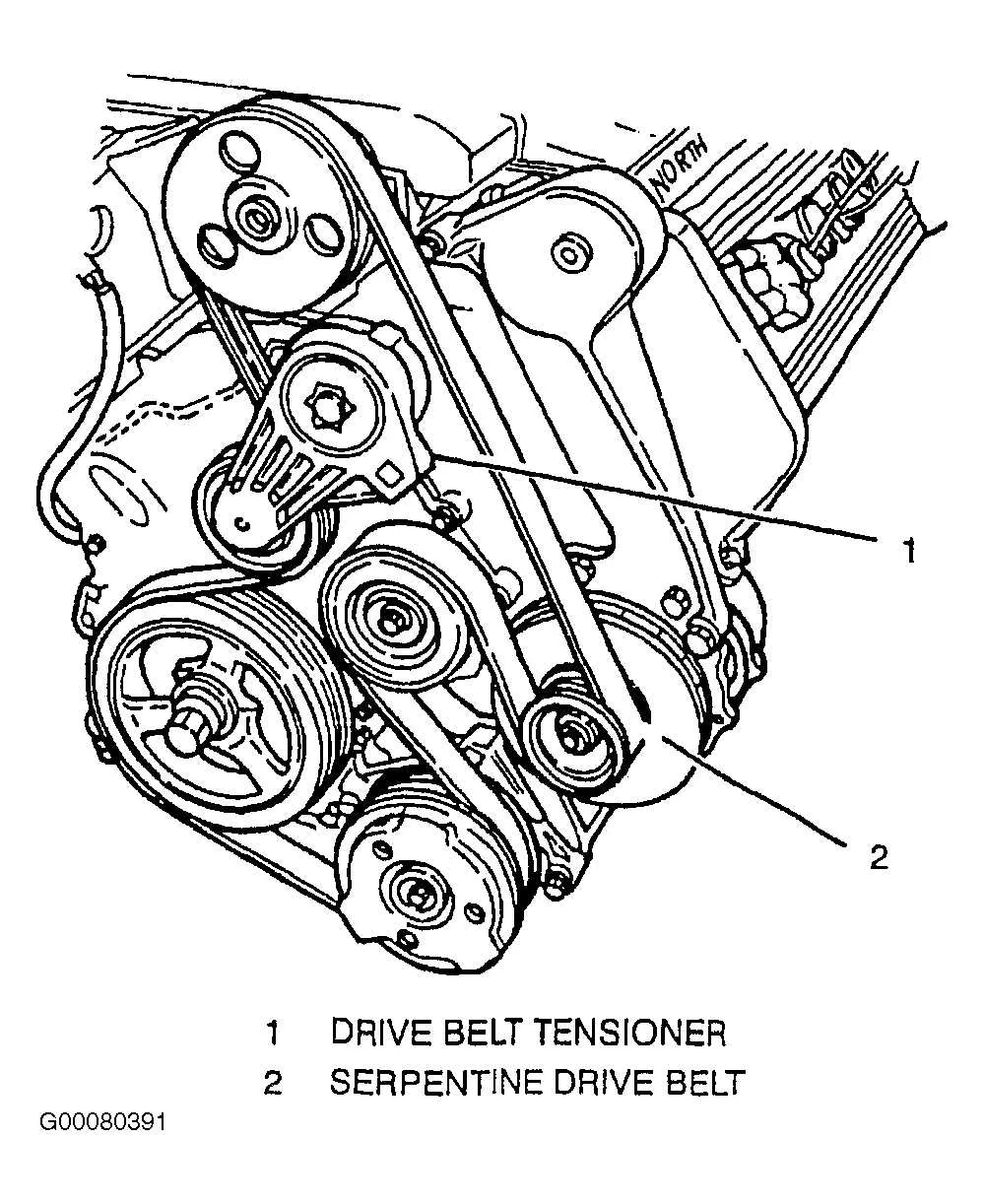

Follow the routing pattern by starting at the crankshaft pulley. From there, run the belt over the water pump pulley and then to the alternator. Continue by wrapping it around the power steering pump pulley before guiding it to the air conditioning compressor. After that, route the belt around the tensioner pulley, making sure it maintains proper contact with each groove.

Keep the smooth side of the belt aligned with smooth pulleys and the ribbed side aligned with grooved pulleys. Apply steady pressure to the tensioner while sliding the belt into place, then release the tensioner slowly to lock the belt. Double-check alignment across all pulleys to avoid slipping or uneven wear.

Always confirm the belt routing with the diagram sticker located in the engine compartment. If the sticker is missing, rely on the sequence described above and verify that every pulley is covered in the correct direction before starting the engine.

How to Replace the Serpentine Belt on 2012 Cadillac SRX

Disconnect the negative battery cable before working near the belt system to avoid accidental engagement. Use a 15mm wrench or serpentine belt tool to rotate the tensioner clockwise, releasing tension from the belt. While holding the tensioner, slide the old belt off the pulleys.

Compare the new belt with the old one to verify length and rib count. Route the new belt following the factory diagram: crankshaft pulley at the bottom, then around the alternator, idler pulley, power steering pump, A/C compressor, and finally the tensioner. Ensure the ribs seat correctly in every pulley groove.

Rotate the tensioner again and slip the belt over the final pulley. Slowly release the tensioner, allowing it to apply pressure to the belt. Check alignment across all pulleys and adjust if any rib sits outside the track.

Reconnect the battery, start the engine, and let it idle. Watch the belt while running to confirm smooth rotation without slipping or squeaking. Shut off the engine and recheck tension and alignment before closing the hood.

Common Problems Related to Serpentine Belt Tension and Alignment

Check belt tension immediately if you hear squealing at startup or under load, as loose tension allows slippage and premature wear. A stretched belt often loses grip and should be replaced rather than readjusted.

Inspect the automatic tensioner for weak spring action. If the pulley does not maintain steady pressure against the belt, the system will fail to keep proper tension. Replacing the tensioner usually resolves this issue.

Pay attention to alignment across pulleys. Misaligned pulleys cause the belt to track off-center, producing fraying at the edges and uneven surface wear. Use a straightedge tool to verify alignment and adjust or replace faulty pulleys or brackets.

• Loose tension → slippage, glazing, squealing.
• Overtight tension → stress on bearings and accessory pulleys.
• Misalignment → edge wear, belt walking, reduced lifespan.

Confirm pulley bearings rotate smoothly without wobble. Any side play or roughness accelerates belt damage and increases noise. Replacing worn pulleys prevents repeat failures after installing a new belt.

Monitor for oil or coolant leaks on belt surfaces. Contaminants reduce friction, leading to slippage and cracking. Fix leaks before installing a replacement belt to extend service life.
