2011 Serpentine Belt Diagram and Routing for Different Vehicle Models
If you’re working on the 2011 vehicle model, understanding the serpentine belt routing is a key part of maintaining engine performance. The serpentine belt drives multiple components, including the alternator, power steering pump, and air conditioning compressor. Referencing the correct diagram will ensure proper installation and help avoid costly mistakes.
The 2011 serpentine belt diagram varies slightly depending on the specific make and model of your vehicle. Always verify that you’re looking at the correct diagram for your engine size and configuration. It’s helpful to use the vehicle’s manual or check online resources for a detailed diagram specific to your model.
Ensure the belt is properly tensioned during installation. A belt that is too tight can damage components, while a loose belt may slip, reducing the efficiency of your engine. Pay close attention to the routing, as it affects not only the functionality but also the lifespan of the belt itself.

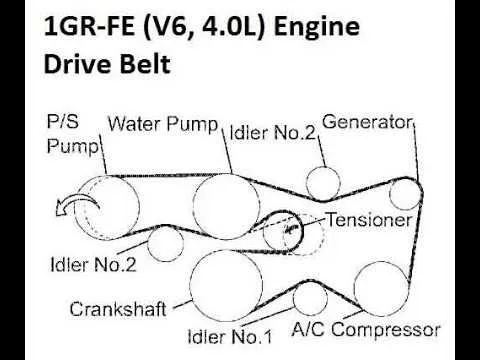

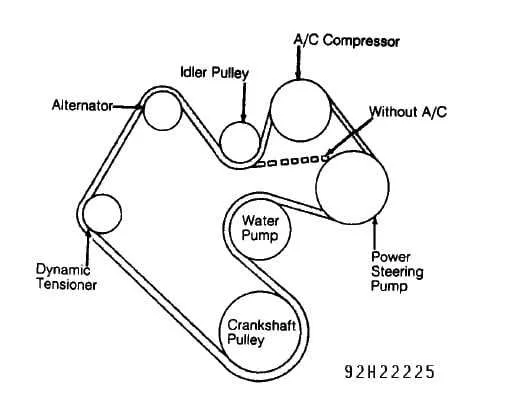

2011 Serpentine Belt Diagram
The serpentine belt diagram for a 2011 vehicle shows the precise routing path for the belt that drives multiple accessories in the engine. Always refer to the specific vehicle’s manual for the exact diagram and any variations based on the engine type or trim level. For most 2011 models, the serpentine belt is responsible for powering components like the alternator, air conditioning compressor, power steering pump, and water pump.
Inspect the belt for wear, cracks, or fraying. Replace it promptly if you notice any signs of damage to avoid failure and potential engine damage. The diagram typically highlights the routing around pulleys and the tensioner, which is crucial for proper tension adjustment. If replacing the belt yourself, ensure the tensioner is properly aligned, and always double-check the belt’s routing before starting the engine.
Use a serpentine belt tool to relieve tension on the tensioner pulley when removing the old belt. Some models may also require a special tool for the tensioner to ease installation of the new belt. Make sure the new belt matches the specifications listed in the owner’s manual to ensure correct fit and performance.
How to Identify the Correct Serpentine Belt Routing for a 2011 Model
First, locate the diagram for the serpentine belt routing. This can often be found on the engine bay, near the radiator support or on the underside of the hood. If the diagram is missing or hard to read, refer to the vehicle’s service manual for the correct routing specifics.
Next, inspect the belt tensioner. It plays a key role in maintaining proper belt tension and will help guide how the belt fits across pulleys. The tensioner itself usually has an indicator arrow or line to show the correct alignment of the belt.
Ensure the belt wraps around each component as indicated in the diagram. The alternator, power steering pump, and air conditioning compressor are typically involved, along with any additional accessories. Confirm each pulley has a specific role, and the belt follows the correct sequence to ensure proper function.
If you notice that the belt does not fit smoothly, check for any misaligned pulleys or worn components. The routing should be tight enough to prevent slipping but not so tight that it strains the components. Double-check the belt for any visible wear or damage before final installation.
Once the belt is properly routed, rotate the tensioner pulley by hand to ensure it moves freely and that the belt is securely in place. Start the engine and listen for any unusual noises, which could indicate misrouting or tensioning issues.
Common Issues with the 2011 Serpentine Belt and How to Fix Them
If the serpentine belt on your 2011 vehicle starts to squeal, it’s likely due to wear or improper tension. First, check for visible cracks or fraying. If any are present, it’s time to replace the belt.
A common problem is belt slippage. This can happen if the belt has lost its grip or if the tensioner isn’t working properly. If you notice inconsistent engine performance or squeaks during acceleration, inspect the tensioner pulley for damage. Replacing a faulty tensioner will restore the belt’s proper tension.
Another issue is the build-up of debris or oil on the belt. Dirt or fluid can reduce the friction needed for proper operation. If you spot oil stains or grime on the belt, clean the area around it and replace the belt if cleaning doesn’t help.
Misalignment of pulleys can also affect the serpentine belt’s function. If the belt starts running off-center or makes unusual noises, check for misalignment. This often requires replacing the damaged pulley or adjusting the alignment of the components to ensure smooth operation.
Finally, don’t ignore the belt’s age. A serpentine belt has a limited lifespan. If it’s been over 60,000 miles, plan on replacing it, even if it seems to be in good condition. This will prevent sudden failures that could damage other components.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Vehicle
Replacing the serpentine belt on a 2011 vehicle is straightforward with the right tools and a bit of time. Here’s a step-by-step guide to get the job done efficiently.
- Gather Necessary Tools: Before starting, make sure you have a socket set, a serpentine belt tool (or a breaker bar), and a new serpentine belt that fits your specific vehicle model.
- Locate the Serpentine Belt Diagram: Refer to the vehicle’s owner manual or the engine bay for the serpentine belt routing diagram. This will show the proper belt path for reinstallation.
- Release Tension from the Belt: Use the serpentine belt tool to rotate the tensioner pulley in the direction indicated on the diagram. This will relieve the tension, allowing you to remove the old belt.
- Remove the Old Belt: Slide the belt off the pulleys. Pay attention to the way the belt is routed to ensure you install the new one correctly.
- Inspect Pulleys and Components: While the belt is off, inspect the pulleys, tensioner, and other components for any signs of wear or damage. Replace any worn parts before continuing.
- Install the New Belt: Place the new belt onto the pulleys following the path shown in the diagram. Make sure it sits properly in the grooves.
- Reapply Tension: Use the serpentine belt tool to rotate the tensioner pulley back into place, ensuring the new belt is tight and properly aligned.
- Double-Check the Installation: Rotate the crankshaft by hand (if possible) to make sure the belt runs smoothly and doesn’t slip off any pulleys.
- Test the Vehicle: Start the engine and observe the serpentine belt in action. Listen for any unusual sounds, such as squeaks or squeals, which could indicate improper installation.
With these steps completed, your serpentine belt replacement on the 2011 vehicle should be finished. Ensure to properly dispose of the old belt and any other discarded components.
