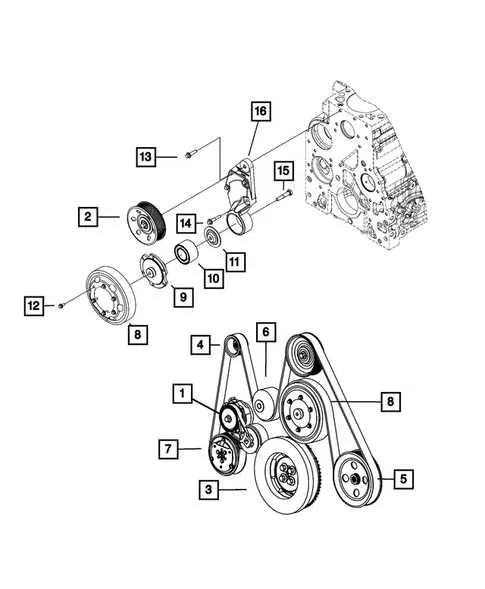

Complete 2011 Ram 1500 Serpentine Belt Diagram and Routing Guide
Locate the correct serpentine belt routing by referring directly to the 2011 Ram 1500 diagram. The belt drives the alternator, power steering pump, water pump, and air conditioning compressor, so precise placement is critical for engine operation.
Check the belt tensioner position carefully before installation. Incorrect tension can cause slipping, premature wear, or damage to engine components. The diagram provides clear guidance on how the belt wraps around each pulley to maintain proper alignment.
Use the diagram to identify each pulley accurately. The crankshaft pulley sits at the bottom center, while the alternator and A/C compressor are typically located on the upper front of the engine. Following the routing step by step ensures the belt maintains correct tension and contact with all pulleys.
Inspect the belt for cracks, fraying, or glazing during replacement. The diagram also helps determine the correct belt length and confirms the orientation of any ribbed sections to match the pulley grooves precisely.
Double-check the routing after installation by rotating the engine manually. This ensures the belt tracks properly and engages each pulley without slipping or misalignment. Using the diagram as a reference minimizes errors and extends the service life of the serpentine belt and connected components.
Comprehensive Guide to the 2011 Ram 1500 Serpentine Belt Diagram
Locate the serpentine belt routing diagram under the hood, typically on the radiator support or the engine cover. This diagram shows the exact path the belt follows across pulleys and tensioners.
Before removing the old belt, identify all components it drives:
- Alternator
- Power steering pump
- Water pump
- Air conditioning compressor
- Tensioner pulley
- Idler pulleys
Inspect each pulley and the tensioner for wear. Look for cracks, glazing, or wobbling. Replace any damaged components before installing a new belt.
Release belt tension using a wrench or serpentine belt tool on the tensioner pulley. Carefully slide the belt off, noting its routing for reinstallation.
Check the new belt length against the old one. Ensure it matches exactly and fits smoothly over all pulleys without forcing it.
Follow the diagram precisely when routing the new belt:
- Start at the crankshaft pulley and loop the belt around the next component indicated on the diagram.
- Continue routing the belt sequentially over each pulley, keeping it seated correctly in the pulley grooves.
- Leave the tensioner pulley for last. Apply tension and make sure the belt aligns evenly across all pulleys.
After installation, rotate the engine manually two full turns to verify the belt tracks correctly and all pulleys move freely.
Double-check the diagram one final time to confirm proper routing. Misalignment can cause squealing, belt wear, or accessory failure.
Test-drive the vehicle and listen for unusual noises. Re-inspect the belt after a few miles to ensure it maintains proper tension and alignment.

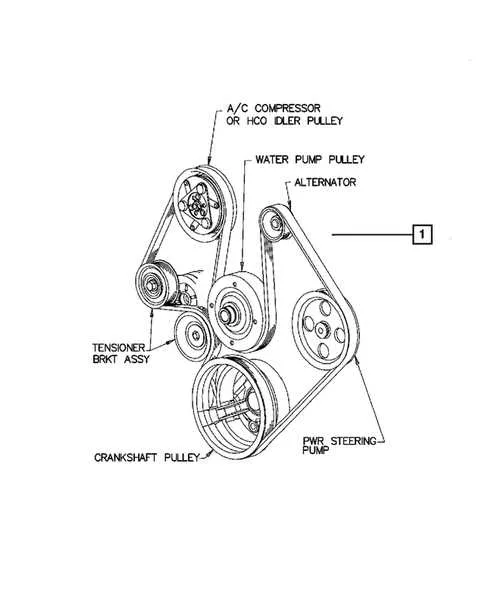

Identifying Each Pulley and Component in the 2011 Ram 1500 Serpentine Belt System
Locate the crankshaft pulley at the bottom center of the engine; it drives the serpentine belt and sets the rotation for all other components.
The alternator pulley sits near the top left, providing electrical power while maintaining proper belt tension.
Position the power steering pump pulley on the upper right side; ensure the belt aligns with its grooves for smooth steering assistance.
The water pump pulley, located near the center, circulates coolant through the engine. Check that the belt sits flush without slipping.
Identify the air conditioning (A/C) compressor pulley on the lower left; this enables the A/C system to operate when the engine runs.
Spot the idler pulleys along the belt path; these guide the belt, maintain tension, and prevent misalignment.
Locate the belt tensioner pulley, usually spring-loaded on the right side; use a wrench to release tension safely when replacing the belt.
Trace the belt path over each pulley carefully, verifying correct engagement in the grooves. Incorrect routing can cause noise or component failure.
Confirm all pulleys rotate freely by hand; any resistance or wobble indicates a worn bearing or misalignment that needs attention.
Double-check that the belt is properly seated on every pulley after installation. Proper alignment extends belt life and ensures reliable performance.
Step-by-Step Routing of the Serpentine Belt on the 2011 Ram 1500 Engine
Begin by locating the tensioner pulley on the front of the engine. Use a wrench or serpentine belt tool to rotate the tensioner clockwise, relieving tension from the belt.
Remove the old belt carefully, noting its exact path around each pulley. If necessary, take a photo for reference.
Route the new belt around the crankshaft pulley at the bottom center of the engine. Ensure the belt sits fully in the pulley grooves.
Next, loop the belt around the alternator pulley on the upper left side of the engine. Maintain tension on the side that runs directly to the tensioner.
Route the belt around the water pump pulley, located just above the crankshaft pulley. Confirm the belt aligns with all grooves to prevent slipping.
Loop the belt over the power steering pump pulley on the right side. Check the belt orientation to match the ribbed and flat sides of the pulleys.
Route the belt around the air conditioning compressor pulley near the front right corner of the engine. Keep tension on the section running to the tensioner.
Finally, route the belt over the tensioner pulley and slowly release the wrench to apply tension. Inspect the belt to ensure it sits properly on every pulley and that no ribs are misaligned.
Verify alignment by rotating the crankshaft manually using a socket. Watch the belt travel smoothly over all pulleys without jumping or rubbing edges.
Troubleshooting Common Issues with the Serpentine Belt and Tensioner
Inspect the serpentine belt for visible cracks, fraying, or glazing on the ribs. Replace the belt immediately if any damage appears, as worn belts reduce alternator, power steering, and AC efficiency.
Check belt alignment on all pulleys. Misalignment can cause squealing noises and uneven wear. Use a straight edge or laser alignment tool to ensure the belt runs true across the pulleys.
Examine the tensioner for proper operation. A weak or stuck tensioner can result in slipping or premature belt wear. Apply moderate pressure to the tensioner arm; it should move smoothly and return to position without hesitation.
Listen for unusual noises during engine operation. High-pitched squeals often indicate a loose belt or failing tensioner bearing. Replace the tensioner if noise persists after belt adjustment.
Verify pulley condition. Worn or damaged pulleys can damage a new belt rapidly. Rotate each pulley by hand, checking for rough spots, wobble, or excessive play, and replace any defective component.
Maintain proper belt routing according to the 2011 Ram 1500 diagram. Incorrect routing can overload accessories and cause belt slipping or breakage. Follow the specific path over alternator, crankshaft, power steering, AC, and idler pulleys.
Check tensioner spring tension. Over time, springs can weaken, failing to maintain belt pressure. Compare tensioner force to specifications; replace if below recommended values.
Inspect for oil or coolant contamination on the belt. Fluids reduce grip and accelerate deterioration. Clean pulleys and address leaks before installing a new belt.
