2011 Mazda 3 Serpentine Belt Diagram and Routing Guide

Replace or inspect the serpentine belt in your 2011 Mazda 3 by following the correct diagram for optimal performance. The serpentine belt powers multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Identifying the correct path for the belt ensures that all systems function efficiently and prevents unnecessary wear or damage.

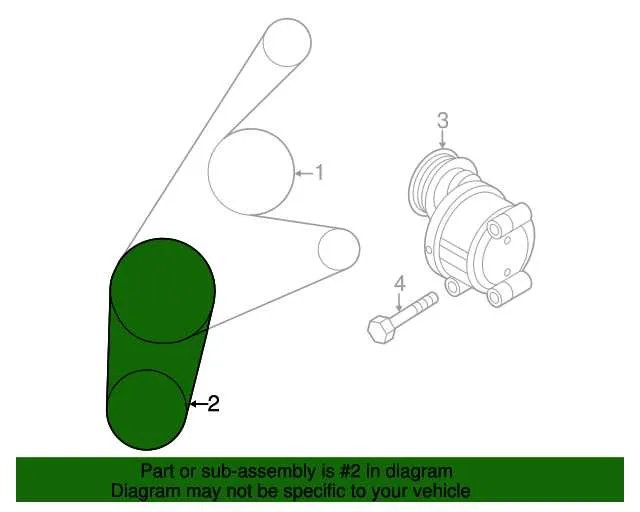

Refer to the specific belt routing diagram for your 2011 Mazda 3 model to avoid errors. The diagram shows the belt’s precise path around the various pulleys, tensioners, and accessories. Pay attention to the direction of rotation, as improper installation could lead to premature belt failure or system malfunctions.

If replacing the serpentine belt, it is essential to verify the condition of the tensioner and pulleys. A worn-out tensioner or damaged pulleys can lead to belt slippage or misalignment. Always check these components during the replacement process to ensure long-term reliability and performance of the engine’s accessory drive system.

2011 Mazda 3 Serpentine Belt Diagram

The serpentine belt in the 2011 Mazda 3 is a crucial component that drives multiple engine accessories, including the alternator, power steering pump, water pump, and air conditioning compressor. Proper alignment and tension are critical to ensure smooth operation and prevent damage to other parts. If the belt shows signs of wear such as cracks, fraying, or squealing noises, it should be replaced immediately to avoid more serious engine issues.

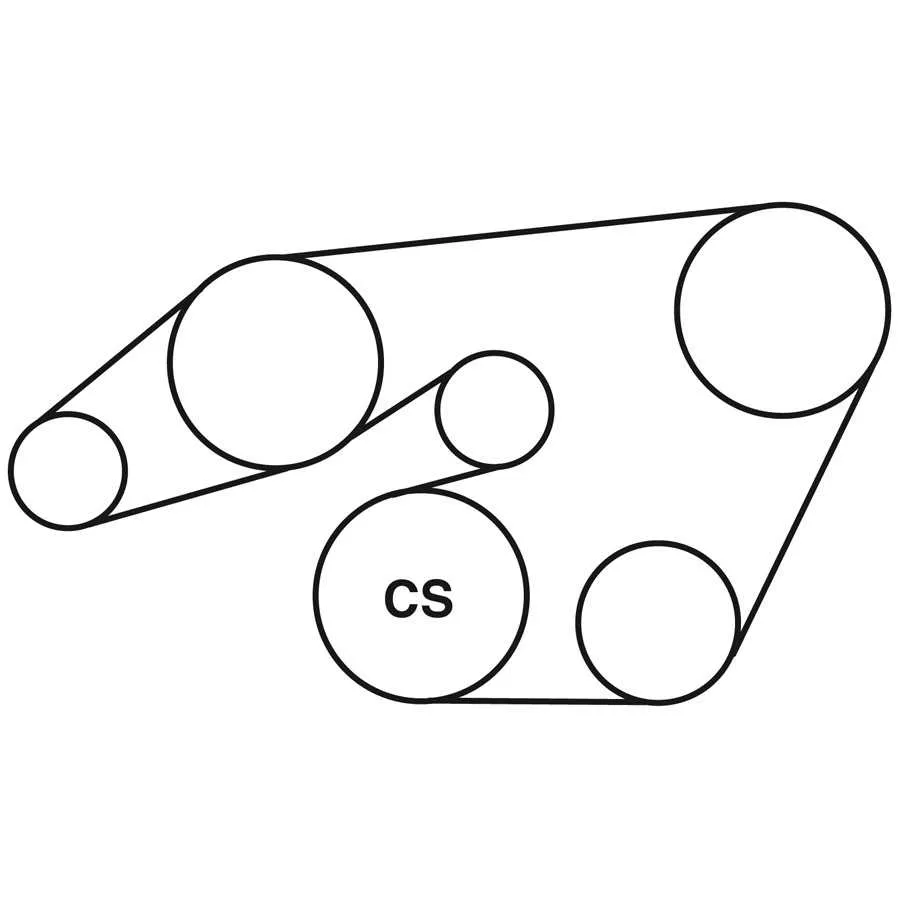

Refer to the engine compartment for a diagram of the serpentine belt routing. The belt should be routed in a specific path around pulleys and tensioners. For most 2011 Mazda 3 models, the tensioner pulley is used to adjust the belt’s tension. This pulley may require a special tool to release its tension for belt removal or replacement. Make sure to follow the exact routing as shown in the diagram to avoid misalignment that could lead to premature wear or malfunction.

When replacing the serpentine belt, it’s important to check the pulleys for damage or excessive wear. If any of the pulleys appear worn or the belt shows signs of slipping, replacing those components might be necessary. Regular inspections every 30,000 miles or so are recommended to maintain optimal performance.

Understanding the Serpentine Belt Layout for 2011 Mazda 3

The serpentine belt on a 2011 Mazda 3 plays a crucial role in powering several essential components, such as the alternator, power steering pump, air conditioning compressor, and the water pump. The layout of the belt is carefully designed to ensure the correct sequence and tension for these systems to function smoothly.

First, identify the position of each component it drives. The layout for the 2011 Mazda 3 is as follows:

• The alternator is located on the left side of the engine, driven directly by the serpentine belt.
• The power steering pump sits adjacent to the alternator, connected to the belt to provide the necessary hydraulic pressure for steering.
• The air conditioning compressor is positioned near the bottom of the engine, also powered by the serpentine belt for cooling operations.
• The water pump, responsible for circulating coolant through the engine, is connected to the belt as well.

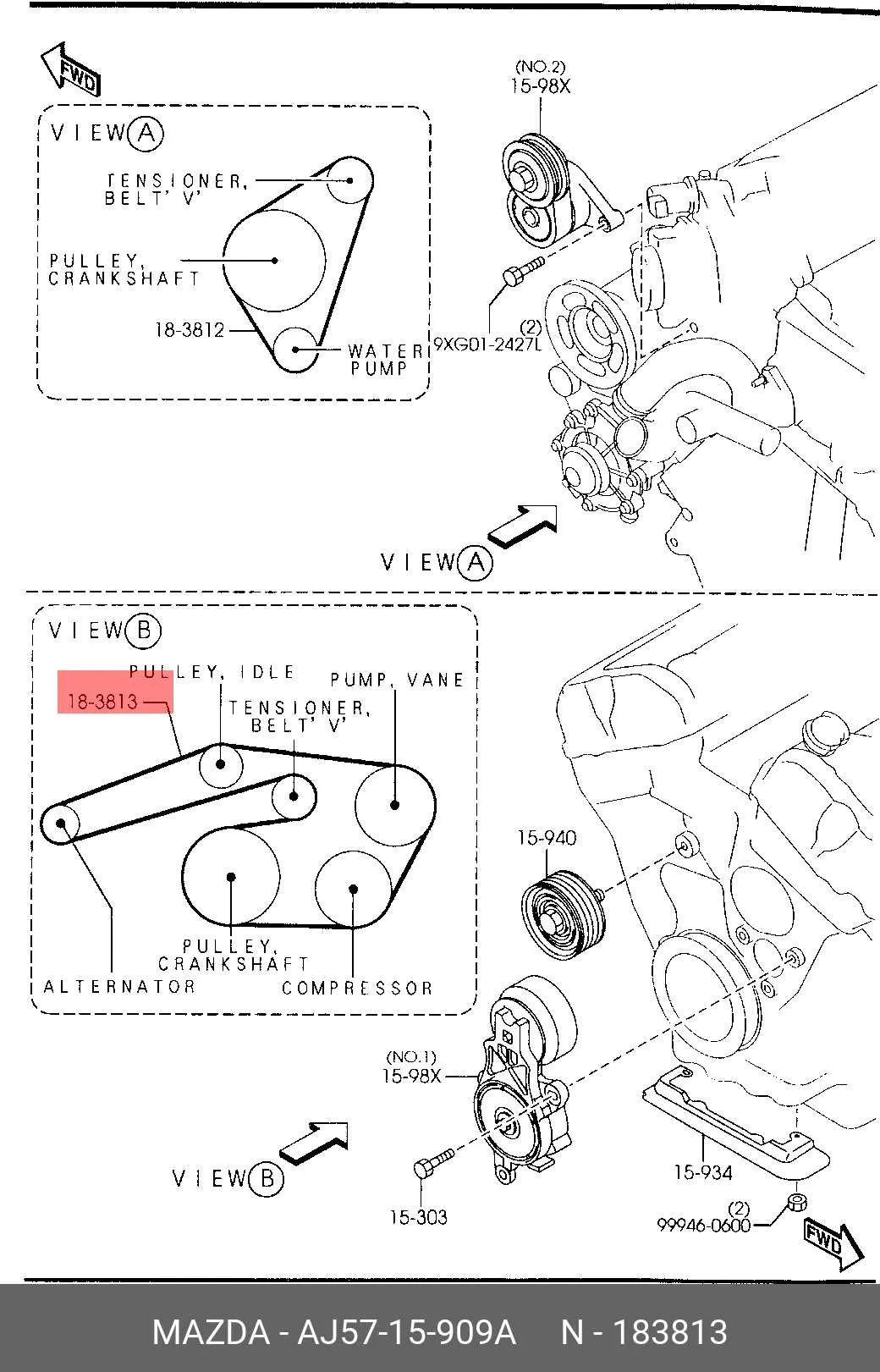

Check the routing diagram typically found near the engine bay. This diagram helps verify the exact path the serpentine belt should follow, ensuring that each component is powered correctly. Make sure the belt’s tension is properly adjusted to avoid slipping or excessive wear.

If the belt shows signs of wear or damage, it may cause issues with engine performance, such as overheating or loss of power steering. Regular inspection and replacement of the serpentine belt will help prevent these issues and maintain the vehicle’s overall efficiency.

Steps for Replacing the Serpentine Belt on a 2011 Mazda 3

To begin replacing the serpentine belt, first, locate the tensioner pulley. Use a wrench or socket to relieve the tension on the belt. Rotate the pulley in the counterclockwise direction to release tension, then remove the belt from the pulleys.

Next, inspect the belt and other components like the pulleys and tensioner for wear or damage. If any parts are damaged, replace them before installing the new belt.

Install the new serpentine belt by routing it according to the diagram for your 2011 Mazda 3. Ensure the belt follows the correct path around all pulleys, with no slack or misalignment. Double-check the routing before moving to the next step.

Once the belt is properly positioned, use the wrench to move the tensioner pulley again, allowing the belt to fit snugly into place. Release the tensioner to apply the necessary tension to the belt.

Finally, start the engine and check for proper belt operation. Listen for any unusual sounds and ensure the belt runs smoothly over all pulleys. If the belt is functioning correctly, you’ve completed the replacement process.

Troubleshooting Common Serpentine Belt Issues on 2011 Mazda 3

If the serpentine belt on your 2011 Mazda 3 is slipping, check for proper tension. A loose belt can cause squealing or loss of power to accessories. Use a tension gauge to ensure the belt is at the correct tension as specified in the owner’s manual. If the belt is too loose, adjust the tensioner or replace the belt if it’s worn.

Inspect the belt for visible signs of wear such as cracks, fraying, or glazing. If you notice any of these, the belt may be losing its grip, leading to slipping. A damaged belt should be replaced immediately to prevent further damage to the engine components.

If the alternator or power steering pump is making noise, the pulley might be misaligned. Check the alignment of the pulleys with a straightedge. Misalignment can cause the belt to wear unevenly and lead to performance issues. Tightening or realigning the pulleys can solve this problem.

A common issue with serpentine belts is the build-up of dirt and debris. Clean the belt and pulleys to ensure smooth operation. Dirt can cause excessive friction, leading to premature wear and decreased belt lifespan. Use a soft brush or cloth to wipe off any debris from the pulleys.

In some cases, the serpentine belt tensioner may fail. A faulty tensioner can cause the belt to slip or make noise. To check the tensioner, observe the pulley for any wobbling or movement while the engine is running. If the tensioner is not functioning properly, it should be replaced.

Finally, if the belt is frequently coming off, inspect the condition of the pulleys and bearings. Worn bearings can cause the pulleys to spin unevenly, which may lead to the belt slipping off. Replacing the faulty pulleys or bearings will restore proper operation.
