2011 Infiniti G37 Serpentine Belt Routing and Diagram Guide

If you’re looking to replace or inspect the serpentine belt on your 2011 Infiniti G37, you’ve come to the right place. The serpentine belt drives several important components in your engine, including the alternator, power steering pump, and air conditioning compressor. To ensure everything runs smoothly, it’s crucial to follow the correct routing path, which is where the serpentine belt diagram comes in handy.

The 2011 Infiniti G37 uses a specific belt configuration to power these accessories. The diagram clearly shows how the belt loops around various pulleys, providing a simple visual guide for the correct installation. Pay attention to the direction of the belt and the positioning of each pulley, as this will ensure the belt works without issues.

Before you begin, make sure to check the condition of the belt for wear or damage. A worn serpentine belt can cause poor engine performance or even lead to failure of critical systems. If you’re ready to replace it, locate the tensioner pulley to release the tension and remove the old belt. Once installed, check the belt for proper tension, ensuring it has the right amount of slack for optimal performance.

Using the correct diagram for your model will make the job easier and more efficient. Don’t hesitate to consult your vehicle manual or a professional mechanic if you’re unsure about any step in the process.

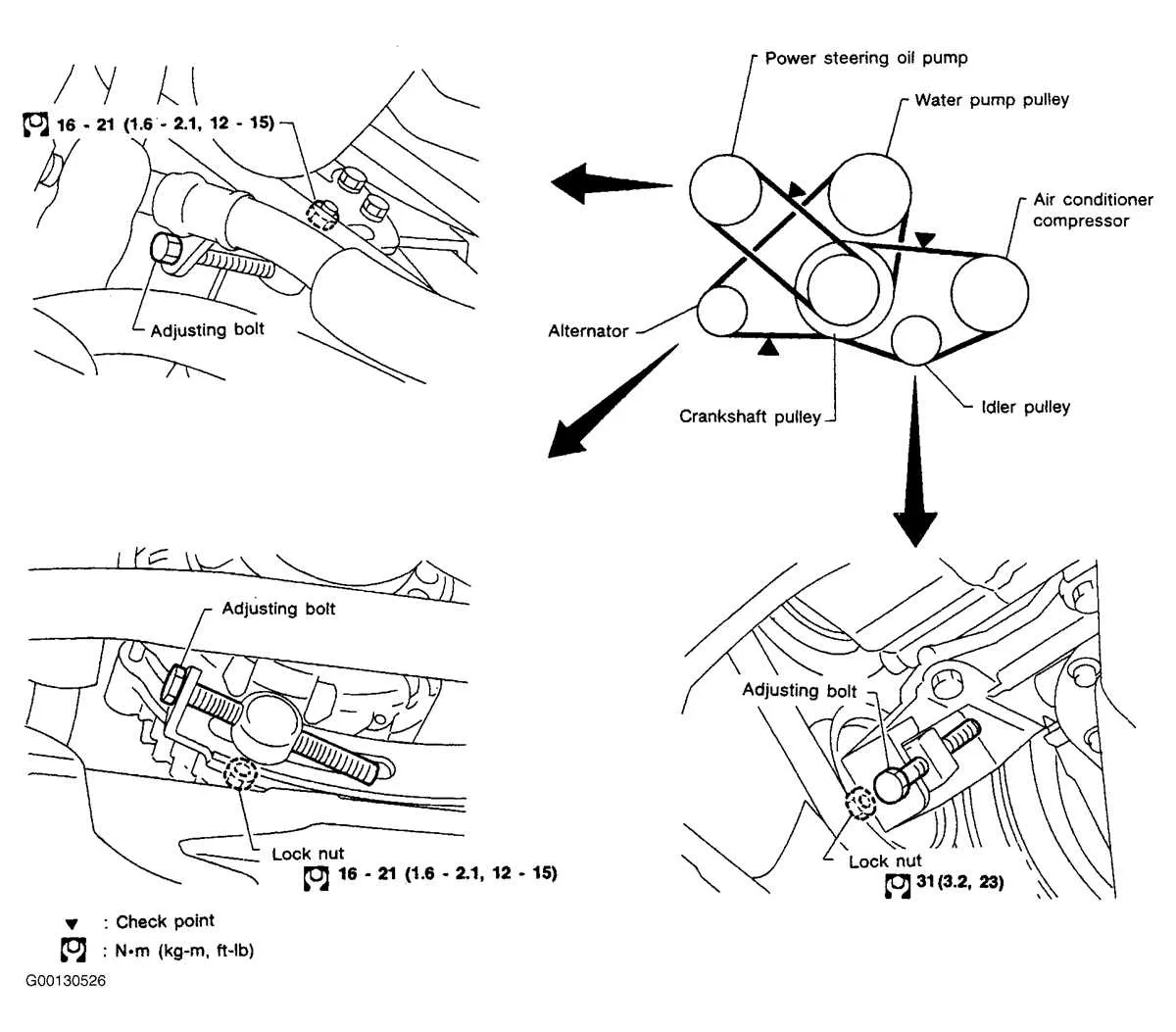

2011 Infiniti G37 Serpentine Belt Diagram

The serpentine belt on a 2011 Infiniti G37 is crucial for driving multiple accessories such as the alternator, power steering pump, and air conditioning compressor. When replacing or inspecting the serpentine belt, refer to the diagram to ensure the correct routing and tensioning. The diagram typically shows a clockwise rotation from the crankshaft, through various pulleys, and around the tensioner. Pay attention to the orientation of the belt as an incorrect installation can lead to engine performance issues or damage to components.

The key to identifying the proper path of the serpentine belt lies in matching the belt to the component pulleys, starting with the main drive pulley, which is connected to the crankshaft. From there, the belt runs to the idler pulley and tensioner. Make sure the belt fits snugly around each pulley without slipping or misalignment.

If the belt has visible signs of wear such as cracking, glazing, or fraying, it’s time for a replacement. Before installing a new belt, check the tensioner for proper operation, as a faulty tensioner can prevent the new belt from staying tight, leading to premature failure. Use a serpentine belt tool to safely release the tension on the old belt before removing it, and carefully install the new one following the diagram.

Always double-check the belt routing diagram before tightening everything back in place. An incorrectly routed belt can cause the engine to overheat or result in a malfunction of the accessories it drives. For your convenience, consult the owner’s manual or a professional mechanic if you’re unsure about the installation process.

How to Locate the Serpentine Belt on the 2011 Infiniti G37

Open the hood and locate the engine bay. The serpentine belt on the 2011 Infiniti G37 is positioned along the front of the engine, connecting various components such as the alternator, power steering pump, and air conditioning compressor. Look for the belt running across the pulleys. The engine cover may need to be removed for clearer access.

Check the belt routing diagram, typically found on a label near the radiator or on the underside of the hood. This diagram will show you the exact path the belt takes around the pulleys. It’s helpful for understanding the configuration if you need to replace or inspect the belt.

To get a better view, use a flashlight to highlight the pulleys and belt. You’ll see the belt’s position and its condition more clearly, making it easier to spot any signs of wear or damage. If the belt is loose, cracked, or worn, it might need replacement.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Infiniti G37

First, park your Infiniti G37 on a level surface, engage the parking brake, and disconnect the negative terminal of the battery. This will prevent any electrical mishaps during the replacement process.

Locate the serpentine belt by opening the hood. The belt runs across various engine components such as the alternator, power steering pump, and air conditioning compressor. The diagram for the serpentine belt can usually be found near the radiator or on the engine cover.

Using a wrench or socket, relieve tension from the serpentine belt tensioner. This will require rotating the tensioner clockwise or counterclockwise, depending on your specific model. Once relieved, slide the belt off the pulleys.

Inspect the condition of the pulleys and tensioner before removing the old belt. Look for wear or damage that could cause problems with the new belt.

Place the new serpentine belt around the pulleys according to the diagram. Make sure the belt is properly seated in the grooves of each pulley. Follow the diagram carefully to avoid incorrect installation.

After positioning the new belt, rotate the tensioner once more to allow it to grab and hold the belt in place. Ensure that the belt is tight and properly aligned with each pulley.

Reconnect the battery and start the engine to check for any unusual noises. If everything runs smoothly, the replacement is complete.

Common Issues and Troubleshooting for Serpentine Belt Problems in the 2011 Infiniti G37

If your 2011 Infiniti G37 is making unusual noises, or if you notice issues with power steering, air conditioning, or charging, a faulty serpentine belt may be to blame. Here’s how to spot and fix common serpentine belt problems:

• Squealing or Chirping Noises – This is often caused by a worn or loose serpentine belt. Inspect the belt for cracks or signs of wear. If the belt seems loose, the tensioner may be malfunctioning and require adjustment or replacement.
• Slipping Belt – A slipping belt can result in reduced performance from components like the alternator and air conditioning. This may be due to incorrect tension or wear. Check the belt tension and ensure it is properly aligned with all pulleys.
• Belt Fraying or Cracking – Inspect the serpentine belt for visible damage. Cracks or fraying can lead to complete failure. If you find significant wear, it’s time to replace the belt.
• Loss of Power Steering or AC – The serpentine belt powers multiple components. If the belt fails, you may lose power steering or air conditioning. Check for any signs of belt damage, and replace it as necessary to restore function.
• Burning Rubber Smell – A strong burning smell could indicate that the belt is overheating due to excess friction. This can be caused by a misaligned pulley or damaged tensioner. Make sure the pulleys are aligned and that the belt is tight enough to reduce friction.

To troubleshoot, start by visually inspecting the serpentine belt for cracks, fraying, or any obvious signs of damage. Check the belt tension using a tension gauge. If the tension seems off, adjust it or replace the tensioner if needed. If there’s no visible damage but you’re still hearing noises, the problem might be with one of the pulleys. Rotate the pulleys by hand to check for any unusual resistance or noise. If you spot any issues, replace the affected pulley. Always replace the serpentine belt at the first sign of wear to prevent it from breaking and causing further engine damage.
