2011 BMW 535i Serpentine Belt Routing Diagram and Installation Guide

If you’re looking to replace or inspect the serpentine belt on your 2011 BMW 535i, understanding its routing is essential for a smooth repair process. The serpentine belt plays a key role in driving various engine components like the alternator, power steering pump, and air conditioning compressor. Getting the correct diagram will help you avoid errors and save time.

Locate the serpentine belt routing diagram under the hood, often printed on a label near the front of the engine. This diagram will clearly illustrate the belt’s path around pulleys, tensioners, and accessories. Make sure to check the condition of the belt for cracks, wear, or damage before proceeding with the replacement.

The tensioner pulley on the 2011 BMW 535i is spring-loaded and can be adjusted using a tool like a socket wrench to relieve tension. Follow the diagram carefully to ensure the belt is properly installed and aligned on all pulleys to avoid premature wear or slippage.

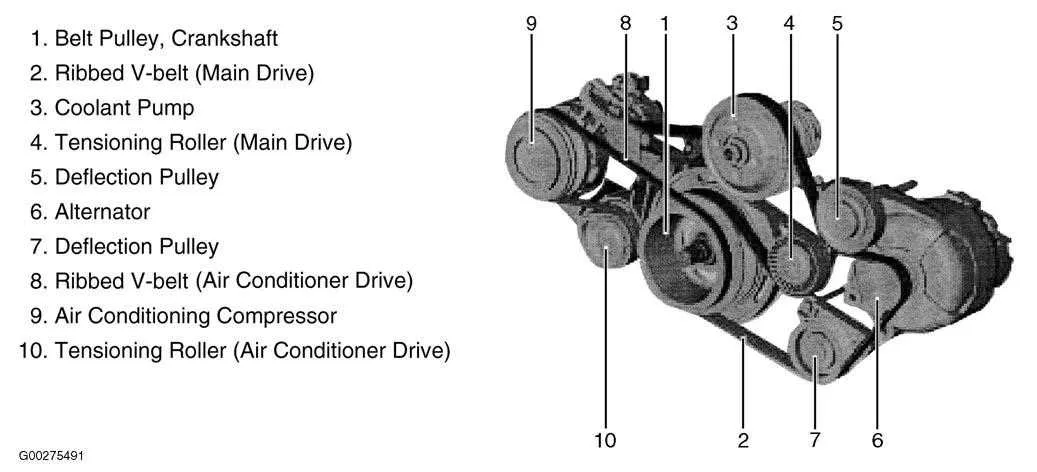

2011 BMW 535i Serpentine Belt Diagram

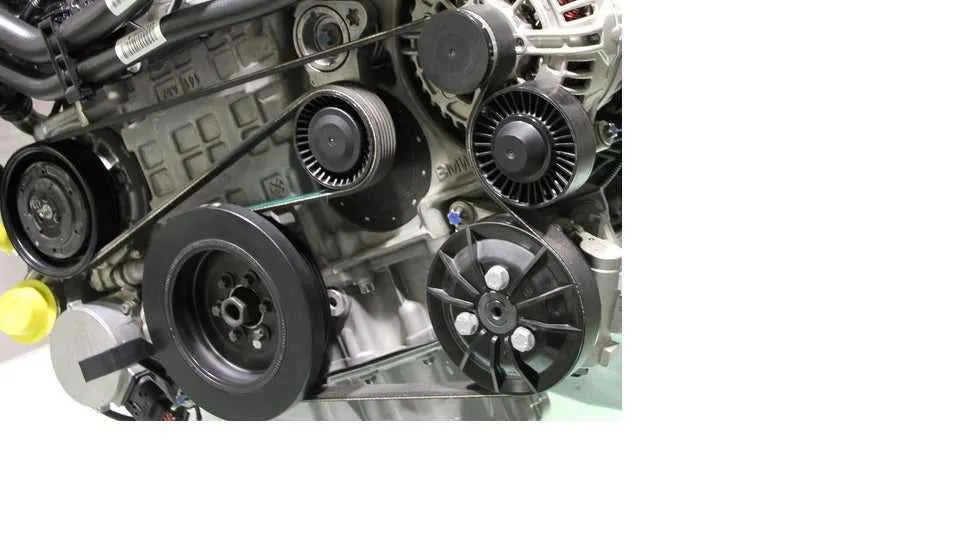

To replace or inspect the serpentine belt on a 2011 BMW 535i, refer to the diagram below for accurate routing. The belt drives several key components, including the alternator, power steering pump, water pump, and air conditioning compressor. It’s crucial to follow the exact path to prevent misalignment or excessive wear.

The serpentine belt routing on the 2011 BMW 535i is as follows:

• The belt starts at the crankshaft pulley.
• It moves towards the A/C compressor, passing under it.
• Then, it loops around the power steering pump.
• The belt continues to the alternator and idler pulleys.
• It loops back to the tensioner pulley before returning to the crankshaft.

For better access to the serpentine belt, use a ratchet to release tension from the tensioner pulley. Once the tension is released, remove the belt carefully. If replacing the belt, compare the old one with the new to ensure proper size and fit.

Always check for any signs of wear, such as cracking, fraying, or glazing, as these issues can lead to premature failure. Regularly inspect the belt every 30,000 to 60,000 miles, depending on driving conditions.

How to Identify the Serpentine Belt Routing for 2011 BMW 535i

To identify the serpentine belt routing on a 2011 BMW 535i, start by locating the belt routing diagram. You’ll find it on a sticker near the front of the engine bay, often on the radiator support or near the fan shroud. This diagram outlines the path the serpentine belt takes, showing how it loops around the pulleys, tensioner, and accessories.

If the diagram is missing or unreadable, follow these steps. First, locate the components the belt interacts with. The main ones include the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. The belt routes around these parts in a specific order to ensure each component gets powered correctly.

Next, check the tensioner. It is spring-loaded and automatically adjusts the belt’s tension. The belt typically wraps around it last, so ensure it’s correctly placed to maintain proper tension. Be mindful that the belt should not twist as it loops through the pulleys.

Once you’ve identified the main components and their locations, manually check the belt’s routing by matching the path to the diagram or a service manual specific to the 2011 BMW 535i. This helps avoid installation errors, ensuring the belt functions properly and doesn’t wear prematurely.

If you’re still uncertain, consider using an online diagram or consulting a mechanic who can provide guidance on routing the belt correctly. Maintaining the right belt path prevents unnecessary strain on the engine components and ensures smooth operation of the vehicle.

Common Issues with the Serpentine Belt and Troubleshooting Tips

If you notice squeaking or squealing noises coming from the engine, it might be a sign of a worn serpentine belt. Over time, the belt can stretch or crack, affecting its ability to function properly. One common issue is belt slippage, which leads to a loss of power to vital components like the alternator or air conditioning. To fix this, inspect the belt for visible wear and replace it if necessary.

Another problem to watch out for is misalignment. If the serpentine belt isn’t sitting properly on the pulleys, it can cause premature wear or even breakage. Misalignment could be due to a faulty pulley or tensioner. You can inspect the pulleys for damage and make sure they rotate smoothly. If any pulley seems damaged or out of alignment, replace it to prevent further issues.

When a serpentine belt wears out, it may develop cracks, frays, or a rough texture. This can lead to belt failure, leaving vital systems like the water pump, alternator, or power steering pump without power. If you spot any of these signs, replacing the belt immediately will prevent further damage to your engine.

In some cases, the tensioner may wear out or become faulty, which leads to improper tension on the belt. This can cause the belt to loosen, resulting in erratic functioning of engine components. To check the tensioner, you can try pressing on the belt between pulleys. If it deflects too much, the tensioner likely needs replacing.

Regular maintenance is key to preventing these issues. Periodically inspect the serpentine belt for signs of wear and tear, and replace it according to your manufacturer’s recommendations. If you experience a loss of power to important systems, or notice unusual noises, don’t ignore them–early detection can save you from bigger, costlier repairs.

Step-by-Step Guide for Replacing the Serpentine Belt on 2011 BMW 535i

Lift the front of the vehicle with a jack and secure it using jack stands for safety. Make sure there’s enough room to work underneath the car.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt running across various engine components such as the alternator, water pump, and power steering pump. Refer to the belt routing diagram, usually located on the radiator support or near the engine, to confirm the belt’s path.

2. Relieve Tension on the Belt: Use a 3/8″ ratchet or serpentine belt tool to rotate the tensioner pulley and relieve tension on the belt. Once the tension is released, slide the belt off the pulleys.

3. Inspect the Pulleys: After removing the belt, inspect each pulley for wear or damage. Check for wobbling, cracks, or other signs of excessive wear. Replace any damaged pulleys before installing the new belt.

4. Install the New Serpentine Belt: Route the new belt around the pulleys according to the routing diagram. Ensure the belt fits snugly in each pulley groove and is correctly aligned.

5. Apply Tension: Use the ratchet or serpentine belt tool to apply tension to the tensioner pulley. Ensure the belt is tight and securely seated on all pulleys.

6. Double-Check the Installation: Check the belt’s alignment and tension again.
