2009 Lexus ES 350 Serpentine Belt Diagram and Installation Guide

Replacing the serpentine belt on your 2009 Lexus ES 350 requires accurate understanding of its routing and positioning. Ensure you have the correct diagram to avoid complications during installation. The serpentine belt is responsible for driving multiple components, including the alternator, power steering pump, and air conditioning compressor, making it crucial to keep it in optimal condition.

Start by locating the belt tensioner, which is essential for adjusting belt tension. With the right tools, release the tension on the belt, and carefully remove it from the pulleys. Follow the belt diagram carefully to install the new serpentine belt, ensuring it fits snugly around each pulley.

Check for any signs of wear on the pulleys themselves, as these can cause premature belt failure. It’s also important to inspect the tensioner for smooth operation. A damaged tensioner can lead to improper belt tension, which will shorten the life of the new serpentine belt.

Keep the diagram on hand throughout the process to make sure each component is properly aligned, ensuring optimal function and longevity for your 2009 Lexus ES 350.

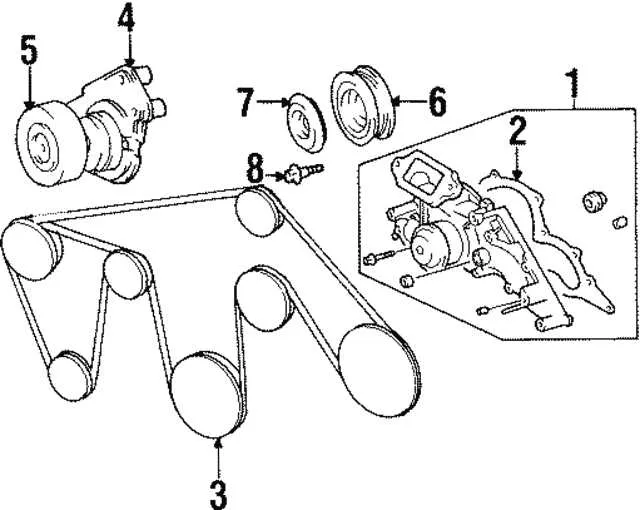

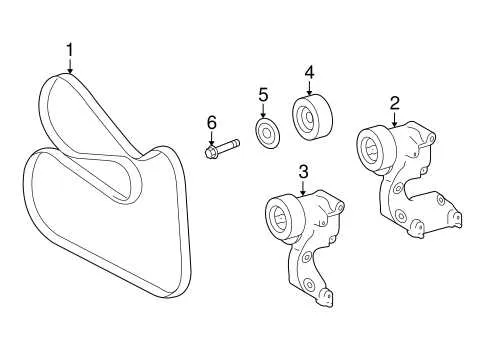

2009 Lexus ES 350 Serpentine Belt Diagram

The serpentine belt on the 2009 Lexus ES 350 plays a key role in driving multiple engine accessories such as the alternator, power steering pump, and air conditioning compressor. It is crucial to understand the exact routing to ensure proper installation and maintenance.

When replacing the serpentine belt, start by checking the belt routing diagram, which can be found on the engine compartment’s belt routing decal. This decal provides a clear view of the path the belt should follow, making installation straightforward. Pay close attention to the correct positioning around pulleys to avoid any misalignment that could lead to premature wear or failure.

The diagram typically shows a smooth route for the belt to follow across various pulleys, ensuring that tension is evenly distributed. Always ensure the belt is properly tensioned to avoid slippage. An incorrectly tensioned belt can cause malfunction of the alternator and power steering, impacting the vehicle’s overall performance.

In case of wear or damage, replace the serpentine belt with a high-quality, manufacturer-approved part to maintain optimal engine performance. Refer to the vehicle’s manual for the recommended replacement intervals to avoid unexpected issues.

How to Identify the Correct Serpentine Belt for Your 2009 Lexus ES 350

To ensure proper function, select a serpentine belt that matches the specifications for your 2009 Lexus ES 350. Start by checking the vehicle’s owner manual for belt length, width, and part number. If the manual is unavailable, refer to the engine model or VIN to cross-check with a reputable parts supplier.

Measure the current belt if you’re replacing it. The belt’s length, width, and rib count are critical for correct fitment. Use a tape measure to verify these dimensions. Ensure the new belt matches these measurements and is compatible with your engine configuration.

Another method is to compare part numbers. Locate the belt part number stamped on the old belt, usually visible on the side. Verify this number with the manufacturer’s recommendations or online databases to ensure compatibility.

Pay attention to the belt material. Opt for a durable, high-quality material that can handle the temperature and stress typical for your car’s engine. Avoid belts that show signs of cracking or wear when inspecting the old one.

Finally, consult with a certified mechanic if you’re unsure about the specifications or installation process. They can confirm if you’re choosing the right belt and assist with proper installation for optimal performance.

Step-by-Step Guide for Installing the Serpentine Belt on a 2009 Lexus ES 350

Begin by disconnecting the vehicle’s battery to prevent any electrical mishaps during the process.

Locate the serpentine belt tensioner, which is positioned near the front of the engine. Use a socket wrench to rotate the tensioner pulley counterclockwise to relieve tension on the old belt.

Carefully remove the old serpentine belt from the pulleys, taking note of its routing path for easy installation of the new belt.

Place the new serpentine belt over the pulleys, following the exact routing path of the previous belt. Ensure the belt is aligned properly on each pulley, especially on the crankshaft and alternator pulleys.

Once the belt is in place, rotate the tensioner pulley counterclockwise again and slip the belt into position while keeping the tensioner fully rotated. Release the tensioner to apply tension to the new belt.

Double-check the belt’s alignment on all pulleys to ensure it is seated properly and has the right amount of tension.

Reconnect the battery and start the engine to check the belt’s performance. Listen for any unusual noises and verify that the belt runs smoothly across all pulleys.

Troubleshooting Common Issues with the Serpentine Belt on 2009 Lexus ES 350

If your serpentine belt is showing signs of wear or malfunction, addressing the issue promptly can save you from further damage. Common problems with the serpentine belt on the 2009 Lexus ES 350 include squeaking, slipping, or visible damage to the belt itself. Here’s how to troubleshoot and fix these issues.

• Squealing or High-Pitched Noise: This is often caused by a worn-out belt or misalignment. Inspect the belt for signs of glazing or cracks. If the belt appears damaged, replace it immediately. Also, check the tensioner to ensure it is properly tightening the belt.
• Slipping Belt: A slipping serpentine belt can result in poor performance of accessories like the alternator or power steering. Slipping usually occurs if the belt is too loose or if the pulley system is worn. Tighten the tensioner if it’s loose, or replace the belt if it’s stretched or cracked.
• Cracks and Fraying: If the serpentine belt shows visible cracks, fraying, or missing pieces, it’s time to replace it. This damage is usually caused by excessive wear or exposure to extreme temperatures. A belt in this condition can cause further damage to engine components, so replacing it should be a priority.
• Noisy or Worn Pulley: If you hear noise coming from the belt area, the issue could be with a pulley or idler bearing. Check for wear or damage to the pulleys. If any pulleys are damaged, replace them before installing a new serpentine belt.
• Faulty Tensioner: A faulty tensioner can lead to a loose belt, causing slippage or improper operation of accessories. If the tensioner is not holding the correct amount of pressure on the belt, it should be replaced to prevent further damage.

Regularly inspecting the serpentine belt and its associated components can help prevent breakdowns. If you experience any of the issues listed above, it’s crucial to address them immediately to avoid further complications with your Lexus ES 350’s performance.
