2008 Town and Country Serpentine Belt Diagram and Routing Guide
The serpentine belt in the 2008 Chrysler Town and Country is a critical component that drives various accessories, including the alternator, power steering pump, air conditioning compressor, and more. To maintain optimal performance, it’s important to understand its routing and tensioning system. Regular checks and replacements can prevent unexpected breakdowns and ensure smooth engine operation.
Identifying the correct belt routing is the first step in any maintenance procedure. The 2008 Town and Country uses a specific belt path, which is crucial for proper operation. Refer to the vehicle’s owner manual for a detailed illustration or follow the diagram located on the engine bay’s support bracket.
Inspecting the belt for wear is essential for prolonging its life. Cracks, frays, or visible damage are signs that the belt needs replacement. Always ensure that the belt is properly aligned with all pulleys, as misalignment can cause premature wear and lead to system failure.
2008 Town and Country Serpentine Belt Diagram
The 2008 Chrysler Town and Country uses a serpentine belt system to drive various engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. It is crucial to understand the belt routing and configuration for proper maintenance and replacement.
The serpentine belt diagram for the 2008 Town and Country shows the precise routing of the belt around pulleys and accessories. Ensure the belt follows this pattern to avoid misalignment, which can cause wear or damage. If the belt is misrouted, components may not operate correctly, leading to engine performance issues or breakdowns.
To examine the diagram, first locate the belt tensioner. It is positioned near the center of the engine, and its function is to maintain the correct belt tension. In most cases, a 3/8-inch drive tool is required to relieve tension and remove the belt. Take care to follow the routing closely, as a minor deviation can affect performance.
If the belt shows signs of wear, such as cracks, fraying, or excessive slack, it should be replaced immediately to prevent further damage. Always check the alignment of the pulleys to ensure the new belt runs smoothly. Keep the diagram handy when performing this task, as it will assist in verifying proper installation.
How to Identify the Correct Serpentine Belt Routing for 2008 Town and Country
Check the routing diagram located near the engine compartment. This diagram provides a visual guide for the correct belt placement around the pulleys. Ensure the serpentine belt aligns with each component listed on the diagram.
Start by identifying the tensioner pulley, which keeps the belt tight. Then, follow the routing around the alternator, power steering pump, and air conditioning compressor. Be sure the belt loops around the idler pulleys as indicated, avoiding any misalignment that could cause excessive wear or damage.
Ensure the belt is correctly placed on all pulleys, particularly around the water pump and crankshaft. Misrouted belts may cause poor engine performance and can lead to overheating or battery charging issues.
If the original diagram is missing or unreadable, use an online resource or repair manual specific to the 2008 Town and Country to get the exact routing instructions. Double-check the belt’s condition before reinstalling to ensure no fraying or cracks are present.
Common Issues with the Serpentine Belt System in 2008 Town and Country
One of the most frequent issues with the serpentine belt system in the 2008 Town and Country is belt wear. The serpentine belt can become cracked or frayed over time due to constant friction, exposure to heat, and normal engine operation. This wear can lead to a decrease in belt tension, causing slipping or misalignment, which may affect the performance of critical components such as the alternator, power steering pump, and air conditioning compressor.
Another common issue is belt tensioner failure. The tensioner keeps the serpentine belt at the correct tension. Over time, the tensioner spring can weaken or seize, leading to a loose or overly tight belt. A faulty tensioner can result in poor belt performance, increasing the risk of belt failure and damage to associated components.
Improper belt routing is also a potential problem. If the serpentine belt is not routed according to the vehicle’s diagram, it may cause excessive wear or even result in the belt coming off the pulleys. Always double-check the routing before installation, referring to the specific diagram for the 2008 Town and Country.
Friction from misaligned pulleys can cause rapid deterioration of the serpentine belt. Misalignment can happen if the pulleys are damaged or worn. Regularly inspect the pulleys for smooth operation and proper alignment to prevent premature belt wear.
Lastly, contamination is another issue to be mindful of. Oil, coolant, or other fluids leaking onto the serpentine belt can weaken the rubber and lead to premature failure. Regularly check for leaks in the engine compartment and address them promptly to maintain belt integrity.
- Cracked or frayed belt
- Weakened or seized belt tensioner
- Incorrect belt routing
- Misaligned or damaged pulleys
- Contamination from leaks
Step-by-Step Guide to Replacing the Serpentine Belt in 2008 Town and Country
Disconnect the vehicle’s battery to eliminate electrical risks.

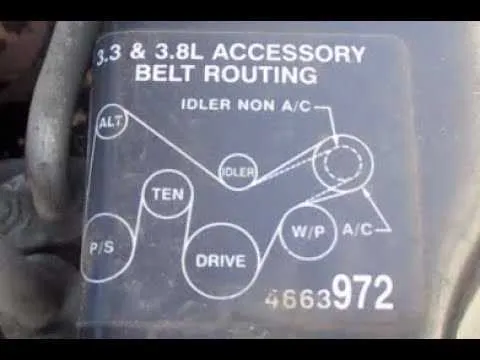

Locate the serpentine belt routing diagram. It can be found on a sticker in the engine compartment. This diagram will guide you in properly installing the new belt.
Use a ratchet wrench to relieve tension on the serpentine belt tensioner. This will allow you to remove the old belt. Be careful, as the tensioner is spring-loaded and may move quickly.
Examine the old belt for signs of wear, such as cracks or fraying. A damaged belt must be replaced to avoid issues like engine overheating or power steering failure.
Verify that the new serpentine belt matches the old one in size, width, and the number of grooves. Lay them side by side for comparison.
Install the new belt, following the routing diagram. Carefully position the belt over each pulley, ensuring it sits correctly without twists or misalignment.
Once in place, use the ratchet wrench to move the tensioner and secure the new belt. Ensure the belt is properly seated on all pulleys before proceeding.
Reconnect the battery and start the engine. Check the belt for smooth operation and listen for any unusual sounds that may indicate improper installation.
Turn off the engine and check the belt once again. Make sure it is tight, aligned, and working as expected.
