2008 Scion XD Serpentine Belt Routing Diagram and Installation Guide

To replace the serpentine belt on a 2008 Scion xD, refer to the correct diagram to ensure proper installation. The belt runs through several pulleys, powering key components like the alternator, power steering, and air conditioning. Incorrect routing can cause belt slippage or excessive wear, leading to malfunctioning systems.

Follow the specific routing instructions shown in the diagram for your vehicle’s engine. Pay close attention to the tensioner pulley and its proper placement, as it plays a key role in maintaining belt tension. A belt that’s too loose or too tight can cause premature damage to the engine components. Be sure the diagram matches your engine model for accurate guidance.

Before replacing the belt, inspect the new one for any damage or defects. If you notice signs of wear on the old belt, like cracks or fraying, it’s a clear indication that it needs replacement. Always double-check that the belt size matches the specifications for your 2008 Scion xD to avoid issues during installation.

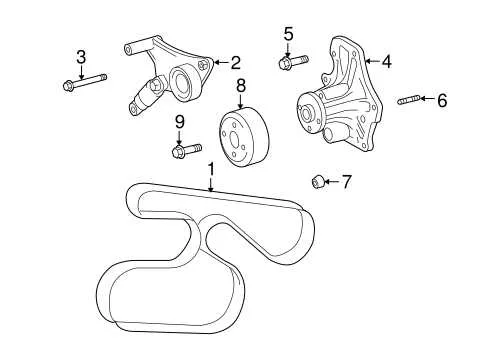

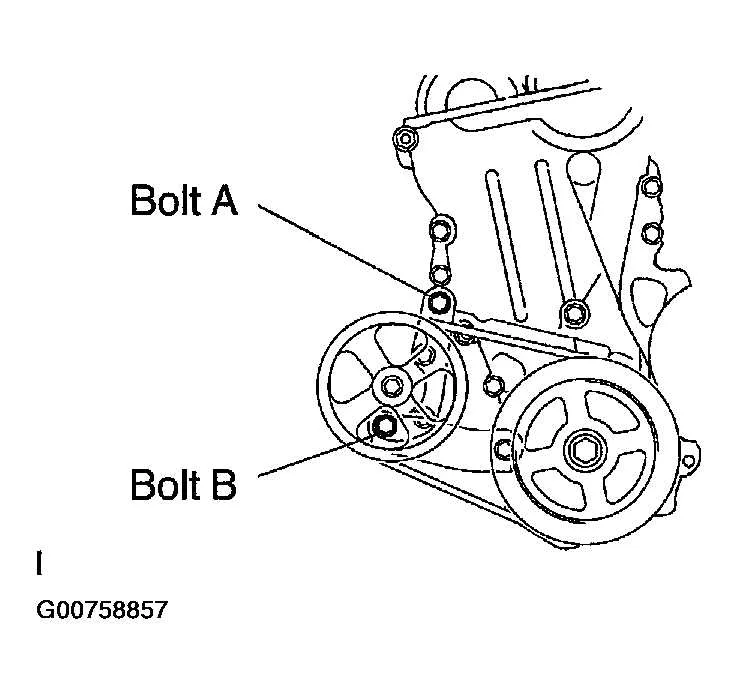

2008 Scion XD Serpentine Belt Diagram

The 2008 Scion XD serpentine belt diagram is crucial for proper belt routing during installation or replacement. The serpentine belt in the 2008 Scion XD drives several engine accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. If the belt is not installed correctly, these components will not function properly, leading to engine damage or system failure.

To install the serpentine belt, first ensure the engine is off and cool. Locate the tensioner pulley, which is used to release the belt tension. Use a wrench or socket to rotate the tensioner counterclockwise and relieve tension on the belt. Once the tension is released, remove the old belt and route the new belt following the specific diagram for the 2008 Scion XD.

Here’s a basic overview of the belt routing for the 2008 Scion XD:

• The serpentine belt starts at the crankshaft pulley.
• The belt loops around the alternator pulley.
• It then runs over the power steering pulley.
• Next, the belt crosses over the air conditioning compressor pulley.
• The belt then goes around the water pump pulley.
• Finally, it returns to the tensioner pulley, where it is secured under tension.

Refer to the diagram on the engine bay cover or the owner’s manual for a visual representation of the belt path. Always double-check the belt for proper tension after installation, and inspect it for any wear signs regularly to avoid issues down the road.

Understanding the Routing of the Serpentine Belt in the 2008 Scion XD

The serpentine belt in the 2008 Scion XD plays a key role in powering the alternator, air conditioning compressor, power steering pump, and other vital engine components. Proper routing ensures smooth operation and prevents premature wear. The diagram for this specific model shows how the belt follows a single continuous loop, which travels through several pulleys and tensioners.

The belt starts by looping around the crankshaft pulley, which provides the initial rotational force. From there, it moves around the alternator pulley, which is responsible for charging the battery. Next, the belt reaches the power steering pump, enabling the driver to turn the wheel effortlessly. The air conditioning compressor pulley follows, providing the necessary force to cool the cabin. The belt’s tension is maintained by a spring-loaded tensioner, which keeps it tight and in place.

Ensuring the serpentine belt is routed correctly is crucial for maintaining engine performance. If it slips or misroutes, it could lead to overheating, battery drainage, or failure of vital engine functions. It’s recommended to replace the belt at regular intervals, especially if it shows signs of wear like cracking, fraying, or glazing. Always refer to the specific routing diagram for the 2008 Scion XD to avoid any mistakes during installation.

In case of replacement, check each pulley for damage or wear. A damaged pulley could cause the new belt to wear out prematurely. Pay attention to the belt’s tension as well–over-tightening can stress engine components, while under-tightening may cause slippage.

How to Replace the Serpentine Belt on a 2008 Scion XD

To replace the serpentine belt on a 2008 Scion XD, you’ll need to locate the tensioner, remove the old belt, and install a new one. Start by using a wrench or socket to loosen the tensioner. This will relieve the pressure on the serpentine belt, allowing you to remove it easily. Once the tension is off, take out the old belt by sliding it off the pulleys.

Before installing the new belt, compare it to the old one to ensure it matches in size and grooves. Lay the new belt over the pulleys according to the diagram found in your vehicle’s manual. Make sure the belt is properly aligned with each pulley to avoid any future issues. Once the belt is in place, release the tensioner to tighten the belt securely.

Double-check the belt’s alignment and tightness. A loose or misaligned serpentine belt can cause performance issues, such as squealing or malfunctioning components. Start the engine to confirm that the belt is functioning properly and make sure it is running smoothly without slipping or making noise.

If any of the pulleys or tensioner shows signs of damage or wear, consider replacing them as well. A damaged pulley can lead to premature belt wear and failure.

Common Issues and Troubleshooting for the Serpentine Belt System

If the serpentine belt is making a squealing noise or if you notice power steering failure or overheating, it’s likely time to troubleshoot the system. Here are some of the most common problems and fixes for the serpentine belt system:

• Worn or Cracked Belt: If the belt is cracked, frayed, or has noticeable wear, it should be replaced immediately. A worn belt can slip, reducing its efficiency and potentially causing other components to fail.
• Misaligned Pulleys: Pulleys can shift out of alignment due to worn bearings or improper installation. This misalignment puts stress on the serpentine belt, causing it to wear unevenly. Inspect each pulley for alignment and replace any faulty components.
• Slipping Belt: A slipping belt is usually caused by worn-out tensioners or a loose installation. Tensioners need to maintain the right amount of pressure on the belt. If the belt continues to slip, check the tensioner spring or replace the entire assembly.
• Broken Tensioner or Idler Pulley: A faulty tensioner or idler pulley can prevent the serpentine belt from staying in place. If you notice grinding noises or erratic belt movement, inspect the tensioner and pulleys. Replace them if needed.
• Damaged Water Pump or Alternator: Sometimes, a failure in the water pump or alternator can cause the serpentine belt to break or become damaged. Check the alignment of all accessories powered by the belt and confirm there are no issues with the components themselves.

Regularly inspect the serpentine belt system to prevent unexpected failures. If any of these issues arise, addressing them quickly will help extend the life of the belt and prevent further damage to other parts of the engine.
