2008 Mercedes E350 Serpentine Belt Routing and Component Diagram for Maintenance
Locate the serpentine belt routing under the hood on the passenger side of your 2008 Mercedes E350. The belt wraps around the crankshaft pulley, alternator, power steering pump, and A/C compressor in a specific path that ensures each accessory receives proper drive. Following the correct diagram prevents misalignment and premature wear.
Use a belt routing diagram specific to the 2008 E350 V6 engine. Most models have a single serpentine belt running clockwise from the crankshaft, looping over the tensioner pulley, and engaging each accessory pulley in a precise sequence. Incorrect installation can cause squealing, slipping, or accessory failure.
When replacing the serpentine belt, release tension with a wrench on the tensioner pulley, slide the old belt off, and carefully route the new belt according to the diagram. Double-check each pulley engagement visually before starting the engine. This ensures proper alignment and avoids unnecessary damage to the belt or pulleys.
Keep the diagram accessible during maintenance. Marking the belt path on a printout or inside the hood can save time during future inspections or replacements. Accurate routing improves belt lifespan and maintains smooth operation of all engine accessories.

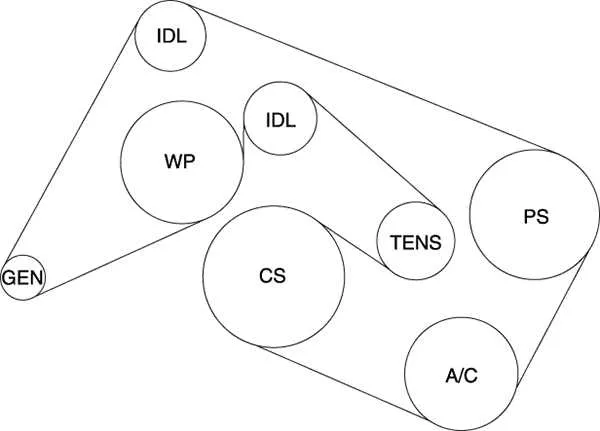

2008 Mercedes E350 Serpentine Belt Diagram
Locate the serpentine belt at the front of the engine, looping around the crankshaft pulley, alternator, power steering pump, and A/C compressor. The 2008 Mercedes E350 uses a single serpentine belt configuration with an automatic tensioner to maintain proper tension.
Routing the belt: Start from the crankshaft pulley at the bottom. From there, the belt goes up around the A/C compressor on the passenger side, across the idler pulley, and over the alternator. It continues down around the power steering pump and wraps the tensioner pulley before returning to the crankshaft.
Tip for installation: Rotate the tensioner clockwise with a wrench to create slack, slide the belt over the pulleys, and carefully release the tensioner to secure the belt. Verify alignment on all pulleys to avoid slipping or premature wear.
Check the belt for cracks, fraying, or glazing. Replace if any damage is visible, as the serpentine belt drives multiple critical components simultaneously. Maintaining correct routing and tension ensures consistent performance of the engine accessories.

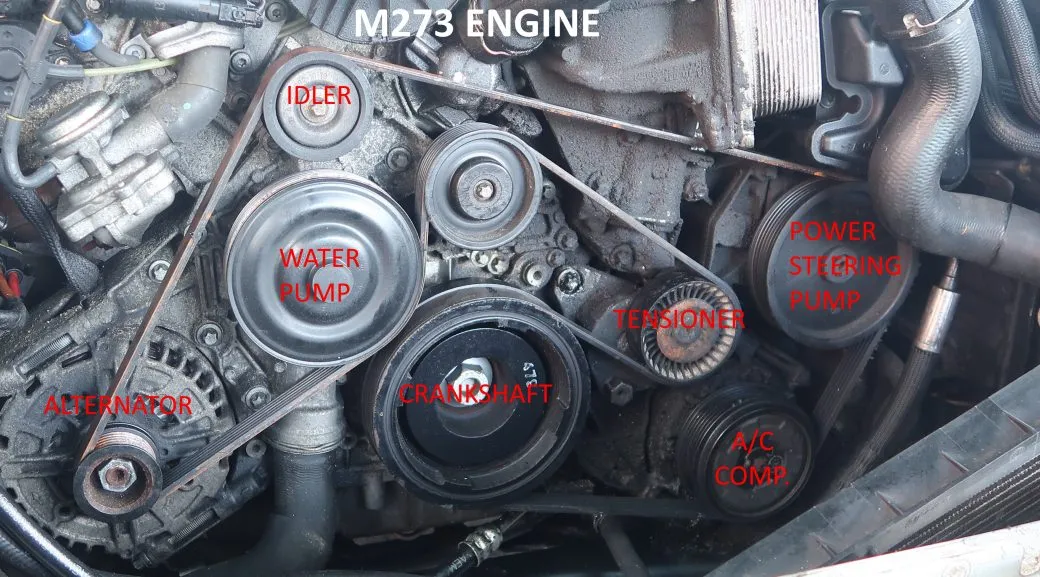

Identifying All Components in the 2008 E350 Serpentine Belt Layout
Locate the serpentine belt at the front of the engine and trace its path to identify each component it drives. Start with the crankshaft pulley, which powers the entire system. From there, the belt wraps around the alternator, ensuring the battery remains charged during engine operation.
Next, follow the belt to the power steering pump, which provides hydraulic assistance for steering. The belt continues to the water pump, responsible for circulating coolant through the engine to maintain proper temperature. Then it moves to the air conditioning compressor, enabling climate control functionality.
Observe the tensioner pulley, which maintains proper belt tension and reduces slippage. The belt also passes over one or more idler pulleys that guide the routing and keep the belt aligned. Ensure each pulley spins freely and shows no signs of wear, as damaged components can lead to belt failure.
Reference the diagram to verify the routing sequence. Misrouting the belt can result in loss of power to critical systems, overheating, or electrical failure. Inspect each component for secure mounting, clean surfaces, and correct alignment to maintain smooth operation of the serpentine system.
Step-by-Step Belt Routing for Easy Replacement
Loosen the tensioner using a 15mm wrench to relieve pressure on the serpentine belt. Slide the old belt off the pulleys, starting with the alternator, and remove it completely.
Compare the new belt with the old one to confirm length and rib alignment. Begin routing the new belt around the crankshaft pulley first, then wrap it over the water pump pulley.
Continue by guiding the belt around the idler pulley, making sure the ribs sit snugly in the grooves. Route the belt over the power steering pulley next, keeping it aligned without twisting.
Pass the belt around the air conditioning compressor pulley, then loop it toward the alternator. Use the tensioner to create slack, slide the belt over the final pulley, and slowly release the tensioner to apply proper tension.
Inspect each pulley to ensure the belt is seated correctly. Turn the engine manually using a socket on the crankshaft pulley to check for smooth movement and proper tracking.
Recheck the tensioner alignment and pulleys for any signs of misplacement. Adjust if necessary, then start the engine and observe the belt in motion for consistent performance and quiet operation.
Common Installation Mistakes and How to Avoid Them
Align the serpentine belt carefully with each pulley. Misalignment is the leading cause of premature wear on a 2008 Mercedes E350.
- Check the tensioner pulley before installation. A weak or stuck tensioner can cause the belt to slip or squeal.
- Verify that all accessory pulleys spin freely. A seized alternator, water pump, or idler pulley will damage a new belt quickly.
- Follow the routing diagram precisely. Swapping the belt path even slightly can overload the power steering or AC compressor.
- Ensure the belt sits fully in the pulley grooves. Partial seating leads to uneven wear and can throw the belt off during operation.
Use a torque wrench on tensioner bolts when required. Over-tightening can stress the belt and pulleys, while under-tightening allows slippage.
- Inspect the belt for cracks or fraying before installation, even if it is new. Manufacturing defects occasionally occur.
- Replace the tensioner and idler pulleys if they show signs of wear or noise.
- Run the engine briefly after installation and observe belt alignment. Stop immediately if you notice vibration, slipping, or abnormal noise.
Keep the engine clean around pulleys to avoid debris buildup, which can accelerate belt deterioration. Regular inspection every 10,000 miles prevents costly failures.
