2008 Mazda 3 Serpentine Belt Diagram and Installation Guide

To replace or inspect the serpentine belt on your 2008 Mazda 3, it’s crucial to understand the belt routing. The serpentine belt connects several components, including the alternator, power steering pump, air conditioning compressor, and water pump. Improper installation or a damaged belt can lead to engine performance issues. Refer to the diagram for precise routing to avoid mistakes and ensure all components run smoothly.

The serpentine belt diagram for the 2008 Mazda 3 shows a clear path, with specific tensioning instructions that help maintain proper belt alignment. If you’re replacing the belt, it’s vital to release tension from the belt properly using the tensioner pulley. The diagram clearly marks where the belt should loop around each pulley and the correct direction for installation. Double-check these steps before finishing the job to avoid unnecessary stress on the components.

Consulting the belt diagram during replacement will prevent misalignment and ensure that the new belt functions as intended. Once installed, inspect the belt periodically for wear and tear, and always ensure that it remains properly tensioned. Following the diagram precisely guarantees a long lifespan for the serpentine belt and associated components in your Mazda 3.

2008 Mazda 3 Serpentine Belt Diagram

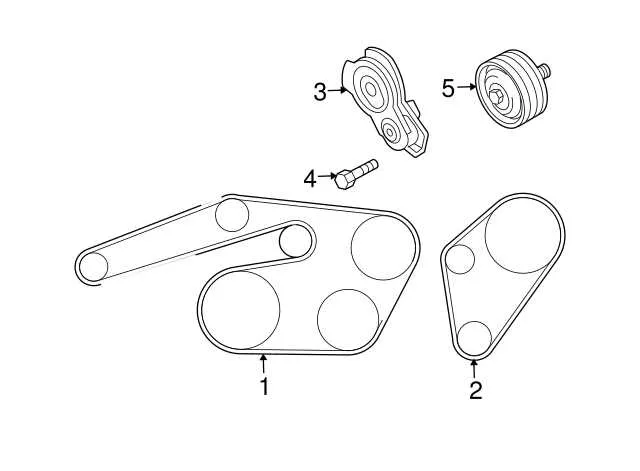

If you’re replacing the serpentine belt on a 2008 Mazda 3, it’s important to understand its path and routing. The serpentine belt runs through various pulleys, including the alternator, power steering pump, and air conditioning compressor. Refer to the diagram below to help you correctly install the new belt.

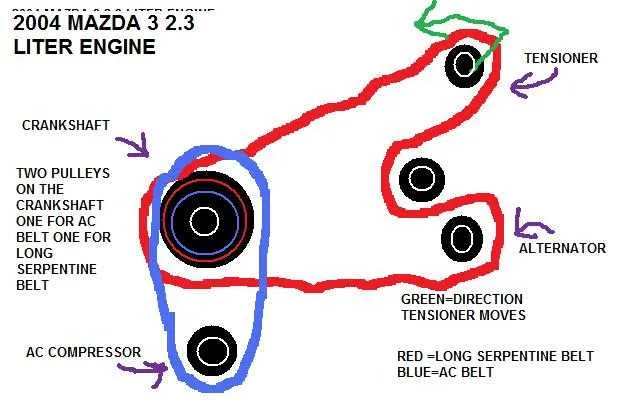

The belt path begins at the crankshaft pulley, where it loops around the tensioner pulley. From there, it moves to the alternator, then to the power steering pump, and then to the air conditioning compressor. The belt finally returns to the crankshaft pulley. Ensure that the belt is properly aligned with all pulleys and that there is no slack in the belt when installed.

When replacing the serpentine belt, it’s recommended to check the condition of the pulleys and tensioner. If any of these components are worn out, replacing them at the same time can prevent premature belt failure.

Tip: Always use a belt that matches the specifications of the original part. Incorrectly sized belts can cause premature wear or even damage to engine components.

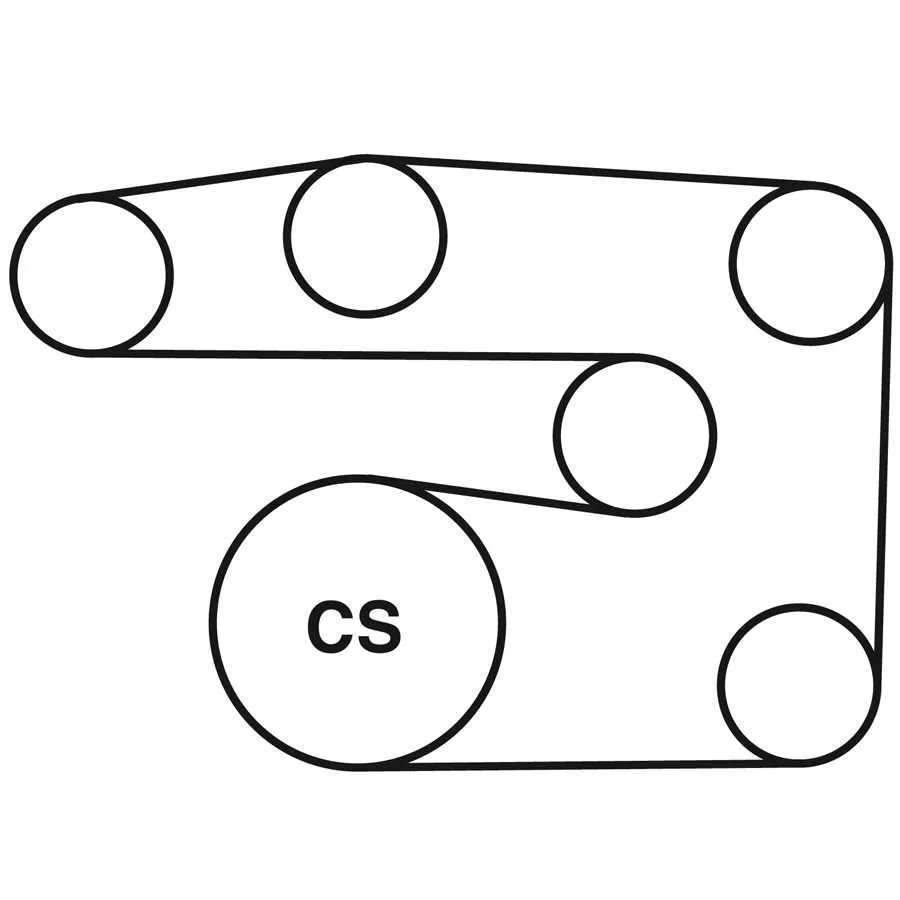

Use the diagram as a visual guide, and take your time ensuring everything is properly routed before securing the tensioner and tightening the belt.

Identifying the Serpentine Belt Layout for the 2008 Mazda 3

To locate the serpentine belt layout for a 2008 Mazda 3, consult the diagram on the engine compartment’s underside or refer to the vehicle’s service manual. The diagram typically illustrates the exact routing of the serpentine belt around the pulleys, tensioner, and other components.

The 2008 Mazda 3 is equipped with either a 2.0L or 2.3L engine, and the serpentine belt layout may slightly differ depending on the engine type. It’s important to identify the correct engine model before proceeding with the replacement or inspection of the belt.

The diagram includes crucial details on how the belt should loop around the pulleys, ensuring smooth operation of the alternator, power steering pump, water pump, and air conditioning compressor. An accurate diagram can help prevent incorrect installation, which may lead to excessive wear or premature failure of the belt.

Steps to find the correct layout:

• Look for a sticker or decal on the inside of the engine bay, usually near the front of the engine or near the radiator area.
• Check the vehicle’s service manual for a detailed diagram. If you don’t have the manual, search online or visit a dealership for assistance.
• Inspect the tensioner for wear. If the belt appears loose or damaged, it’s a sign that it may need replacement or realignment according to the diagram.

If the serpentine belt appears worn, replace it immediately to avoid damage to the components it drives. Always ensure the belt follows the routing shown in the diagram for proper function and longevity.

Step-by-Step Guide to Replacing the Serpentine Belt on 2008 Mazda 3

First, gather the necessary tools: a new serpentine belt, a wrench, a socket set, a ratchet, and a belt tensioner tool. Ensure the car is parked on a flat surface with the engine off and cool.

Locate the serpentine belt in the engine bay. On the 2008 Mazda 3, it runs across various components like the alternator, power steering pump, and air conditioning compressor. Take a moment to study the belt routing diagram, which can usually be found near the radiator or on the engine cover. This step will help you understand the belt’s path and ensure correct installation later.

Next, relieve the tension on the belt by using the belt tensioner tool. The tensioner is located on the right side of the engine, near the power steering pump. Rotate the tensioner clockwise to loosen the belt, then slide it off the pulleys.

Remove the old serpentine belt completely, taking note of how it is routed. If you’re unsure, take a picture before removal. Inspect the belt for any signs of wear, such as cracks or fraying, which could indicate the need for replacement.

Before installing the new belt, compare it with the old one to make sure they are the same length and width. Route the new belt over the pulleys, following the path shown in the belt routing diagram. Pay special attention to the direction of the belt grooves, as they must align correctly with the pulleys.

Once the new belt is in place, use the tensioner tool to apply tension to the belt. Ensure it sits securely in the grooves of each pulley and that the tensioner is in its proper resting position. Double-check the belt’s alignment and tension before moving forward.

Start the engine and observe the belt in motion. Listen for any unusual noises, and check that the belt remains centered on the pulleys. If everything looks and sounds normal, the replacement is complete. Test the vehicle by driving for a few minutes to confirm everything is working properly.

If you notice any issues, stop and inspect the belt to ensure it is properly routed and tensioned. A loose or misaligned belt can cause damage to engine components or even lead to belt failure.

Common Issues and Solutions with Serpentine Belts on 2008 Mazda 3

If you notice unusual squealing or squeaking noises from the engine, it may be time to check the serpentine belt. Over time, the belt can wear out, crack, or slip, affecting various engine components.

One common issue is belt slippage, often caused by a worn-out or stretched belt. If the belt is not tight enough, it will slip over the pulleys, leading to reduced performance of accessories like the alternator or air conditioning. To fix this, inspect the tensioner. If it’s faulty, replacing it can help restore proper tension, preventing further slippage.

Cracks or fraying on the belt indicate that it’s nearing the end of its life. In this case, replacing the serpentine belt is necessary. It’s a relatively simple task for most owners, but if you’re unsure, seeking professional help is advised to avoid potential damage to other components.

Another issue is misalignment, which can happen if the pulleys or belt tensioner are damaged. Misalignment can lead to uneven wear, causing the belt to break prematurely. If you notice any abnormal wear patterns, inspecting the pulleys for damage or debris buildup should be your next step.

In some cases, you may notice a sudden loss of power steering or AC function, often caused by a failed serpentine belt. If this happens, stop driving immediately to prevent engine damage. Replacing the belt and ensuring all components are properly aligned should resolve the issue.

Regular inspection of the belt for visible damage, wear, and proper tension will help avoid these common problems. Replacing the serpentine belt every 60,000 to 100,000 miles is a good rule of thumb, depending on your driving habits and climate conditions.
