2008 BMW 535i Serpentine Belt Diagram and Routing Instructions
To replace or inspect the serpentine belt in your 2008 BMW 535i, follow the belt routing diagram for accurate installation. The diagram shows how the serpentine belt is routed around the various pulleys, ensuring proper tension and performance.
Start by identifying the components involved: the alternator, power steering pump, AC compressor, water pump, and the tensioner. These are the main components the serpentine belt drives in your 535i. The tensioner pulley adjusts the belt’s tension as the engine operates, so it’s important to check its condition regularly.
Next, locate the belt tensioner pulley. You’ll need a wrench or ratchet to release the tension, which allows for safe removal and installation of the serpentine belt. Be sure to route the new belt precisely as shown in the diagram. The orientation of the belt is key for its long-term durability and proper functionality.
If your serpentine belt appears worn or cracked, replacing it sooner rather than later will save you from potential engine issues. Always ensure the new belt is properly aligned and securely in place before starting your engine.

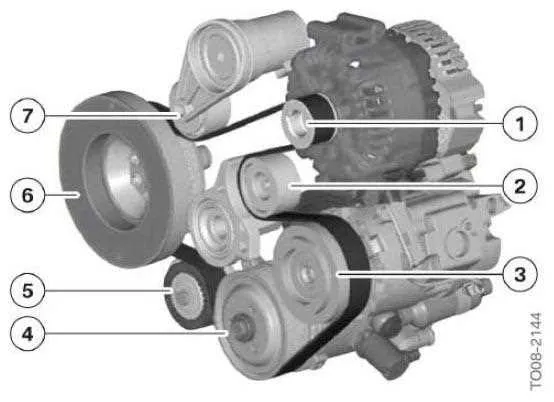

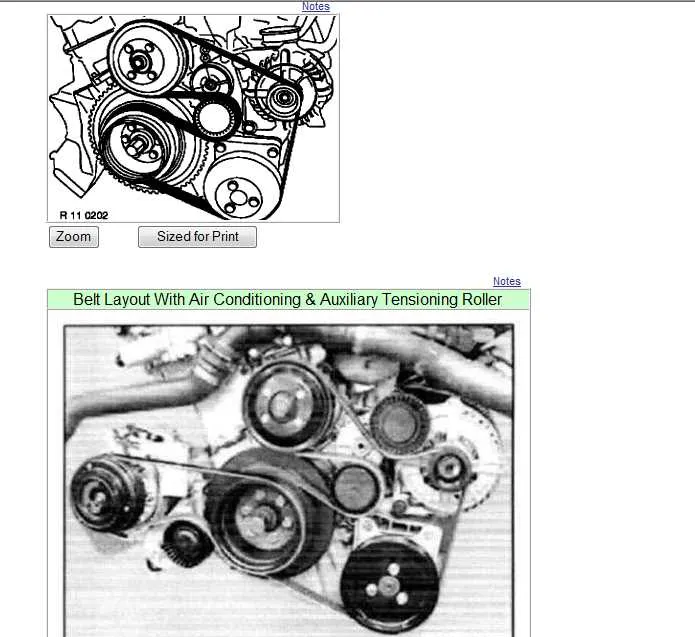

2008 BMW 535i Serpentine Belt Diagram
For the 2008 BMW 535i, the serpentine belt layout plays a key role in driving several essential components like the alternator, power steering pump, and air conditioning compressor. The correct routing of the serpentine belt ensures proper engine function and avoids unnecessary wear on engine components.
To replace or inspect the serpentine belt, you’ll need a diagram to guide the routing path. Here’s a step-by-step description of the belt’s routing:
1. Start from the crankshaft pulley. The belt loops around it and moves upwards towards the tensioner pulley.
2. From the tensioner, the belt runs over the alternator pulley.
3. Then it moves towards the air conditioning compressor pulley.
4. The belt continues towards the power steering pump, looping around it before returning to the crankshaft pulley.
5. Make sure the tensioner pulley maintains proper tension to avoid slippage or excess wear. If the belt seems loose or damaged, it’s best to replace it right away.
Always verify the belt’s routing with a visual inspection and compare it against a factory diagram to ensure it’s set up correctly. This prevents the belt from derailing or damaging engine components. Having the proper diagram on hand when replacing the belt can save a lot of troubleshooting time.
Step-by-Step Guide to Identifying Serpentine Belt Routing on a 2008 BMW 535i
To identify the serpentine belt routing on your 2008 BMW 535i, follow these clear steps:
- Locate the serpentine belt. It runs through various pulleys, including the alternator, power steering pump, water pump, and air conditioning compressor.
- Find the belt tensioner. This is a spring-loaded pulley that keeps the serpentine belt tight. It’s usually located near the top or bottom of the engine, depending on your model.
- Use a wrench or ratchet to rotate the tensioner clockwise, which will relieve tension on the belt. Remove the belt from the pulleys carefully, noting the routing path.
- Check the belt routing diagram. There should be a sticker or decal on the front of the engine bay with the correct routing for the serpentine belt. If you can’t find it, refer to the vehicle’s service manual.
- Install the new belt, following the path shown on the diagram. Start by placing the belt over the pulleys in the correct order, ensuring it is properly aligned.
- Release the tensioner slowly to apply tension to the new belt. Make sure it sits evenly on each pulley.
- Verify the belt is properly routed and seated on all pulleys, then start the engine and listen for any unusual noises that might indicate incorrect routing.
By following these steps, you’ll ensure the serpentine belt is correctly routed and operating smoothly on your 2008 BMW 535i.
Common Issues with Serpentine Belt on the 2008 BMW 535i and How to Diagnose Them
If your 2008 BMW 535i is experiencing squealing noises, vibrations, or poor engine performance, the serpentine belt may be the culprit. Diagnosing these issues early can prevent more serious damage to the engine components.
One common issue is belt wear. Over time, the serpentine belt can stretch or crack, especially if it hasn’t been replaced within the recommended interval. Check for visible signs of cracking or fraying along the length of the belt. If the belt appears worn, it’s time for a replacement.
Another problem arises from belt misalignment. The serpentine belt is routed over various pulleys, including the alternator, water pump, and power steering pump. If the belt isn’t aligned properly, it may slip or wear unevenly. Check the alignment of the pulleys by visually inspecting them for any signs of misalignment or damage. Misalignment could be caused by a faulty pulley, tensioner, or incorrect installation.
Tension issues are also common. The belt relies on the tensioner to keep it tight, and a faulty tensioner can cause the belt to slip. If you hear a rattling noise coming from the belt area, or if the belt feels loose to the touch, the tensioner might need to be replaced. This is especially true if the belt is regularly slipping off the pulleys or if it doesn’t maintain the proper tension.
Another sign of trouble is reduced engine performance or power steering difficulty. A slipping or broken belt can result in the alternator not charging properly, making it harder for the engine to start and run smoothly. If you notice dimming lights or difficulty steering, inspect the serpentine belt immediately to see if it’s the cause.
Finally, pay attention to the condition of the pulleys. Worn-out or damaged pulleys can also contribute to serpentine belt failure. If you notice any unusual noise or friction coming from the pulleys, they may need to be replaced to avoid further damage to the belt.
How to Replace the Serpentine Belt on a 2008 BMW 535i: A Practical Approach
First, gather the necessary tools: a socket wrench set, serpentine belt tool, and a new serpentine belt compatible with your 2008 BMW 535i. Ensure the car is off and parked on a flat surface. For safety, disconnect the battery before starting the replacement process.
Locate the serpentine belt tensioner pulley on the front of the engine. Use a serpentine belt tool or a socket wrench to release the tension from the belt. Carefully remove the old belt by sliding it off the pulleys. Take note of the belt routing by either photographing it or referring to the diagram under the hood to ensure proper installation of the new belt.
Position the new serpentine belt on the pulleys, making sure it follows the same path as the old one. Start with the easiest pulley and work your way around, ensuring the belt fits snugly. Leave the tensioner pulley last. Use your wrench or serpentine tool to relieve tension on the tensioner pulley again, then slide the belt over it.
After securing the belt, check for proper alignment by spinning the pulleys by hand. The belt should sit evenly on all pulleys with no slack. Reconnect the battery and start the engine. Observe the belt in motion to ensure it operates smoothly and there are no unusual sounds.
With the new belt installed and everything back in place, you’ve successfully completed the serpentine belt replacement on your 2008 BMW 535i. If you notice any issues or unusual sounds, double-check the belt alignment or consult a professional for further inspection.
