2007 Pontiac Grand Prix Serpentine Belt Diagram and Installation Guide

To maintain the 2007 Pontiac Grand Prix, it’s crucial to understand the serpentine belt system and its proper routing. This diagram will guide you through the correct placement and steps for ensuring optimal belt function. Make sure the serpentine belt is correctly aligned with the pulleys and tensioner to avoid premature wear or damage.

Start by inspecting the belt condition regularly. Look for cracks, fraying, or any signs of wear that could indicate the need for replacement. The serpentine belt is responsible for driving multiple engine accessories, so keeping it in good condition is key to your vehicle’s performance.

When replacing the belt, be sure to follow the factory specifications precisely. A diagram will show the precise routing, which is crucial for proper tensioning. Using the wrong belt configuration can lead to slipping, overheating, or even damage to the engine accessories that the belt powers.

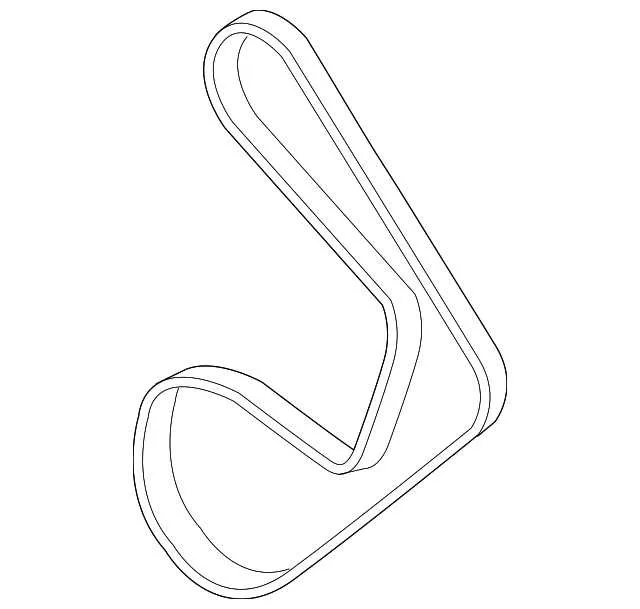

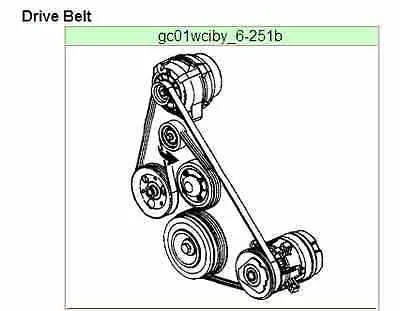

2007 Pontiac Grand Prix Serpentine Belt Diagram

The serpentine belt in the 2007 Pontiac Grand Prix plays a crucial role in driving various engine components such as the alternator, power steering pump, air conditioning compressor, and water pump. Understanding the belt’s routing is vital for maintenance and replacement tasks.

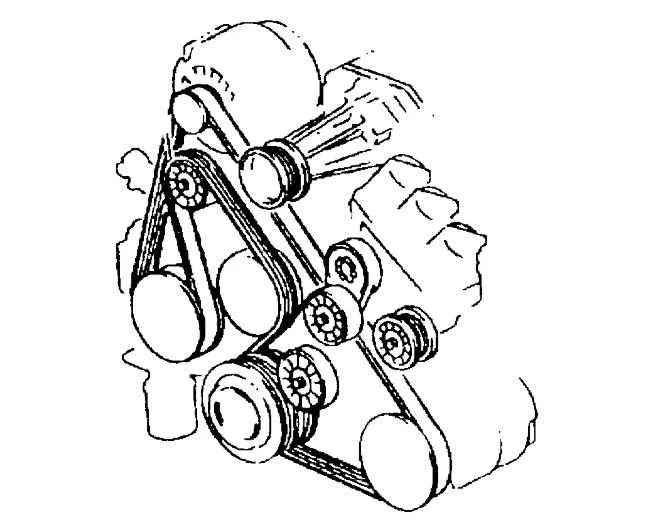

To locate the serpentine belt routing diagram, check the engine compartment for a sticker or label that provides a detailed view of the belt’s path around the pulleys. This label is typically located near the radiator or on the fan shroud. If the label is missing or damaged, a service manual or online resources can offer a detailed diagram.

When replacing the serpentine belt, ensure the tensioner pulley is in good condition. The tensioner helps maintain the correct tension on the belt. If it’s worn out or damaged, it should be replaced to avoid improper belt alignment or slippage.

Follow the diagram closely during installation to prevent misalignment. Improper routing can cause premature belt wear or even engine damage. After installation, inspect the belt for proper tension and alignment before starting the engine.

If you’re experiencing any issues with the serpentine belt, such as squeaking or slipping, check the pulleys for wear, misalignment, or damage. A visual inspection can often help identify whether the belt needs to be replaced or if the issue lies with one of the pulleys.

How to Identify the Correct Serpentine Belt for 2007 Pontiac Grand Prix

To identify the correct serpentine belt for a 2007 Pontiac Grand Prix, first check the vehicle’s owner’s manual. It provides the exact belt specifications based on the engine type. Common engine options for this model include the 3.8L V6 and the 5.3L V8, each requiring a different belt length and width.

Next, locate the part number on the old serpentine belt. If the belt is still intact, this number can be found on the flat side. The part number typically matches the original equipment manufacturer (OEM) belt. If the belt is damaged or missing, check the vehicle’s engine compartment for a belt routing diagram, usually printed on a sticker attached to the radiator support or under the hood. This will help in selecting the proper replacement belt.

If you can’t locate the part number or diagram, visit an auto parts store or online retailer. Input the make, model, and year of the car to get a list of compatible serpentine belts. Most retailers will cross-reference the vehicle’s specifications with belt manufacturers’ databases to suggest the right fit.

Finally, ensure that the belt’s width, length, and number of ribs align with the vehicle’s requirements. Using the wrong belt can lead to premature wear or even engine failure, so double-check these details before purchasing.

Step-by-Step Guide for Installing the Serpentine Belt on 2007 Pontiac Grand Prix

1. Begin by raising the front of the car using a jack and securing it with jack stands. Ensure the vehicle is stable before proceeding.

2. Locate the serpentine belt and the tensioner pulley. You will need a ratchet and socket to relieve tension on the belt.

3. Use the ratchet and socket to rotate the tensioner pulley counterclockwise. This will loosen the belt. Carefully remove the serpentine belt from the pulleys. Take note of its routing, as it will need to be installed in the same way.

4. Before installing the new serpentine belt, check the pulleys for wear or damage. Replace any faulty pulleys to ensure proper operation.

5. Start by positioning the new serpentine belt on the bottom pulleys first. Make sure the belt is aligned with the grooves on the pulleys.

6. Move the belt over the remaining pulleys, following the correct routing as indicated by the diagram on the engine bay or the owner’s manual.

7. Once the belt is positioned on all pulleys, use the ratchet and socket again to rotate the tensioner pulley counterclockwise. This will allow you to slip the belt onto the tensioner pulley.

8. Double-check the belt’s routing and ensure it is properly seated in all pulleys. The belt should not be twisted or out of alignment.

9. Lower the car back to the ground and start the engine. Listen for any unusual noises and ensure the belt is running smoothly.

10. If everything appears in order, turn off the engine and perform a final inspection of the belt and pulleys to confirm proper installation.

Common Issues and Troubleshooting with 2007 Pontiac Grand Prix Serpentine Belt

1. Belt Slippage: Slippage occurs when the serpentine belt fails to maintain proper tension. This can cause the belt to slip off pulleys, resulting in loss of power steering, air conditioning, or charging issues. To prevent slippage, inspect the tensioner and idler pulleys for wear. If they’re damaged, replace them along with the belt. Ensure the belt is properly tightened according to manufacturer specifications.

2. Worn or Cracked Belt: Over time, serpentine belts can develop cracks, frays, or even missing chunks. This is a sign that the belt is near the end of its lifespan. Examine the belt closely for any signs of wear. If you notice cracks or extensive wear, replace the belt to prevent it from snapping and causing damage to other components.

3. Squealing Noise: A high-pitched squeal can indicate that the serpentine belt is slipping, usually due to insufficient tension or misalignment of the pulleys. First, check the tensioner for proper functionality. If the tensioner is functioning correctly, check the alignment of the pulleys. Replace the belt if it appears to be misaligned or damaged.

4. Tensioner Failure: The serpentine belt tensioner keeps the belt at the correct tension. If the tensioner is failing, the belt may become loose or too tight, causing issues like squealing, slipping, or wearing out prematurely. Test the tensioner for proper spring action. If it seems weak or worn, replace it to ensure the belt stays properly tensioned.

5. Pulley Issues: Damaged or seized pulleys can cause the serpentine belt to run improperly. If the pulleys are not spinning freely, they can put additional strain on the belt, causing premature wear. Check each pulley for smooth rotation. Replace any pulleys that show signs of damage or wear, including the alternator, power steering, and air conditioning pulleys.

6. Belt Misalignment: A misaligned belt can wear unevenly and lead to premature failure. Check the pulleys and brackets for any signs of wear or misalignment. If the belt is misaligned, inspect the pulleys and adjust as necessary. In some cases, you may need to replace worn brackets or pulleys.
