2007 Lexus RX 350 Serpentine Belt Diagram and Routing Guide

To replace or inspect the serpentine belt on your 2007 Lexus RX 350, it’s vital to follow the correct path to avoid damage. The serpentine belt plays a key role in powering several components such as the alternator, power steering, and air conditioning. Knowing its exact routing ensures everything functions properly after installation.

The belt wraps around multiple pulleys, each of which serves a specific function. Pay attention to the tensioner pulley, which helps maintain proper belt tension. If the belt is loose or damaged, it could lead to engine misfire or failure of connected components. Check the diagram to ensure proper installation from the crankshaft pulley to the various accessory pulleys.

Inspecting the belt for wear and replacing it as part of regular maintenance can save you from costly repairs. Always ensure the belt is routed correctly to prevent misalignment and unnecessary wear on the engine’s systems.

2007 Lexus RX 350 Serpentine Belt Diagram

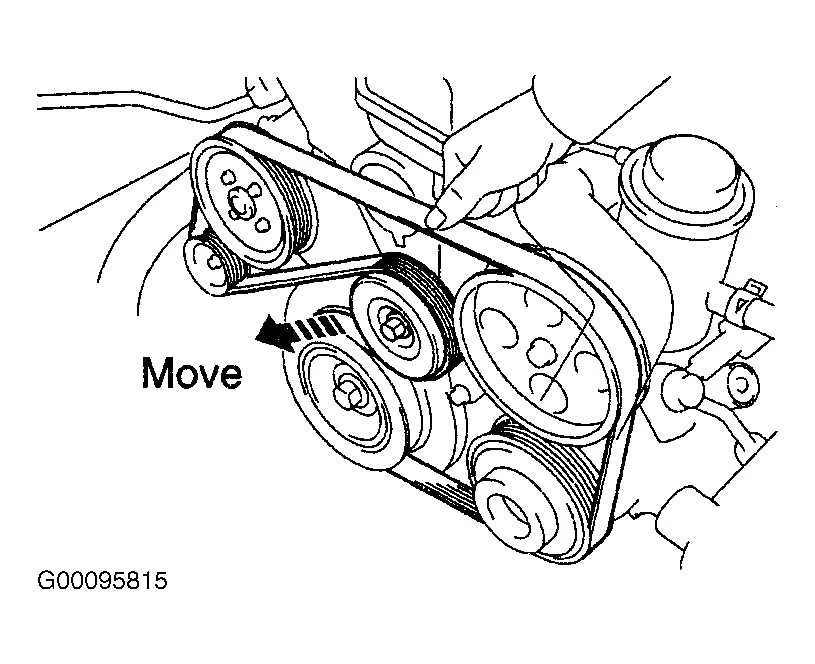

To replace or inspect the serpentine belt on the 2007 Lexus RX 350, refer to the following diagram. This will help ensure correct routing for optimal performance. The serpentine belt in this model is responsible for driving key components, such as the alternator, power steering pump, and air conditioning compressor.

The belt routing typically follows this path:

• The belt loops around the crankshaft pulley at the bottom.
• It then moves upwards to the tensioner pulley, which helps maintain proper tension.
• The belt then moves over the idler pulley, which helps guide it to the alternator.
• From the alternator, the belt goes to the power steering pump and then to the air conditioning compressor.
• Finally, the belt loops back to the crankshaft pulley, completing the cycle.

Ensure the belt follows this path without twists. Pay attention to the alignment of pulleys and tension. If the belt is loose or shows signs of wear, it should be replaced immediately to avoid damage to the components it powers.

If you’re unsure about installation, consult the vehicle’s manual or a professional mechanic for assistance.

How to Read the Serpentine Belt Diagram for 2007 Lexus RX 350

Locate the main components in the diagram: the alternator, power steering pump, air conditioning compressor, and the engine pulley. The belt must loop around these components in the correct order to ensure proper functioning. Check the arrows or lines in the diagram, which indicate the path the belt should follow.

Pay attention to the direction of the belt’s rotation, indicated by the arrows, and make sure it aligns with the rotation of each pulley. The diagram will show you the starting point, often the crankshaft pulley, and how the belt routes around the accessories.

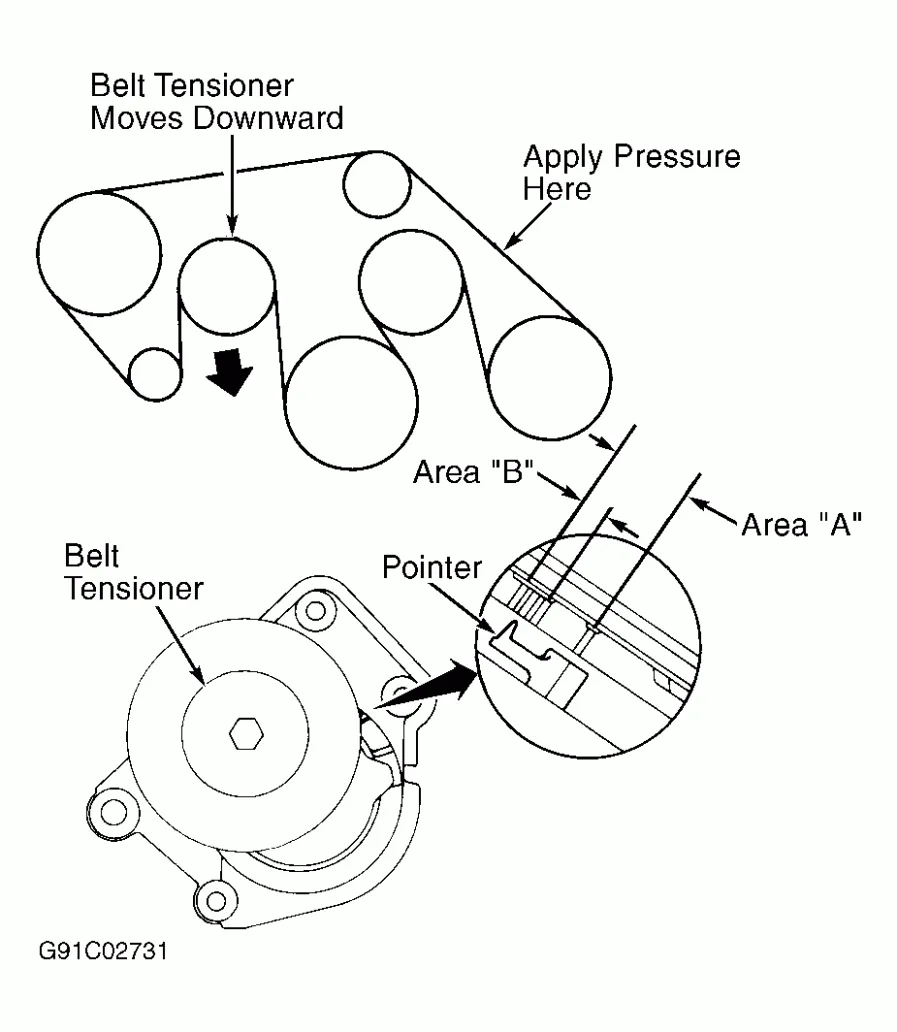

If there is a tensioner pulley shown, make sure it is positioned correctly to maintain proper tension. The tensioner adjusts automatically but should always be checked for correct placement and function.

Double-check the belt’s path on the diagram, ensuring that no components are missed or bypassed. This is critical for keeping all accessories functioning smoothly, preventing any strain on the engine.

Common Issues with the Serpentine Belt on 2007 Lexus RX 350

The serpentine belt on the 2007 Lexus RX 350 can wear out over time, causing various issues that affect engine performance. One of the most common problems is belt slippage, which occurs when the belt doesn’t maintain proper tension. This can lead to decreased efficiency in powering the alternator, air conditioning compressor, and other accessories.

Another frequent issue is belt cracking. Exposure to high temperatures or prolonged use can cause the rubber to crack, compromising its function. This often results in noise from the engine compartment or visible signs of wear. Inspect the belt regularly for any signs of cracking, especially in areas that are subject to high heat, such as near the engine’s exhaust manifold.

Misalignment of the serpentine belt pulleys can also create problems. If the pulleys are not properly aligned, it can cause the belt to wear unevenly or even come off entirely. Regular maintenance checks should include verifying that the pulleys and tensioners are correctly aligned and free from obstruction.

In some cases, the serpentine belt tensioner itself can wear out, leading to improper tension on the belt. This can cause slippage or make the belt more prone to damage. If the tensioner shows signs of rust, corrosion, or inconsistent movement, it may need to be replaced.

Lastly, contaminated belts are a concern. Oil or coolant leaks onto the belt can reduce its grip and cause slippage. If you notice fluid leaks under the vehicle, it’s essential to fix them before replacing the serpentine belt to avoid premature failure.

Steps for Replacing the Serpentine Belt on 2007 Lexus RX 350

To replace the serpentine belt on a 2007 Lexus RX 350, follow these steps:

1. Gather Tools and Parts: You will need a new serpentine belt, a 3/8-inch drive ratchet, a socket wrench, and a belt tensioner tool. Make sure the replacement belt matches the part number specified for your vehicle.

2. Disconnect the Battery: Before starting, disconnect the negative terminal of the battery to avoid any electrical hazards.

3. Locate the Serpentine Belt and Tensioner: The serpentine belt runs across the engine components. Locate the tensioner pulley, which is used to apply tension to the belt. You’ll need to relieve tension on it to remove the old belt.

4. Release Tension from the Belt: Use the tensioner tool or a ratchet to rotate the tensioner pulley counterclockwise. This will loosen the belt and allow you to remove it from the pulleys.

5. Remove the Old Serpentine Belt: Once the tension is released, carefully slip the belt off the pulleys. Take note of the belt’s routing, as you will need to install the new belt in the same configuration. You can use the diagram under the hood for reference.

6. Inspect the Components: Before installing the new belt, inspect the pulleys and tensioner for wear or damage. If any parts show signs of deterioration, replace them before proceeding.

7. Install the New Serpentine Belt: Position the new belt around the pulleys following the same route as the old one. Make sure the belt fits snugly in each groove and that the pulleys are aligned correctly.

8. Apply Tension: Use the tensioner tool to rotate the tensioner pulley back into place. This will tighten the new belt. Ensure the belt is firmly in place and has the proper tension.

9. Reconnect the Battery: Once the belt is secured, reconnect the negative terminal of the battery.

10. Test the Installation: Start the engine and check the belt for proper alignment and operation. Listen for any unusual noises or signs of slippage. If everything runs smoothly, the replacement is complete.
