2007 Toyota Camry Serpentine Belt Routing Diagram and Installation Guide

For the 2007 Toyota Camry, understanding the serpentine belt routing is key to maintaining optimal engine performance. This diagram will guide you through the exact path the serpentine belt follows, ensuring proper function of critical engine components like the alternator, power steering pump, and air conditioning compressor.

The serpentine belt system on the 2007 Camry is designed for efficiency and simplicity, using a single belt to power multiple components. Refer to this diagram to make sure the belt is routed correctly after a replacement or repair. Proper alignment prevents slippage, unnecessary wear, and potential damage to the engine components.

If you’re performing a serpentine belt replacement yourself, the diagram will help you locate the correct tensioner pulley and understand how to release tension before removing the old belt. Always check for any signs of wear on the belt before installation to avoid future breakdowns.

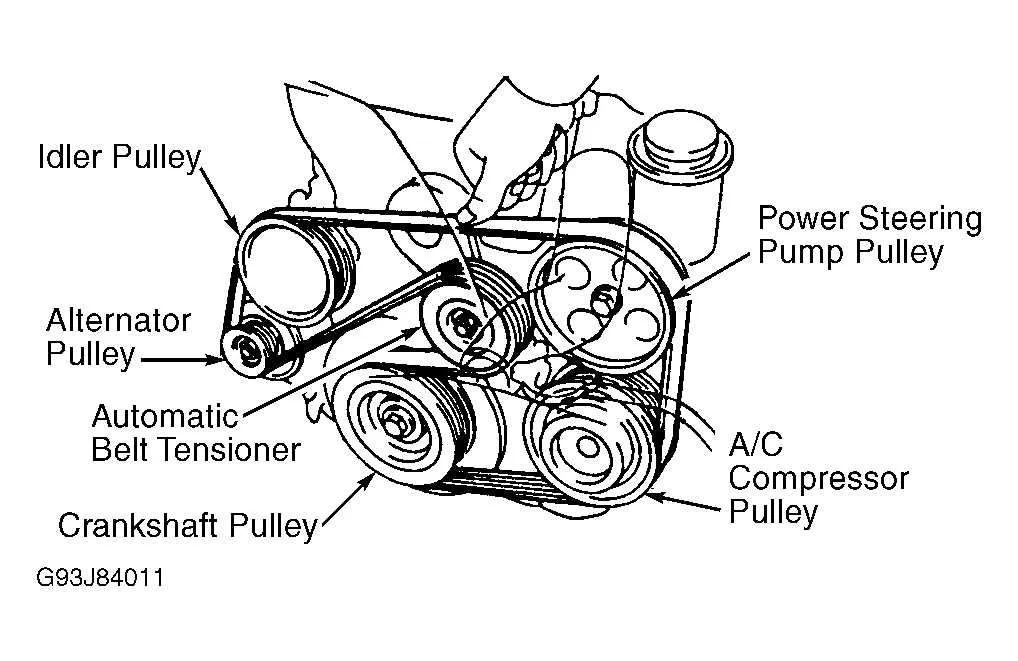

2007 Camry Serpentine Belt Diagram

For a 2007 Toyota Camry, the serpentine belt routes power from the engine’s crankshaft to essential components such as the alternator, power steering pump, and air conditioning compressor. Correct installation is key to prevent belt slippage or damage.

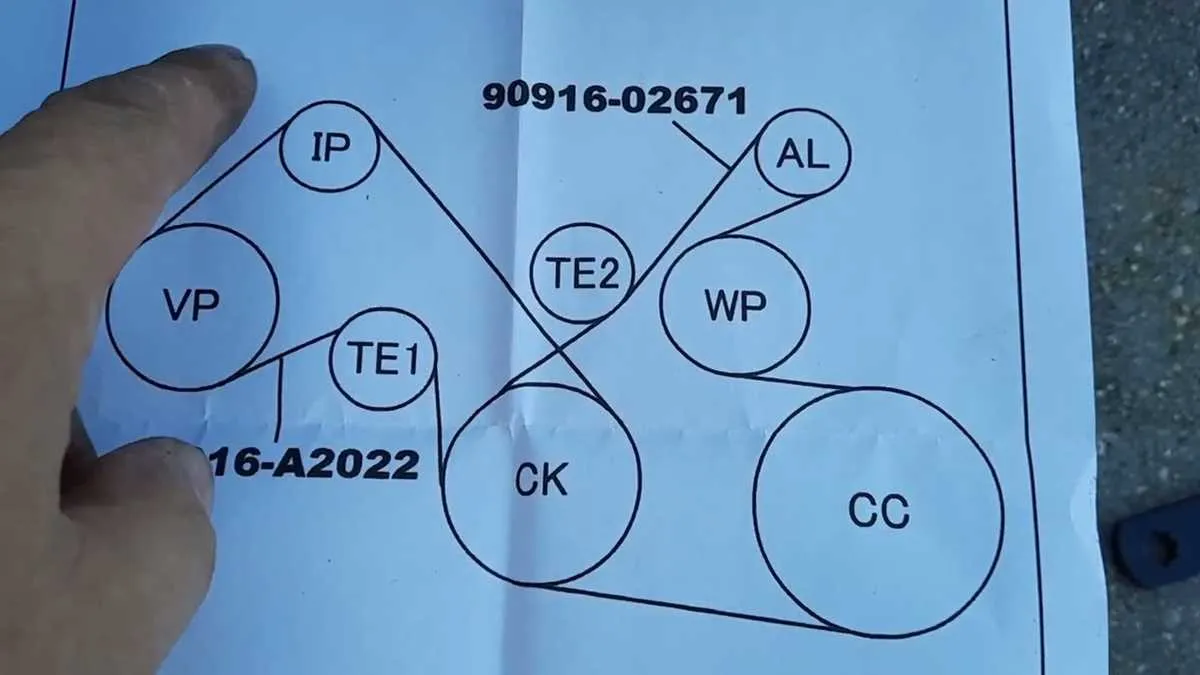

The serpentine belt path can vary depending on whether the vehicle is equipped with a 2.4L 4-cylinder or a 3.5L V6 engine. The diagram below shows the belt routing for both engine types:

• For the 2.4L engine: The belt follows a path starting from the crankshaft pulley, moving around the power steering pump, alternator, and water pump, then routing over the idler pulleys, ending at the tensioner.
• For the 3.5L V6 engine: The belt routing is similar but involves a larger tensioner pulley and additional pulleys for enhanced load distribution.

Before replacing or adjusting the serpentine belt, always double-check the diagram for your specific engine configuration to ensure accuracy. An incorrectly routed belt can lead to premature wear or failure, so proper installation is a must.

Use a serpentine belt tool or a socket wrench to relieve tension and remove the old belt. After installing the new belt, check for smooth operation by manually rotating the components the belt powers to ensure the belt is properly aligned.

Step-by-Step Guide to Replacing the Serpentine Belt on 2007 Camry

Gather the necessary tools: a socket wrench set, a serpentine belt tool or breaker bar, and a new serpentine belt for your 2007 Camry. Make sure the engine is off and cooled down before starting.

Locate the serpentine belt routing diagram. This is usually found on a sticker near the radiator or on the engine bay cover. It shows the exact path the belt follows around the pulleys and tensioner.

Find the tensioner pulley. Use the serpentine belt tool or breaker bar to relieve tension on the belt by rotating the tensioner clockwise. This will allow you to remove the belt from the pulleys.

Remove the old serpentine belt. Once the tension is released, slide the belt off the pulleys. Pay attention to the routing to ensure the new belt is installed correctly.

Install the new serpentine belt. Begin by placing the belt on the pulleys following the diagram. Make sure the belt is seated properly in the grooves of each pulley. Use the tensioner tool again to relieve tension and allow the belt to slide into place on the tensioner pulley.

Check the alignment. Once the belt is on, double-check its position to ensure it is properly aligned on all pulleys. If it’s off-center, adjust the belt and retighten the tensioner.

Test the new belt. Start the engine and let it idle for a few minutes. Listen for any unusual noises and check the belt’s operation. If everything is running smoothly, you’ve successfully replaced the serpentine belt.

Identifying Common Issues with the 2007 Camry Serpentine Belt Layout

The serpentine belt layout on the 2007 Toyota Camry is straightforward, but a few common issues can disrupt its performance. Start by checking for belt wear. Cracks, fraying, or missing teeth on the belt itself can cause slipping or complete failure. These issues are typically caused by exposure to heat and friction over time. If you hear a squealing noise, it’s usually a sign that the belt is loose or misaligned.

Another issue to look for is pulley misalignment. Misalignment can result from worn-out pulleys or a faulty tensioner. This not only causes noise but can lead to uneven wear on the belt. A damaged or improperly functioning tensioner is also a major culprit. If the tensioner is unable to maintain the correct pressure on the belt, the belt may start slipping, reducing engine performance.

Pay attention to the idler pulley, as it supports the belt’s tension. Over time, it can wear out or seize up, leading to belt slippage and eventual breakage. Check the pulley for smooth rotation and listen for grinding sounds, which indicate internal damage.

Lastly, ensure that the belt is routed correctly. A misrouted serpentine belt can cause excessive stress on the engine components, leading to premature wear or even damage. Double-check the belt routing diagram to ensure everything is in place and secure.

How to Read the Serpentine Belt Diagram for 2007 Camry for Maintenance and Troubleshooting

Identify the routing path of the serpentine belt on the 2007 Camry by referencing the diagram. It shows the precise sequence of pulleys the belt follows and helps in understanding its tension and wear patterns.

Start by locating the diagram, typically found on the hood latch area or near the engine compartment. It clearly indicates the belt’s path around key components like the alternator, power steering pump, air conditioning compressor, and water pump.

When inspecting the diagram for maintenance, check the following points:

• The direction of the arrows: These show the correct orientation of the belt.
• The tensioner position: Ensure the belt is properly tensioned, following the diagram to confirm the tensioner’s position.
• The pulley order: Verify the belt is routed around the correct pulleys to avoid misalignment and premature wear.

For troubleshooting, the diagram can help identify issues. A misrouted belt can lead to overheating or accessory failures. Also, check for excessive wear on the belt where it crosses the pulleys. If the belt appears to be slipping or damaged, it’s time for a replacement.

After replacing the belt, cross-reference with the diagram to ensure proper alignment. If the new belt doesn’t align as shown, recheck the tensioner and pulley positioning.
