2007 Acura TSX Serpentine Belt Diagram and Installation Guide
For accurate maintenance and repair, it’s crucial to understand the serpentine belt system in your 2007 Acura TSX. This belt drives multiple engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. The diagram below shows the correct routing for the serpentine belt, ensuring all components run smoothly.
The serpentine belt should be routed following the diagram’s specific path to prevent slipping or misalignment. A common issue with worn-out belts is squealing noises or the failure of powered components. Regular inspection can help spot potential problems early, saving you time and money in the long run.
Before replacing the belt, check for any signs of wear, such as cracks or fraying. If the belt shows significant wear or damage, replace it as soon as possible to avoid further damage to the engine components. Ensure the tensioner is in good condition, as a malfunctioning tensioner can cause the belt to slip or even snap.

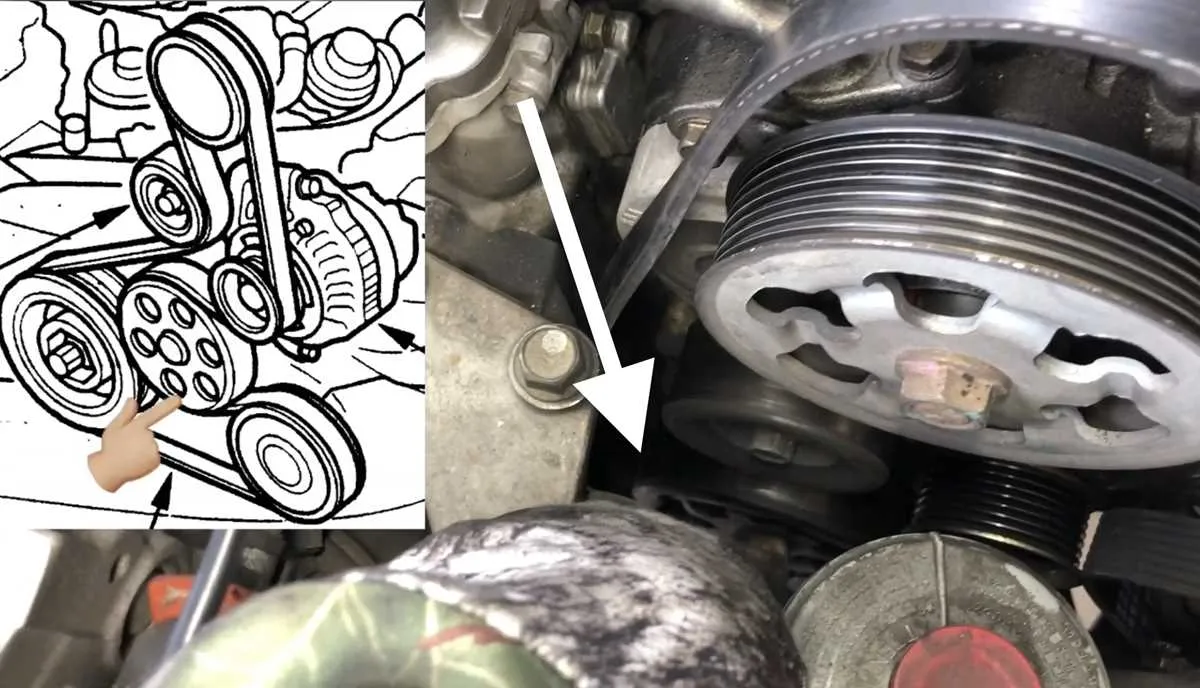

2007 Acura TSX Serpentine Belt Diagram
For a 2007 Acura TSX, the serpentine belt layout is crucial to ensure proper operation of key engine components. The belt drives various accessories like the alternator, power steering pump, air conditioning compressor, and the water pump. To replace or inspect the serpentine belt, follow this guide to understand the routing and pulley positions.
The serpentine belt for the 2007 TSX is routed around six main pulleys. Here’s the order of components it interacts with:
- Crankshaft Pulley
- Alternator Pulley
- Power Steering Pulley
- Water Pump Pulley
- Air Conditioning Compressor Pulley
- Tensioner Pulley
The tensioner pulley keeps the serpentine belt at the right tension to avoid slippage. To remove or replace the belt, you’ll need to use a wrench or socket on the tensioner pulley to relieve tension and slide the belt off the pulleys.
When reinstalling the new serpentine belt, ensure it is properly aligned with all pulleys. The diagram for the 2007 Acura TSX serpentine belt routing typically shows the belt going around the crankshaft, up to the alternator, then to the power steering pump, water pump, air conditioning compressor, and finally back to the tensioner pulley.
If you’re unsure about the exact diagram, consult the vehicle’s service manual or consider using online resources for a visual guide specific to your car model.
Understanding the Layout of the Serpentine Belt in 2007 Acura TSX
The serpentine belt in the 2007 Acura TSX plays a key role in driving various engine components like the alternator, power steering pump, and air conditioning compressor. The layout is straightforward but requires careful attention to ensure proper routing and tension.
To identify the correct serpentine belt diagram, focus on the path the belt takes across the pulleys. The 2007 Acura TSX features a single serpentine belt that loops around multiple pulleys, with the tensioner keeping it at the right tightness. Make sure the belt follows the correct order: from the crankshaft pulley, around the AC compressor, to the power steering pump, and finally to the alternator. Each pulley should be in line with the belt’s movement to avoid wear or misalignment.
Before replacing the belt, check the belt tensioner for wear. A malfunctioning tensioner can lead to improper tension, causing the belt to slip or even break. Use a diagram to confirm the belt’s routing before installation to avoid costly mistakes.
Replacing the serpentine belt on the 2007 Acura TSX should be done at regular intervals, typically every 60,000 to 100,000 miles. Over time, belts can stretch or crack, which may affect engine performance. Always inspect the belt for any signs of damage or wear, especially if you hear squeaking noises during engine operation.
Common Issues with the Serpentine Belt and How to Identify Them
Check for cracks or fraying along the belt. If you spot visible damage, it indicates wear that could lead to failure. A belt in good condition should be smooth without any cuts or tears.
Listen for squealing or whining noises when the engine is running. These sounds often point to a loose or worn belt. The noise might increase when you accelerate or turn on accessories like the air conditioning.
Check for belt slipping by inspecting the tension. A loose belt may not grip properly, causing the alternator or power steering pump to function inefficiently. The belt should have enough tension to remain in place without being too tight.
Look for misalignment between the belt and pulleys. If the belt runs off-center or shows signs of uneven wear, misalignment could be the cause. This issue can result from a damaged pulley or improperly installed components.
Watch for overheating of components like the alternator or power steering pump. If these systems aren’t getting enough power due to a slipping belt, they may overheat. Keep an eye on warning lights or temperature gauges for signs of trouble.
If the belt is old (over 60,000 miles), consider replacing it before it shows any visible issues. Over time, belts degrade even without apparent damage, so preventive maintenance is key to avoiding breakdowns.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Acura TSX
To replace the serpentine belt on your 2007 Acura TSX, follow these clear steps for a smooth and successful replacement process.
1. Gather Necessary Tools: You will need a ratchet wrench, serpentine belt tool or a breaker bar, and a new serpentine belt. Make sure the replacement belt matches the one currently installed in your vehicle.
2. Locate the Serpentine Belt: Open the hood and find the serpentine belt running along the front of the engine. The 2007 Acura TSX uses a belt-driven system that powers various components such as the alternator and power steering pump.
3. Release Tension from the Belt: Using the serpentine belt tool or a breaker bar, locate the tensioner pulley. Turn the tool clockwise or counterclockwise to relieve the tension on the belt. Keep the tool in place to prevent the tensioner from snapping back while you remove the belt.
4. Remove the Old Belt: Once the tension is released, carefully slide the old belt off the pulleys. Take note of the belt’s routing on the pulleys, as you will need to replicate this routing with the new belt. You can refer to the diagram on the engine bay for clarity.
5. Install the New Serpentine Belt: Place the new belt onto the pulleys, following the same routing as the old belt. Ensure that the belt sits properly in the grooves of the pulleys and does not slip off during installation.
6. Reapply Tension: Use the serpentine belt tool or breaker bar to move the tensioner pulley again, allowing you to fit the new belt under the tension. Once the belt is securely in place, release the tool and ensure the belt is tightened correctly.
7. Check Belt Alignment: Double-check that the belt is correctly seated and aligned with the pulleys. A misaligned belt can lead to premature wear or damage.
8. Test the Engine: Start the engine and visually inspect the belt as it runs. Ensure the belt is running smoothly and quietly without any issues or slipping.
After completing these steps, your 2007 Acura TSX will be ready for a trouble-free drive with its newly installed serpentine belt.
