2006 Volvo XC90 Serpentine Belt Diagram and Installation Guide

For maintaining your 2006 Volvo XC90, understanding the serpentine belt system is crucial. The serpentine belt drives various engine components, including the alternator, power steering pump, and air conditioning compressor. Replacing it when worn is essential to prevent engine damage and ensure optimal performance.

The serpentine belt diagram for the 2006 XC90 shows the specific routing and placement of the belt around the pulleys. It’s important to follow the diagram precisely to avoid misalignment or damage. You can find the diagram under the hood of the vehicle, typically on a label attached to the radiator support or near the engine bay.

Ensure the belt is tight and free from cracks or fraying. A loose or damaged serpentine belt can lead to engine failure, as vital components may stop functioning. If you’re unsure about the condition of the belt, it’s best to replace it promptly to avoid costly repairs.

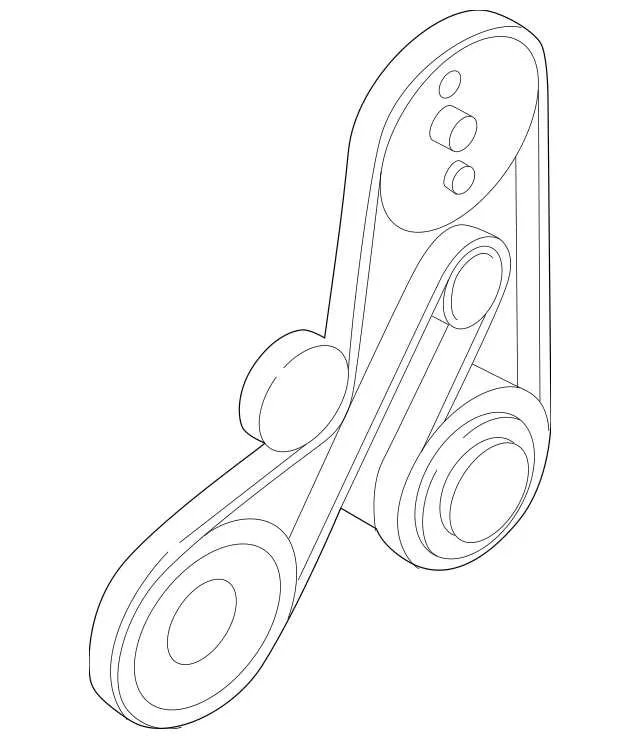

2006 Volvo XC90 Serpentine Belt Diagram

The serpentine belt on the 2006 Volvo XC90 plays a vital role in driving multiple engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. Proper understanding of its routing and tension is critical for maintaining vehicle performance and avoiding potential failures.

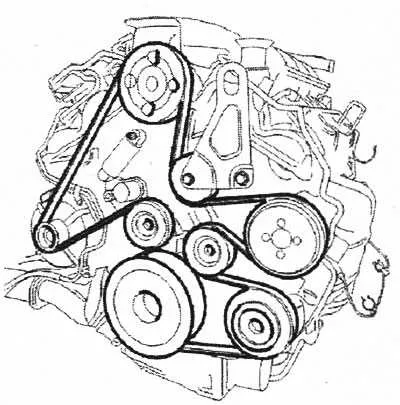

Refer to the diagram for the correct belt routing. It shows the precise order in which the serpentine belt should loop around the engine pulleys. Ensure that the belt is installed in the right orientation to avoid misalignment or excessive wear.

• Check the tension of the belt regularly. An overly loose belt may slip, while an overly tight one can strain the engine components.
• Inspect the belt for visible signs of wear, including cracks, fraying, or glazing, which can lead to premature failure.
• When replacing the belt, ensure that the pulley alignment is maintained to prevent unnecessary friction.

It is important to use the correct replacement belt with the right dimensions. The 2006 Volvo XC90 serpentine belt typically measures 8PK2140. Make sure to verify the part number before purchase to guarantee compatibility.

Regular inspection and maintenance of the serpentine belt are key to ensuring the smooth operation of the engine’s accessory systems. If any issues are found, replace the belt immediately to avoid further damage to the vehicle’s components.

How to Identify the Correct Serpentine Belt for 2006 Volvo XC90

To identify the correct serpentine belt for your 2006 Volvo XC90, first check the engine model and specifications. The most common configuration is the 3.2L engine, which requires a belt length of approximately 92 inches. For the 2.5T engine, the belt is typically around 94 inches long. Ensure that you match the correct engine type with the proper belt size for optimal fit and performance.

Next, verify the belt’s width and rib count. The 2006 Volvo XC90 uses a serpentine belt with a width of 1 inch and a rib count of 6. This is crucial for ensuring the belt runs smoothly over all the pulleys without slipping or causing excessive wear.

To confirm the belt part number, refer to your vehicle’s owner’s manual or a service guide. Common part numbers for the XC90’s serpentine belt include Volvo’s OEM number 31422947. Alternatively, aftermarket options will usually have equivalent part numbers, which can be cross-checked with a reliable supplier.

Finally, inspect the belt routing diagram located under the hood or in the owner’s manual. This diagram provides the correct path for the serpentine belt to follow over the pulleys, ensuring proper tension and function. If you’re unsure, consult a professional mechanic for guidance in selecting the correct belt for your XC90.

Step-by-Step Guide to Replacing the Serpentine Belt on 2006 Volvo XC90

Begin by disconnecting the negative terminal of the battery to ensure safety while working on the vehicle.

Locate the serpentine belt tensioner on the front of the engine. Use a wrench or a serpentine belt tool to rotate the tensioner clockwise and relieve the tension on the belt.

Carefully slide the belt off the pulleys, noting the exact routing pattern. It’s a good idea to take a photo or refer to the vehicle’s manual for proper belt routing.

Inspect the new serpentine belt for any defects or irregularities before installation. Make sure the belt matches the original part in size and specifications.

Place the new belt over the pulleys following the same path as the old one. Start by routing the belt around the pulleys and idler wheels, ensuring it is positioned correctly on all grooves.

Once the belt is in place, rotate the tensioner again to allow the belt to slip into position. Ensure the belt is properly seated on each pulley.

Double-check that the belt is correctly aligned and tensioned before releasing the tensioner. Start the engine and verify that the belt is running smoothly without any noise or slipping.

Reconnect the battery terminal and test drive the vehicle to ensure everything is functioning properly.

Troubleshooting Common Issues with the Serpentine Belt in 2006 Volvo XC90

If you notice squealing or grinding noises coming from the engine bay, inspect the serpentine belt for signs of wear, such as fraying or cracking. A worn-out belt can cause these noises, and replacing it will often resolve the issue. Make sure the belt is properly tensioned, as an overly loose belt can also result in similar sounds.

If the power steering, alternator, or air conditioning is malfunctioning, it may be due to a misaligned or damaged serpentine belt. Check for any noticeable slack or improper routing that could affect the performance of these components. If the belt is improperly installed, it can lead to poor operation of these critical systems.

In case of overheating, check the serpentine belt for signs of slipping or damage to the water pump. A damaged belt can prevent the water pump from circulating coolant properly, causing the engine to overheat. Replace any damaged components immediately to prevent further engine damage.

Check the belt tensioner to ensure it is functioning correctly. A faulty tensioner may fail to maintain the appropriate tension, leading to belt slippage or excessive wear. If the tensioner is weak or not moving smoothly, it may need replacement to ensure proper belt performance.

If the serpentine belt shows signs of oil or coolant contamination, clean the belt and inspect the surrounding components for leaks. Oil or coolant on the belt can reduce its grip and cause it to slip, leading to the failure of connected accessories. Address any leaks before replacing the belt to prevent recurrence.
