2006 Scion XB Serpentine Belt Diagram and Routing Guide

The serpentine belt on a 2006 Scion XB plays a key role in driving multiple components such as the alternator, power steering pump, and air conditioning compressor. If you’re replacing or inspecting the serpentine belt, it’s important to follow the correct routing to ensure proper functioning of these components.

Start by identifying the belt tensioner. It’s essential to release the tension on the belt before removing it. Use a wrench or a special tool to rotate the tensioner, which will loosen the belt and allow for its removal. Pay close attention to the alignment of the belt during installation, ensuring it follows the proper route through the pulleys as shown in the diagram.

Make sure the belt is properly tensioned after installation. An incorrectly tensioned belt can cause it to slip or wear prematurely, leading to further issues. Always refer to the diagram for the correct routing and to verify that the belt is correctly installed across all pulleys.

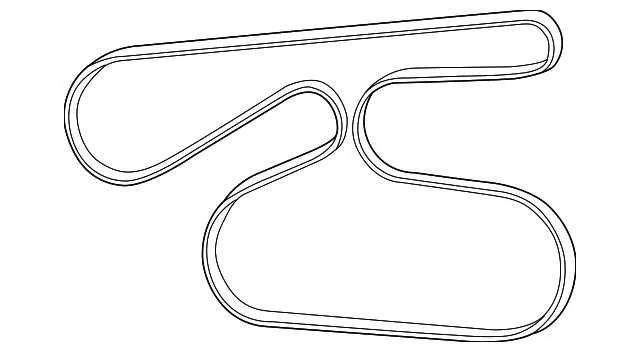

2006 Scion XB Serpentine Belt Diagram

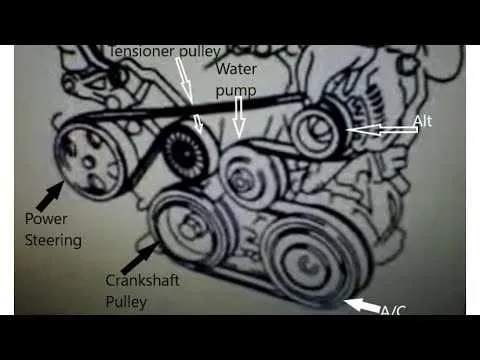

For accurate installation and optimal performance, ensure the serpentine belt on your 2006 Scion XB follows the routing pattern shown in the diagram. The belt should loop around the crankshaft pulley, alternator, power steering pump, and other components as indicated. Pay attention to the tensioner pulley, which should keep the belt taut, preventing slipping.

Before replacing the belt, inspect all pulleys for signs of wear. If a pulley is damaged or misaligned, it can cause premature wear on the new belt. Make sure the belt runs smoothly over all pulleys without any slack or tension issues.

If you hear squealing noises, or if the power steering or air conditioning is not functioning correctly, the belt may be loose or worn. In such cases, replacing the belt and checking the tensioner and pulleys can resolve the issue. Regular inspection of the belt will help avoid unexpected failures and maintain proper vehicle performance.

Identifying the Serpentine Belt Routing on a 2006 Scion XB

To identify the serpentine belt routing on your 2006 Scion XB, locate the belt diagram, typically found on the radiator support or near the engine bay. This diagram provides a visual guide of how the serpentine belt loops around various pulleys and components, such as the alternator, power steering pump, and air conditioning compressor.

Start by ensuring that the belt is correctly positioned on the crankshaft pulley. The belt should then loop over the idler pulley, tensioner pulley, and other accessories, following the exact path shown in the diagram. Pay attention to the direction of the belt as it wraps around the pulleys–most vehicles require the belt to move in a counterclockwise direction for proper alignment.

If the diagram is worn or difficult to read, you may also refer to the vehicle’s service manual for a detailed illustration of the routing. Double-check that the belt is not too loose or too tight by using a tension gauge. A properly installed serpentine belt should have just enough slack to allow slight deflection without being excessively loose.

For easy reference, use a wrench to rotate the tensioner pulley clockwise, relieving tension on the belt to remove or install the new belt. Always inspect the belt for signs of wear, such as cracks or fraying, before reinstallation.

Step-by-Step Process for Replacing the Serpentine Belt on a 2006 Scion XB

To replace the serpentine belt on a 2006 Scion XB, follow these steps carefully:

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt at the front of the engine. It runs over several pulleys, including the alternator, water pump, and power steering pump.

2. Relieve Tension from the Belt: Use a socket wrench to rotate the tensioner pulley. This will loosen the belt, allowing you to remove it. Be sure to note the direction in which the tensioner moves to ensure proper reinstallation.

3. Remove the Old Belt: With the tension released, slide the belt off the pulleys. Take a moment to inspect the belt for signs of wear such as cracks or fraying. This will help you confirm that a replacement is necessary.

4. Compare the New Belt: Before installation, compare the new serpentine belt with the old one to ensure it is the correct size and matches the routing pattern. You can refer to a diagram of the 2006 Scion XB serpentine belt layout if needed.

5. Install the New Belt: Start by placing the new belt around the crankshaft pulley. Then work it around the other pulleys, ensuring it sits properly in the grooves. Make sure the belt follows the same routing pattern as the old one.

6. Tighten the Tensioner: Rotate the tensioner pulley again to apply tension to the new belt. Once the belt is taut, release the tensioner and double-check the belt’s alignment on all pulleys.

7. Test the Installation: Start the engine and observe the serpentine belt as it runs. Listen for any unusual noises and ensure the belt is running smoothly without slipping or vibrating.

8. Final Check: After running the engine for a few minutes, shut it off and inspect the belt. Make sure it is properly aligned and tensioned. If everything looks good, you’ve successfully replaced the serpentine belt.

Common Issues with the Serpentine Belt and How to Troubleshoot

Inspect the serpentine belt for visible signs of wear such as cracks, fraying, or glazing. These are indications that the belt may need replacement. If the belt is slipping or making noise, it could be misaligned or loose. Check the belt tensioner and pulleys to ensure they are functioning correctly.

If you hear squealing noises, especially when starting the engine, it could signal that the belt is slipping. This often happens when the belt is old, the tensioner is worn, or the pulleys are misaligned. Tighten the belt or replace the tensioner if necessary.

If the alternator or power steering starts malfunctioning, it could be due to a worn serpentine belt. A slipping belt may prevent these components from functioning properly. Make sure the belt is properly routed and tensioned according to the manufacturer’s specifications.

Regularly inspect the condition of the pulleys and tensioners. A damaged pulley can cause the belt to wear prematurely, while a faulty tensioner can lead to incorrect belt tension. In both cases, replace the damaged components immediately to prevent further damage to the serpentine belt.

Perform a visual inspection while the engine is off. Look for any noticeable misalignment in the belt routing or any debris that might be causing interference. If the belt appears stretched or deformed, replace it immediately.

• Check for proper tension using a tension gauge.
• Ensure that pulleys rotate smoothly without wobbling or unusual noise.
• Verify that the belt is routed correctly based on the manufacturer’s diagram.
• Inspect the belt for any fraying, cracks, or glazing on the surface.
• Replace any worn or damaged components as needed.
