2006 Mazda 6 serpentine belt diagram with routing details for replacement
Check the routing diagram under the hood before removing the serpentine belt on a 2006 Mazda 6. If the sticker is missing, use a printed diagram or a verified guide to avoid incorrect installation. The belt drives the alternator, water pump, power steering pump, and air conditioning compressor, so proper alignment across all pulleys is critical.
Use a wrench or serpentine belt tool to rotate the tensioner and relieve pressure on the belt. Slide the belt off the nearest pulley while keeping the tensioner compressed. Take a clear photo of the existing routing if a diagram is not available. This step prevents confusion during reinstallation and saves time.
When installing the new belt, route it around the pulleys exactly as shown in the diagram. Leave the tensioner pulley for last, then apply pressure to the tensioner again and slip the belt into place. Check that the belt sits fully inside each pulley groove without twisting. A misaligned belt can squeal, wear quickly, or damage accessories.
Inspect the tensioner and idler pulleys during replacement. Worn bearings or weak tension can cause belt slippage. If there is play or noise in these components, replace them together with the belt. This ensures consistent operation and prevents repeat repairs.

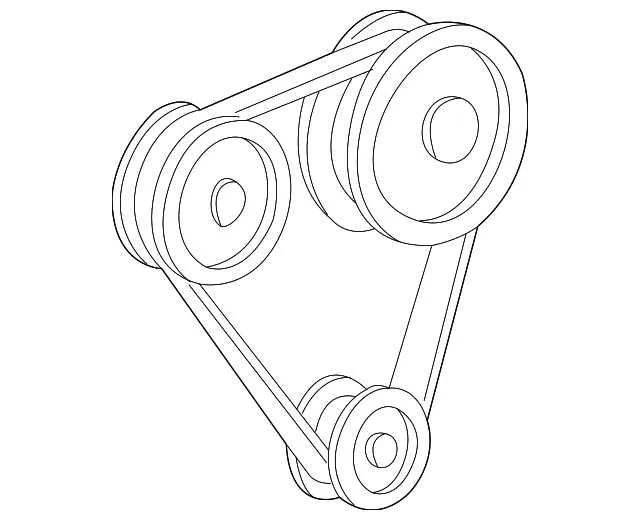

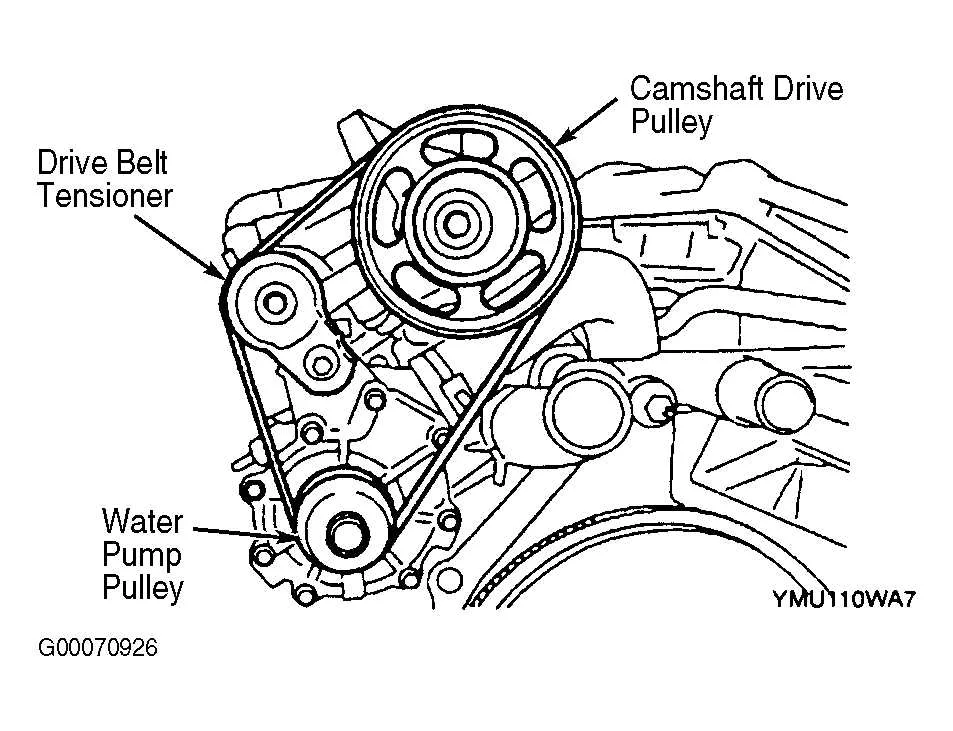

2006 Mazda 6 Serpentine Belt Diagram
Follow the factory routing diagram before installing a new serpentine belt on the 2006 Mazda 6. The belt drives the alternator, power steering pump, air conditioning compressor, and water pump, so correct alignment prevents slipping and premature wear.
The routing usually follows this path on the 3.0L V6 engine:
- Crankshaft pulley at the bottom center acts as the starting point.
- Belt moves upward to the power steering pump on the top left.
- From there, it goes around the idler pulley.
- Next, it loops over the alternator at the top right.
- Then, it passes the A/C compressor located at the lower right side.
- After that, it travels around the water pump pulley in the middle.
- Finally, it reaches the automatic tensioner, completing the circuit back to the crankshaft.
Always release tension with a breaker bar on the automatic tensioner before removing or installing the belt. Verify the ribs sit correctly in each pulley groove to avoid misalignment. After installation, rotate the crankshaft manually for one full revolution to confirm proper fit.
Identify Pulley Layout and Belt Routing for 2006 Mazda 6
Check the crankshaft pulley at the bottom center as the main driver for the serpentine belt. From there, trace the belt upward to the alternator pulley on the passenger side and across to the power steering pump pulley.
Next, route the belt over the tensioner pulley, which maintains proper tightness during operation. The belt then loops over the idler pulley before wrapping around the air conditioning compressor located on the lower side of the engine.
Follow the exact routing sequence shown on the factory diagram sticker under the hood. If the sticker is missing, sketch the path before removing the old belt, as correct alignment prevents slipping and uneven wear. Always verify that the ribs on the belt fit securely into the grooves of each pulley before completing the installation.
Steps to Remove and Install the Serpentine Belt Correctly
Release belt tension by rotating the automatic tensioner with a breaker bar or ratchet. Hold the tensioner steady and slide the old belt off the nearest pulley. Remove the belt completely, noting its path across each pulley.
Before installing the new belt, check pulleys for wear and ensure they spin smoothly. Align the new belt according to the factory routing diagram, leaving the tensioner pulley for last. Confirm that the ribbed side of the belt sits correctly inside each grooved pulley.
Rotate the tensioner again, slip the belt over the tensioner pulley, and carefully let the tensioner return to position. Double-check alignment across all pulleys and confirm the belt sits flush without twists. Start the engine briefly to verify proper tracking and quiet operation.
Check Belt Tension and Inspect for Wear or Damage
Press the serpentine belt at the longest span between pulleys and measure the deflection. A movement of about half an inch (12–15 mm) under firm pressure indicates proper tension. Too much slack or an overly tight belt can shorten the lifespan of pulleys and bearings.
Inspect the belt surface for cracks, fraying edges, missing ribs, or glazing. Small cracks across the ribs suggest the belt is near replacement time, while shiny or smooth areas indicate slippage. Any chunks missing from the ribs or uneven wear mean the belt should be replaced immediately.
Check for alignment issues by looking at how the belt sits in the pulley grooves. If the belt rides off-center or shows diagonal wear, inspect the pulleys and tensioner for damage or misalignment before installing a new belt. Replace worn components to prevent repeat failures.
