2006 Civic Serpentine Belt Diagram and Routing Guide

To maintain your 2006 Honda Civic’s engine efficiency, understanding the serpentine belt layout is key. The serpentine belt powers multiple accessories like the alternator, air conditioning compressor, and power steering pump. If your belt is misaligned or damaged, it can cause these components to fail, leading to costly repairs.

When inspecting the serpentine belt diagram, focus on the direction of the belt’s path and the specific components it drives. This will help you identify potential problems like fraying or wear. Pay attention to the tensioner and pulley positions to ensure proper belt tension.

Regular checks on your serpentine belt can prevent engine failure. If you spot cracks or significant wear, it’s time for a replacement. Always refer to the factory diagram for the correct routing of the belt, ensuring that it aligns with all pulleys and the tensioner.

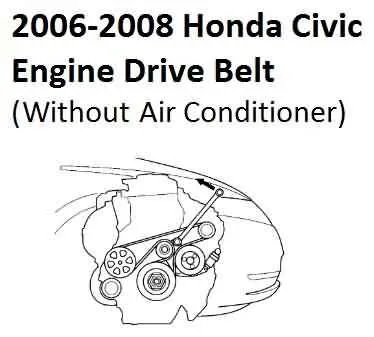

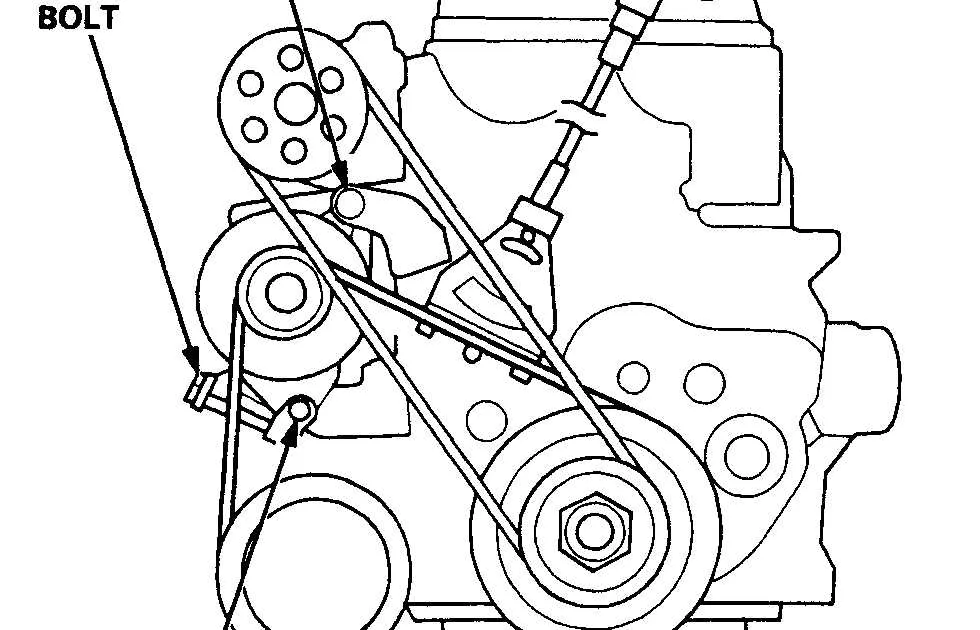

2006 Civic Serpentine Belt Diagram

The 2006 Honda Civic serpentine belt plays a vital role in driving multiple engine accessories. Understanding the diagram helps ensure proper installation and maintenance. The serpentine belt is routed around several components, such as the alternator, power steering pump, and air conditioning compressor.

To replace or inspect the serpentine belt, follow the belt routing as shown in the diagram. Ensure that the belt aligns properly with all pulleys, avoiding misalignment that could cause premature wear or damage. Use a tension gauge to check the correct tension of the belt before and after installation.

If the belt is worn or frayed, replace it immediately. The serpentine belt is designed to last for a certain mileage, but external factors like weather or engine conditions may shorten its lifespan. Refer to the vehicle’s manual for the recommended replacement interval and always opt for OEM parts for the best fit and performance.

For proper belt removal, release the tension by using a serpentine belt tool to move the tensioner pulley. Carefully remove the belt from the pulleys and install the new one following the correct routing. Double-check the belt’s alignment before tightening the tensioner to avoid any slack.

Steps to Install the Serpentine Belt on a 2006 Honda Civic

Begin by locating the serpentine belt tensioner and releasing tension with a socket wrench. Use the proper tool to rotate the tensioner clockwise, relieving pressure on the belt. Remove the old serpentine belt by gently sliding it off the pulleys.

Next, inspect all pulleys and components for any signs of wear or damage. Clean them to ensure smooth operation with the new belt. Ensure the tensioner is in good condition before proceeding.

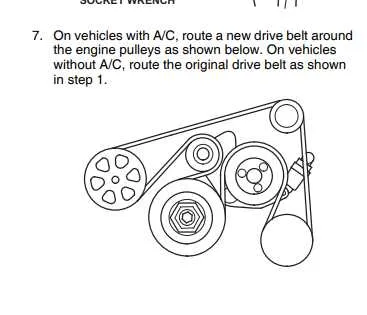

Now, position the new serpentine belt over the pulleys according to the belt routing diagram. Refer to the owner’s manual or a specific diagram for correct placement. Carefully route the belt around each pulley, making sure it fits securely into the grooves.

Once the belt is correctly positioned, rotate the tensioner again to allow the belt to sit tightly. Check that the belt is aligned properly and has no slack. Ensure the tension is correct by observing the belt’s tensioner position.

Finally, start the engine and visually confirm that the belt is running smoothly without any abnormal sounds or movements. If the belt appears to be slipping or misaligned, turn off the engine and adjust the tension or routing as necessary.

Troubleshooting Common Serpentine Belt Issues in a 2006 Civic

If you hear a squealing noise from the engine area, check for belt wear or improper tension. Over time, the serpentine belt can stretch, crack, or fray. Inspect the belt for visible damage and replace it if necessary. The belt should sit tightly on the pulleys without sagging.

A misaligned or damaged pulley can also cause belt issues. If the belt moves off-center or produces noise, inspect each pulley for wear, corrosion, or damage. If the pulley grooves are worn out or the pulley is loose, it should be replaced or adjusted to ensure proper alignment.

Increased engine overheating might point to serpentine belt issues as well. The belt drives the water pump, so if it’s slipping or broken, coolant circulation may be compromised. Ensure that the belt is running smoothly and is securely in place to avoid engine overheating.

Lastly, if you notice a sudden drop in power or a malfunctioning alternator, check if the belt is still connected to the alternator pulley. A slipping belt can lead to insufficient alternator output, resulting in electrical system failure. Tightening or replacing the belt will resolve this issue.
