2006 Cadillac DTS Serpentine Belt Diagram Guide for Accurate Installation and Maintenance

Inspect the serpentine belt for cracks, fraying, or glazing before attempting removal. The 2006 Cadillac DTS uses a single V-rib belt that drives the alternator, power steering pump, water pump, and A/C compressor. Understanding the exact routing ensures proper tension and prevents premature wear.

Follow the belt diagram to trace the path accurately around each pulley. The tensioner pulley must be released using a 3/8-inch ratchet on the tensioner arm to avoid damage. Aligning the belt correctly on the pulleys avoids slipping or squealing noises during operation.

Regularly check the belt alignment and tension after installation. Use a belt gauge or measure deflection to confirm the belt sits within the manufacturer’s recommended range of 1/2 inch to 3/4 inch of play at mid-span. Proper installation enhances the longevity of the accessory components and prevents unexpected failures.

Keep a visual reference of the belt diagram near the engine bay for future maintenance. This allows faster replacement and reduces the risk of misrouting, which can lead to alternator or AC malfunction. Periodic inspections every 30,000 miles or during major service help maintain consistent performance.

2006 Cadillac DTS Serpentine Belt Diagram Practical Guide for Owners

Refer directly to the belt diagram before attempting removal or installation to avoid misrouting and tension issues.

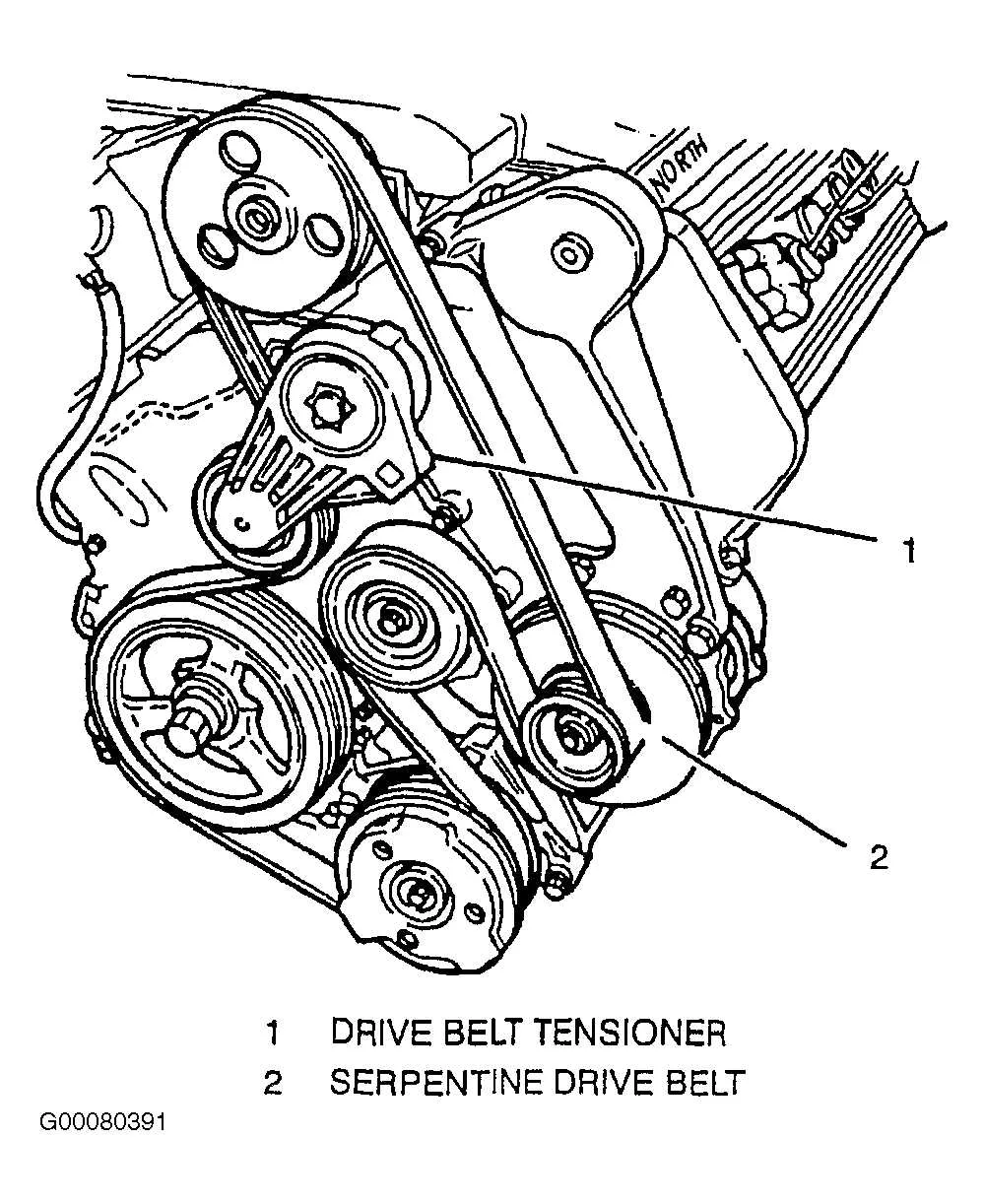

Locate the serpentine belt tensioner at the front of the engine. Use a 3/8-inch ratchet or breaker bar to rotate the tensioner clockwise, relieving tension on the belt.

• Identify all pulleys: alternator, power steering, water pump, air conditioning compressor, and crankshaft.
• Compare the belt routing with the diagram to ensure proper alignment over each pulley groove.
• Check the belt for cracks, fraying, or glazing; replace if any damage appears.

For installation, loop the belt around the pulleys as shown in the diagram, leaving the tensioner pulley for last. Rotate the tensioner to slip the belt over it, then release slowly to apply proper tension.

After installation, manually rotate the crankshaft two full turns to confirm smooth movement and proper alignment.

Maintain the belt by inspecting it every 12,000 miles or annually, whichever comes first, and replace it every 60,000 miles to prevent sudden failure.

Use the diagram to double-check routing if any accessory components are replaced or serviced, ensuring the serpentine system operates without noise or slipping.

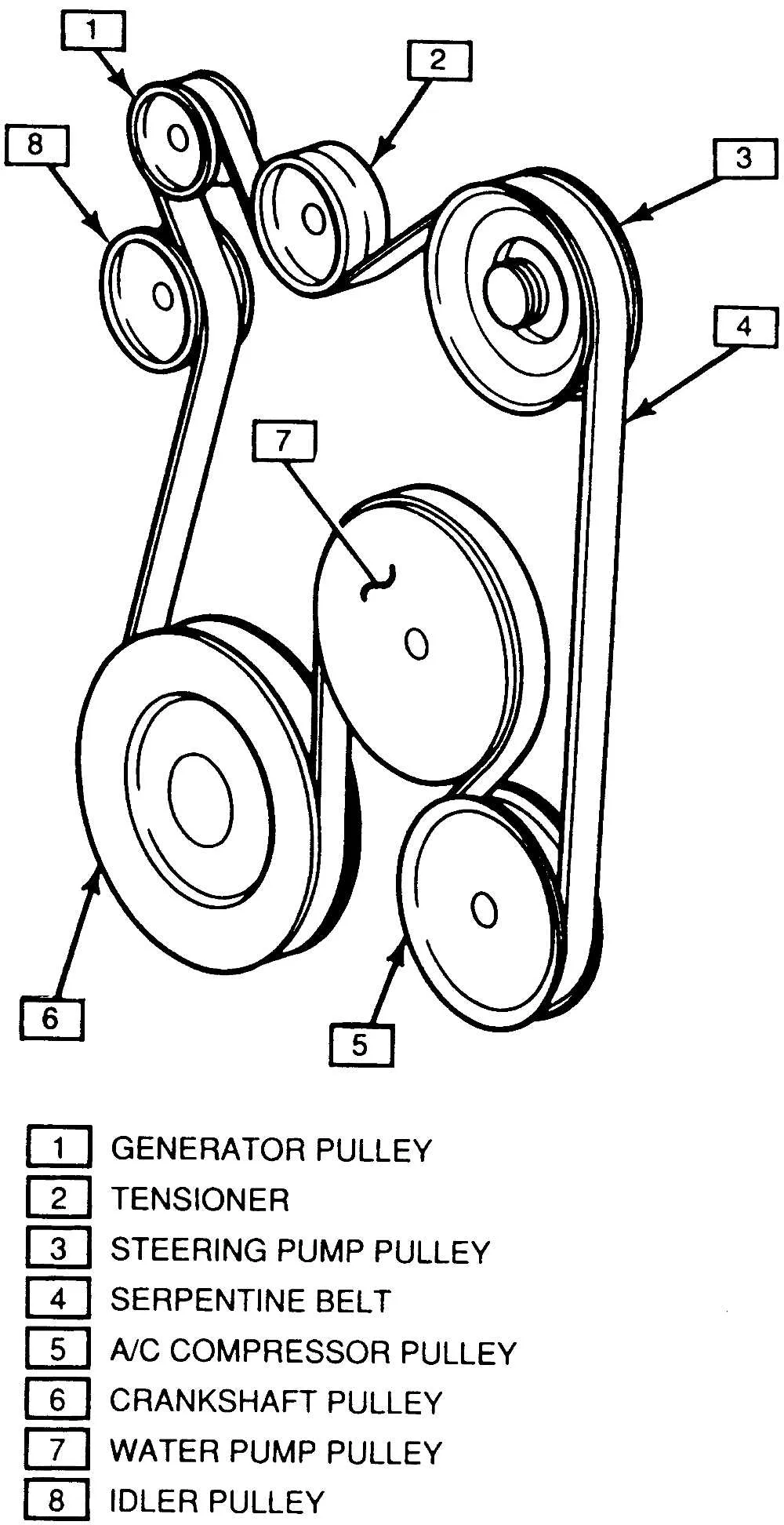

Identifying All Serpentine Belt Components on 2006 Cadillac DTS

Locate the crankshaft pulley at the bottom center of the engine; it drives the serpentine belt and powers all other accessories. Ensure the belt sits securely in its groove to avoid slippage.

Follow the belt to the alternator pulley on the upper left side. This pulley produces electrical power and maintains battery charge while the engine runs. Inspect for smooth rotation and proper alignment.

Identify the power steering pump pulley near the front right. This component pressurizes hydraulic fluid to assist steering. Check for leaks and ensure the belt contacts the pulley fully.

Locate the water pump pulley mounted on the engine block. It circulates coolant through the radiator and engine. Confirm the belt tension allows consistent rotation without skipping.

Find the air conditioning compressor pulley, usually on the lower left. It engages when the AC activates, driving the compressor clutch. Verify the belt is seated correctly to prevent squealing.

Trace the belt over the tensioner pulley and idler pulleys, which maintain proper tension and guide the belt along its path. Examine these pulleys for smooth operation and absence of wear or wobble to preserve belt longevity.

Step-by-Step Guide to Routing the Serpentine Belt Correctly

Begin by locating the serpentine belt diagram on the 2006 Cadillac DTS. Position the new belt over the crankshaft pulley first, ensuring it sits firmly in the groove.

Next, route the belt around the water pump pulley, maintaining tension and aligning the belt with the pulley grooves. Follow this by looping the belt over the alternator pulley, confirming that the ribs match the pulley teeth precisely.

Guide the belt around the power steering pump pulley, keeping it snug but flexible. Proceed to wrap the belt around the air conditioning compressor pulley, checking that the belt rests fully in the grooves without twisting.

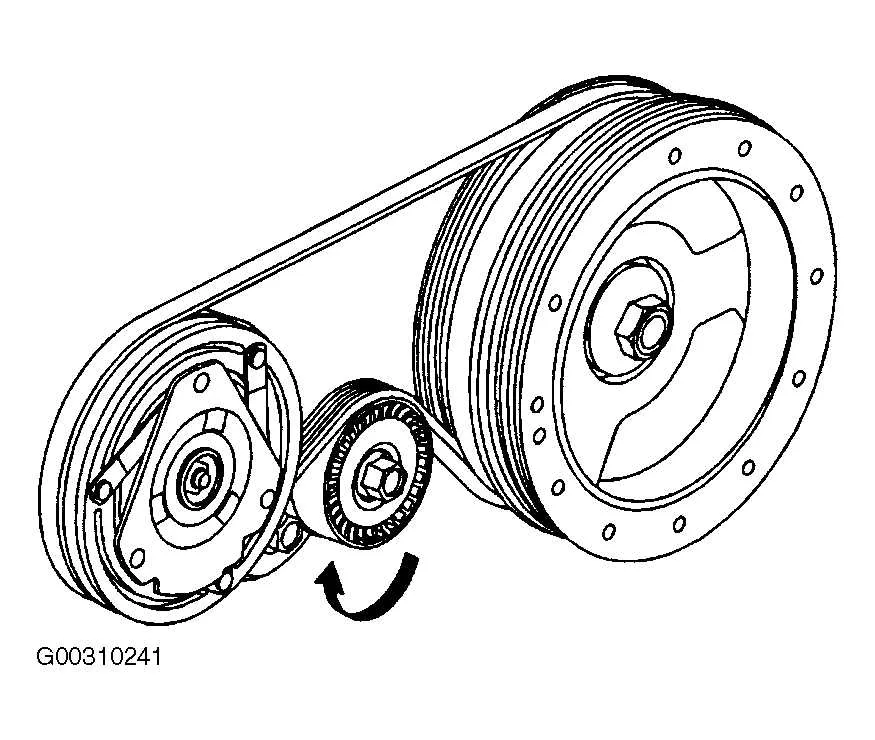

Use a wrench or serpentine belt tool to rotate the tensioner pulley. Slip the belt under the tensioner, allowing it to apply the proper tension automatically. Inspect the belt on each pulley to verify full engagement and correct routing.

Manually rotate the crankshaft pulley a full turn to ensure the belt maintains proper alignment and tension across all components. Check for any signs of misalignment or rubbing against brackets.

After confirming correct placement, secure any loose components and perform a short engine test run. Observe the belt’s motion for consistent tracking and absence of slipping or noise.

Troubleshooting Common Belt Problems and Maintenance Tips

Check the serpentine belt for visible cracks, fraying, or glazing on the ribbed side. Any of these signs indicate wear that can lead to slipping or complete failure.

Listen for high-pitched squealing when the engine runs. Squealing often signals improper tension or misalignment. Use a tension gauge to confirm the belt tension is within the manufacturer’s range, typically around 100–150 pounds of force depending on the specific pulley system.

Inspect pulleys for wobbling, rough rotation, or buildup of debris. A damaged pulley can cause uneven wear on the belt and reduce accessory performance. Rotate each pulley manually to check for smooth movement.

Replace the belt at intervals recommended in the service manual, usually every 60,000 to 100,000 miles. Even if it looks intact, age and heat exposure degrade the rubber and fibers, increasing the risk of sudden failure.

Clean the pulleys and surrounding area to prevent oil or coolant contamination. Any fluid on the belt can cause slipping or premature wear. Use a lint-free cloth and mild cleaner, avoiding harsh chemicals that can damage the belt material.

Double-check the belt routing against the 2006 Cadillac DTS serpentine belt diagram before installation. Incorrect routing can strain the alternator, power steering, and AC compressor, leading to component damage.

Consider replacing the belt tensioner and idler pulleys during belt replacement. Worn tensioners or pulleys reduce the belt’s life and can create noise or uneven wear patterns.

Perform periodic visual inspections every 5,000 miles. Early detection of minor wear prevents unexpected breakdowns and ensures smooth operation of all engine accessories.
