2006 Buick Lucerne Serpentine Belt Diagram and Routing Guide
Understanding the serpentine belt layout for your 2006 Buick Lucerne is key to maintaining the engine’s efficiency. The serpentine belt powers several important components, including the alternator, air conditioning compressor, power steering pump, and water pump. A worn or broken serpentine belt can lead to overheating or loss of power steering, so it’s crucial to know how it should be routed for proper function.
The diagram for the 2006 Buick Lucerne’s serpentine belt routing is straightforward, but attention to detail is necessary when replacing or inspecting the belt. The diagram shows the belt’s path around pulleys, ensuring smooth operation of the accessories driven by the engine. The tensioner pulley plays a critical role in keeping the belt tight, preventing slipping or damage. Make sure to follow the routing order exactly as shown to avoid misalignment or strain on the engine components.
To replace the serpentine belt, use a belt tensioner tool to release the tension and carefully remove the old belt. Once the new belt is in place, double-check the alignment with the diagram to ensure everything is properly positioned. Regularly inspect the belt for wear signs such as cracking or fraying to avoid potential breakdowns.

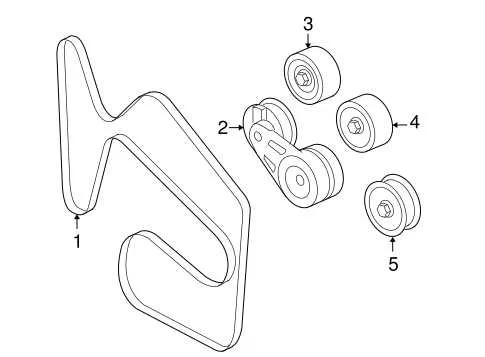

2006 Buick Lucerne Serpentine Belt Diagram
The serpentine belt on the 2006 Buick Lucerne plays a key role in driving essential components like the alternator, power steering pump, and air conditioning compressor. To ensure your engine runs smoothly, it’s critical that the belt is routed correctly. Below is a simplified diagram of how the serpentine belt should be routed.
Serpentine Belt Routing: The belt should loop around the crankshaft pulley, water pump, tensioner, and other accessories in a specific order. First, it wraps around the crankshaft pulley, moving toward the water pump. From there, it heads toward the alternator, making sure to go over the idler pulley before looping around the power steering pump and the air conditioning compressor. Finally, it wraps around the tensioner pulley before completing the loop back to the crankshaft.
Maintenance Tips: To avoid issues, regularly inspect the serpentine belt for any signs of wear, such as cracks or fraying. If you notice any damage, replace the belt immediately to avoid potential damage to engine components. Keep an eye on the tensioner as well, since a worn-out tensioner can cause the belt to slip or wear unevenly, which could lead to further mechanical failures.
If you’re ever unsure, use a diagram to guide you through the process of replacing or adjusting the belt. These diagrams can often be found in the vehicle’s service manual or online. Replacing the serpentine belt is a relatively straightforward task, but getting the routing right is key for proper engine function.
How to Locate the Serpentine Belt Routing Diagram on a 2006 Buick Lucerne
To find the serpentine belt routing diagram for your 2006 Buick Lucerne, check the engine compartment. The diagram is typically located on a sticker or placard attached to the radiator support, near the front of the engine bay. Look for a small label that includes a detailed illustration showing how the serpentine belt should be routed over the pulleys and accessories.
If the diagram is missing or damaged, you can also refer to the owner’s manual. The manual contains a detailed section about the serpentine belt and its components. If you don’t have access to the manual, some auto parts stores provide free printouts or online resources where you can find diagrams for specific vehicle models.
Another option is to search online using your vehicle’s make, model, and year to locate a diagram. Several automotive websites and forums feature user-uploaded diagrams and troubleshooting guides for the 2006 Buick Lucerne, which could help you restore or replace the serpentine belt accurately.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Buick Lucerne
To replace the serpentine belt on your 2006 Buick Lucerne, gather these tools: a new serpentine belt, a socket wrench set, a belt tensioner tool, and a flashlight. Follow these steps carefully to get the job done smoothly.
- Locate the Serpentine Belt: Open the hood and find the serpentine belt on the front of the engine. The belt wraps around various pulleys such as the alternator, power steering pump, and water pump.
- Consult the Diagram: Refer to the serpentine belt routing diagram on the engine bay or your vehicle’s manual. This will show the exact path the belt follows through the pulleys.
- Release Tension on the Belt: Use the belt tensioner tool to rotate the tensioner pulley. This will release the tension on the belt, allowing you to remove it. Make sure to keep the tool secure while you rotate the tensioner.
- Remove the Old Belt: Once the tension is released, carefully slide the serpentine belt off the pulleys. Note the orientation of the belt for when you install the new one.
- Inspect the Pulleys: Before installing the new belt, check the pulleys for damage or wear. Spin each pulley to ensure they rotate freely and without noise. Replace any faulty components if needed.
- Install the New Serpentine Belt: Begin by threading the new serpentine belt around the pulleys in the same route as the old belt. Pay close attention to the belt’s alignment with the grooves on each pulley to avoid any misalignment.
- Apply Tension to the Belt: Use the belt tensioner tool to rotate the tensioner pulley and apply tension to the new belt. Ensure the belt is snug but not overly tight.
- Check Belt Alignment: Verify that the belt sits properly on all pulleys. The belt should be centered on each pulley without slipping or rubbing against the edges.
- Test the System: Start the engine and observe the serpentine belt in action. Listen for any unusual noises and check for proper belt operation. If everything runs smoothly, you’ve completed the replacement.
Regularly inspect your serpentine belt for signs of wear to ensure reliable performance. If you hear squealing sounds or notice power steering or charging issues, it’s time to replace the belt. Stay proactive to avoid unexpected breakdowns.
Common Issues with the Serpentine Belt in a 2006 Buick Lucerne and How to Fix Them
The serpentine belt on the 2006 Buick Lucerne can wear out over time, causing several issues. Here’s how to identify and resolve them:
Squealing or Chirping Noises: If you hear high-pitched squeals, the serpentine belt might be loose or misaligned. This can be caused by a worn tensioner or pulley. Inspect the belt for wear and replace it if necessary. Adjust the tensioner or realign the pulley system to fix the issue. If the belt shows signs of cracking, replacing it is the best solution.
Overheating Engine: A failing serpentine belt can disrupt the functioning of your water pump, leading to engine overheating. Check the belt for any signs of slippage or breakage. If you find issues, replace the belt and inspect the water pump and cooling system for any damage or leaks.
Loss of Power Steering: A worn or loose serpentine belt may cause the power steering to fail. The belt drives the power steering pump, so if the belt isn’t functioning properly, you’ll notice heavy steering. Inspect the belt for damage and tension, and replace it if it’s no longer functioning properly.
Battery Warning Light: If the serpentine belt fails, the alternator may not charge the battery correctly. A battery warning light on your dashboard is a sign the alternator isn’t getting power. Check the belt and replace it if needed, and ensure the alternator is working properly.
Cracking or Fraying: Inspect the belt regularly for any visible signs of damage like cracking or fraying. If the belt shows damage, replace it immediately to prevent further issues. A damaged belt can quickly lead to more serious problems, including complete failure.
Excessive Vibration: If you notice unusual vibrations while driving, the serpentine belt may be misaligned or have a worn pulley. Inspect the pulleys for any signs of wear or misalignment. Replace or realign the pulleys, and ensure the belt is positioned correctly.
