2005 Scion TC Serpentine Belt Routing and Diagram Guide

If you need to replace or inspect the serpentine belt on a 2005 Scion tC, understanding the correct routing is a must. The serpentine belt is responsible for powering several key components, such as the alternator, power steering pump, and air conditioning compressor. Ensuring it is routed properly will prevent unnecessary wear and potential damage to other engine parts.

Start by locating the belt tensioner, which allows for the adjustment and removal of the serpentine belt. The belt should follow a specific path around the engine’s pulleys. Check the diagram for the proper positioning and ensure that the belt fits snugly in each groove without being too tight or too loose. A loose or misaligned belt can slip, causing poor performance of your vehicle’s components.

Once you have confirmed the routing, double-check the condition of the belt before installation. If there are any signs of cracking or excessive wear, it’s a good idea to replace it at the same time. Follow the recommended steps to tension the belt correctly, ensuring that it operates smoothly without strain.

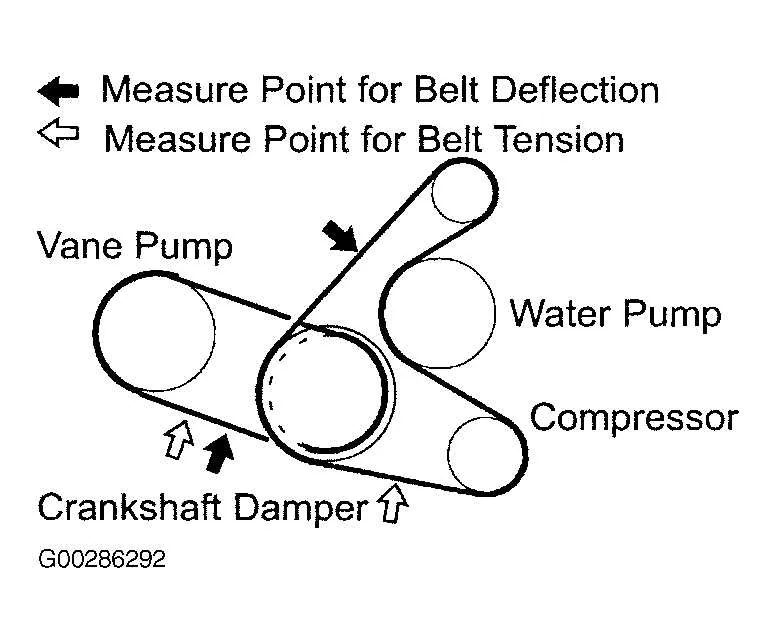

2005 Scion tC Serpentine Belt Diagram

The serpentine belt in your 2005 Scion tC powers several crucial components of the engine, including the alternator, power steering pump, and air conditioning compressor. If you’re replacing the serpentine belt, it’s important to follow the correct routing for optimal performance. Below is a simple, clear diagram and step-by-step guide to help you install the serpentine belt correctly.

The diagram should show the belt running from the crankshaft pulley to the various pulleys in the engine. Starting at the crankshaft, the belt loops over the power steering pulley, alternator, and idler pulleys, then under the tensioner. The tensioner is a spring-loaded component that keeps the belt tight. From there, the belt continues to the AC compressor before returning to the crankshaft pulley.

To replace the serpentine belt, use a serpentine belt tool or a wrench to relieve tension from the tensioner. Remove the old belt, comparing it with the new one to ensure proper length and size. Route the new belt exactly as shown in the diagram. Double-check the belt’s path around each pulley before releasing the tensioner to apply the correct tension to the new belt.

After installation, start the engine and check for any unusual noises or belt misalignment. If everything looks good, you’ve successfully replaced the serpentine belt on your 2005 Scion tC!

Understanding the Serpentine Belt Routing for the 2005 Scion tC

For the 2005 Scion tC, ensuring proper serpentine belt routing is vital for the smooth operation of the engine’s accessories, like the alternator, power steering pump, and air conditioning compressor. Start by confirming the belt’s path follows the diagram located near the engine bay. This diagram is usually on a label attached to the front of the engine cover or near the radiator fan shroud.

The belt wraps around several pulleys, and it is critical to follow the exact routing to avoid slipping or premature wear. The tensioner pulley should be positioned properly to maintain adequate tension on the belt. The automatic tensioner keeps the belt tight without manual adjustments, but its position in the routing is key to proper functionality.

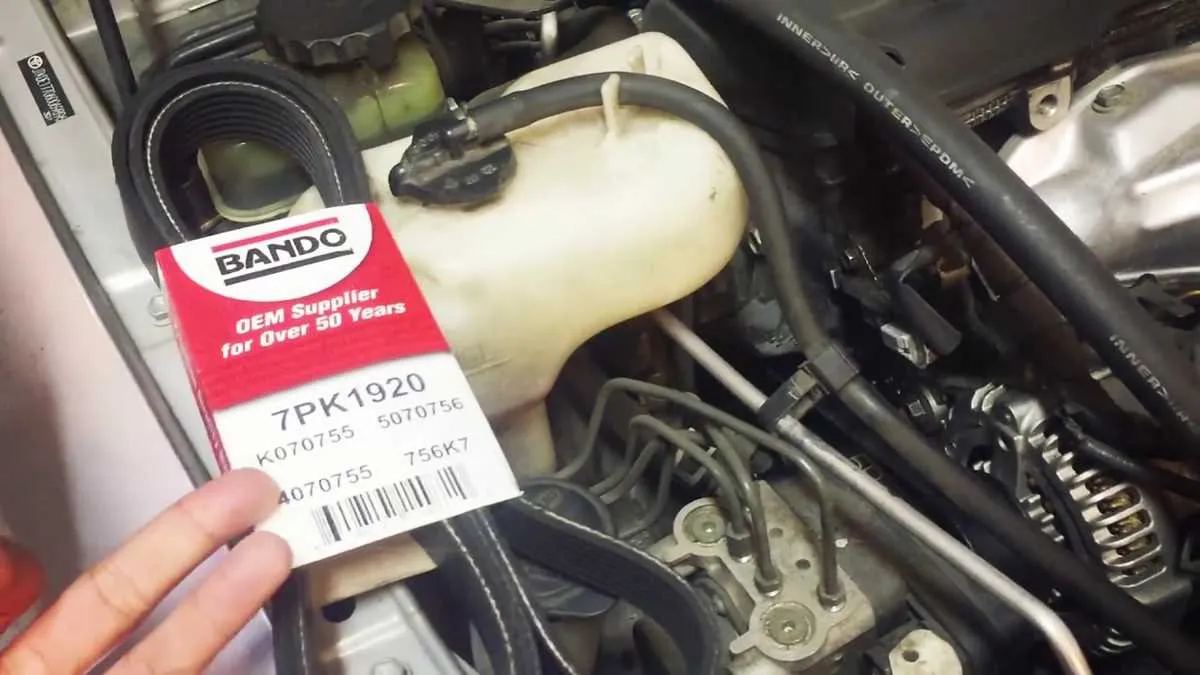

If you’re replacing the serpentine belt, double-check that the new one matches the correct length and width as specified for the 2005 Scion tC. A belt that’s too loose or too tight will cause problems with accessory function or even damage components.

Before reinstalling the belt, ensure all pulleys, particularly the tensioner, are free from debris and function smoothly. Any sticking or worn components should be replaced to prevent failure.

If you don’t have the diagram, take a photo or make a sketch before removing the old belt. This helps prevent errors during reinstallation. After installation, give the belt a visual check for proper alignment and smooth operation.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2005 Scion tC

1. Begin by securing your Scion tC. Park on a flat surface, set the parking brake, and disconnect the battery to avoid electrical issues.

2. Locate the serpentine belt. On the 2005 Scion tC, it runs around the alternator, power steering pump, and other accessories. Use the engine diagram for reference.

3. Use a wrench to relieve tension from the tensioner pulley. This will loosen the belt enough for removal. Make sure to turn it in the direction specified in your vehicle’s manual.

4. Slide the serpentine belt off the pulleys. Take note of the routing before you remove it completely. A picture or the diagram from the engine bay can help with reinstallation.

5. Install the new serpentine belt. Ensure it follows the correct path and sits properly on each pulley. Make sure the belt is aligned with the grooves on each pulley to prevent slipping.

6. Reapply tension to the tensioner pulley. It should engage the new belt tightly. Double-check the belt’s position and alignment on all pulleys.

7. Reconnect the battery and start the engine. Listen for any unusual noises and verify that the belt is running smoothly and without issue.

8. Test drive your car to ensure everything is functioning correctly. Pay attention to any abnormal sounds or changes in power steering or alternator performance.

Troubleshooting Common Issues with the Serpentine Belt on the 2005 Scion tC

If you notice unusual noises like squealing or whining from the engine bay, the serpentine belt may be worn or misaligned. Start by inspecting the belt for signs of damage such as cracks, fraying, or glazing. These issues typically occur from overuse or improper tension. If the belt appears fine but the noise persists, check for any misaligned pulleys.

Another issue to watch for is a loss of power steering or overheating. This can happen when the serpentine belt slips or breaks, preventing the alternator and water pump from functioning correctly. If you experience a sudden drop in power steering assistance or the engine starts to overheat, stop the vehicle and inspect the belt for any visible signs of wear or breakage.

If the belt is intact but tension seems off, the tensioner pulley might be faulty. Inspect the tensioner for any signs of looseness or damage. A faulty tensioner can cause the belt to slip or wear prematurely. Replacing the tensioner can resolve this issue.

In some cases, oil or coolant leaks can cause the serpentine belt to deteriorate faster. If you notice oil spots or coolant puddles around the belt area, it’s important to address these leaks before replacing the belt. A dirty or oily belt will wear down quicker and may cause it to snap unexpectedly.

Finally, check the alignment of all pulleys. Misaligned pulleys can cause uneven wear, leading to premature belt failure. Use a straight edge to check the alignment and replace any faulty pulleys to ensure proper belt function.
