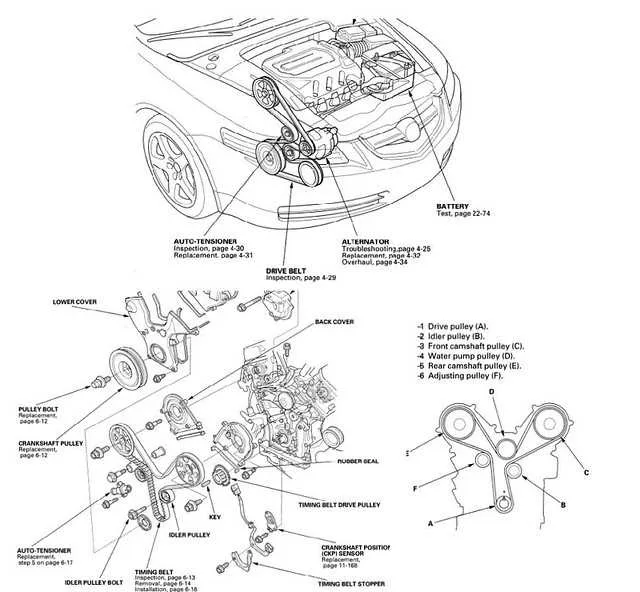

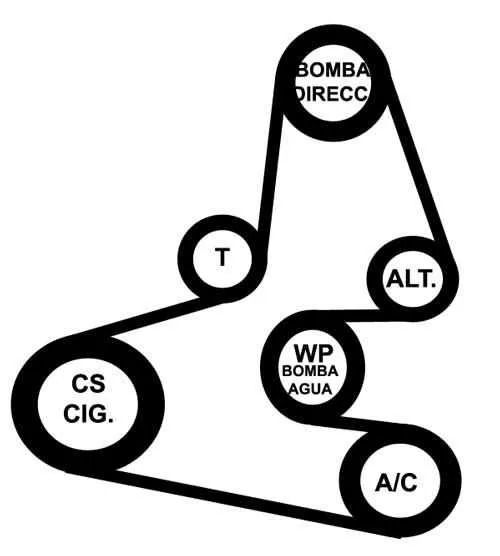

2004 Acura TL Serpentine Belt Diagram for Accurate Identification and Replacement
Locate the serpentine belt routing clearly before attempting any maintenance. For the 2004 Acura TL, the belt drives the alternator, power steering pump, air conditioning compressor, and water pump, all in a single loop. Following the correct path prevents misalignment and premature wear.
Inspect the belt for cracks, fraying, or glazing regularly. Replacing a worn belt on time avoids engine overheating or loss of power steering. Use the diagram as a reference to ensure proper installation tension on each pulley.
Check the tensioner pulley and idler pulleys during replacement. A weak tensioner can cause slipping or squealing noises. Adjust or replace components as needed while keeping the belt aligned exactly according to the diagram.
Keep fasteners and mounting points secure after installation. Double-check that the belt sits correctly in all pulley grooves and rotates smoothly by hand. Accurate alignment ensures long-term performance and reduces maintenance issues.
2004 Acura TL Serpentine Belt Diagram Practical Reference for Maintenance and Replacement
Consult the serpentine belt diagram before any maintenance to ensure correct routing. On the 2004 Acura TL, the belt drives the alternator, power steering pump, water pump, and air conditioning compressor. Position the belt over the pulleys as shown in the diagram, paying attention to the tensioner pulley location.
When replacing the belt, use a wrench to rotate the tensioner counterclockwise, relieving tension. Slide the old belt off carefully, then align the new belt according to the diagram. Confirm that the belt sits properly in each pulley groove to prevent slipping or noise.
Check the belt for cracks, fraying, or glazing before installation. Replace the belt if any wear is visible. After installation, rotate the engine manually for one full cycle to ensure the belt tracks correctly and pulleys spin without obstruction.
Maintain the serpentine belt by inspecting it every 30,000 miles or according to the vehicle’s service schedule. Tighten or replace components as needed to preserve proper tension and prevent premature wear.
Locating and Identifying Each Component in the Serpentine Belt System
Begin by positioning yourself at the front of the engine with a clear view of the serpentine belt path. Identify the crankshaft pulley at the bottom center, which drives all other components. Above it, locate the alternator on the driver’s side; it maintains electrical charge and is connected to the belt via a tensioner arm.
Next, find the power steering pump on the passenger side, typically near the top front of the engine. Its pulley is smaller and connected directly to the belt, providing hydraulic pressure for steering. The water pump sits adjacent to the crankshaft pulley, circulating coolant through the engine. Confirm its placement by tracing the belt from the crankshaft upward to the water pump pulley.
Locate the air conditioning compressor on the lower driver’s side. Its pulley engages when the A/C system is active, so the belt wraps around it with a smooth, circular path. Finally, identify the belt tensioner, usually a spring-loaded pulley positioned between the alternator and crankshaft pulleys. This component maintains proper belt tension and can be rotated with a wrench to relieve tension during belt removal or installation.
Trace the belt along each pulley following the factory routing diagram for the 2004 Acura TL. Verify that each component aligns with the diagram and that pulleys rotate freely without wobble or noise. Confirming correct placement prevents premature wear and ensures smooth operation of the serpentine belt system.
Step-by-Step Guidance for Removing and Installing the Serpentine Belt
Locate the belt tensioner on the front of the 2004 Acura TL engine. Use a 3/8-inch ratchet or breaker bar to rotate the tensioner pulley clockwise, relieving tension from the belt. Hold the tensioner in this position while you slide the belt off the alternator pulley.
Trace the belt routing using the diagram specific to your engine. Note the path over the crankshaft, power steering, air conditioning, and alternator pulleys. Take a photo or draw a simple sketch to avoid mistakes during installation.
Remove the serpentine belt from the remaining pulleys carefully, keeping tension minimal on the tensioner. Avoid forcing the belt, as this can damage pulleys or the belt itself.
Inspect pulleys and tensioner for wear, cracks, or rough rotation. Spin each pulley by hand; a smooth rotation without wobbling ensures proper alignment when the new belt is installed.
Install the new belt following the recorded routing path. Begin by positioning the belt over the crankshaft pulley and proceed sequentially over each accessory pulley, leaving the tensioner for last.
Release the tensioner slowly to apply pressure on the new belt. Verify that the belt sits properly in the grooves of each pulley and that alignment matches the diagram.
Rotate the engine manually using a socket on the crankshaft pulley to confirm smooth movement and correct belt seating. Check tension and adjust if necessary before starting the engine.
Troubleshooting Common Belt Wear and Alignment Problems
Inspect the serpentine belt visually for cracks, fraying, or glazing. Check both the ribbed side and the smooth side to identify uneven wear patterns.
Use a straight edge or a laser alignment tool to ensure all pulleys are in the same plane. Misaligned pulleys cause belt squealing and accelerated wear.
- Listen for squeaking or chirping sounds during engine start or acceleration; these often indicate slipping or misalignment.
- Check belt tension by pressing on the longest span; a properly tensioned belt should deflect about 1/2 inch with moderate pressure.
- Inspect the tensioner pulley for smooth rotation and absence of wobble; replace if it shows excessive play or noise.
Examine idler pulleys and accessory pulleys for bearing wear. Spin each pulley by hand and listen for roughness or grinding, which signals replacement is needed.
- Loosen the tensioner and remove the belt.
- Rotate pulleys to ensure smooth operation.
- Reinstall the belt following the correct routing diagram and apply proper tension.
After installation, run the engine and observe the belt under load. Watch for tracking errors, slipping, or unusual vibrations. Correct any pulley alignment before driving.
