2004 Acura MDX Serpentine Belt Routing and Diagram Guide
Proper installation and maintenance of the serpentine belt in the 2004 Acura MDX is critical for ensuring the vehicle runs smoothly. A worn or broken belt can cause several components, such as the alternator, power steering pump, and air conditioning, to stop functioning, leading to engine failure. Familiarizing yourself with the correct belt routing and diagram is the first step to prevent these issues.
Refer to the 2004 Acura MDX serpentine belt diagram for accurate instructions on how to replace the belt. It’s essential to follow the diagram closely to ensure proper tension and alignment. Misalignment can lead to premature wear and potential damage to other components in the system.
Inspect the belt regularly for signs of wear, such as cracking, fraying, or glazing. If any of these signs are present, replacing the belt as soon as possible is advised. Consult the diagram to confirm that you are using the correct belt type and length, as using the wrong size can cause operational issues.
2004 Acura MDX Serpentine Belt Diagram
The serpentine belt on the 2004 Acura MDX plays a critical role in driving several components of the engine, such as the alternator, power steering pump, and air conditioning compressor. If you are replacing the serpentine belt, follow this guide for a smooth installation.
To properly route the serpentine belt, first ensure the engine is off and that the tensioner is fully relaxed. The belt should follow a specific path over pulleys to maintain proper tension and avoid slippage. The tensioner pulley will automatically adjust the belt’s tightness, so it’s important not to over-tighten or leave it too loose.

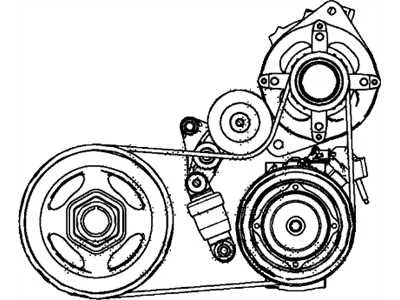

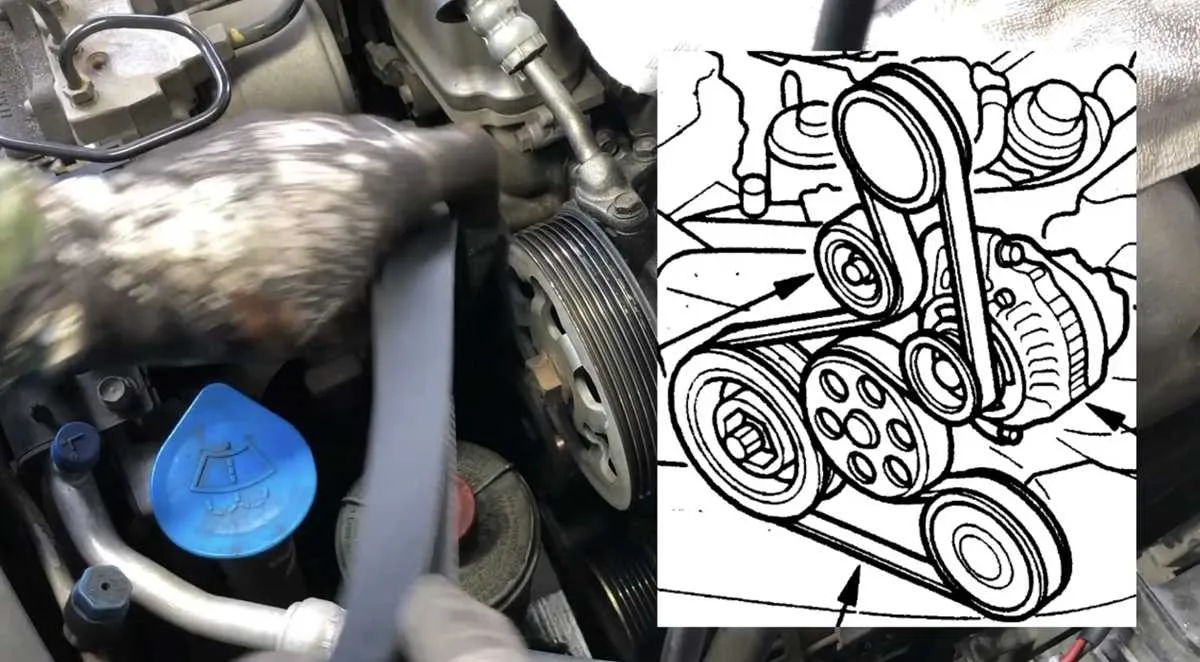

The diagram for the 2004 Acura MDX serpentine belt shows a clear path from the crankshaft pulley to the accessory pulleys, including the alternator, power steering, and AC compressor. Make sure the belt is aligned with the grooves of each pulley to prevent wear or damage.
If you notice any signs of wear, like cracking or fraying on the serpentine belt, replace it promptly to prevent failure. Check the belt’s condition every 30,000 miles or as recommended by the vehicle’s manual.
How to Identify the Serpentine Belt in a 2004 Acura MDX
To locate the serpentine belt in your 2004 Acura MDX, open the hood and stand in front of the vehicle. The serpentine belt runs along the front of the engine, looping around several components such as the alternator, power steering pump, and air conditioning compressor. The belt is typically black and ribbed, made from rubber, and can be identified by its long, continuous loop. Check the belt tensioner; it is usually placed near the center of the engine and will help you locate the exact routing of the belt.
If you are unsure about the belt’s condition, inspect for visible cracks, frays, or wear marks. The serpentine belt should be intact, free from damage, and properly tensioned. If you notice signs of excessive wear, it’s time for a replacement. Use the diagram in the owner’s manual or a printed guide specific to the 2004 Acura MDX to confirm the belt’s routing.
Always ensure the engine is off and cool before inspecting or replacing the serpentine belt. For easier access, you may need to remove other engine components or loosen the tensioner using a wrench. If in doubt, consult a professional to avoid causing damage to the belt or surrounding components.
Step-by-Step Guide to Replacing the Serpentine Belt in a 2004 Acura MDX
To replace the serpentine belt in your 2004 Acura MDX, follow these steps:
- Locate the Serpentine Belt: The serpentine belt is located at the front of the engine, running across several pulleys. You will need to remove the engine cover, if applicable, to access it.
- Release Tension from the Belt: Using a wrench, rotate the tensioner pulley in the direction indicated on the belt diagram. This will release tension from the belt, allowing you to remove it. Carefully remove the belt from the pulleys once the tension is released.
- Inspect the Pulleys: Before installing a new serpentine belt, inspect the pulleys for any signs of wear or damage. Check for cracks, rust, or excessive wear that may cause the new belt to wear out prematurely. If any pulleys are damaged, replace them before proceeding.
- Install the New Belt: Compare the new serpentine belt with the old one to ensure they are the same length and width. Begin by looping the new belt over the pulleys, following the path outlined in the belt diagram for your 2004 Acura MDX.
- Apply Tension to the Belt: Once the new belt is in place, use the wrench to rotate the tensioner pulley again to apply the proper tension to the new belt. Ensure the belt is properly seated on all pulleys and is tight enough to avoid slipping, but not so tight that it causes undue stress on the pulleys.
- Double-Check the Installation: Before reassembling the engine cover or other components, rotate the engine by hand a few times to ensure the belt moves freely and smoothly. Listen for any unusual sounds and check for any misalignment or slipping.
- Reassemble and Test: Once satisfied with the belt installation, replace any removed components, including the engine cover. Start the engine and observe the belt in operation. If the belt appears to be functioning properly, you’ve successfully replaced it.
Troubleshooting Common Serpentine Belt Issues in the 2004 Acura MDX
If you notice unusual noises, poor engine performance, or power steering issues, your serpentine belt may be the culprit. The first step is to inspect the belt for visible signs of wear such as cracks, fraying, or glazing. These can significantly reduce the belt’s ability to function properly. Replace the belt if any damage is found.
Check the tension of the belt as well. If the belt feels loose or slacks when pressed, it may need to be tightened or replaced. A loose serpentine belt can lead to insufficient power transfer, causing the alternator or air conditioning to malfunction.
Another common issue is belt misalignment. Inspect the pulleys for any signs of misalignment or damage. A misaligned pulley can cause the belt to wear unevenly, making it slip or squeal. Ensure all pulleys are in good condition and properly aligned to avoid further damage.
If your serpentine belt is excessively worn but no visible damage is present, the problem might lie in the tensioner. The tensioner maintains the correct tension on the belt, and if it fails, it can cause premature belt wear. Replacing a faulty tensioner can resolve persistent belt issues.
In some cases, an improperly installed belt can be the source of issues. Always follow the correct routing diagram for the serpentine belt and ensure it’s installed securely around the pulleys. Double-check that all pulleys are properly seated and the belt is correctly aligned before tightening.
For serious issues like belt slippage or total failure, it’s important to replace the serpentine belt and any related components immediately to avoid engine damage. Regular maintenance and early detection can prevent these issues from worsening and ensure reliable performance in your 2004 Acura MDX.
