Scion TC 06 Serpentine Belt Diagram and Installation Guide

To properly maintain your 06 Scion TC, understanding the serpentine belt diagram is crucial for diagnosing issues and ensuring smooth engine operation. The serpentine belt drives multiple components, such as the alternator, air conditioning compressor, and power steering pump. Knowing the correct routing is key to replacing or inspecting the belt without complications.

The diagram typically includes the path the belt follows around pulleys, idlers, and tensioners. It’s important to follow the exact sequence to avoid misalignment, which could lead to belt wear or component failure. If the belt is slipping or squealing, it may be time to inspect the diagram for any deviations or damage to the components it drives.

For a hassle-free replacement, always check the condition of your tensioner. A faulty tensioner can cause premature belt wear or improper tension, making the replacement process ineffective. Keep an eye on any wear patterns on the pulleys as well, since worn-out pulleys can lead to similar issues.

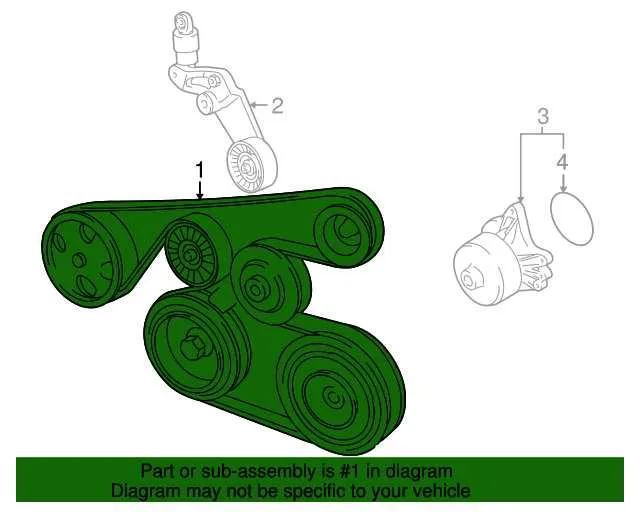

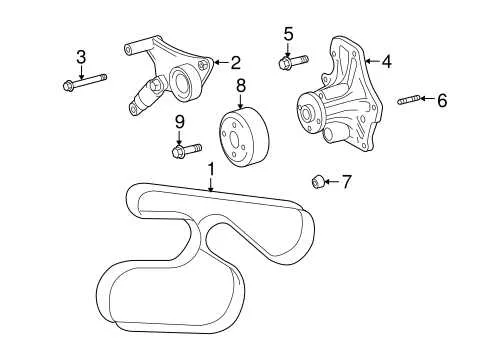

06 Scion TC Serpentine Belt Diagram

For the 2006 Scion TC, the serpentine belt layout is simple but crucial for proper engine function. The diagram shows the routing path of the serpentine belt, which connects various engine components, such as the alternator, power steering pump, water pump, and air conditioning compressor.

Here’s the standard belt routing for the 06 Scion TC:

• The serpentine belt runs from the crankshaft pulley to the alternator pulley.
• It then loops to the power steering pump pulley and continues to the water pump pulley.
• The belt moves around the air conditioning compressor and returns to the crankshaft pulley.
• The tensioner pulley keeps the belt taut and ensures it runs smoothly without slipping.

For proper installation, make sure the tensioner pulley is fully extended before placing the belt. Afterward, slowly release the tension to ensure the belt is securely positioned. Checking the belt for cracks or wear should be part of regular vehicle maintenance to avoid breakdowns.

Identifying the Correct Routing for the Scion TC Serpentine Belt

The serpentine belt on a 2006 Scion TC plays a key role in running multiple engine components. To avoid costly repairs and engine issues, it’s critical to route the belt correctly. The belt should wrap around the crankshaft pulley, the alternator, the power steering pump, and the air conditioning compressor, following a precise path to maintain proper tension and function.

Start by ensuring the belt loops through the crankshaft pulley at the bottom. From there, route it over the alternator and under the idler pulley. Make sure it loops around the power steering pump pulley and the air conditioning compressor pulley. The tensioner pulley should sit just above the crankshaft pulley and adjust the belt tension automatically as the engine runs.

If the belt is routed incorrectly, it can slip, overheat, or even cause damage to the components it powers. Before installing the belt, check the diagram typically found on the engine bay to verify its exact routing. This step helps avoid unnecessary adjustments down the line.

To double-check that the routing is accurate, rotate the crankshaft pulley by hand and watch the belt move. The belt should sit snugly in each groove without any slack or misalignment. Adjust the tensioner pulley if needed, making sure the belt maintains proper tension.

Lastly, inspect the belt for any wear signs like cracks or fraying. Replacing an old or damaged belt can prevent future breakdowns and ensure smooth operation of your Scion TC.

Step-by-Step Guide to Replacing the Serpentine Belt on a 06 Scion TC

Begin by lifting the front of your car with a jack and securing it with jack stands. Make sure the engine is off and cool before proceeding.

Next, locate the serpentine belt. You’ll find it near the front of the engine, running across various components like the alternator, power steering pump, and air conditioning compressor. Refer to your vehicle’s serpentine belt diagram for precise routing details.

To release tension, use a ratchet wrench with a 3/8-inch drive. Insert the wrench into the tensioner pulley bolt and rotate it clockwise. This will loosen the belt enough to remove it from the pulleys.

Carefully slide the belt off the pulleys. Take note of the belt’s routing for easy installation of the new one. If the old belt is damaged, it’s a good idea to inspect the pulleys for wear and make sure they’re aligned properly.

Before installing the new belt, check the alignment of the pulleys to avoid future issues. Lay the new belt on the pulleys according to the diagram, ensuring it’s seated correctly. Rotate the tensioner pulley again to loosen it and slide the belt into position.

Double-check the belt’s alignment and tension. The belt should sit snugly in the grooves of all pulleys, but it shouldn’t be overly tight. If everything looks good, release the tensioner to apply proper tension to the belt.

Finally, lower the car and start the engine to ensure the belt is running smoothly and making no unusual noises. If there’s any abnormal sound or movement, turn off the engine and recheck the installation.

Common Issues with the Serpentine Belt in 06 Scion TC and How to Fix Them

The serpentine belt in your 06 Scion TC can show wear and tear over time. Common problems include slipping, cracking, or misalignment. Here’s how to handle them.

One of the first signs of a worn-out serpentine belt is a squealing sound when starting the engine. This occurs due to friction between the belt and the pulleys. If you notice this sound, inspect the belt for cracks or fraying. Replacing the belt should fix the issue. Use a belt tension gauge to ensure the new belt is properly tensioned. If the tension is too loose or tight, it may cause premature wear or malfunctioning of connected components.

Another frequent issue is belt slippage. If the serpentine belt isn’t running smoothly over the pulleys, it can slip, reducing the power to your alternator, water pump, or power steering. This can cause the engine to overheat or the power steering to fail. Slippage is often caused by worn-out pulleys or a failing tensioner. Replacing the faulty pulley or tensioner will prevent slippage and restore normal operation.

Misalignment is another problem that can occur if the belt’s path is off. This can lead to uneven wear and cause the belt to come off entirely. Check the alignment of the pulleys and replace any damaged ones. A misaligned pulley may need to be repositioned, or you might need to replace the entire pulley system to prevent future issues.

If you spot oil or coolant stains on the serpentine belt, that means fluid is leaking onto the belt. This could be from a leaking engine seal, water pump, or power steering pump. Repair the leak first and replace the belt to avoid further damage.

Lastly, make sure you check the belt periodically. Over time, even minor damage can add up, leading to unexpected breakdowns. Routine inspection and maintenance can help you catch these issues early before they become serious problems.
