Scag V Ride 2 Belt Diagram Guide for Proper Installation and Maintenance

Refer to the Scag V Ride 2 belt diagram before replacing or adjusting any belts to ensure correct routing and tension. Misaligned belts can cause premature wear on pulleys, reduced mower performance, and increased vibration.

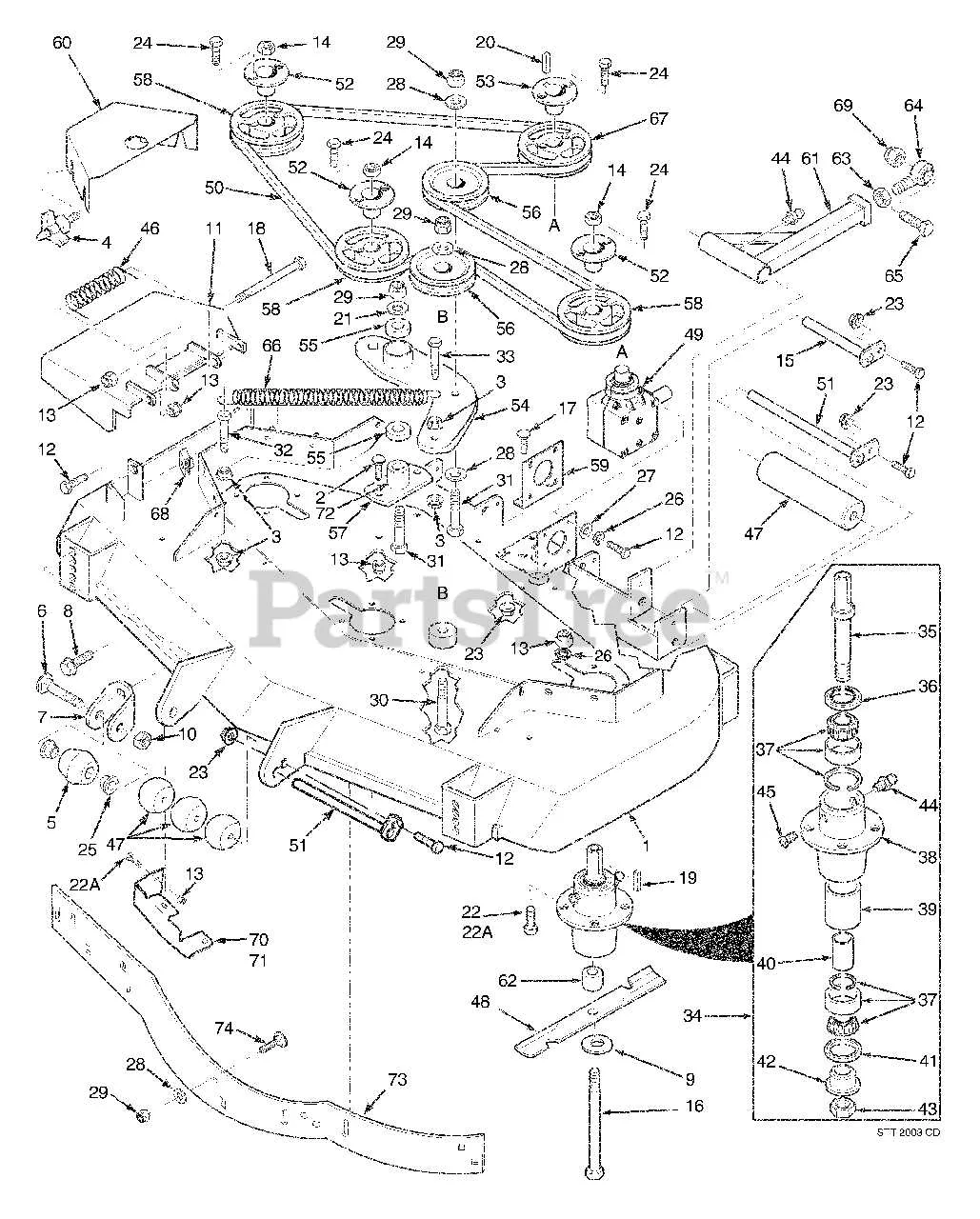

Identify each belt in the diagram, noting its corresponding pulley and path. The main drive belt connects the engine pulley to the transaxle, while deck belts link the engine to mower blades. Follow the exact routing shown to avoid interference or slippage.

Check belt condition during installation: inspect for cracks, fraying, or glazing. Replace worn belts promptly and use the diagram to maintain proper tension across all pulleys. Correct installation reduces maintenance needs and extends the lifespan of the mower’s drive and deck systems.

Use the diagram as a reference when performing seasonal maintenance or swapping mower decks. Confirm belt positions after adjustments, and verify pulleys spin freely without obstruction. Consistent reference to the diagram prevents operational errors and keeps the Scag V Ride 2 running smoothly.

Scag V Ride 2 Belt Diagram Practical Guide for Accurate Installation and Maintenance

Always disconnect the spark plug before handling belts to prevent accidental engine engagement. Begin by removing the mower deck to access all pulleys clearly. Identify each belt using the manufacturer’s diagram, noting the drive belt, deck belt, and idler belt positions. Label each belt if necessary to avoid confusion during reinstallation.

Inspect all pulleys for wear or debris. Replace any pulleys with cracks, excessive wobble, or damaged bearings. Clean the pulley grooves thoroughly to ensure proper belt seating. Apply a small amount of lubricant to idler bearings only, avoiding contact with belt surfaces.

Route the drive belt according to the diagram, ensuring the V-shaped grooves align perfectly with each pulley. Maintain proper belt tension by adjusting the idler spring and tensioner arm as specified in the manual. Check that the belt moves smoothly over all pulleys without slipping or rubbing against frame components.

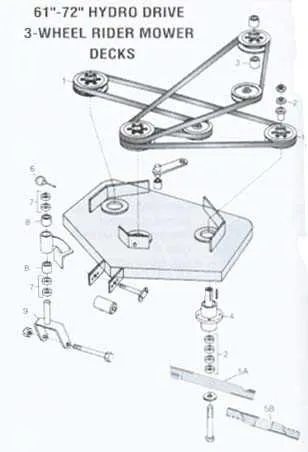

For deck belts, follow the exact routing around the mandrel pulleys and tensioners. Turn the mower blades manually to confirm the belt tracks correctly without binding. Reinstall the deck, double-check all connections, and verify belt alignment under operational load by running the engine at low throttle.

Perform regular maintenance by inspecting belts before each mowing season. Clean belts and pulleys from grass buildup, check tension, and replace any belt showing fraying, cracks, or glazing. Keeping belts properly aligned and tensioned extends service life and ensures consistent cutting performance.

Locating and Identifying All Belts and Pulleys on Scag V Ride 2

Begin by positioning the mower on a flat surface and engaging the parking brake to prevent movement. Remove the belt covers to expose the primary drive system.

• Main Drive Belt: Runs from the engine pulley to the transaxle pulley. Check for correct tension and alignment.
• Deck Drive Belts: Connect the transaxle or engine to each mower deck spindle pulley. Inspect each for wear and routing direction.
• Spindle Pulleys: Located at each mower deck spindle, these guide the deck belts. Verify they rotate freely without wobble.
• Idler Pulleys: Positioned along the belt path to maintain tension. Identify spring-loaded idlers and adjust if belts slip.
• Engine Pulley: Mounted directly on the engine crankshaft, drives the main belt. Ensure proper alignment with adjacent pulleys.
• Transaxle Pulley: Transfers motion from the main drive belt to the wheels. Inspect for debris or damage that can disrupt belt tracking.

Follow the belt paths carefully, tracing each belt from the engine to its endpoint. Mark or photograph connections for reference during reassembly. Confirm all pulleys spin freely before reinstalling belts, ensuring correct tension and preventing premature wear.

Step-by-Step Belt Routing and Replacement Instructions

Begin by removing the deck and any obstructions around the engine to access all pulleys clearly. Ensure the mower is turned off and the key is removed to prevent accidental startup.

Loosen the idler pulleys by releasing tension with a wrench on the spring brackets. Slide the worn belt off the engine pulley first, then carefully remove it from the deck spindles and other idler pulleys.

Inspect all pulleys for wear, cracks, or debris. Clean each pulley groove thoroughly to ensure proper belt seating. Replace any damaged pulleys before installing the new belt.

Position the new belt around the engine pulley, keeping it aligned with the grooves. Route it along the deck spindles following the original belt path, ensuring it sits fully within each pulley groove without twisting.

Reattach the belt to the idler pulleys and apply tension by carefully repositioning the springs. Confirm that the belt has the correct tension by pressing down at the midpoint; it should deflect about 1/2 inch under firm pressure.

Rotate the engine pulley by hand to verify smooth belt movement across all pulleys. Ensure the belt tracks properly and there are no misalignments or rubbing points.

Reinstall the deck, double-check all connections, and start the mower at low throttle. Observe the belt operation for a few minutes to confirm consistent motion and proper tension before full use.

Troubleshooting Common Belt Alignment and Tension Problems

Check the belt for visible signs of misalignment, such as uneven wear on the edges or fraying. Misaligned belts often cause noise or vibration during operation. Adjust the pulleys by loosening the mounting bolts and gently repositioning them until the belt tracks correctly in the pulley grooves.

Verify the belt tension by pressing the midpoint of the belt span. The recommended deflection for the Scag V Ride 2 is approximately ½ inch under moderate finger pressure. Over-tightened belts can strain bearings and reduce belt life, while loose belts can slip and impair deck or drive function. Adjust the idler tensioner to achieve proper tension.

Inspect the pulleys for wear, debris, or bent components. Even minor pulley damage can cause the belt to misalign or slip. Clean the grooves thoroughly and replace any worn or damaged pulleys before reinstalling the belt.

Ensure all idlers move freely without binding. A stuck idler can create uneven tension and cause the belt to drift off track. Lubricate pivot points with a light machine oil and test rotation before final belt installation.

After adjustments, run the mower at low speed and observe the belt. Confirm it remains centered on all pulleys during operation. Make minor tension adjustments if the belt shifts or produces noise, then retest until stable tracking is achieved.
