Scag Turf Tiger 61 Deck Belt Diagram and Repair Guide PDF

The Scag Turf Tiger 61 deck belt diagram is a critical resource for understanding the proper alignment and routing of the mower’s belts. This diagram provides an exact layout to follow when replacing or servicing the belt system. Follow the diagram closely to ensure each belt is correctly positioned, avoiding potential damage or malfunction.

To ensure proper belt installation, examine the diagram and identify the correct path for each belt. Pay attention to the direction of rotation and the order in which the belts should be installed. This ensures that all components are in harmony and the mower operates smoothly.

If you experience issues such as slipping or broken belts, consult the diagram to verify the alignment. Often, misrouting or wear can cause operational problems. Regularly inspect the belts for signs of wear and replace them according to the manufacturer’s recommendations to maintain mower performance.

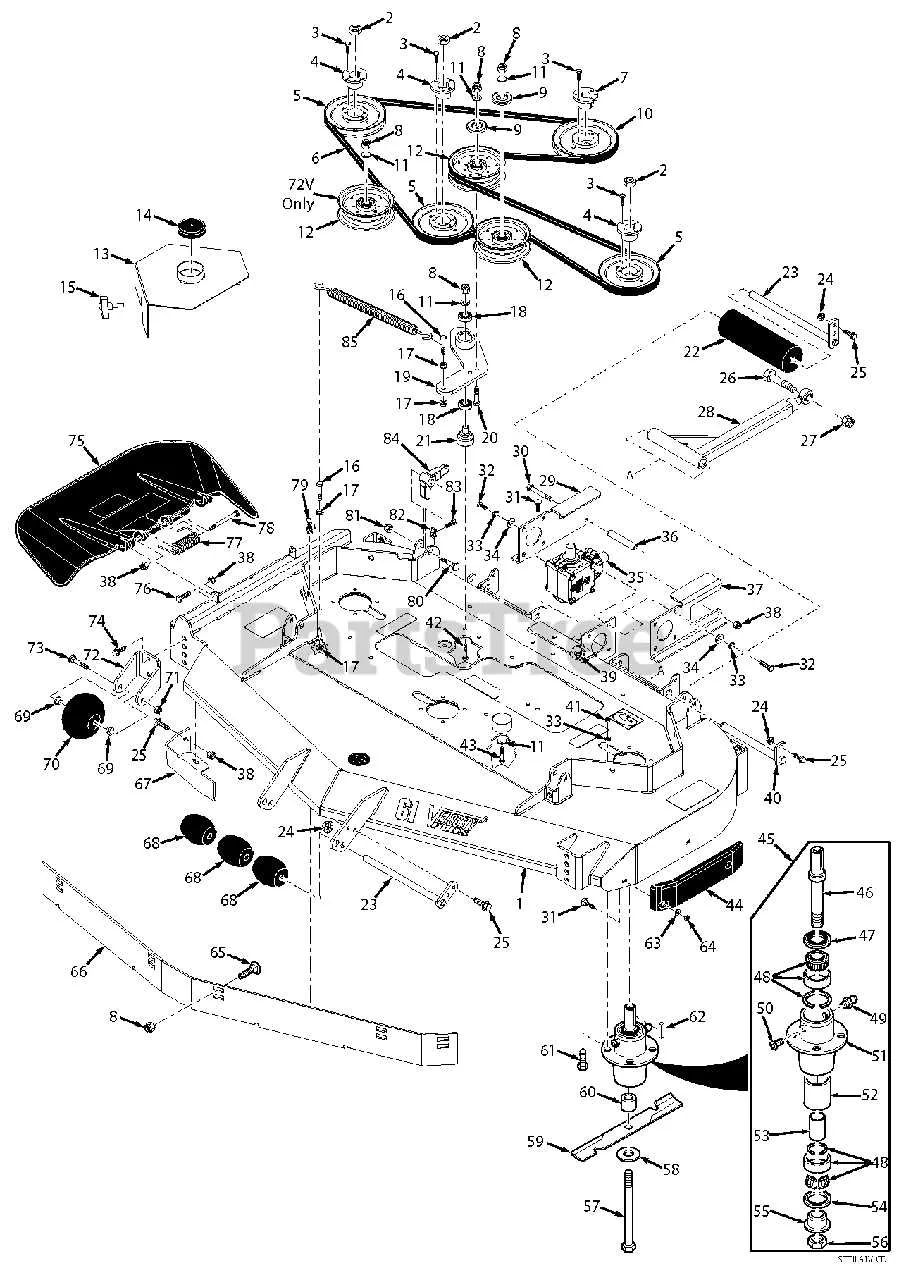

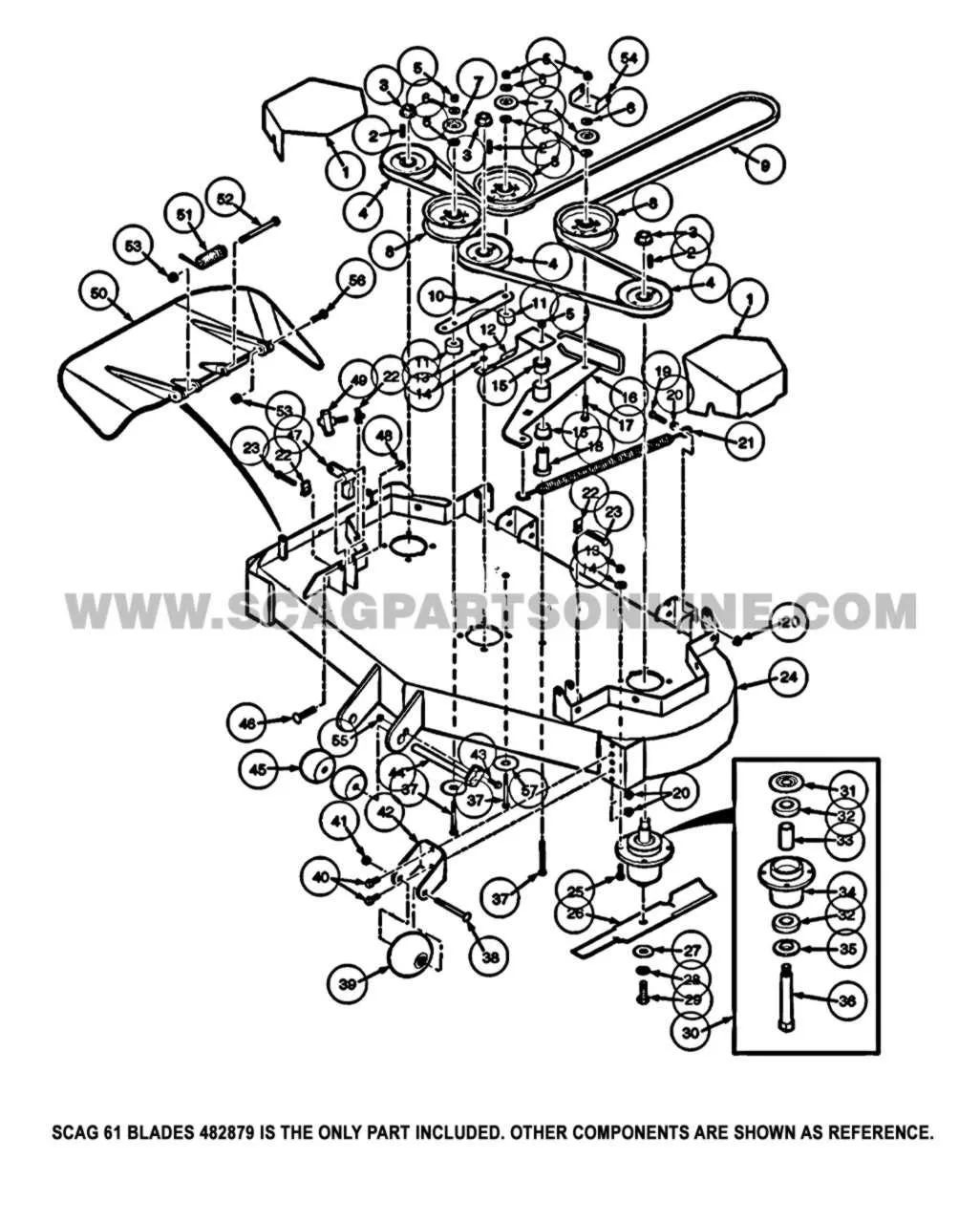

Scag Turf Tiger 61 Deck Belt Diagram PDF

Refer to the Scag Turf Tiger 61 deck belt diagram PDF for a detailed visual guide on how to replace or inspect the deck belt. The diagram includes the correct routing and placement of each component, ensuring optimal performance of the mower.

To obtain the PDF, visit the official Scag website or trusted manual repositories. Ensure you download the most up-to-date version to avoid any discrepancies in the diagram.

• The belt routing in the diagram shows how the deck belt loops around pulleys, the deck, and the engine components.
• Pay attention to the tensioner pulley placement, which is crucial for the proper functioning of the belt.
• Ensure the belt is properly aligned with all pulleys and check for any signs of wear or damage before installation.

By following the Scag Turf Tiger 61 deck belt diagram PDF, you can avoid errors that could lead to excessive wear on the system, saving you time and money on repairs.

Understanding the Scag Turf Tiger 61 Deck Belt Layout

To replace or repair the deck belt on the Scag Turf Tiger 61, it’s important to understand its layout. The belt system drives the mower’s blades and operates smoothly when correctly routed. Begin by confirming the belt’s tension and path to ensure proper function.

The layout consists of several key components: the engine pulley, idler pulleys, and the blade spindles. Follow the diagram closely to avoid mistakes when rerouting the belt. Pay attention to the direction of the belt as it runs over the pulleys; improper routing can cause the belt to slip or wear prematurely.

Check the belt for signs of damage or excessive wear. If the belt appears frayed or cracked, it’s time for a replacement. When installing a new belt, verify that it’s aligned correctly and adjust the tensioners as needed. Proper tension is critical to avoid unnecessary strain on the belt and pulleys.

Be mindful of the spring-loaded tensioner that keeps the belt tight. If this component is worn out or malfunctioning, it can affect the belt’s performance. Regular maintenance of the belt and associated parts ensures the longevity of the mower.

Step-by-Step Guide to Replacing the Deck Belt on Scag Turf Tiger 61

1. Disconnect the Battery
Start by disconnecting the negative terminal of the battery to avoid any electrical hazards while working on the mower.

2. Lift the Deck
Use a deck lift to raise the mower deck to its highest position. This will provide enough clearance to work comfortably on the belt.

3. Remove the Deck Guard
Remove any deck guard or shields that may obstruct access to the belt. Typically, these are held in place with bolts or clips. Set them aside for reinstallation.

4. Release the Tension on the Belt
Locate the spring-loaded idler pulley. Use a wrench to relieve the tension on the deck belt by rotating the pulley away from the belt. This will allow the belt to be removed more easily.

5. Remove the Old Belt
Carefully slide the belt off the pulleys and remove it from the mower deck. Pay attention to the belt routing for easy installation of the new one.

6. Inspect the Pulleys
Before installing the new belt, check the pulleys for any signs of wear, damage, or debris. Clean or replace any components as needed.

7. Install the New Deck Belt
Route the new belt around the pulleys according to the manufacturer’s diagram. Ensure that the belt sits properly in the grooves and is aligned correctly with all pulleys.

8. Reattach the Tensioner
Reinstall the spring-loaded idler pulley to apply tension to the new belt. Ensure the belt has proper tension without being too tight.

9. Reinstall the Deck Guard
Attach the deck guard or shields that were removed earlier. Tighten all bolts or clips to secure the guard in place.

10. Test the Mower
Reconnect the battery and start the mower. Test the deck belt by engaging the blades to ensure smooth operation. Check for any abnormal noises or misalignments.

Troubleshooting Common Issues with Scag Turf Tiger 61 Deck Belt

If the deck belt on your Scag Turf Tiger 61 is not functioning correctly, the first thing to check is its tension. A loose or overly tight belt can cause slippage or excessive wear. Inspect the tensioner to ensure it’s properly adjusted and not worn out. If the belt is too tight, it can put unnecessary strain on the system, potentially causing damage to pulleys or the engine.

Next, check for any visible damage to the deck belt. Look for cracks, frays, or signs of excessive wear. Replace the belt if any of these signs are present. A worn belt can lose its grip on the pulleys, leading to poor cutting performance or even complete failure.

Ensure that the pulleys are properly aligned. Misaligned pulleys can cause the belt to slip or even fall off. Inspect the pulleys for any debris or obstructions that could affect their operation. Clean any debris and check for signs of wear or rust on the pulleys. Replace any damaged pulleys as needed.

Another common issue is a misrouting of the deck belt. If the belt isn’t routed according to the correct pattern, it can cause irregular tension across the system. Refer to the Scag Turf Tiger 61 deck belt diagram to confirm the proper routing of the belt.

Lastly, inspect the idler arm and springs for damage. These components play a crucial role in maintaining proper belt tension. If the idler arm is not moving freely, or if the springs are damaged, the belt may not stay taut, leading to performance issues. Replace any worn components to restore full functionality.
