Scag Freedom Z Belt Diagram and Replacement Guide

To properly maintain the Scag Freedom Z, it’s crucial to understand the belt routing. Identifying the correct belt diagram will save time and reduce unnecessary repairs. Follow the manufacturer’s diagram closely to avoid damaging the components.

The belt system plays a key role in transferring power from the engine to the cutting deck. Misalignment or wear on any part of the system can result in reduced performance or even breakdowns. Always inspect the belts regularly for signs of wear, cracks, or fraying.

When replacing the belts, ensure they match the exact specifications provided by Scag for your model. Incorrect belt tension can lead to slippage or excessive wear, so make sure it’s correctly adjusted. Be aware of the placement of each component and route the belt as shown in the official diagram to ensure optimal performance.

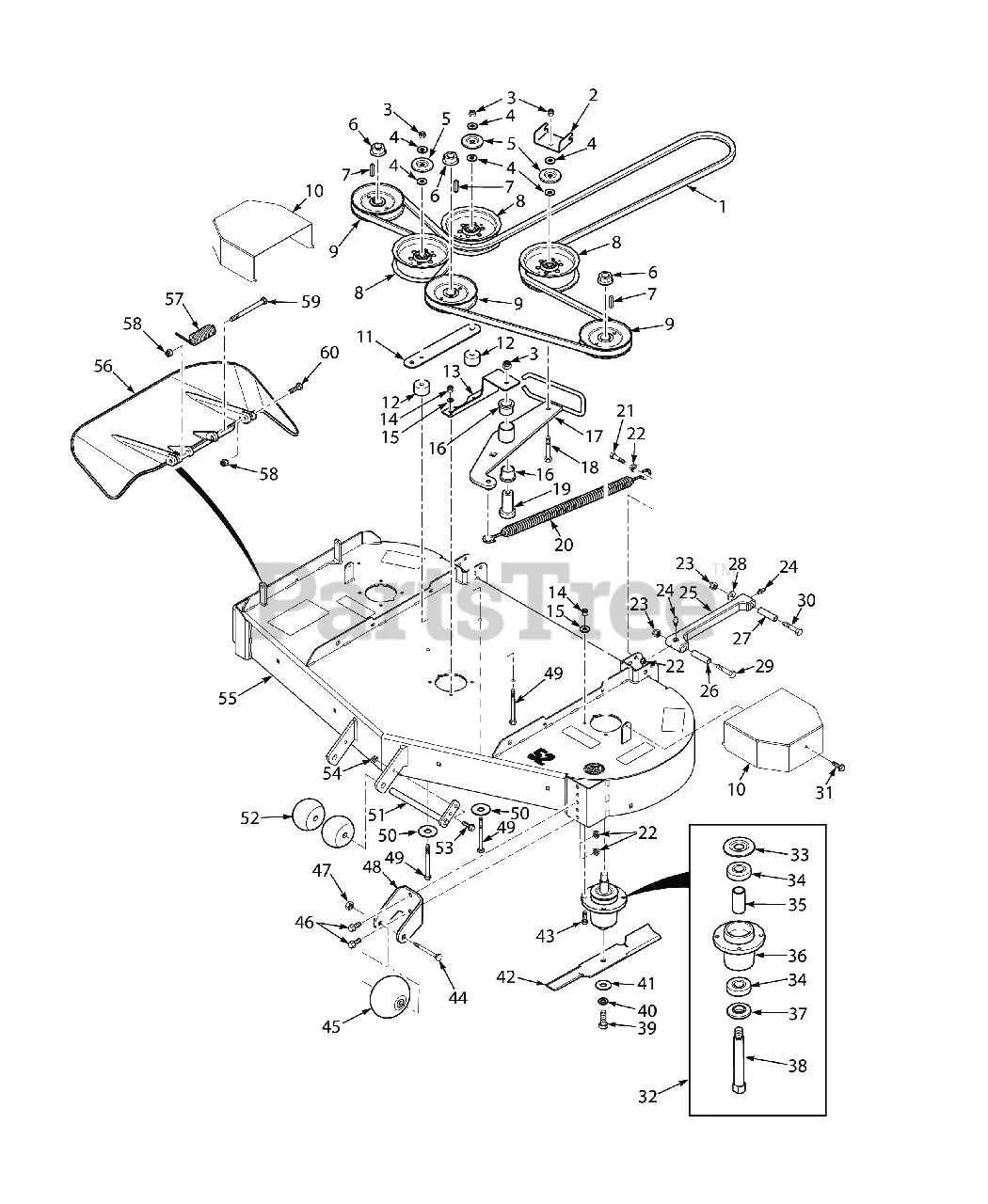

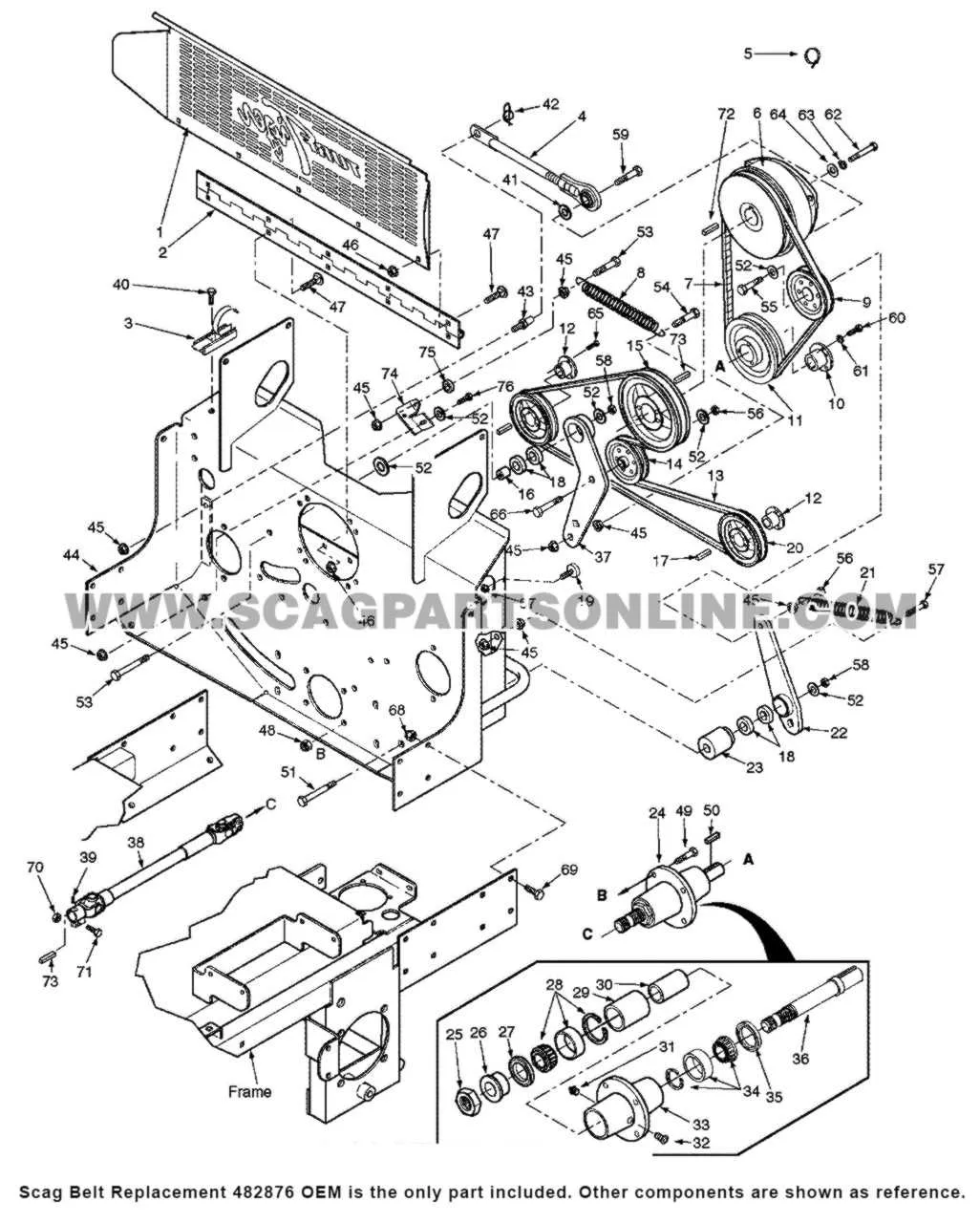

Scag Freedom Z Belt Diagram

To maintain optimal performance of your Scag Freedom Z, it’s crucial to understand the belt system and its proper routing. The belt connects the engine’s power to the mower deck, ensuring smooth operation and cutting efficiency.

Start by checking the condition of the belt. A worn or damaged belt can cause slippage, affecting performance. Replace the belt if it shows signs of fraying, cracks, or wear.

The correct routing of the belt is crucial to avoid unnecessary wear or malfunction. Refer to the diagram for your specific model. The routing process involves passing the belt over pulleys and idlers in a precise order to ensure proper tension and movement.

For the replacement process, follow these steps:

• Disconnect the battery to ensure safety.
• Lift the mower deck to access the belt and pulleys.
• Release the tension on the existing belt by adjusting the tensioner pulley.
• Remove the old belt, carefully noting the belt’s routing around each pulley.
• Install the new belt, following the same path as the original belt.
• Check belt tension by hand. It should not be too tight or loose.
• Reassemble the deck and reconnect the battery.

After replacing the belt, start the mower and test the system. If the mower performs as expected, the replacement was successful. If not, recheck the routing and tension to ensure everything is in place.

Regular inspection and timely replacement of the belt help prevent future issues, keeping your Scag Freedom Z running smoothly.

How to Identify and Replace the Drive Belt on a Scag Freedom Z

To replace the drive belt on your Scag Freedom Z, begin by inspecting the belt for visible wear, cracks, or damage. Look for any signs of fraying or tears. A worn belt will often appear loose or misaligned, which can cause a decrease in performance.

Lift the mower deck and ensure the engine is turned off. Use a wrench to loosen the belt tensioner. This will allow you to remove the old belt easily. Take note of how the belt is routed around the pulleys before removing it, as proper reinstallation is key to the mower’s performance.

Install the new belt by following the routing diagram found in your owner’s manual. Carefully route the belt over the pulleys, ensuring it sits correctly in each groove. Once the belt is in place, tighten the tensioner to secure it in position.

After replacing the belt, manually rotate the pulleys to check for proper alignment. If the belt runs smoothly and stays in place, the installation is complete. Start the engine and test the mower to confirm the drive belt functions properly.

Step-by-Step Guide to Adjusting the Scag Freedom Z Belt Tension

Begin by parking the mower on a flat surface and turning off the engine. Ensure the ignition key is removed and the engine is completely cool before proceeding with any adjustments.

Next, locate the tension adjustment bolt on the idler pulley. This can usually be found near the belt path, where the belt runs over the idler pulley. The bolt controls the tension of the belt and can be tightened or loosened as needed.

To adjust the belt tension, use a wrench to turn the tension bolt clockwise to increase tension, or counterclockwise to reduce it. Tighten the bolt incrementally, checking the belt for proper tension after each adjustment.

After tightening, press the belt with your fingers. The belt should have a small amount of give but should not be overly loose. If the belt sags too much, increase the tension. If it feels too tight, loosen it slightly.

Once the correct tension is achieved, double-check that the belt runs smoothly over the pulleys without slipping or vibrating excessively. This ensures optimal operation and prevents premature wear.

Finally, recheck the tension after a short test run of the mower. This step ensures the belt remains at the correct tension during operation. If necessary, repeat the adjustment process.

Common Belt Issues and Troubleshooting for the Scag Freedom Z

Uneven Tension: If the belt tension is uneven, it may cause the mower deck to vibrate or the blades to stop spinning correctly. Check the tension adjusters and ensure they are set evenly. If necessary, replace the spring or tensioner to restore proper alignment.

Slipping Belt: A slipping belt can lead to poor performance or a loss of power. Inspect the belt for wear or damage. If the belt shows signs of glazing or fraying, replace it immediately. Ensure that the pulleys are not misaligned or obstructed.

Noisy Belt: A noisy belt may indicate that the pulleys are worn or the belt is too loose. Inspect the pulleys for any signs of wear or rust. Tighten the belt if it’s loose, and replace any damaged pulleys to prevent further issues.

Cracking or Fraying: Cracks or fraying on the belt surface are a clear sign of wear. If you notice any visible damage, replace the belt as soon as possible. Regularly inspect the belt for early signs of wear to avoid unexpected failures.

Pulley Misalignment: If the belt appears to be misaligned, check the pulleys for any damage or wear. Misaligned pulleys can cause the belt to wear unevenly and lead to other issues such as slipping or overheating. Adjust or replace the pulleys to correct the alignment.

Overheating Belt: Overheating can cause the belt to stretch and lose tension. This issue may occur due to misaligned pulleys or improper belt installation. Ensure that the pulleys are properly aligned and the belt is routed correctly to prevent excessive heat buildup.

Clogged Pulleys: Debris buildup on pulleys can interfere with belt operation. Clean the pulleys regularly to remove dirt, grass, or other debris. This will prevent the belt from slipping or becoming damaged.
