Detailed Scag Cheetah Belt Diagram for Proper Maintenance and Accurate Replacement
Refer directly to the Scag Cheetah belt diagram before attempting any belt replacement or adjustment. The diagram clearly identifies each pulley, tensioner, and belt routing, which helps avoid misalignment and premature wear. For models with twin or triple blades, note the difference in belt paths to maintain proper cutting deck performance.
Identify belt types according to the diagram labels: drive belts, deck belts, and transmission belts. Matching the correct belt to its corresponding pulley ensures smooth operation and prevents slipping. Cross-referencing part numbers from the diagram with the mower’s manual reduces the risk of ordering the wrong replacement.
Check pulley orientation against the diagram during installation. The diagram indicates which side of the pulley faces the engine or deck, helping maintain tension and alignment. Misaligned pulleys can lead to uneven wear or damage to the mower’s drivetrain.
Use the diagram to follow step-by-step belt routing when removing or installing belts. Starting from the engine pulley and moving along the deck pulleys allows for easier installation and ensures the belt sits correctly on all guides and tensioners. This approach minimizes belt slippage and extends the lifespan of each component.
Maintain tension as shown in the diagram. Properly tensioned belts reduce strain on the engine and deck, improve cutting efficiency, and prevent premature belt failure. Refer to the diagram for correct tensioner positions and angles to achieve optimal performance.

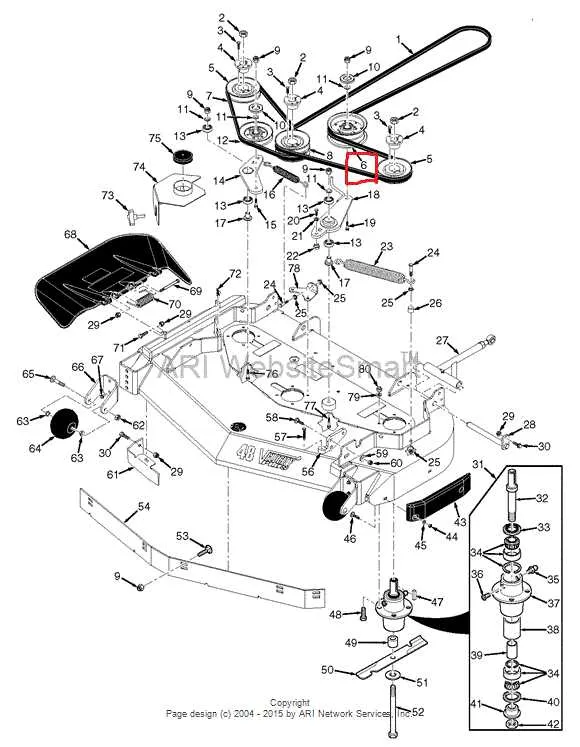

Scag Cheetah Belt Diagram
Check the Scag Cheetah belt routing before performing any maintenance to prevent misalignment and premature wear. Use the official belt diagram for your model year to identify the correct path for each belt.
- Locate the engine pulley, deck pulleys, and tensioner positions.
- Follow the belt routing as illustrated in the diagram, ensuring it sits properly in each groove.
- Confirm that the tensioner arm applies appropriate pressure without forcing the belt.
Replace worn or frayed belts immediately to maintain cutting performance and prevent damage to other components. Note the orientation of V-belts and multi-rib belts, as incorrect installation can cause slippage or noise.
- Disconnect the spark plug for safety.
- Remove deck covers to access pulleys clearly.
- Compare the existing belt path to the diagram for correct alignment.
- Install the new belt, following the same routing carefully.
- Manually rotate the pulleys to ensure smooth movement before starting the engine.
Keep a copy of the belt diagram in the mower’s service area for quick reference during future maintenance. Double-check routing whenever replacing blades or performing deck adjustments to avoid operational issues.
Identifying Each Belt Position on a Scag Cheetah Mower
Locate the primary drive belt first, wrapping from the engine pulley to the transmission input pulley. This belt transfers power from the engine to the mower’s drivetrain. Check the tensioner arm nearby, which keeps this belt snug and prevents slippage.
Next, trace the deck belts. Each mower deck has a belt looping around the deck pulleys, responsible for spinning the blades. The front deck pulley belt passes over the idler pulley closest to the engine, while the rear deck belt loops around the smaller idler in the back. Aligning these belts correctly ensures consistent blade rotation.
Identify the crossover belt if your model has multiple decks. This belt runs diagonally, linking the left and right deck pulleys. It passes over a dedicated idler near the center frame. Proper routing avoids tension issues and maintains even cutting speed across all decks.
Finally, inspect any auxiliary belts, such as those powering attachments or the cooling fan. These smaller belts run from the engine to the accessory pulleys, often marked with directional arrows or part numbers. Confirm their orientation matches the belt diagram to prevent premature wear or slippage.
Use the mower’s belt diagram as a visual reference while checking each belt. Compare pulley sizes and routing paths to verify placement. Correct identification and alignment reduce vibration, improve cutting quality, and extend belt life.
Step-by-Step Guide to Replacing the Deck and Drive Belts
Disconnect the battery to prevent accidental starts. Locate the deck belt and drive belt routing on your Scag Cheetah using the belt diagram. Keep the diagram nearby for reference.
Remove the mower deck by lowering it to the service position, disengaging the PTO, and detaching the lift pins and anti-scalp wheels. Slide the deck out from under the mower carefully.
Loosen the tensioner on the drive belt. Rotate the tensioner pulley to relieve pressure and slip the old belt off the pulleys. Inspect all pulleys for wear, damage, or debris and clean as needed.
Replace the drive belt by following the diagram exactly. Route the belt over the engine pulley, tensioner, and spindles. Make sure the belt sits in the pulley grooves without twisting or overlapping.
Remove the deck belt by loosening the spindle pulleys. Slide the belt off each spindle and idler. Check the pulleys for smooth rotation and replace any that are noisy or damaged.
Install the new deck belt according to the diagram. Loop it around the spindles, idler pulleys, and main drive pulley. Confirm alignment before re-engaging the tensioner.
Reattach the deck by sliding it under the mower and reconnecting the lift pins, anti-scalp wheels, and PTO linkage. Ensure the deck is level and properly seated.
Test belt tension by rotating the pulleys by hand. Both belts should move smoothly with no slipping or misalignment. Reconnect the battery and run the mower at low speed to verify proper operation.
Troubleshooting Common Belt Routing Problems
Check belt alignment immediately if you notice squealing or slipping. Misaligned pulleys cause uneven wear and reduce power transfer. Use a straight edge to ensure pulleys sit in the same plane, and adjust the idler or tensioner as needed.
Inspect for cracks, frays, or glazing along the belt surface. A worn belt often loses grip, producing vibration or slipping under load. Replace any belt showing visible damage; do not attempt patching or temporary fixes.
Verify correct routing against the Scag Cheetah belt diagram. A single loop routed incorrectly can reverse tension or stress specific pulleys, leading to premature failure. Follow the path around the crankshaft, deck spindles, and idlers precisely.
Check tension consistently across all pulleys. Uneven tension creates noise, belt drift, or deck unevenness. Use a tension gauge or apply moderate thumb pressure at the midpoint between pulleys; the belt should flex only ½ to ¾ inch.
Clean pulleys and deck components before installing a new belt. Debris, grease, or rust can reduce grip and accelerate wear. Wipe surfaces with a clean cloth and ensure bearings rotate freely to prevent unexpected belt movement.
Test under load after adjustments. Engage the mower and listen for unusual sounds, watch for belt drift, and ensure smooth spindle rotation. Address any abnormal behavior immediately to avoid further damage.
