Scag 61 Velocity Deck Belt Diagram for Proper Installation and Maintenance
To replace or maintain the drive belt on a Scag 61 Velocity Deck, follow this detailed diagram and step-by-step instructions to ensure proper alignment and functionality. Understanding the correct routing of the belt can save you time and prevent unnecessary wear on your mower.
First, identify the components involved in the belt system: the engine pulley, idler pulley, and the deck pulleys. The belt runs from the engine to the deck, passing over the various pulleys in a specific order. Pay attention to the tensioners and make sure they are adjusted correctly to avoid excessive strain on the belt.
Key Tip: Always check the condition of the belt before starting the installation process. Look for signs of fraying or wear that could cause issues during operation. If you find damage, replace the belt before continuing with the installation.
Once you have the correct belt, follow the diagram carefully, ensuring that the belt is routed around each pulley according to the manufacturer’s specifications. Improper routing can lead to poor performance or even belt failure. After installation, test the mower to make sure the belt runs smoothly and doesn’t slip or make unusual noises.

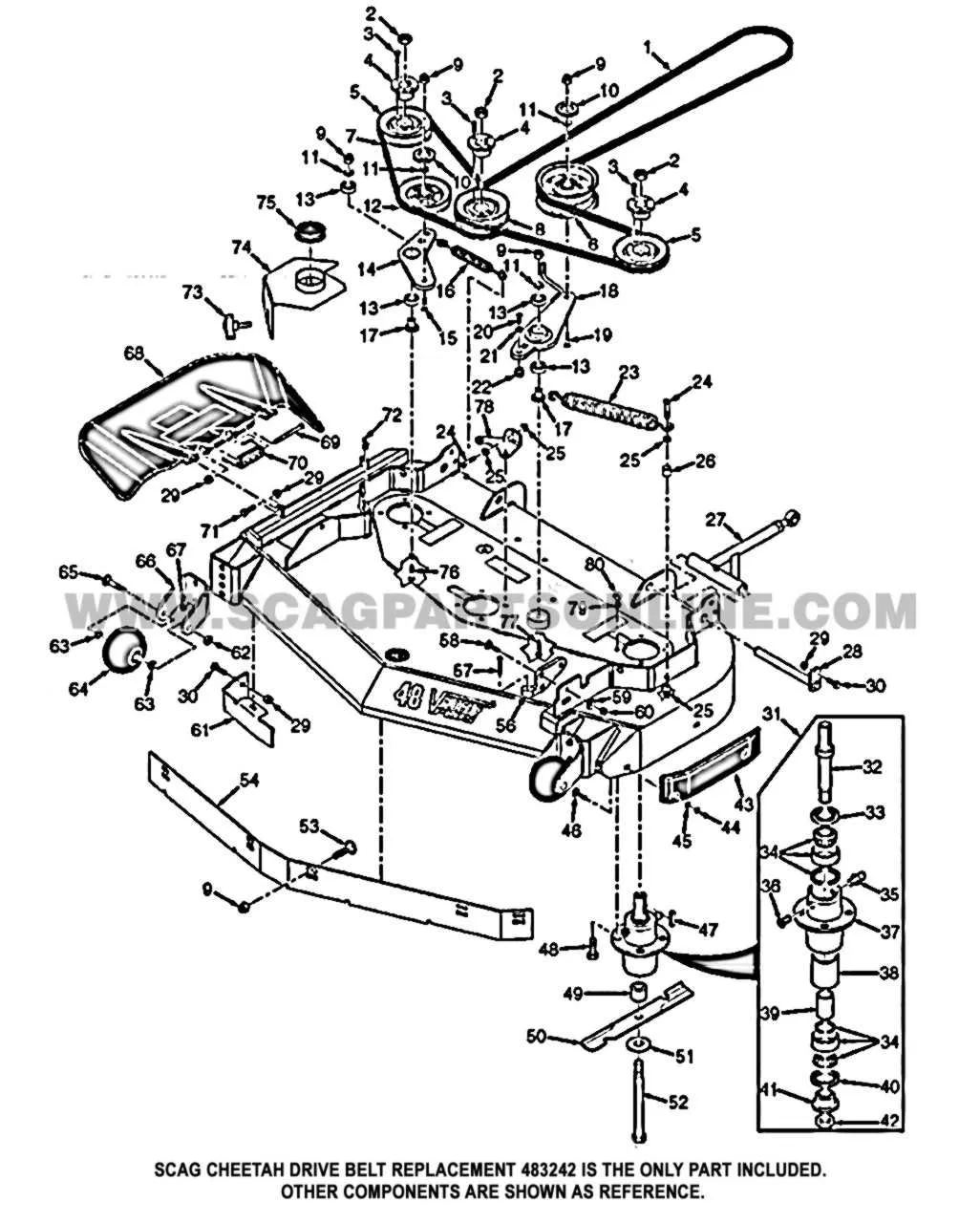

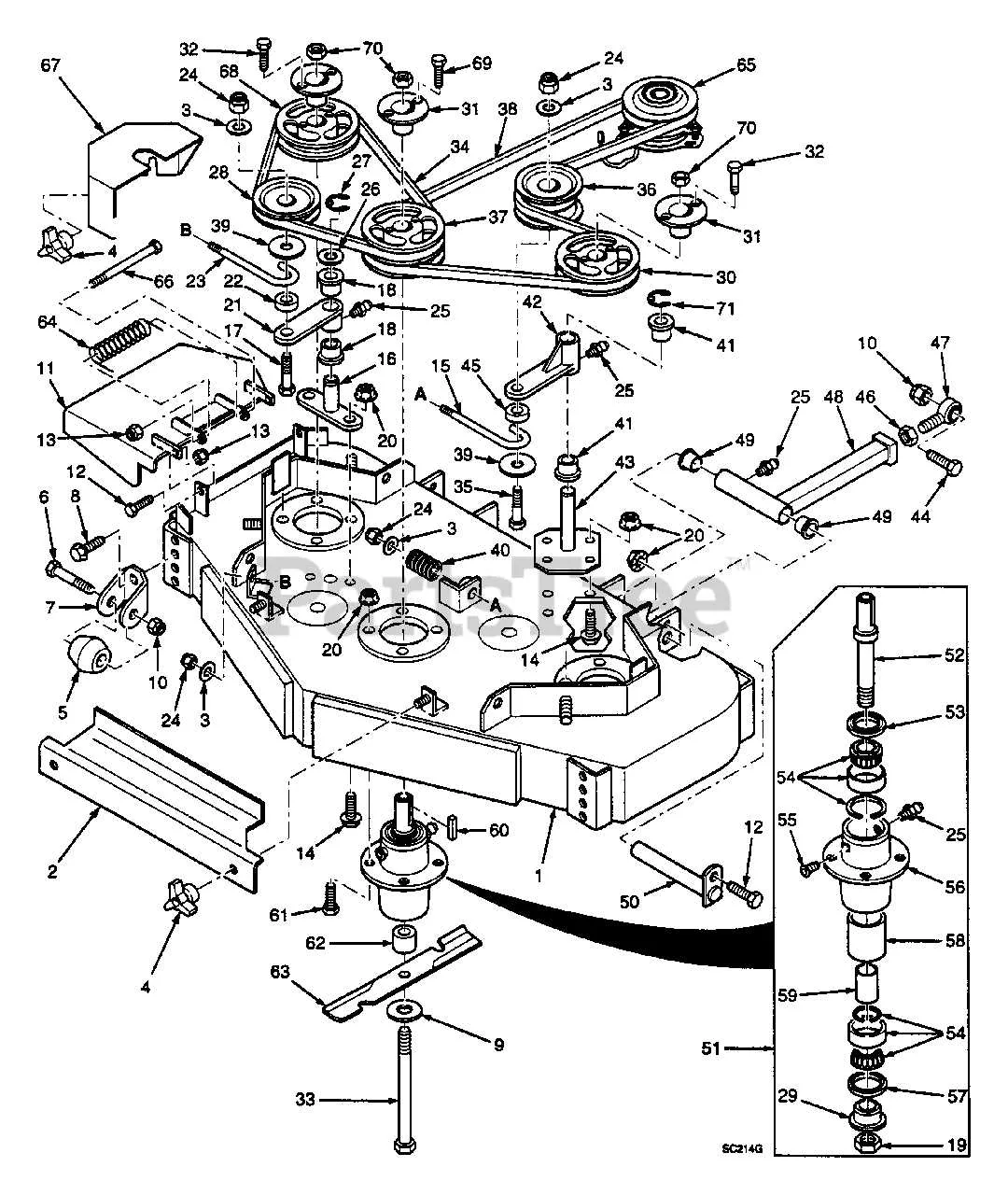

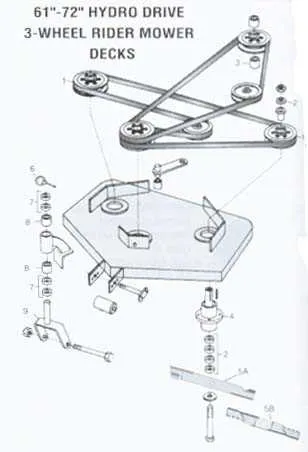

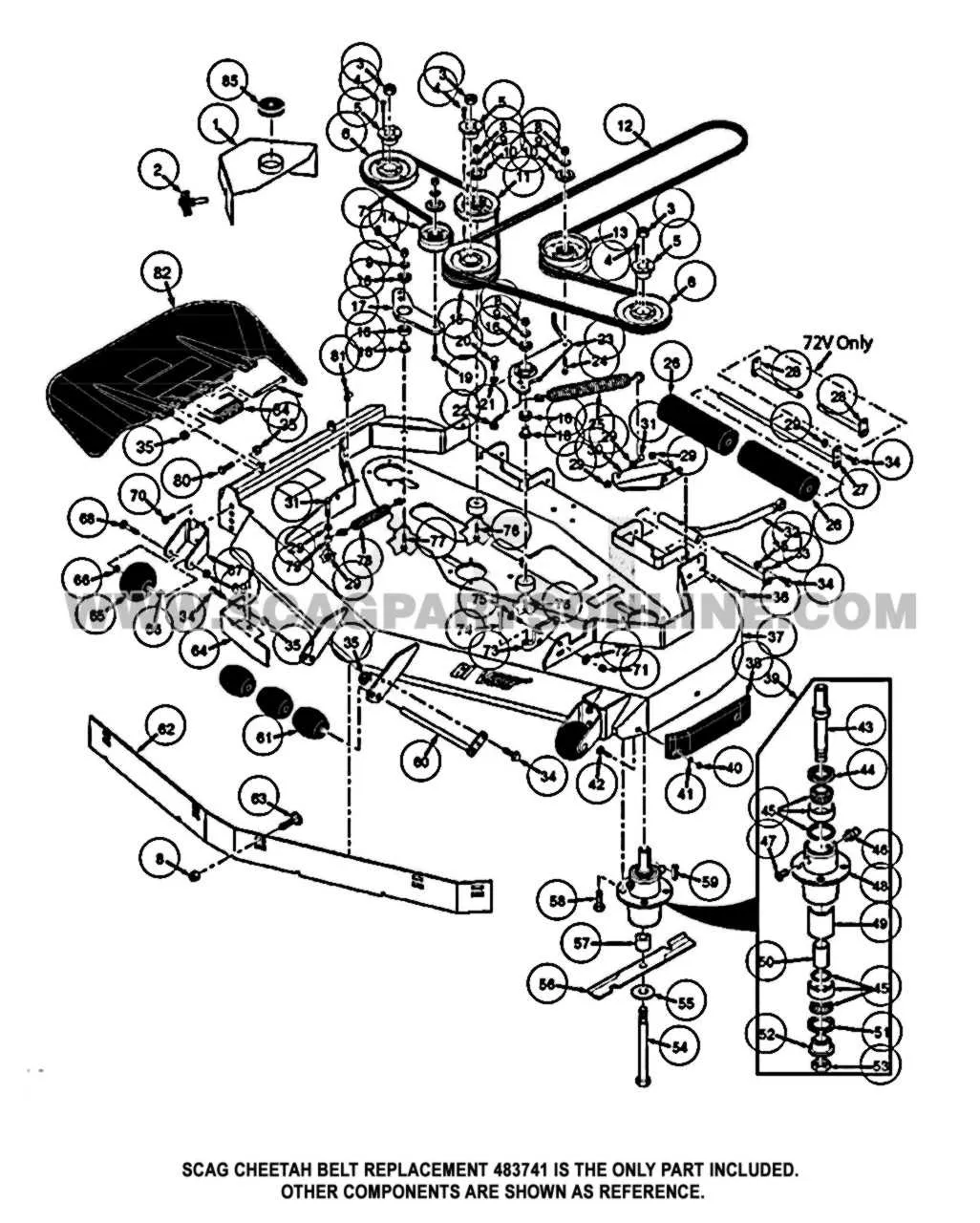

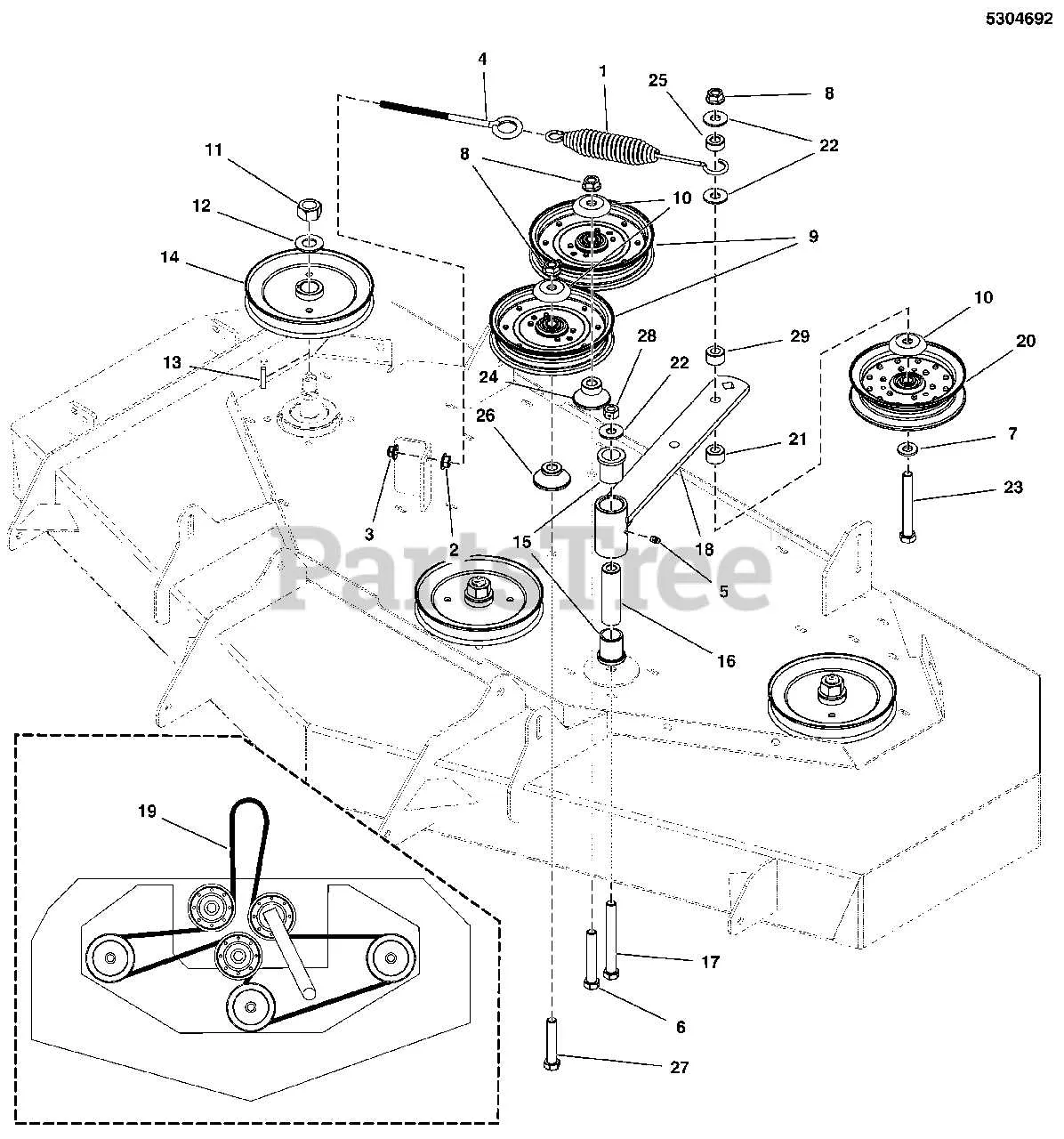

Scag 61 Velocity Deck Belt Diagram
For maintaining your Scag 61 Velocity Deck, understanding the belt system layout is key to ensuring optimal performance. The belt on this mower connects several components, enabling the blades to rotate smoothly. Here’s how to tackle it:
The main drive belt runs from the engine’s output shaft to the idler pulleys, transferring power to the blades. The diagram typically shows a path through multiple pulleys, with a few critical adjustments needed for proper tension. It’s vital to check the belt’s alignment with each pulley to prevent slipping or wear.
Start by removing the deck from the mower to gain easy access to the belt and pulleys. Once accessible, inspect the routing based on the diagram. The belt should follow the exact path outlined to avoid complications. Make sure the tension is correct by adjusting the spring-loaded idler pulley. If the belt is worn or damaged, replace it with a new one, following the recommended part number from the manufacturer.
Additionally, keep an eye on the pulleys for any signs of wear or damage. A worn pulley can increase friction, which speeds up belt degradation. The correct pulley alignment will make a noticeable difference in the mower’s operation, reducing strain on the belt and the engine.
Using the correct belt for your model is non-negotiable. Cross-reference part numbers with the manufacturer’s specifications to ensure you’re using the appropriate size and type. Always refer to the official diagram to double-check the path and make any necessary repairs. This will extend the lifespan of your mower and ensure it performs efficiently during each use.
Understanding the Belt Routing for Scag 61 Velocity Deck
The Scag 61 Velocity Deck requires precise belt routing for optimal performance. Start by locating the deck’s drive pulley, which connects to the engine’s output shaft. The belt should loop around this pulley and pass over the spindle pulleys, which are responsible for powering the blades. Make sure the belt runs smoothly along the designated path, following the belt diagram that corresponds to your mower model.
Check the tensioner pulley next. This component helps maintain the correct belt tension. It is critical to ensure the belt isn’t too tight or loose. If the tension is too high, it could cause premature wear; too loose, and the blades may not engage properly. The routing diagram will show the exact alignment and pulley positions for precise adjustments.
The key to a long-lasting belt is ensuring no misalignment. Pay attention to the way the belt loops around the pulleys–each pulley must be in line with the others. Any deviation can lead to increased friction, belt wear, and potential failure. Double-check all pulleys, including the idler pulley, which helps guide the belt’s path. Any irregularities in the belt’s movement or a noisy operation could indicate improper routing.
Once you’ve checked the routing, look at the belt for signs of wear or damage. Even the best routing can’t prevent a worn-out belt from affecting the mower’s performance. Replace the belt when necessary and ensure the new belt follows the diagram closely to avoid any future issues.
How to Replace the Deck Belt on a Scag 61 Velocity Mower
To replace the deck belt on your Scag 61 Velocity Mower, follow these steps:
- Lift the mower deck: Use the deck lift lever to raise the mower deck to its highest position. This will give you more space to work and prevent the deck from interfering with the belt replacement process.
- Disconnect the spark plug: To avoid any accidental starting, disconnect the spark plug wire from the spark plug.
- Remove the old belt: Identify the belt tensioner and release the tension by either loosening the spring or moving the tension arm. Once the tension is off, carefully slide the old belt off the pulleys. Pay attention to the routing of the belt, as this will be your guide for installing the new one.
- Inspect pulleys and spindles: Before installing the new belt, inspect the pulleys and spindles for damage or wear. Replace any parts that look worn or damaged to ensure smooth operation and avoid future issues.
- Install the new belt: Starting from the engine pulley, carefully route the new deck belt along the pulleys. Follow the exact path of the old belt, ensuring that the belt sits properly on each pulley. Refer to the diagram on your mower for a clear visual guide if needed.
- Reattach the belt tensioner: Once the belt is in place, re-engage the belt tensioner to apply the proper tension to the new belt. Double-check that the belt has a snug fit and is properly aligned with the pulleys.
- Reconnect the spark plug: Once the belt is securely installed and adjusted, reconnect the spark plug wire to the spark plug.
- Test the mower: Start the mower and engage the blades to ensure the new belt is functioning properly. Listen for any unusual sounds and make sure the mower is cutting evenly.
Changing the deck belt on your Scag 61 Velocity Mower is a straightforward process if you follow the correct steps and take your time to ensure proper installation. Regular maintenance of the deck belt will help your mower perform at its best for longer periods.
Common Issues with Scag 61 Velocity Deck Belt and How to Troubleshoot
If the Scag 61 Velocity Deck belt isn’t functioning properly, it can cause uneven cuts, reduced performance, or even damage to other parts of the mower. Here’s how to troubleshoot common issues.
1. Belt Slipping or Squealing
Slipping or squealing often happens due to a worn-out or stretched belt. Check for visible signs of wear such as cracks or fraying. If the belt appears damaged, replace it with a new one. Also, inspect the tensioner to ensure it’s properly adjusted–incorrect tension may allow the belt to slip. Adjust or replace the tensioner if necessary.
2. Belt Off Track
If the belt falls off the pulleys, examine the alignment of the deck and pulleys. Misalignment may result from loose mounting bolts or a bent pulley. Tighten any loose bolts and make sure all pulleys are aligned properly. If the pulleys are damaged, replace them.
3. Poor Cutting Performance
A poorly performing deck can result from the belt not transferring enough power to the blades. Start by checking for proper belt tension. If the tension is correct, inspect the belt for signs of glazing or burning, which suggests overheating. If overheating is an issue, check the bearings on the pulleys and replace any that feel rough or make noise.
4. Belt Wear and Tear
Excessive wear can result from debris buildup or improper belt routing. Ensure that the belt is routed according to the manufacturer’s specifications, and keep the area around the deck clean. Regularly clean the pulleys and check for any buildup of grass or debris that could cause friction and excessive wear on the belt.
5. Misaligned or Broken Pulley
If a pulley is misaligned or damaged, it can prevent the belt from running smoothly. To troubleshoot, remove the belt and manually spin the pulleys. Any wobbling or difficulty in movement indicates a faulty pulley that needs replacement. Be sure to inspect the mounting bolts for tightness as well.
Regular maintenance, including cleaning, tension adjustments, and replacing worn components, is key to keeping the Velocity Deck running smoothly. Identifying issues early can prevent more serious problems down the line.
