6.0 Powerstroke Dual Alternator Belt Routing Diagram and Guide

When working with the 6.0 Powerstroke dual alternator system, understanding the belt routing is key to maintaining the vehicle’s electrical performance. The dual alternator setup requires careful attention to the belt path to ensure proper function of both alternators. First, confirm that the alternators are securely mounted, as any misalignment can lead to premature wear or failure of the belt.

The serpentine belt in this setup runs through a series of pulleys that power both alternators, the water pump, and the air conditioning compressor. It is important to follow the exact belt diagram to avoid belt slippage or misrouting, which can cause electrical or cooling issues. Verify that each pulley is aligned and that the tensioner is working correctly to prevent belt slip.

Refer to the belt diagram specific to your vehicle’s year and model for the correct routing and belt length. Using the wrong belt can result in inadequate charging, leading to electrical issues. Ensure the belt is replaced regularly to prevent damage to other components in the engine system.

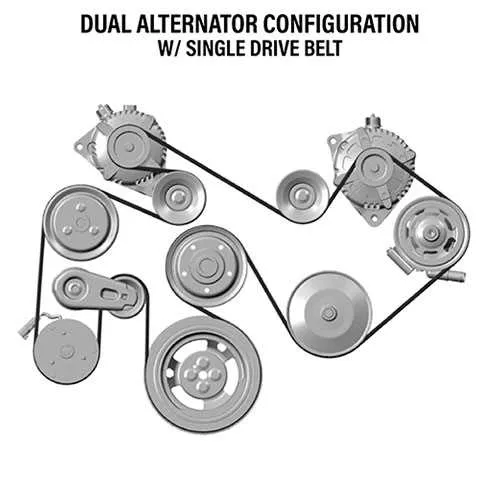

Powerstroke Dual Alternator Belt Diagram

For the 6.0 Powerstroke engine with dual alternators, accurate belt routing is key to maintaining system performance. Begin by locating the serpentine belt path, ensuring it runs from the crankshaft pulley to both alternators. The primary alternator is connected to the upper drive, while the secondary alternator links to the lower section. Each alternator is driven independently to provide adequate power output, which helps in managing electrical demands efficiently.

The belt should be routed in a way that avoids direct contact with components like the fan or coolant hoses. Ensure proper tensioning to avoid slippage and premature wear. The tensioner pulley plays a significant role in keeping the belt taut, so check its condition regularly to ensure it is functioning correctly. Always follow the recommended belt specifications for length and width to prevent issues with fitment.

Refer to the vehicle’s specific service manual for a detailed diagram and the correct belt part number. If you experience difficulty locating the diagram or the right part, you can use online resources or consult a certified mechanic to ensure accuracy. Proper belt alignment and tensioning are crucial for preventing failures and maintaining the reliability of the alternators.

How to Identify the Correct Belt Routing for Dual Alternators

Start by locating the routing diagram on the engine’s belt cover or inside the service manual. These diagrams show the exact path the serpentine belt must follow for both alternators.

First, identify the belt tensioner. It should be located near the top of the engine, typically close to one of the alternators. Ensure the belt is routed around it correctly, as this will keep the proper tension on the system.

Ensure the belt runs around the main alternator first, following its pulley. The belt should then proceed towards the second alternator, passing around its pulley in the opposite direction. Double-check for any incorrect pulley placements or missed steps in the path.

Use a flashlight to verify the belt is seated properly on all pulleys, especially around the tensioner and both alternators. A misaligned belt can cause wear or failure over time.

Once you’ve confirmed the routing, check the belt’s tension. If it’s too loose, adjust the tensioner. If it’s too tight, realign the belt according to the manufacturer’s diagram.

• Verify the position of both alternators relative to the belt path.
• Ensure the belt is correctly aligned on all pulleys to prevent slippage.
• Make sure the tension is properly adjusted.

Steps to Replace the Alternator Belt on a 6.0 Powerstroke

Start by disconnecting the vehicle’s battery to ensure safety. Use a 13mm wrench to loosen the negative terminal and remove it.

Next, locate the alternator belt tensioner. Using a socket wrench, rotate the tensioner clockwise to relieve tension on the belt. Carefully slide the belt off the alternator pulley.

Check the belt for any signs of wear, cracks, or fraying. If replacing the belt, compare the old belt with the new one to ensure proper size.

Install the new belt by routing it around the alternator pulley and other components as per the specific routing diagram for your 6.0 Powerstroke. Make sure the belt sits correctly in all grooves.

Once the belt is in place, rotate the tensioner again to apply tension. Ensure that the belt is tightly fitted, with no slack or misalignment.

Reconnect the battery, and start the engine. Observe the belt’s operation, checking for any unusual noises or misalignment. If everything functions correctly, the job is complete.

Common Issues with the Dual Alternator Belt System on 6.0 Powerstroke

The most common issue with the dual alternator belt system on the 6.0 Powerstroke is belt slippage. This can occur if the belt is not tensioned correctly or if it shows signs of wear. Ensure the tension is within specifications to prevent this problem.

Another frequent problem is misalignment of the alternator pulleys. Over time, pulleys can shift or become damaged, causing uneven wear on the belt. Inspect the pulleys regularly for wear and alignment to avoid premature belt failure.

Belt cracking is also a common issue. Due to exposure to heat and friction, the rubber can degrade. Replace any belt showing cracks or signs of splitting before it leads to a total breakdown.

In some cases, alternator overloading can strain the belt system. When the alternator is working harder than usual, it puts more pressure on the belt. If your system is charging beyond the normal load, check for signs of strain like squealing or slipping and address the root cause.

Finally, improper installation is another factor. A belt that isn’t routed correctly can cause excessive wear and even failure. Always refer to the correct belt routing diagram and ensure that the installation is done to factory specifications.
