1999 7.3 Powerstroke Belt Diagram and Routing Guide for Maintenance
Understanding the belt configuration on your 1999 7.3 Powerstroke engine is key to maintaining its reliability and performance. If you’re working on repairs or a belt replacement, having the right diagram will save you time and effort. The correct alignment of each component ensures smooth operation and prevents unnecessary wear.
The belt setup for the 7.3 Powerstroke includes a serpentine belt that runs across the engine’s pulleys, driven by the crankshaft. It powers vital accessories like the alternator, power steering pump, and air conditioning compressor. Without the right diagram, reinstalling the belt can be confusing, especially with multiple components involved.
Refer to the detailed diagram for your 7.3 Powerstroke to help guide you through each step. Proper tension on the serpentine belt is also crucial to avoid slipping and potential damage to the engine components. With the right tools and instructions, you’ll have your vehicle running like new in no time.

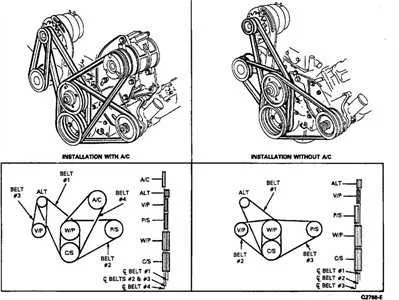

1999 7.3 Powerstroke Belt Diagram
For accurate belt routing on the 1999 7.3 Powerstroke engine, refer to the diagram below to ensure proper installation and avoid operational issues. Follow these steps to ensure the serpentine belt is installed correctly:
- Start by identifying the crankshaft pulley as the central point of the belt system.
- The belt first loops over the crankshaft pulley, then around the tensioner pulley.
- Next, move the belt around the power steering pump pulley.
- Guide the belt over the alternator pulley, followed by the AC compressor pulley.
- Finish by looping the belt over the water pump and idler pulleys.
Ensure that the tensioner pulley is applied with the correct amount of pressure, allowing the belt to remain tight during operation. If any components, such as the alternator or power steering pump, are replaced, double-check the routing with the diagram for proper belt alignment. A misrouted belt can lead to significant engine damage or component failure.
For detailed guidance, always consult the vehicle’s manual or reference an OEM (Original Equipment Manufacturer) belt diagram. This diagram should be readily available from most auto parts retailers or the manufacturer’s website.
How to Identify Belt Routing on a 1999 7.3 Powerstroke
To identify the belt routing on your 1999 7.3 Powerstroke, first check the belt diagram sticker under the hood, typically located on the fan shroud or near the radiator. If the sticker is missing or damaged, refer to the steps below to help guide you through the process.
Start by locating the key components that the serpentine belt powers: the alternator, power steering pump, air conditioning compressor, and water pump. Ensure the belt runs in the correct direction, usually marked by arrows on the belt itself.
The tensioner pulley is an important part of the routing, so pay attention to its position. Use a 3/8″ drive ratchet or belt tool to rotate the tensioner and relieve tension from the belt. This will allow you to inspect the belt’s path around each pulley and verify correct installation.
| Component | Position |
|---|---|
| Alternator | Top right, near the front of the engine |
| Power Steering Pump | Below the alternator, near the left side of the engine |
| AC Compressor | Near the bottom, on the right side of the engine |
| Water Pump | Near the bottom, centered in the engine |
| Crankshaft Pulley | Located at the bottom of the engine |
| Idler Pulley | Located between the tensioner and power steering pump |
| Tensioner Pulley | On the left side of the engine, above the power steering pump |
If you are still unsure, check online resources or use a service manual specific to your 1999 7.3 Powerstroke. There are also many visual guides and videos available that show step-by-step belt routing for this particular engine.
After confirming the routing, replace the belt if it appears worn or cracked. Make sure it is securely placed in each groove and that the tensioner is holding the belt with proper tension.
Step-by-Step Guide to Replacing the Serpentine Belt on 7.3 Powerstroke
Start by disconnecting the negative battery terminal to avoid any electrical issues. Use a wrench to loosen the tensioner pulley. This will release tension on the serpentine belt, making it easier to remove. Be sure to rotate the tensioner pulley clockwise, then slip the belt off the pulleys carefully.
Before removing the old belt, take a close look at the belt routing diagram on the engine. This will guide you in installing the new belt correctly. If the diagram is not visible, refer to a service manual or search for an online diagram for the 1999 7.3 Powerstroke model.
Once the old belt is off, inspect the pulleys for wear or damage. If any pulley shows signs of failure, it’s a good idea to replace it now to prevent future issues. Apply some lubrication to the pulley bearings if needed, but avoid over-lubricating as it can attract dirt.
Install the new serpentine belt by following the routing diagram. Begin at the crankshaft pulley, then route the belt over the other pulleys, making sure it seats properly. Keep an eye on the tensioner pulley, ensuring it aligns with the belt correctly.
After the belt is in place, use a wrench or socket to release the tensioner pulley again, allowing the belt to tighten. Check the belt for proper alignment, ensuring it’s seated evenly on each pulley groove.
Reconnect the negative battery terminal, then start the engine to verify the belt is operating smoothly. Listen for any unusual noises, which could indicate improper installation. If everything looks and sounds good, you’ve successfully replaced the serpentine belt on your 7.3 Powerstroke.
Troubleshooting Common Belt-Related Issues on the 1999 7.3 Powerstroke
If your 1999 7.3 Powerstroke is experiencing belt-related issues, the most common causes are a worn or loose belt, misaligned pulleys, or faulty tensioners. Addressing these problems early can prevent further engine damage and improve overall performance.
1. Check for Belt Wear
Examine the serpentine belt for signs of fraying, cracks, or glazing. These are indications of excessive wear. Replace the belt if these signs are present to avoid slippage or failure. Inspect the entire length of the belt, including the underside, for any damage that could compromise its function.
2. Tensioner and Idler Pulley Inspection
A malfunctioning tensioner can lead to belt slippage or poor tensioning. To check the tensioner, observe the spring-loaded mechanism. It should maintain constant tension. If the tensioner is weak or sticky, replace it. Similarly, inspect the idler pulley for wear and listen for any unusual noises that may indicate bearing failure.
3. Misaligned Pulleys
Pulleys that are out of alignment cause uneven wear on the belt and may lead to premature failure. Use a straightedge to check the alignment of the pulleys, and make adjustments as needed. Misalignment is often caused by a worn-out accessory or damaged mounting points.
4. Belt Routing Issues
Double-check the belt routing diagram to ensure the belt is installed correctly. A misplaced belt can lead to overheating of components, especially the alternator or power steering pump. Make sure each pulley is correctly engaged and that the belt follows the exact path indicated in the diagram.
5. Noisy Belt
A squealing or chirping noise often points to a worn belt, improperly adjusted tensioner, or a misaligned pulley. Inspect each of these components for wear or damage. Cleaning the belt with a mild cleaner and checking the pulleys for debris can also help reduce noise.
6. Monitor for Belt Slippage
If you notice a decrease in power steering, air conditioning, or alternator performance, it could indicate belt slippage. This usually happens when the belt is worn, or the tensioner isn’t applying enough force. Check the belt’s tightness and replace any worn components as needed.
By addressing these common issues, you can ensure that your 1999 7.3 Powerstroke’s belt system operates smoothly, extending the lifespan of critical engine components and preventing further complications.
