Troy Bilt Mustang 42 Belt Diagram and Maintenance Guide

Replace the belt on your Troy Bilt Mustang 42 with confidence by following this guide. Knowing the correct routing and tensioning is critical for smooth operation and preventing premature wear. Make sure to identify the specific belt size for your model before starting. The correct belt ensures optimal performance and longevity of your mower.

1. Identify the components: The belt system on the Mustang 42 involves several key components: the drive belt, pulleys, and idler arm. Begin by examining the components for any signs of wear or damage before removing the old belt. Ensure the pulleys and tensioners move freely.

2. Belt Routing: Proper routing is essential for efficient power transfer from the engine to the wheels and deck. Follow the diagram carefully to ensure the belt is positioned correctly through each pulley. Incorrect routing can lead to damage and reduce the lifespan of your system.

3. Replacing the Belt: With the old belt removed, check all pulleys and idlers for debris or damage. Install the new belt by following the reverse process of removal, ensuring it’s securely in place. After installation, check the tension and adjust as needed to prevent slipping.

By following these steps, you can restore your Troy Bilt Mustang 42’s belt system to full functionality. Always use the recommended parts to maintain the performance and avoid unnecessary repairs.

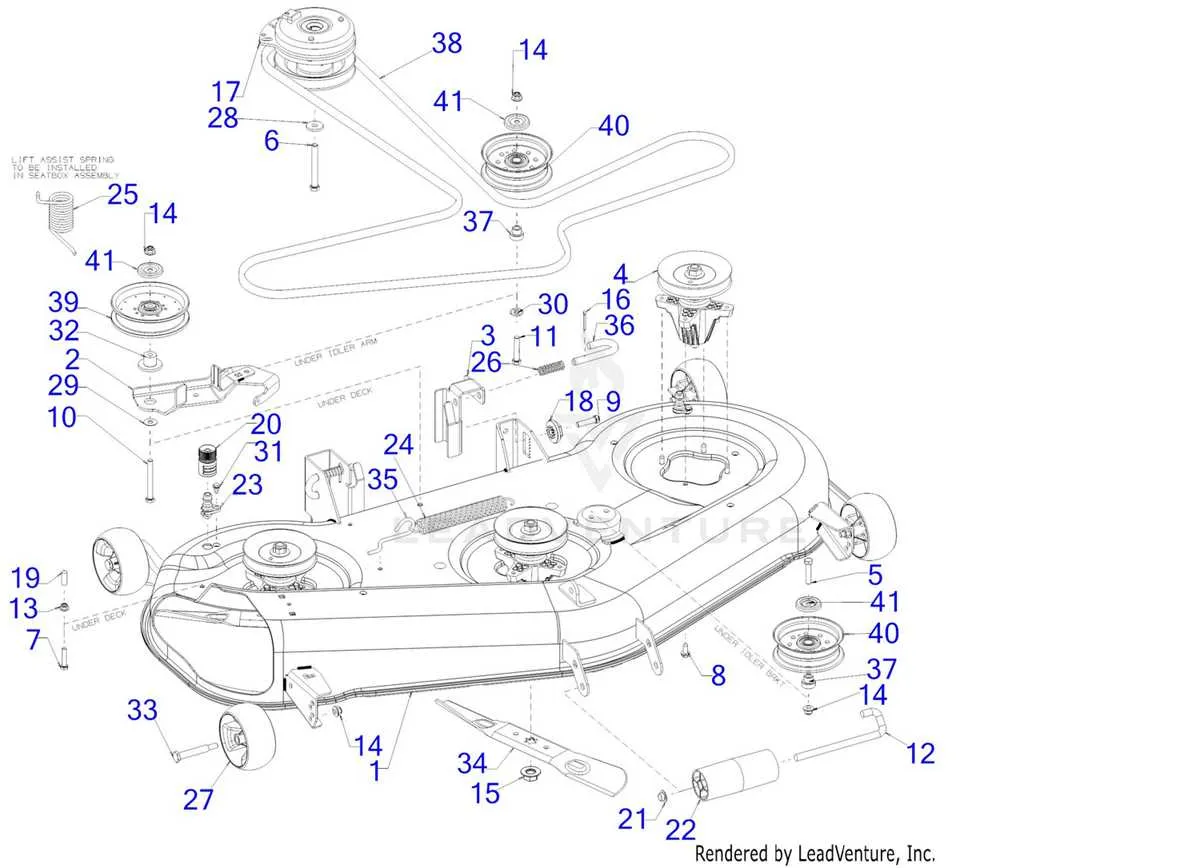

Troy Bilt Mustang 42 Belt Diagram

To replace or repair the belt system on your Troy Bilt Mustang 42, follow this clear layout for belt routing. Start by locating the belt, which connects various components such as the transmission, engine, and blades.

Ensure that the belt is routed according to the manufacturer’s diagram. This will maintain proper tension and prevent misalignment that could lead to wear or breakage. The belt should run from the engine pulley to the transmission pulley, then to the deck pulleys, ensuring a smooth motion for operation.

Double-check the condition of all pulleys and idlers, as worn parts may affect the belt’s performance. Tighten or adjust the belt tension according to specifications outlined in your user manual. If the belt seems loose or damaged, replace it with an identical part to avoid improper functioning.

For troubleshooting, inspect the belt for any visible signs of wear or cracks. Misalignment could also indicate the need to adjust the pulleys. Regular inspection helps extend the lifespan of your belt system and ensures smooth operation of your Mustang 42.

How to Identify the Correct Belt Routing for the Troy Bilt Mustang 42

Start by ensuring the mower is turned off and safely positioned. Remove any debris around the engine and belt area to prevent obstruction. Next, refer to the owner’s manual for the belt routing diagram specific to your model. This diagram provides a clear path for how the belt should be routed around pulleys and spindles.

Inspect the belt’s condition. If the belt is worn or damaged, replace it before proceeding with routing. Lay the new belt out in a manner that follows the pattern from the manual. Start from the engine pulley and work your way toward the deck pulleys. Ensure the belt passes through all the necessary tensioners and guides.

Check that the belt is properly seated in all grooves and does not slip off any pulley. When routing, maintain proper tension to avoid slack or tightness that could damage the system. Ensure that the belt is aligned with the pulleys without any twists.

Once the belt is in place, manually rotate the engine pulley to test the belt’s movement. This will help confirm that the routing is correct and that the belt is operating smoothly. Make adjustments if necessary, ensuring all parts move freely.

Lastly, secure any covers or shields that were removed, and check the mower’s functionality. If you hear unusual noises or notice abnormal movements, double-check the belt routing for any discrepancies.

Common Issues with the Belt System on the Troy Bilt Mustang 42

One common issue with the belt system on the Troy Bilt Mustang 42 is belt slippage. This usually occurs when the belt becomes loose due to wear or improper tension. Regularly check the belt for any signs of wear, cracks, or fraying. If you notice any of these, it’s best to replace the belt to prevent further damage to the system.

Another issue is belt misalignment. This can lead to uneven wear and poor performance. Misalignment often happens when pulleys become damaged or improperly positioned. Inspect all pulleys to ensure they are aligned correctly and securely fastened.

For optimal performance, regularly check the tension of the belt. An overly tight belt can cause strain on the engine, while a loose belt will slip, reducing power transmission. Use the manufacturer’s specifications to adjust the tension appropriately. Tightening or loosening the tension bolt can resolve these issues.

Wear and tear on the belt can cause it to stretch over time. This can lead to a decrease in power delivery and an increase in vibration. Replace the belt if it shows signs of stretching or uneven wear. A damaged belt can also cause loud noises or difficulty in starting the mower.

• Check for belt slippage and replace worn belts.
• Inspect pulleys for misalignment and adjust as needed.
• Ensure the belt tension is properly adjusted to avoid strain on the engine.
• Replace stretched or unevenly worn belts to maintain performance.

Maintaining a properly functioning belt system will improve the overall performance of your Troy Bilt Mustang 42 and extend its lifespan. Regular maintenance and timely replacement of worn parts will keep the mower operating smoothly.

Step-by-Step Guide for Replacing the Belt on a Troy Bilt Mustang 42

To replace the belt on your Troy Bilt Mustang 42, follow these steps carefully to ensure proper installation and operation.

1. Disconnect the battery to prevent any electrical accidents during the repair.

2. Raise the deck to its highest position using the deck lift lever. This will give you more clearance to work with the belt.

3. Remove the spark plug wire to avoid accidental engine starts while working on the mower.

4. Use a wrench to remove the deck from the mower. This will allow you to access the belt more easily.

5. Locate the belt cover and remove it by unscrewing the bolts that hold it in place.

6. Identify the tensioner pulley and release the tension on the belt. You may need to use a socket wrench to rotate the pulley and relieve the pressure.

7. Remove the old belt from the pulleys. Take note of how the belt is routed for reinstallation.

8. Install the new belt following the same routing pattern. Ensure the belt fits snugly on each pulley and is not twisted.

9. Reapply tension to the belt using the tensioner pulley, making sure it is properly tightened without excess slack.

10. Reinstall the belt cover and secure it with the bolts.

11. Reattach the deck to the mower and lower it back to its standard position.

12. Reconnect the battery and spark plug wire. Test the mower to ensure the new belt is operating smoothly.
