Troy Bilt LTX 1842 Belt Diagram and Parts Breakdown Guide

The belt diagram for the Troy Bilt LTX 1842 is crucial for maintaining your mower’s performance. Accurate placement of the belts ensures smooth operation and prevents unnecessary wear. This guide offers the most up-to-date diagram to help you reassemble or replace the belts with ease.

Start by examining the layout of the drive and deck belts. The engine belt is the key to activating the blades, while the drive belt controls the mower’s movement. Follow the diagram carefully to ensure that each belt is routed through the proper pulleys.

Make sure the belts are properly tensioned. If they are too loose, the mower may not function correctly, or the belts could slip. Conversely, overly tight belts can cause premature wear or damage to the pulleys. Regularly checking the tension is essential to keeping your Troy Bilt LTX 1842 running efficiently.

By understanding the belt diagram, you’ll be able to troubleshoot common issues and replace worn parts as needed. With the right information, you can ensure your mower stays in top condition and avoid costly repairs down the line.

Troy Bilt LTX 1842 Belt Diagram

If you’re having trouble with your Troy Bilt LTX 1842 belt system, the first step is to reference the correct belt diagram. This will ensure you are routing the belts in the right direction for optimal performance.

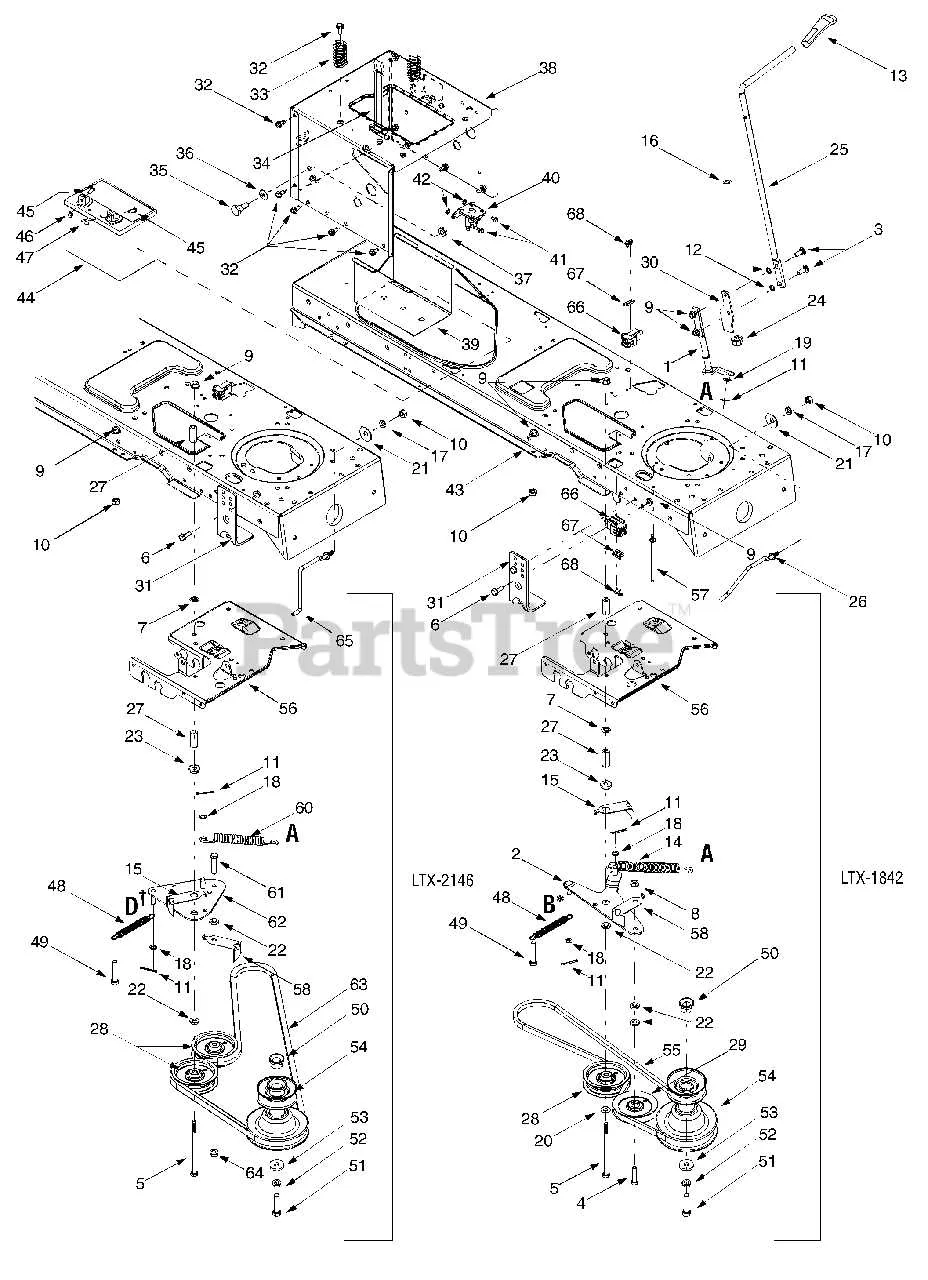

The Troy Bilt LTX 1842 uses two main belts: one for the drive system and another for the cutting deck. The drive belt connects the engine pulley to the transmission pulley, while the deck belt connects the engine to the pulleys on the mower deck. Ensure both belts are routed correctly as per the diagram for smooth operation.

To replace or inspect the belts, begin by lifting the mower deck and removing any obstacles blocking access. Pay attention to the direction the belts are routed around pulleys and idler arms. Refer to the diagram for precise placement.

Inspect the condition of the belts regularly. If there are visible signs of wear or cracks, replace them promptly to avoid damage to the pulleys or the drive system. Make sure the belts are properly tensioned to prevent slipping.

For a smooth mowing experience, keep the belts clean and free from debris. This will help maintain proper function and reduce the need for frequent replacements.

How to Identify the Correct Belt Routing for Troy Bilt LTX 1842

Start by ensuring the mower is powered off and the engine is cool. Raise the deck to its highest position for better access to the belts.

Locate the belt diagram on the deck or chassis. It provides the exact routing, making the replacement process straightforward. If the diagram is unclear or missing, follow these steps:

• Examine the path from the engine pulley to the spindle pulleys. The belt should loop over the engine drive pulley, then around the idler pulleys, and finally to the blades.
• Check the tensioner pulley. The belt needs to be snug around it without excessive slack. The tensioner ensures the belt stays in place during operation.
• Ensure the belt goes around the blade spindles in the correct direction. The belt should not twist as it wraps around the pulleys.

If replacing the belt, choose one with the same length and width as the original. Measure the old belt if unsure. Installing the new belt exactly as the diagram shows will prevent slippage or wear.

After replacing, manually rotate the pulleys to confirm proper routing and tension. Once satisfied, lower the deck and test the mower at a low speed before full operation.

Common Issues with Belt Alignment in Troy Bilt LTX 1842 and How to Fix Them

If the belt on your Troy Bilt LTX 1842 is misaligned, the first step is to inspect the pulleys and belt routing. A misaligned belt can cause slippage, excessive wear, or even complete system failure. To correct the issue, follow these steps:

Start by checking the tension of the belt. An overly loose belt may slip, while a too-tight one can wear out components prematurely. If the belt feels loose, adjust the tensioner. You may need to replace the spring on the tensioner if it’s not providing enough pressure.

Next, verify that the belt is routed properly through all pulleys. Refer to the diagram for the correct configuration. A misrouted belt can rub against other parts, creating friction and wear. Pay special attention to the idler pulley and ensure that it’s aligned with the rest of the system.

Inspect the pulleys for wear or damage. Over time, pulleys can become misaligned or develop grooves that interfere with belt movement. If you notice any damaged pulleys, replace them immediately. Proper pulley alignment is critical to avoid further belt issues.

If the belt is still misaligned after checking the tension and pulley setup, examine the deck for any bent components. A bent deck frame can alter the pulley positions, causing alignment issues. Correcting any bends or distortions in the deck will improve belt performance.

Lastly, clean the pulleys and belt regularly. Dirt and debris can cause friction, leading to misalignment and premature wear. Use a soft brush or cloth to remove any build-up, ensuring that the components move smoothly.

Steps to Replace the Belt on Troy Bilt LTX 1842: A Complete Guide

Before starting, make sure the mower is off and the engine is cool. Disconnect the battery to avoid any accidents.

1. Lift the Mower Deck: Use a jack to raise the mower deck high enough to access the belt. Ensure the mower is stable during this process.

2. Locate the Belt: Find the belt on the Troy Bilt LTX 1842. It typically runs over pulleys and the engine shaft. Familiarize yourself with its path and routing. Refer to the owner’s manual if needed.

3. Release Tension: Use a socket wrench to remove the tension from the belt. This will allow you to loosen it from the pulleys. Be cautious of the spring-loaded tensioner, which can snap back if not handled correctly.

4. Remove the Old Belt: Carefully slip the old belt off the pulleys and remove it from the mower deck. Keep track of the belt’s orientation to ensure the new one is installed in the same manner.

5. Install the New Belt: Start by threading the new belt through the pulleys, following the same path as the old one. Make sure the belt sits correctly on each pulley and the tensioner is in place.

6. Apply Tension: Once the new belt is in place, use the tensioner to apply the correct tension. Ensure the belt is snug but not overly tight, as this can cause premature wear.

7. Check the Belt Routing: Double-check the belt’s routing and alignment with the pulleys. Make sure the belt is not twisted and is seated properly on each pulley.

8. Lower the Mower Deck: Carefully lower the mower deck back into position. Ensure everything is properly aligned before starting the engine.

9. Test the Mower: Start the mower and engage the blade to test if the belt is functioning correctly. Listen for any unusual sounds or movements and check that the deck operates smoothly.

By following these steps, you’ll have your Troy Bilt LTX 1842 running with a new belt in no time. Always refer to your mower’s manual for specific instructions related to your model.
