Toro Timemaster Belt Diagram and Maintenance Guide for Lawn Mowers

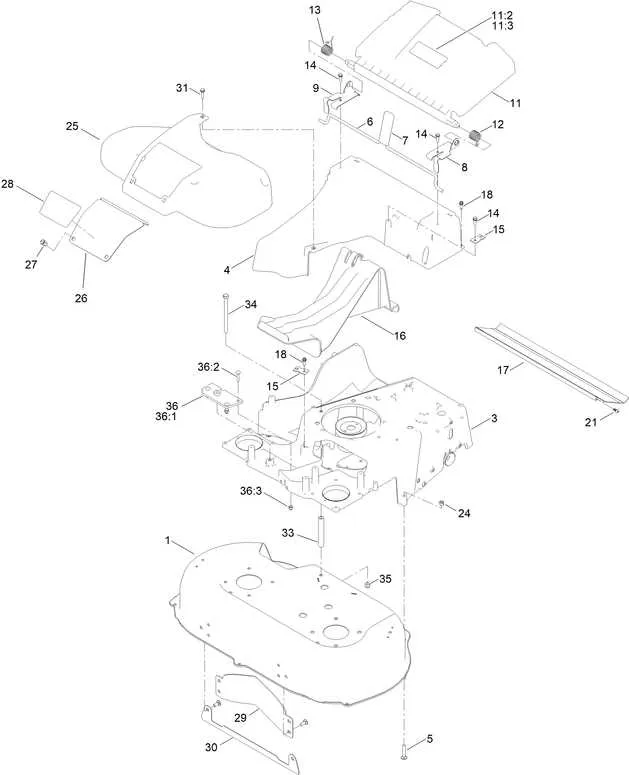

Understanding the Toro Timemaster belt system is critical for maintaining its performance and longevity. If you’re facing issues with the belt, referencing a clear diagram can save you time and frustration during repairs. This diagram provides a step-by-step guide to correctly routing the belts, ensuring that each part is properly aligned and tensioned for optimal operation.
For quick reference, the diagram includes the specific path the belt should take around each pulley, and highlights potential problem areas like tension adjustments and wear points. If your Toro Timemaster has been experiencing belt slippage or noise, carefully following this guide can help you identify the root cause and address it before it worsens.
Regular belt inspection is key to preventing premature failure. Pay attention to any fraying or stretching, and replace the belt at the first sign of damage. Following the correct belt diagram ensures your machine runs smoothly and reduces the risk of future mechanical issues. Always consult the diagram when reinstalling the belt, as improper routing can lead to more complex repairs down the road.
Toro Timemaster Belt Diagram: A Practical Guide
Check the Toro Timemaster belt diagram for precise placement and adjustments. The diagram provides a clear representation of the belt system, ensuring correct alignment and tension. When replacing the belt, follow the guide to avoid misplacement, which can cause inefficient operation or even damage.
The first step is identifying the primary and secondary belts. The primary belt drives the mower’s blade system, while the secondary belt controls the self-propelled function. Ensure both belts are in good condition and free of wear before installation.
To replace the belts, begin by removing the deck and inspecting the routing path. Refer to the diagram to understand how the belts wrap around the pulleys. The diagram shows the specific orientation of each belt, including the path of the secondary belt around the drive pulleys and the primary belt around the blade pulley system.
When installing the new belts, maintain the correct tension. The belt should not be too tight or too loose. Use a tension gauge to verify the proper tension as per the specifications in the manual. If tension is too low, the mower may fail to engage the blades properly. If it’s too high, it can cause unnecessary wear on the pulleys and belts.
Pay close attention to the belt’s routing and make sure it matches the diagram exactly. If a belt slips off or breaks, it’s often due to improper installation or misalignment. Double-check that the pulleys are not damaged and spin freely to avoid future issues.
After installation, manually rotate the blades to ensure everything operates smoothly. This helps confirm that the belts are in the correct position and the system is functioning as intended. If there are any issues, revisit the diagram and make adjustments where necessary.
Understanding Toro Timemaster Belt Routing for Proper Maintenance
To ensure smooth operation and extend the lifespan of your Toro Timemaster mower, it’s crucial to follow the correct belt routing. This setup guarantees proper power transmission to the blades and prevents unnecessary wear. Start by referencing the belt diagram specific to your model for the most accurate guidance. The belt should run through the pulleys with the correct tension–too tight or too loose can cause premature damage.
Examine the routing path regularly to identify any misalignment. Pay attention to the pulleys and ensure the belt sits evenly on all components. If you notice fraying, cracking, or slack in the belt, it may need replacing or adjusting. Adjust the tension as recommended by the manufacturer to maintain optimal performance. Be cautious when handling the belt to avoid misplacing it during maintenance. A misplaced belt could lead to uneven blade rotation or, worse, mechanical failure.
For the most efficient operation, always use high-quality replacement belts. Keep the belt and pulleys clean from debris that could cause friction and reduce efficiency. Regularly inspect the deck and surrounding areas to ensure there are no blockages or damage affecting belt performance. By staying on top of routine checks and maintaining the proper belt routing, you’ll ensure your Toro Timemaster runs at peak performance for years to come.
How to Identify and Replace Worn Toro Timemaster Belts
Check your Toro Timemaster belt for signs of wear such as cracks, fraying, or significant stretching. If the mower’s performance has dropped, or if you hear unusual sounds while operating, the belt could be the issue.
- Inspect the belt for visible damage. Look for cracks or tears, which usually indicate wear.
- Check the tension. A loose or sagging belt can affect performance and cause slipping.
- If the mower is hard to start or stalls easily, it could be due to a worn or broken belt.
If the belt shows signs of damage, it’s time to replace it. Follow these steps:
- Disconnect the spark plug to ensure safety.
- Remove the mower deck by loosening the bolts securing it to the mower frame.
- Once the deck is off, locate the belt. It should be visible and accessible.
- Take note of how the belt is routed around the pulleys before removing it. This will help when installing the new one.
- Release the tension on the belt by loosening the idler pulley or any other tensioning mechanism.
- Remove the worn belt and replace it with the new one, making sure it follows the same routing path.
- Adjust the tension if necessary, ensuring the belt is neither too tight nor too loose.
- Reassemble the mower by securing the deck back in place.
- Reconnect the spark plug and test the mower to ensure the new belt works properly.
Regular maintenance and timely belt replacement keep your Toro Timemaster running smoothly and extend its lifespan. Replace the belt if you notice any of the above symptoms, and always use a Toro-approved replacement part to ensure proper fit and function.
Step-by-Step Instructions for Reassembling Toro Timemaster After Belt Replacement
Begin by ensuring the mower is turned off and completely cool. Place it on a flat, stable surface to avoid unnecessary movement during assembly.
First, install the new belt over the pulleys. Start with the engine pulley, then move to the transmission pulley. Ensure the belt sits snugly within the pulley grooves. A belt that’s too loose or tight can cause performance issues.
Next, position the deck back into place. Align the mounting holes carefully, then insert the bolts to secure the deck. Tighten the bolts securely, but avoid over-tightening to prevent damaging the frame.
Attach the belt guard to keep the belt in position. Align the guard with the mounting holes, then tighten the screws. Double-check that the guard is firmly in place to prevent the belt from coming off during use.
Reconnect the drive cable to the deck. The cable should slide into the appropriate slot, where it will be held in place by the tension spring. Make sure the spring is properly tensioned before moving on.
Adjust the tension of the belt. Use the belt tensioner to ensure the correct amount of slack. A properly tensioned belt is crucial for smooth operation.
After reassembling, check all components for tightness. Test the mower by manually rotating the blades to ensure the belt runs smoothly. If everything moves freely, the mower is ready to go.
