Murray Riding Mower Belt Diagram and Maintenance Guide
Understanding the belt system on your Murray riding mower is key to keeping it running smoothly. If you’re experiencing issues like slipping or not starting, checking the belt is one of the first steps to take. The belt drives the mower’s blades and powers the transmission, making it a vital component in your mower’s performance.
Use the Murray riding mower belt diagram to identify the correct routing and replacement procedure. Start by locating the drive and deck belts in your mower. The diagram will show you exactly how to route the belts through the pulleys and other components, preventing damage and ensuring proper tension. It’s important to replace worn or damaged belts promptly to avoid further issues with performance.
Ensure you’re using the right size and type of belt for your model, as specified in the mower’s manual. Follow the diagram carefully to avoid misalignment. A misaligned belt can cause uneven cutting, poor performance, or even damage to the mower’s engine. Check the belt regularly for wear, cracks, or fraying to maintain peak efficiency.

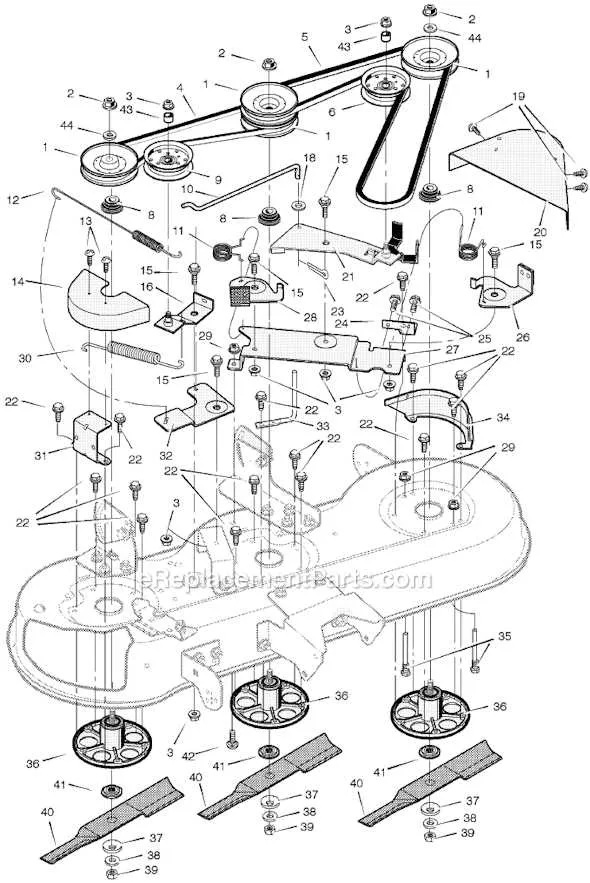

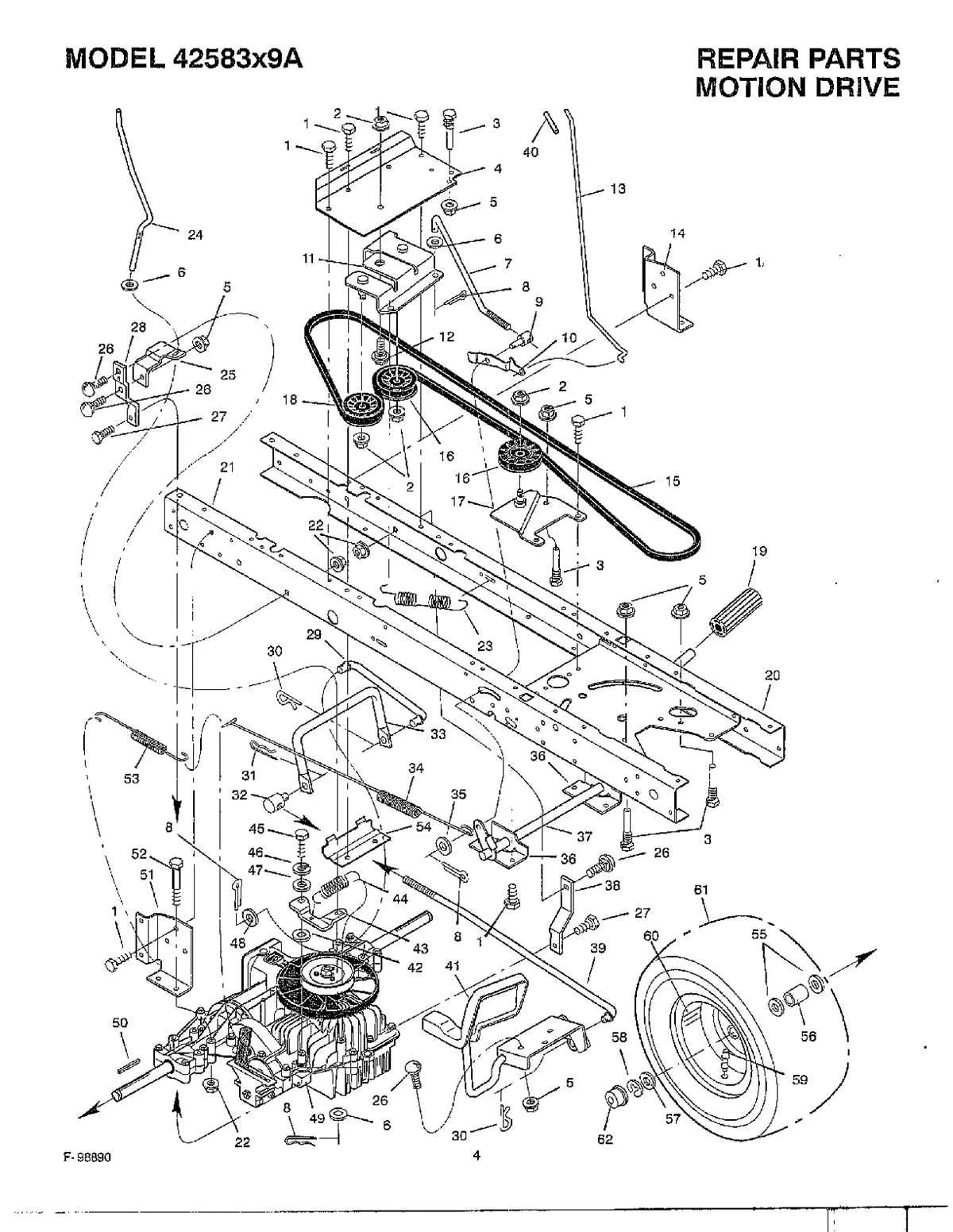

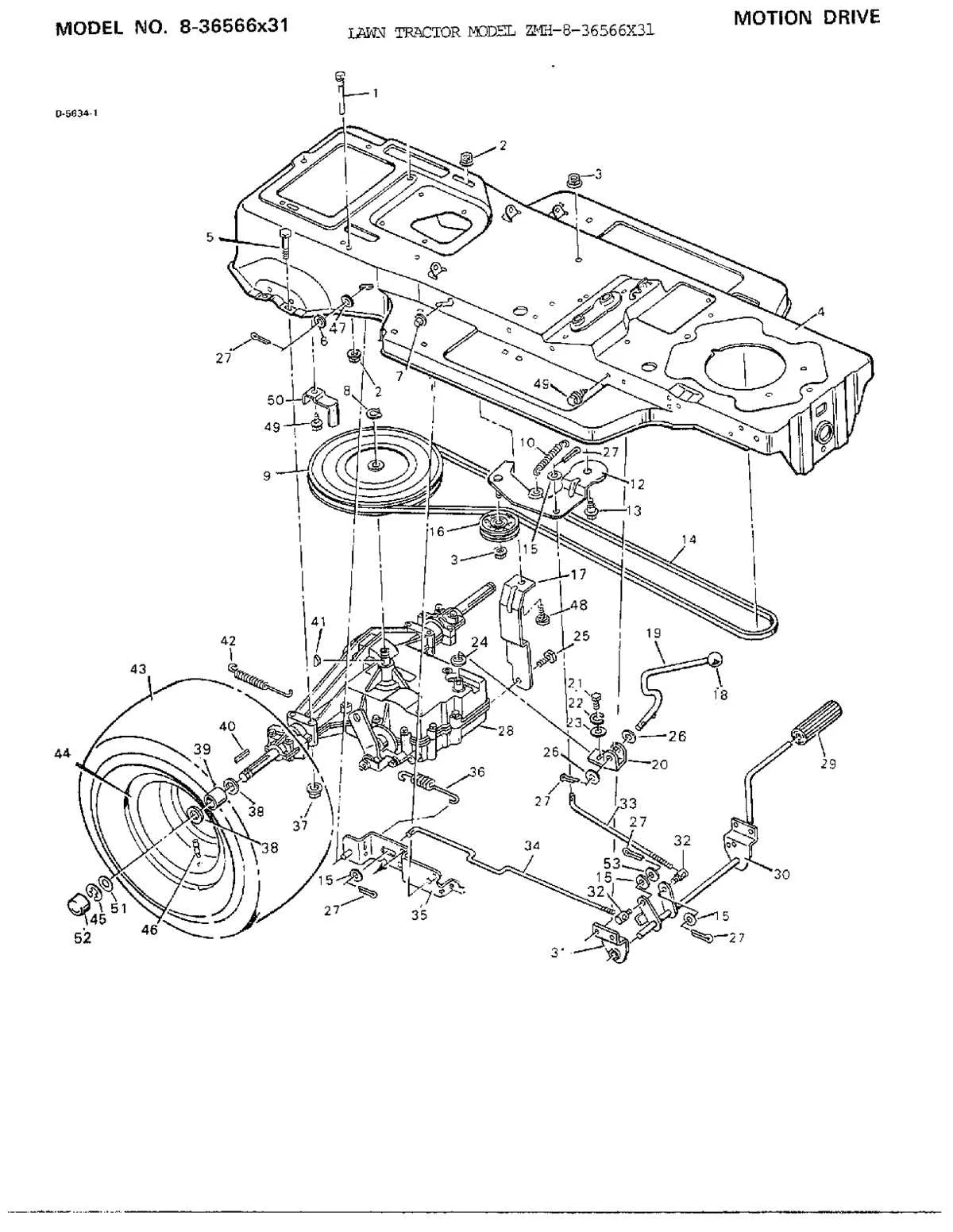

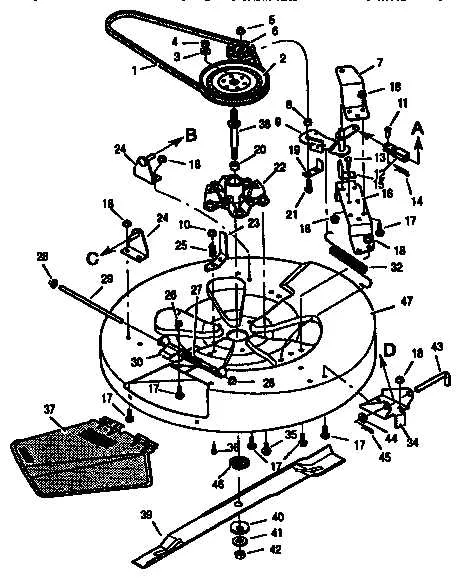

Murray Riding Mower Belt Diagram
If you’re replacing or adjusting the belts on your Murray riding mower, the belt diagram is a key tool. It provides a clear visual guide for routing the belts through the various pulleys and components. The diagram ensures that the belts run correctly, preventing slips or damage to the mower’s engine and deck.
Start by identifying the specific model of your Murray mower. Belt layouts can vary between models, so using the correct diagram is critical for accuracy. Typically, the mower’s model number is located on the frame or under the seat. Once you have the model number, refer to the manufacturer’s manual or online resources to access the precise belt diagram for your mower.
The main components to focus on are the drive belt, deck belt, and the associated pulleys. The drive belt connects the engine to the transmission, enabling forward and reverse movement. The deck belt powers the blades. Proper alignment of these belts ensures smooth operation and prevents excessive wear on the mower’s internal parts.
Follow the diagram to route the belts over the pulleys. It’s vital to ensure that the belts fit snugly but are not too tight. An overly tight belt can cause unnecessary strain on the engine, while a loose belt might slip or wear out prematurely. Double-check all pulleys for signs of wear or debris, as these can cause damage to the belts over time.
Once the belts are in place, turn the mower on briefly and check the operation of both the drive and deck belts. If you notice any slippage, adjust the tension or alignment accordingly. Regular maintenance of the belts, including cleaning and lubrication of the pulleys, will extend their lifespan and keep your mower in peak condition.
How to Read the Murray Riding Mower Belt Diagram
Check the belt diagram closely to identify the route of each belt. Make sure you know the part numbers and references to avoid confusion when replacing or adjusting the belt.
The belt diagram typically shows a clear layout of the mower’s system, marking where the belt starts, where it loops, and how it engages with pulleys. Examine the direction of the arrows; they indicate the rotation direction, which is critical for proper installation.
Follow these steps to make the most of the diagram:
- Identify Belt Path: Locate the starting and ending points of the belt. Usually, it begins at the engine pulley and ends at the mower deck or transmission.
- Check Pulley Layout: The diagram shows which pulleys guide the belt. Understand the size and placement of each pulley to ensure you’re looking at the right parts.
- Follow Belt Routing: The diagram will typically include a specific order for installing the belt around pulleys. Cross-referencing each pulley position with the diagram ensures you’re not missing any steps.
- Match Belt Type: The diagram often includes details about the belt’s type, such as the length or the specific model needed for your mower. Make sure the replacement belt matches these specifications.
- Understand Tension: The diagram may also show the appropriate tension for the belt. Over-tightening or under-tightening can cause premature wear or failure, so adjust accordingly.
By following these steps and closely examining the diagram, you can correctly route and replace the belt without unnecessary adjustments or errors. Always refer to the mower’s manual for additional clarifications if needed.
Step-by-Step Guide to Replacing the Belt on a Murray Riding Mower
First, make sure to disengage the mower’s blade and turn off the engine. Disconnect the spark plug wire to prevent accidental starts. Use a jack or blocks to lift the mower for easier access to the belt.
Next, locate the belt on the mower deck. You’ll typically find it running along the deck pulleys. Examine the belt’s condition to confirm whether replacement is necessary.
Remove the old belt by loosening the tensioner pulley. You may need to unbolt the pulley mounting to free the belt. Gently slide the belt off the pulleys, taking note of its routing for reassembly.
With the old belt removed, compare the new one to ensure it matches the size and type of the original. Lay the new belt over the pulleys following the exact path of the old one. It’s crucial to ensure it’s properly aligned in the grooves of each pulley to avoid premature wear.
Reinstall the tensioner pulley, ensuring the belt is taut but not overly tight. Tighten any bolts you removed during the process. Reconnect the spark plug wire and lower the mower back down.
Finally, test the mower by engaging the blade and running it for a few minutes. Check for any unusual noises or issues, ensuring the belt operates smoothly.
Common Belt Issues and Troubleshooting for Murray Riding Mowers
If your Murray riding mower is showing signs of poor performance, the belt could be the issue. A worn, loose, or damaged belt can cause a variety of problems. Here’s how to identify and fix common belt-related issues.
One of the most common problems is a slipping belt. If the mower isn’t cutting properly or if you hear a squealing noise, the belt may be too loose. To fix this, check the belt tension. If it appears slack, you can adjust the tension by tightening the idler pulley or replacing the worn-out belt. If the belt has stretched over time, it may need replacement. Inspect the belt for any visible damage, such as cracks or fraying. A damaged belt should be replaced immediately to avoid further damage to the mower.
Another issue is the belt coming off entirely. This often happens when the belt has become misaligned or if one of the pulleys is worn out. Ensure that all pulleys are properly aligned, and the belt routing matches the diagram for your specific mower model. If the belt is constantly coming off, it may be time to replace worn pulleys that can no longer hold the belt in place.
In some cases, you might experience poor cutting performance even though the belt looks fine. This could be due to a misadjusted deck height or an obstruction around the belt or pulleys. Inspect the mower deck for any debris or build-up that could prevent the belt from moving freely. Clear away any obstructions, and if necessary, clean or replace the belt to restore smooth operation.
Always check the belt periodically as part of regular maintenance. Keeping it in good condition not only improves performance but also helps prevent expensive repairs down the line. Regularly inspect the belt for signs of wear, and replace it as needed. If you’re unsure about the exact cause of a belt issue, consult the mower’s manual or seek assistance from a professional technician.
