Murray M175 42 Belt Diagram and Assembly Guide

If you’re working with the Murray M175 lawn mower, understanding the correct belt diagram is crucial for smooth operation. This diagram shows how the drive belt should be routed through the system, ensuring that all components function properly and efficiently. Proper installation helps prevent premature wear and tear on the belt, saving you time and money on repairs.

To begin, identify the various pulleys involved in the system. You’ll typically find a front, rear, and idler pulley, each playing a key role in ensuring the belt stays taut and aligned. Follow the specific route as outlined in the diagram, ensuring the belt sits properly in each pulley groove for maximum performance.

One common issue that can arise is a misaligned or loose belt. This can cause the mower to lose power or run unevenly, affecting the quality of your cut. Make sure to check the tension regularly and adjust it as needed, based on the diagram. If the belt appears worn out or damaged, replace it with the correct size to avoid further complications.

Lastly, double-check the diagram before reassembling the mower to ensure all components are correctly aligned. This small step will help prevent frustration down the road, keeping your Murray M175 running like new.

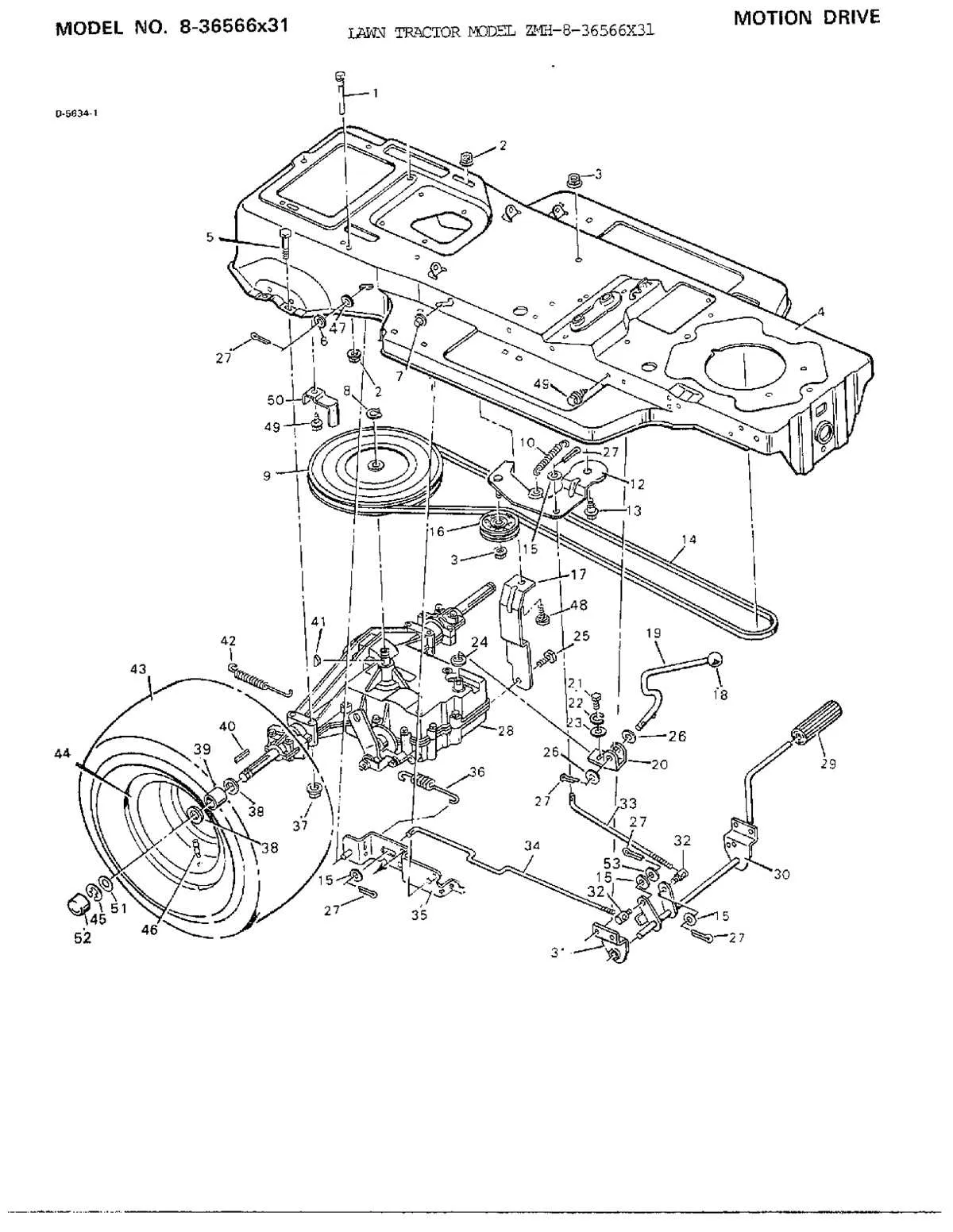

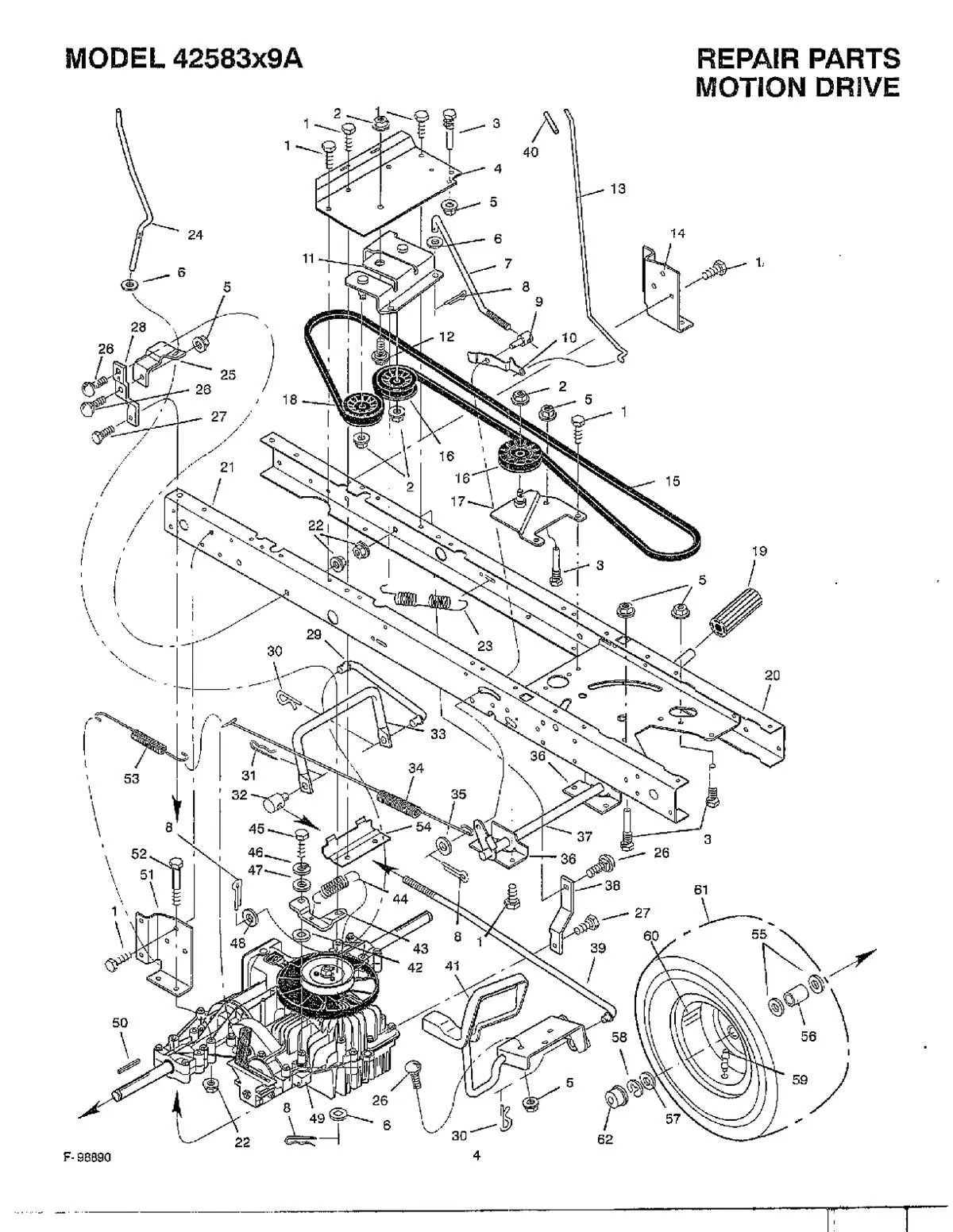

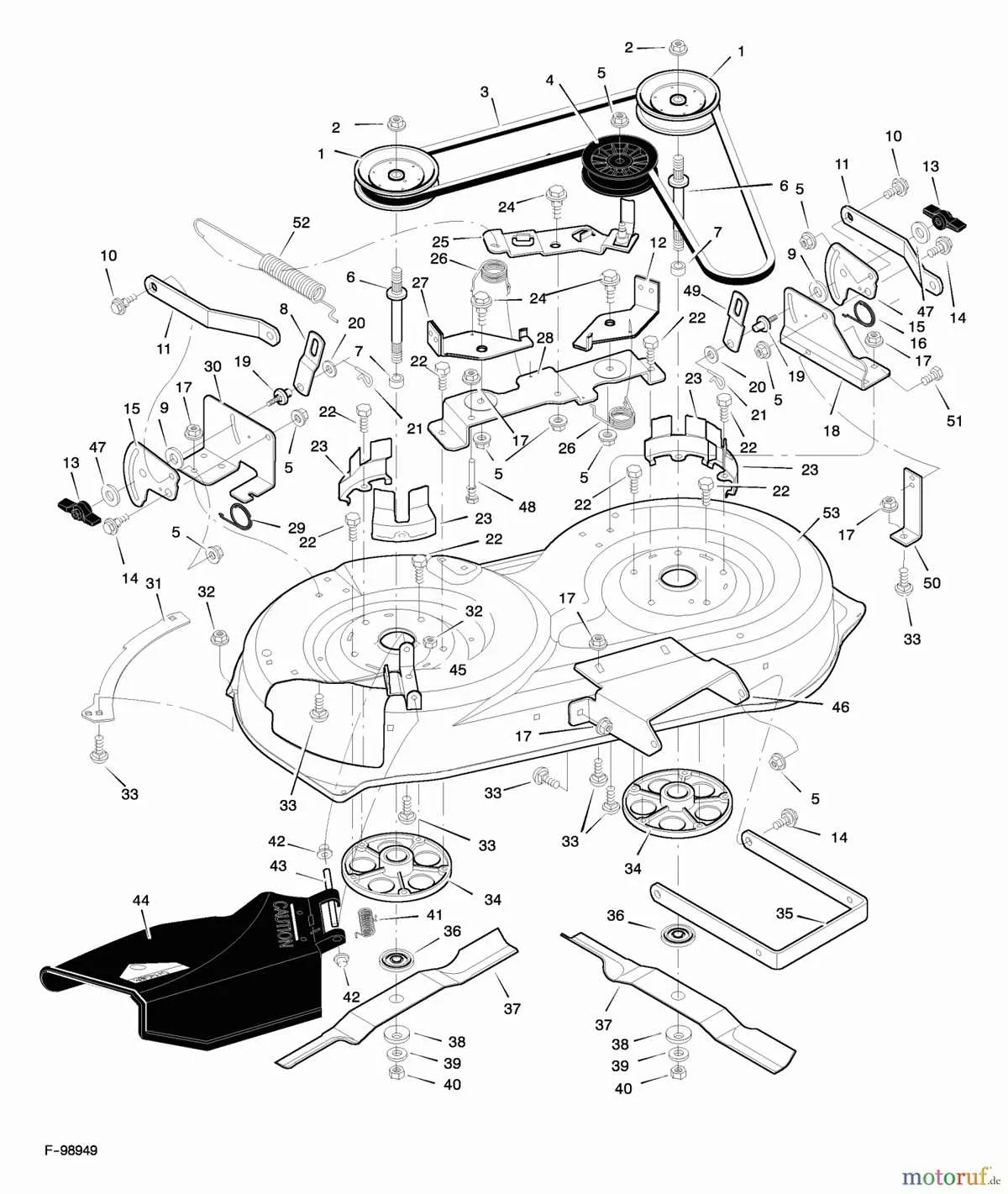

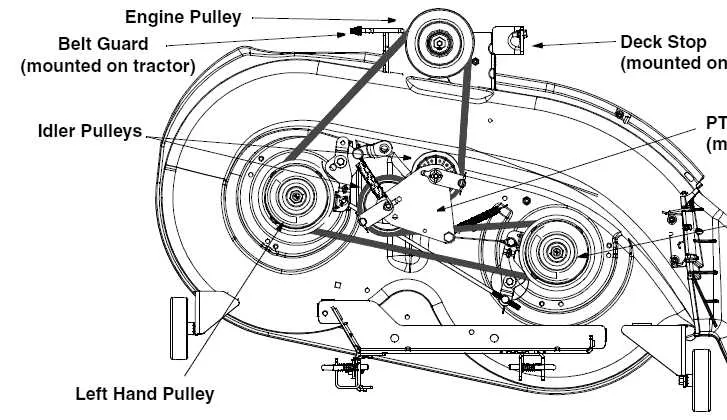

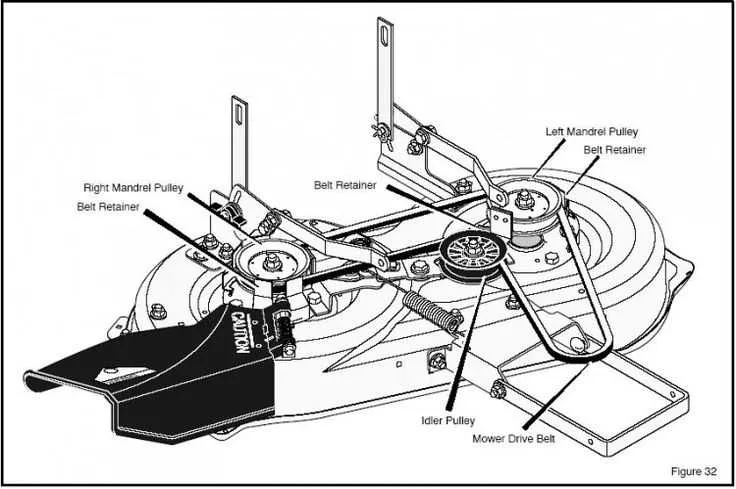

Murray M175 42 Belt Diagram

To replace or maintain the belt on a Murray M175 42-inch mower, refer to the belt diagram for the correct configuration. This diagram outlines the precise path the belt must follow around pulleys and other components. Be sure to use the right type and length of belt to prevent premature wear or damage.

Start by positioning the mower on a stable surface. Lift the mower deck and remove any debris that may obstruct the belt. Take note of the belt routing, which can be seen in the diagram. For ease of reference, the diagram typically includes the location of each pulley and idler, along with how the belt interacts with them. The diagram should also clarify whether the mower features a spring-loaded tension system to ensure proper belt tightness.

Check the belt’s condition before replacement. If the belt shows any signs of wear, cracks, or fraying, it’s time for a new one. Avoid installing a belt that is too tight or too loose, as either condition can reduce efficiency and lead to further issues. Proper installation ensures smooth operation and avoids unnecessary strain on the mower’s components.

Once the new belt is installed, refer to the diagram to verify the routing one more time. This will help ensure that everything is in the correct position. Afterward, test the mower at low speed to confirm that the belt moves freely and doesn’t slip off. Make adjustments as needed, and always follow the manufacturer’s recommendations for maintenance.

How to Properly Align the Murray M175 42 Belt in the System

First, ensure the system is powered off and the key is removed from the ignition. This prevents accidental starts while working with the belt system. Begin by locating the belt routing diagram, which is crucial for proper alignment. If you don’t have the diagram, refer to the mower’s manual for guidance.

Next, check the belt tension. A loose belt can slip, while a tight one can cause premature wear. The tension should be just enough to allow slight deflection when pressing on the belt. Use the tension adjustment mechanism to correct any slack or tightness. This step ensures the belt moves smoothly without unnecessary friction or strain on the pulleys.

Inspect the pulleys for any wear or damage. A worn pulley can cause the belt to misalign, so it’s important to replace any damaged components before proceeding. When everything is in good condition, manually rotate the belt by hand to ensure it moves freely over the pulleys without binding or rubbing against any part of the system.

With the belt in place, carefully observe the alignment of the belt with the pulleys. The belt should sit evenly within the grooves, not riding too high or too low. Misalignment can cause uneven wear and reduce the life of both the belt and the system.

Finally, double-check the alignment by running the mower at low speed. Observe the belt’s movement for any signs of slippage, uneven movement, or unusual noise. If you notice any of these issues, recheck the tension and pulley alignment until the belt runs smoothly and efficiently.

Step-by-Step Guide to Replacing the Murray M175 42 Belt

Start by ensuring the mower is powered off, the spark plug is disconnected, and the engine is cool before proceeding with any repairs. This minimizes risks while working on the equipment.

Next, lift the mower deck using a jack or lift. This provides enough clearance to access the components that need attention. Make sure to secure the mower in place so it doesn’t shift during the process.

• Remove the Blade: Loosen the bolt that holds the blade in place using a socket wrench. Remove the blade carefully, as it may still have sharp edges.
• Disconnect the Old Belt: Locate the drive belt around the mower’s pulleys. Loosen the tension on the belt by removing any tension spring or adjusting bolts that hold it tight. Remove the belt from the pulleys.
• Check the Pulleys: Inspect the pulleys for any damage or wear. If any parts appear worn out, replace them before installing the new belt. Smooth running pulleys will ensure the longevity of the new belt.
• Install the New Belt: Place the new Murray M175 42 belt around the pulleys. Make sure the belt is aligned correctly and rests in the grooves of the pulleys. It should not be twisted or loose.
• Reinstall the Blade: After securing the new belt, reinstall the blade and tighten the bolt to secure it properly.
• Test the Tension: Reattach any tension spring or adjustment bolts. Make sure the belt has proper tension; it should not be too tight or too loose. A properly tensioned belt ensures efficient operation.

Reconnect the spark plug and lower the mower deck. Start the engine and check for smooth operation. If everything functions correctly, the replacement is complete.

Common Issues with the Murray M175 42 Belt and How to Fix Them

1. Belt Slipping

If the belt is slipping during operation, it may be too loose or worn. Check the belt tension by examining the tension springs or adjusting the belt guide. If it’s worn, replace it with a new one. A worn-out belt will show signs of fraying or uneven wear on the surface.

2. Belt Misalignment

Misalignment can cause the belt to wear unevenly and lead to poor performance. Inspect the pulleys for any signs of misalignment. Adjust them to ensure they are positioned correctly. You can check alignment by looking at the belt’s path and ensuring it runs straight over the pulleys.

3. Broken or Frayed Belt

Inspect the belt for cracks, frays, or breaks. A damaged belt will compromise the mower’s performance. Replace any belt that shows visible damage. It’s critical to use the correct replacement part for your model to avoid further issues.

4. Overstretching the Belt

When the belt is too stretched, it won’t grip the pulleys properly, leading to inefficient operation. You can test the tension by pressing on the belt with your finger; it should have slight resistance but not feel too loose. If necessary, adjust the tension or replace the belt if overstretched.

5. Pulley Issues

Check for any damage to the pulleys that could cause the belt to slip or wear prematurely. Look for wear or misalignment in the pulleys, and make sure they spin freely. If they are cracked or bent, replace them. Also, ensure the pulley bearings are lubricated to reduce friction.

6. Incorrect Belt Size

Using the wrong belt size can lead to slipping, stretching, or damage. Always double-check that the replacement belt is the correct size for your Murray M175 42 model. The wrong belt can cause undue stress on the system, resulting in premature failure.
